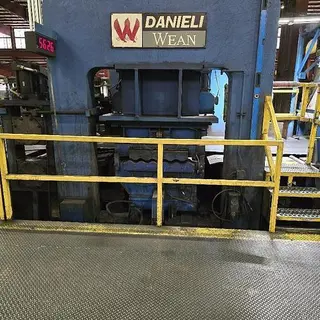

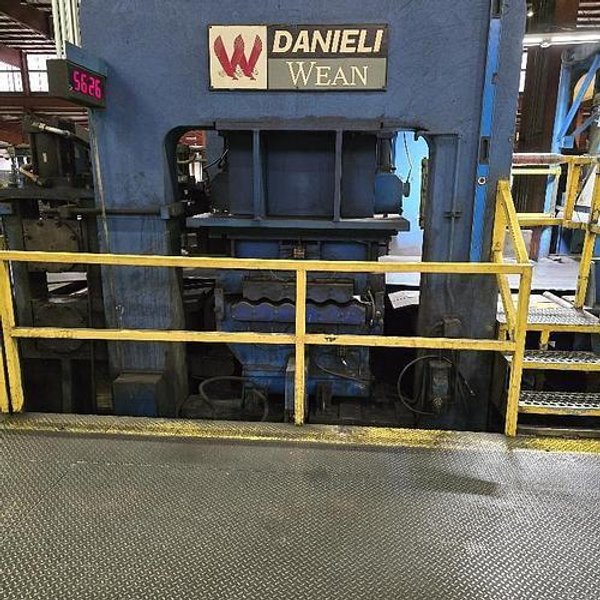

96" x .750" DANIELI-WEAN, CASSETTE LEVELER
Brand
Not specified
Category
Type
Model
Not specified
Stock #
117151
Year
Not specified
Condition
Used
Location
Not specified
|
SPECIFICATIONS:
MANUFACTURER: DANIELI-WEAN
PRODUCT WIDTH: 96" MAX., 29" MIN.
THICKNESS: .750" MAX. (45,000 PSI YIELD STRENGTH MAX.), .100" MIN.
YIELD STRENGTH:
-MILD STEEL: .625" x 96" WIDE, 60,000 PSI MAX.
-HIGH STRENGTH: .500" x 96" WIDE, 100,000 PSI MAX.
LINE SPEED: 250 FPM MAX.
LINE DIRECTION: LEFT TO RIGHT
PINCH ROLL SIZE: 9.850" (250 MM) DIA x 102" (2600 MM) FACE
DUAL-CASSETTE AND FLOOR MOUNTED INJECTION SYSTEM:
(11) HEAVY-GAUGE CASSETTE SPECIFICATIONS:
PINCH ROLL SIZE: 9.850" (250 MM) DIA x 102" (2600 MM) FACE
WORK ROLL QUANTITY: 11-ROLL (5 OVER 6)
WORK ROLL SIZE: 5.500" (140 MM) DIA x 104" (2641 MM) FACE
BACK UP FLIGHTS: (3) TOP AND (7) BOTTOM
(17) LIGHT GAUGE CASSETTE SPECIFICATIONS:
WORK ROLL QUANTITY: 17-ROLL (8 OVER 9)
WORK ROLL SIZE: 3.500" (89 MM) DIA x 104" (2641 MM) FACE
BACK UP FLIGHTS: (3) TOP AND (7) BOTTOM
MAIN DRIVE MOTOR:
500 HP DC
500/1300 RPM
|
