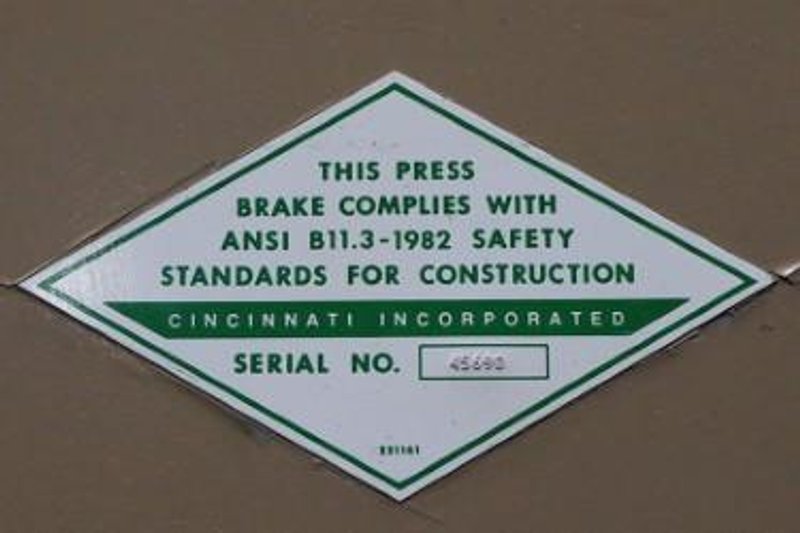

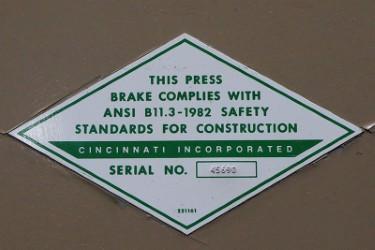

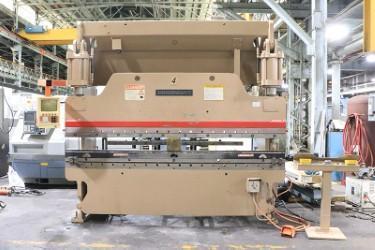

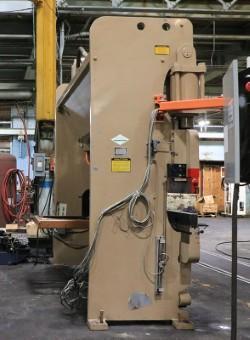

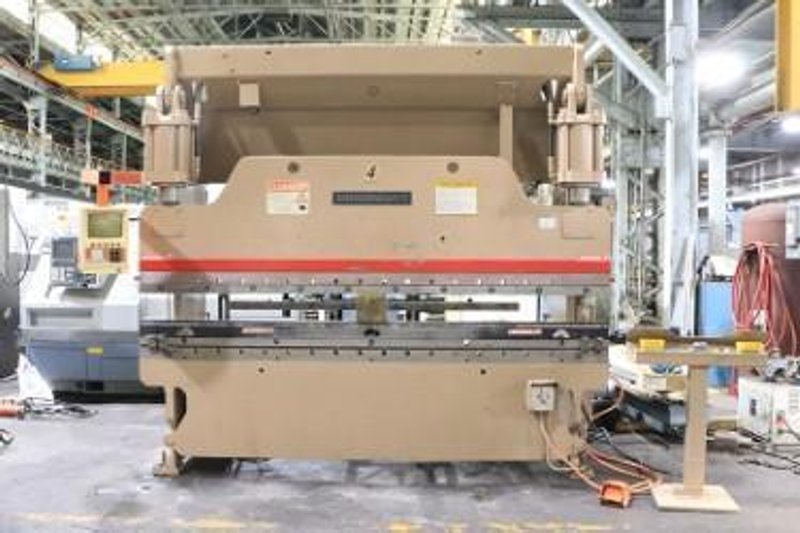

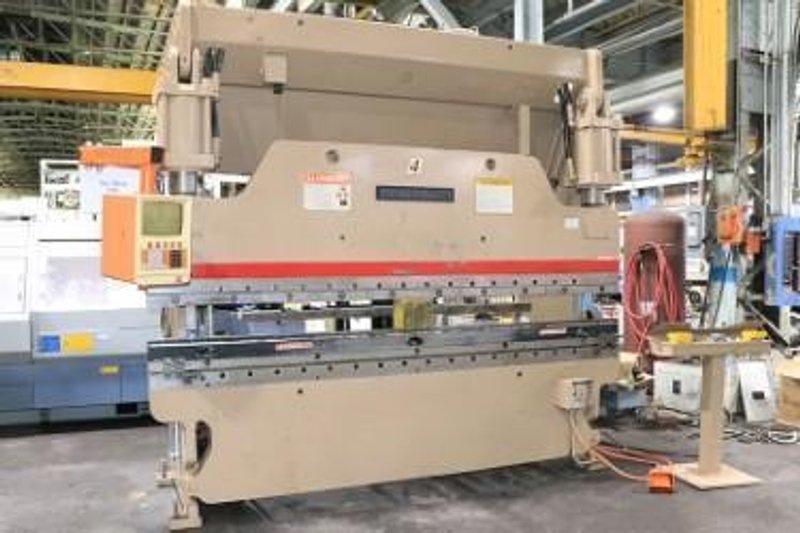

135 Ton x 10' CINCINNATI #135CBX8, HYDRAULIC PRESS BRAKE

135 Ton x 10' CINCINNATI #135CBX8, HYDRAULIC PRESS BRAKE

Name: 135 Ton x 10' CINCINNATI #135CBX8, HYDRAULIC PRESS BRAKE
Brand: Unknown
SKU: 117150
Availability: PreOrder

Brand

Not specified

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

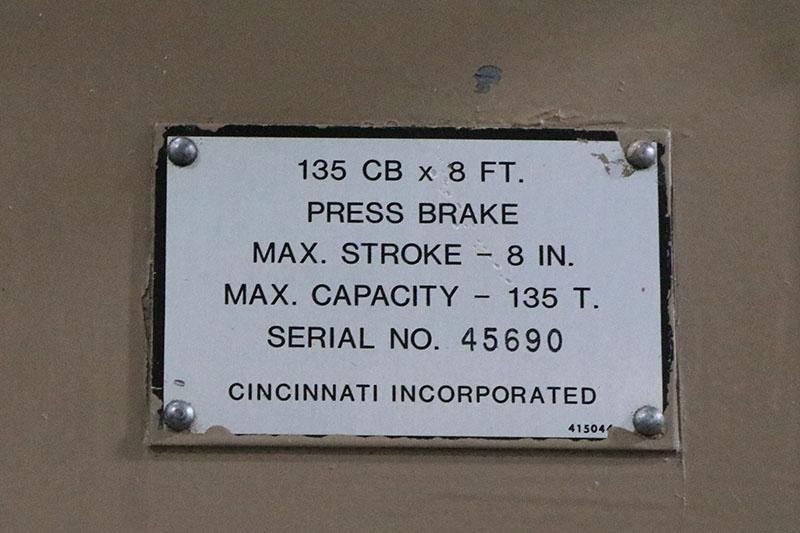

TONNAGE ...................... 135 TONS

OVERALL LENGTH ............... 10'

DIST. BETWEEN HOUSINGS ....... 8'6"

BENDING CAP. (MILD STEEL) .... 3/16" X 10'3"

1/4" x 7'6"

1/2" x 4'8"

STROKE ....................... 8"

THROAT DEPTH ................. 7"

OPEN HEIGHT .................. 15"

CLOSED HEIGHT ................ 7"

RAM SPEED - HIGH ............. 136 IPM

MEDIUM ........... 65 IPM

LOW .............. 16 IPM

RETURN ........... 122 IPM

MOTOR ........................ 25 HP

Dimensions: 126" x 48" x 122" high

Weight: 16,000 lbs

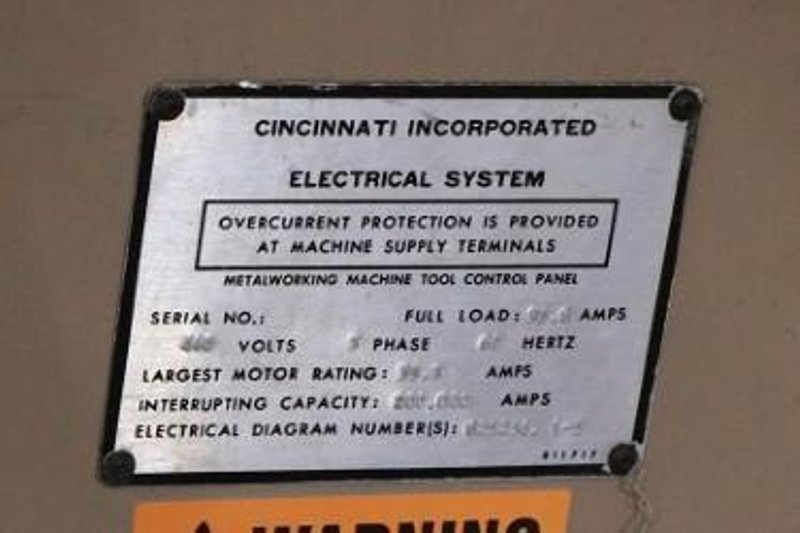

CURRENTLY 480 VOLT / 3 PHASE

EQUIPPED WITH:

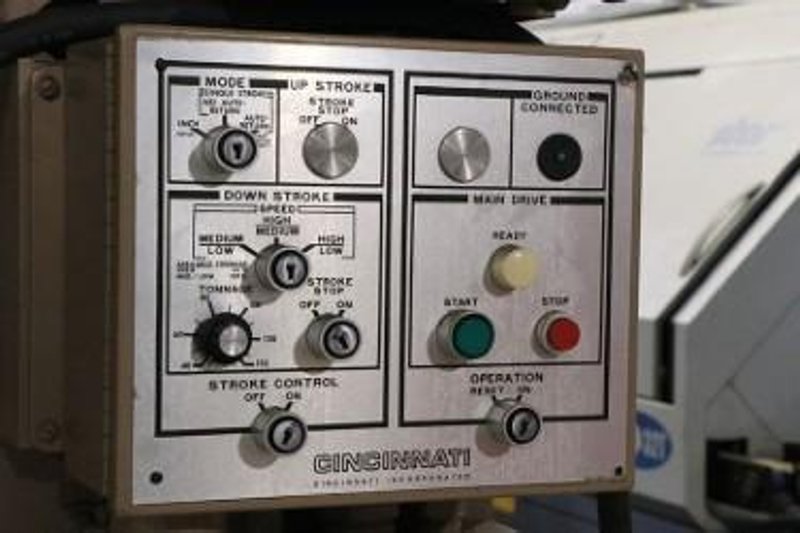

- LOW, MEDIUM & HIGH SPEED MODES

- ADJUSTABLE TONNAGE

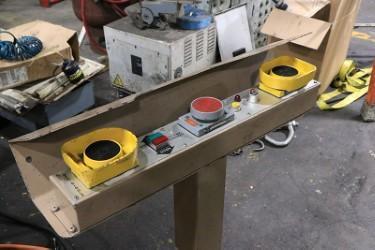

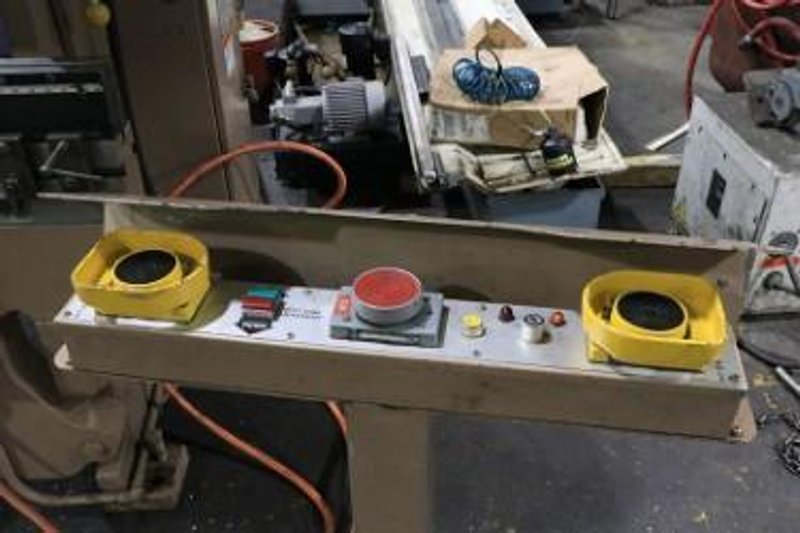

- PEDESTAL MOUNTED PALM BUTTONS

- FOOT PEDAL

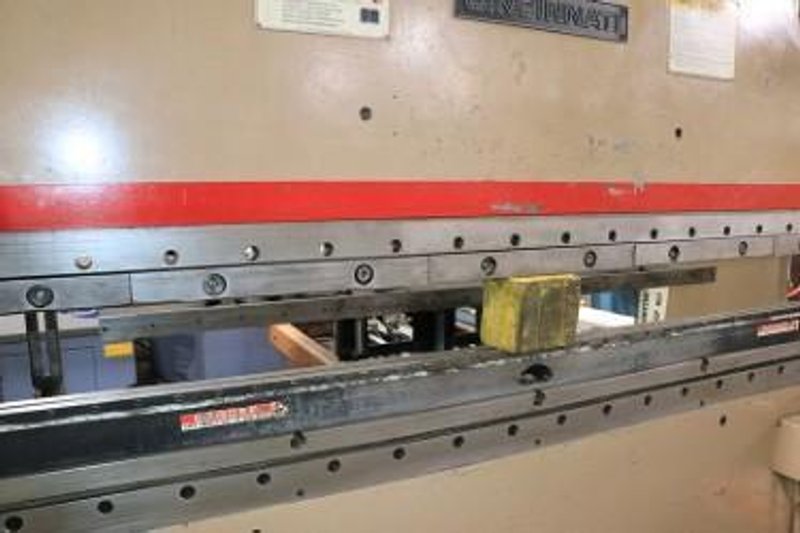

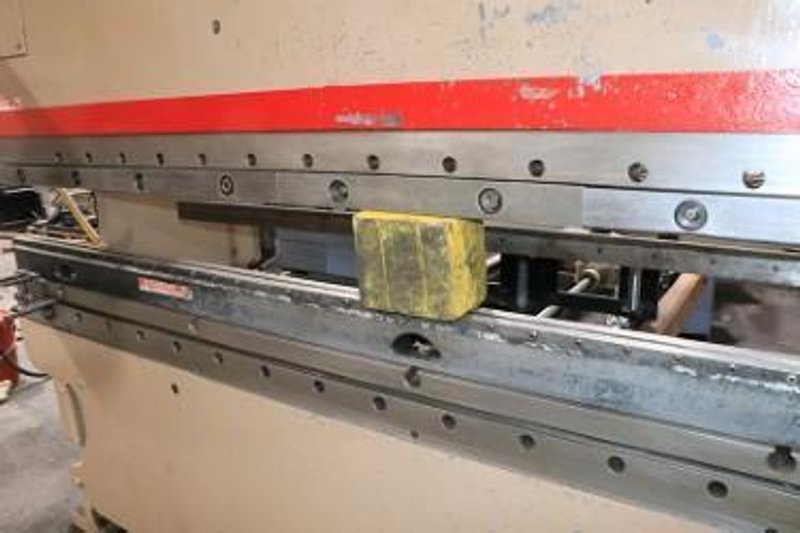

- LOWER DIE RAIL

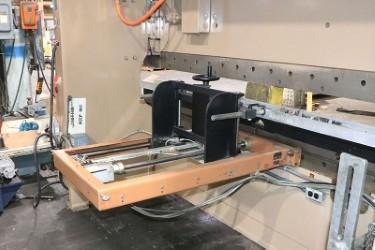

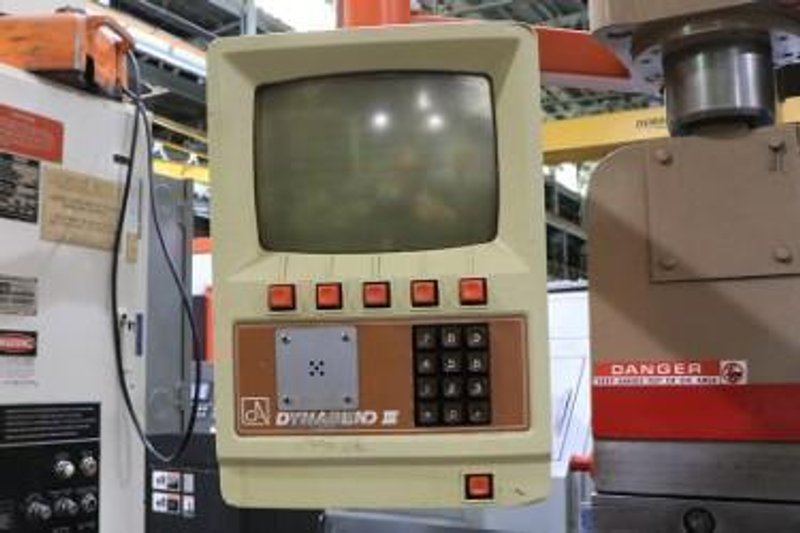

- NON-WORKING DYNA-BEND II BACK GAUGE
