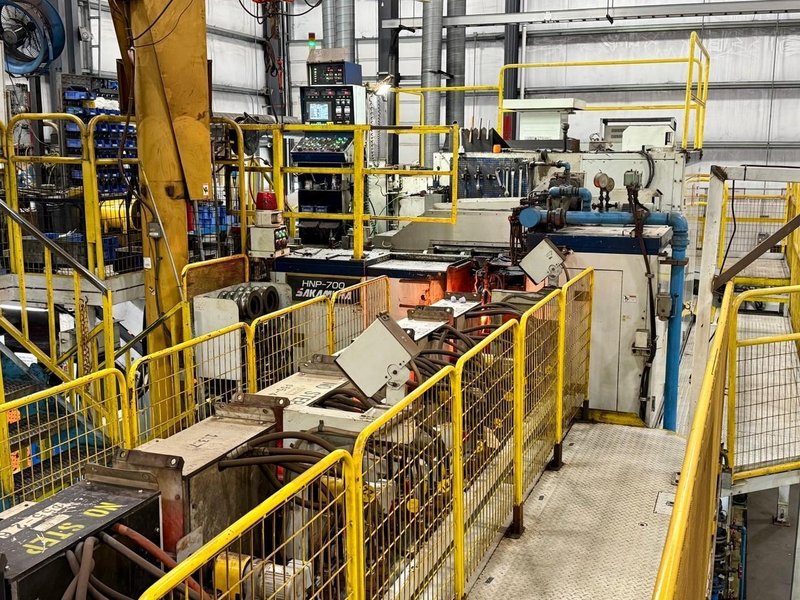

SAKAMURA #HNP-700, HOT FORMER
Brand
Not specified
Category
Type
Model
Not specified
Stock #
117148
Year
2018
Condition
Used
Location
Not specified
|
YEAR: 2018
SPECIFICATIONS:
MAX. BAR DIAMETER ......................... 40 - 55MM
MAX. BAR LENGTH ........................... 1600 (5/14')-7000MM (23')
FEEDING SPEED ............................. 20-82 MM/S
BAR HEATER ................................ MITSUI - 1800 KW/2000 HZ (2018)
NUMBER OF FORGING STATIONS ................ 3
PRODUCT DIAMETER .......................... 50~95mm
PRODUCT HEIGHT ............................ 40mm
FORGING PRESSURE .......................... 7,000kN
MATERIAL DIAMETER ......................... 19 ~ 55mm
CUTTING LENGTH ............................ 40~70mm
CUTOFF BLANK WEIGHT (GR) .................. 1.00kg
DIE CENTER DISTANCE ....................... 225mm
#2 DIE DIAMETER ........................... 223mm
KNOCKOUT STROKE ........................... 50mm
RAM (#1)................................... 100mm
RAM (#2,#3) ............................... 270mm
PIECES PER MINUTE ......................... 70~100
MAIN MOTOR ................................ 160kw
MACHINE DIMENSIONS ........................ 4.0x6.5x2.7 (WxLxH)
MACHINE WEIGHT ............................ 90,000kg
AIR PRESSURE .............................. 0.6Mpa
FEATURES:
AUTOMATIC LUBRICATION SYSTEM
COOLANT SYSTEM, SEPARATE, RECIRCULATING
AUTOMATIC BAR FEEDING SYSTEM
MITSUBISHI PLC CONTROLS - TOUCH PANEL
OMRON SENSORS
NSD VARI CAM
MITSUBISHI ELECTRICS
OPERATORS' PLATFORM
FORGING MONITOR
MANUALS, DRAWINGS, SCHEMATICS, SPARE PARTS
INDUCTION HEATER
Induction bar heater:
Max. bar dia: 40 ~ 55mm Max. bar length: 1600 (5-1/4’)~ 7000mm (23’) Feeding speed: 20 ~ 82mm/s Bar Heater: MITSUI- 1800kW / 2000Hz (2018) |
