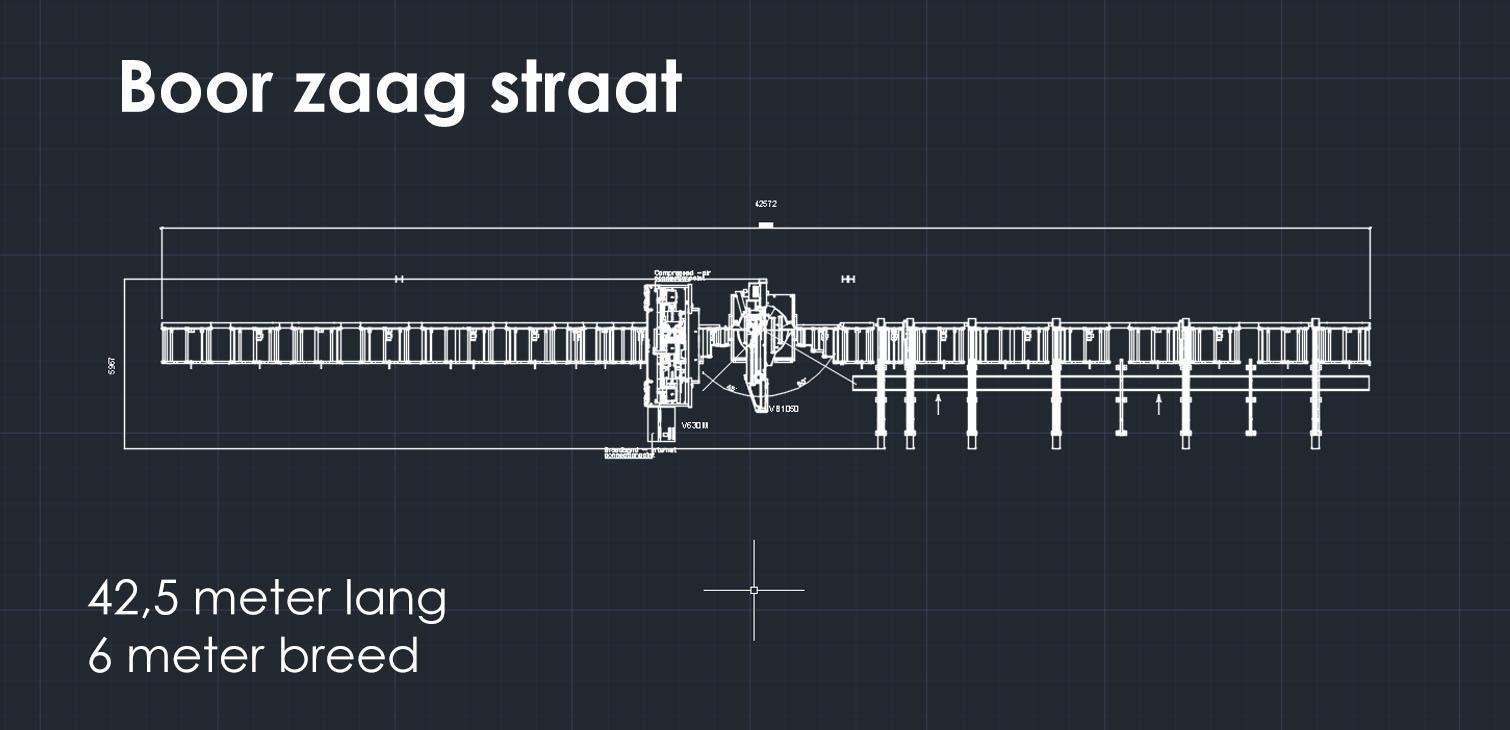

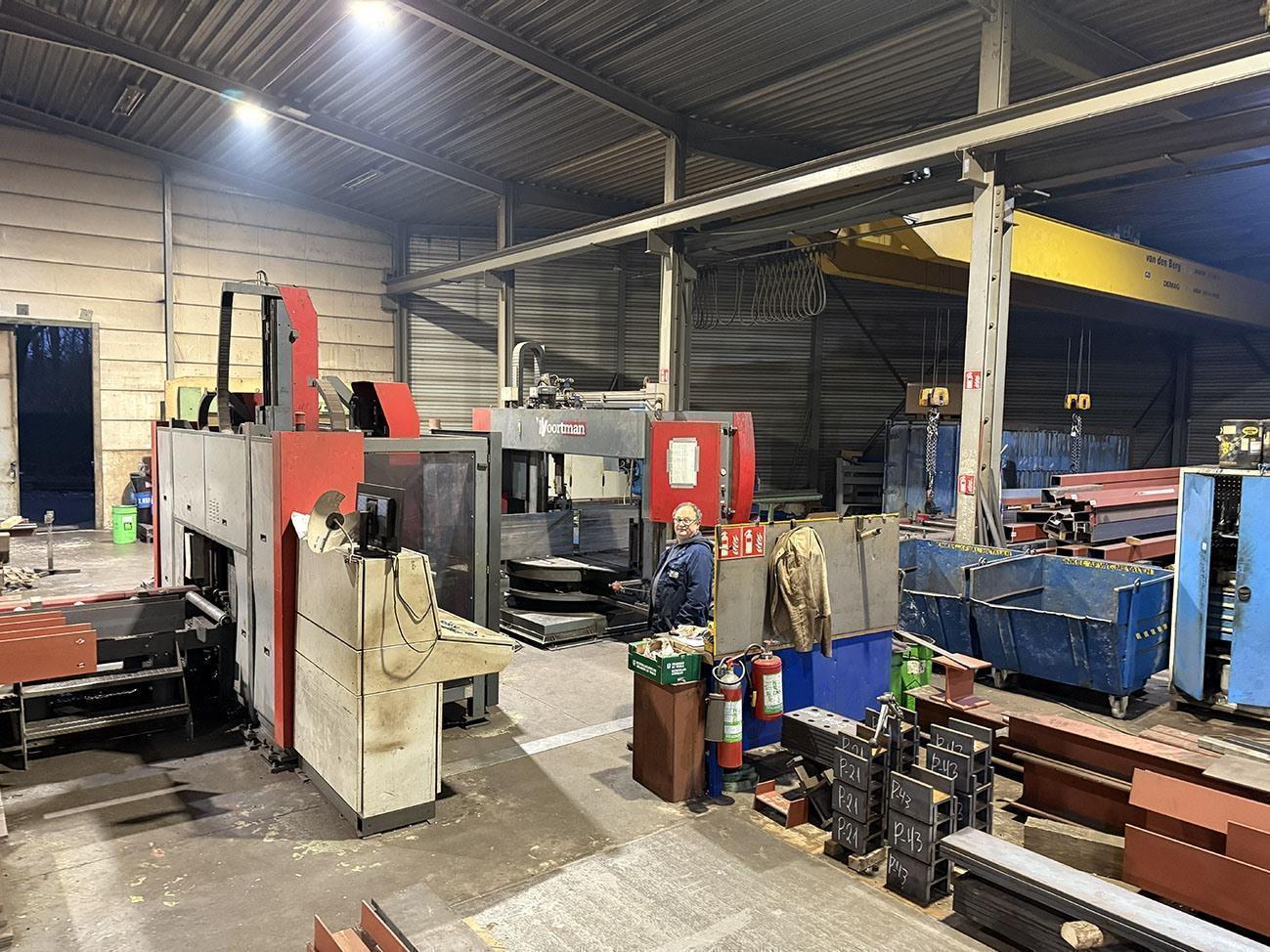

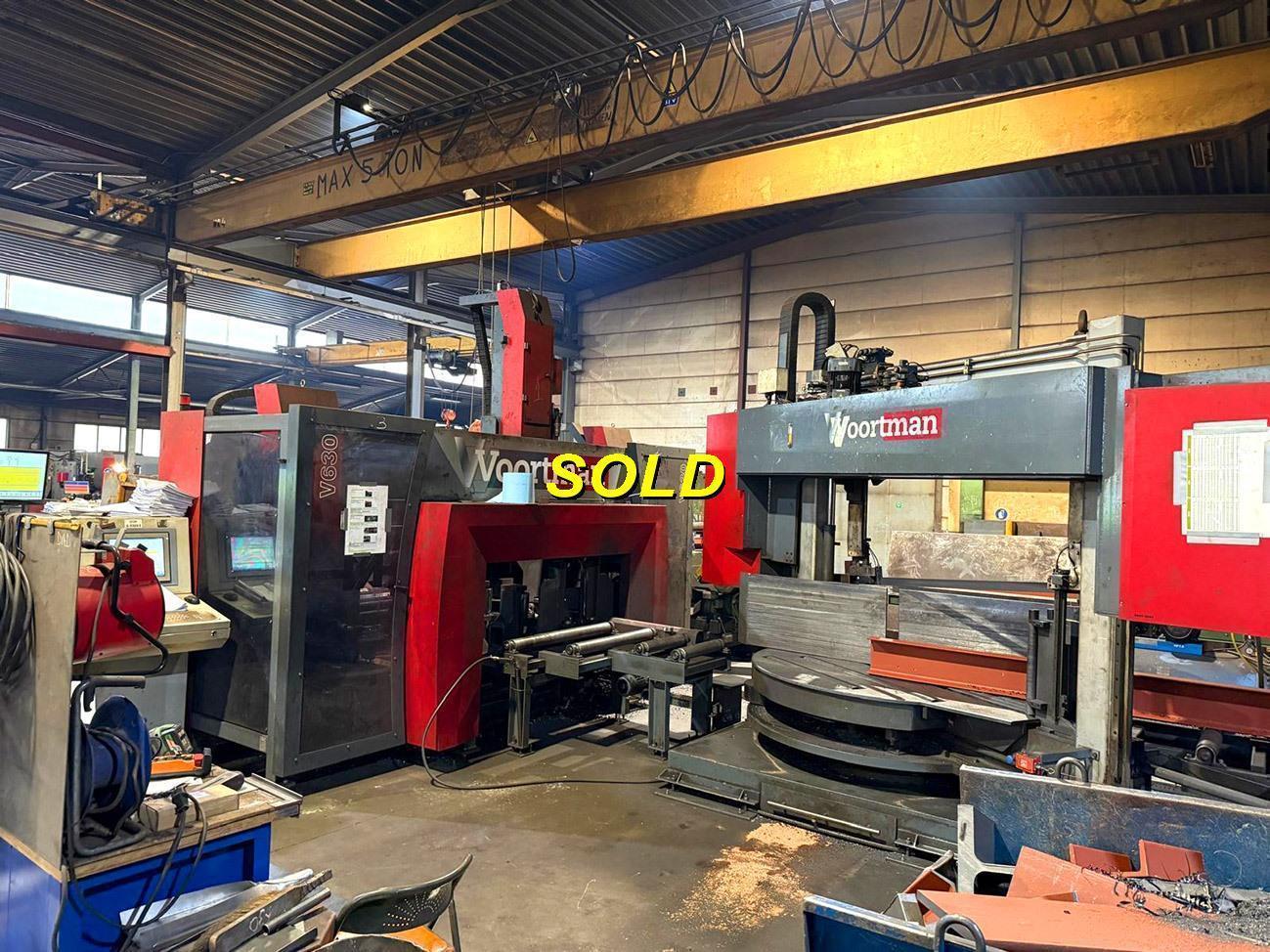

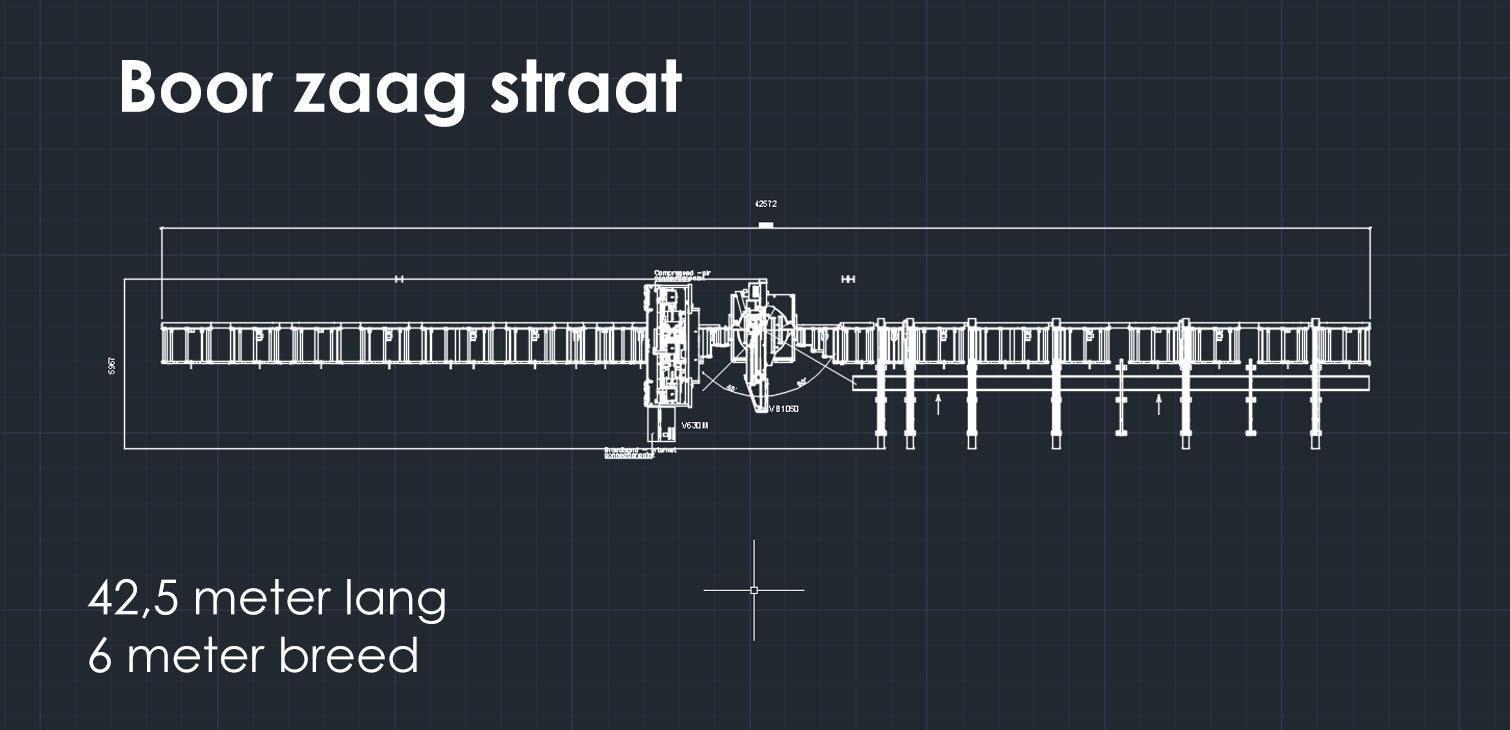

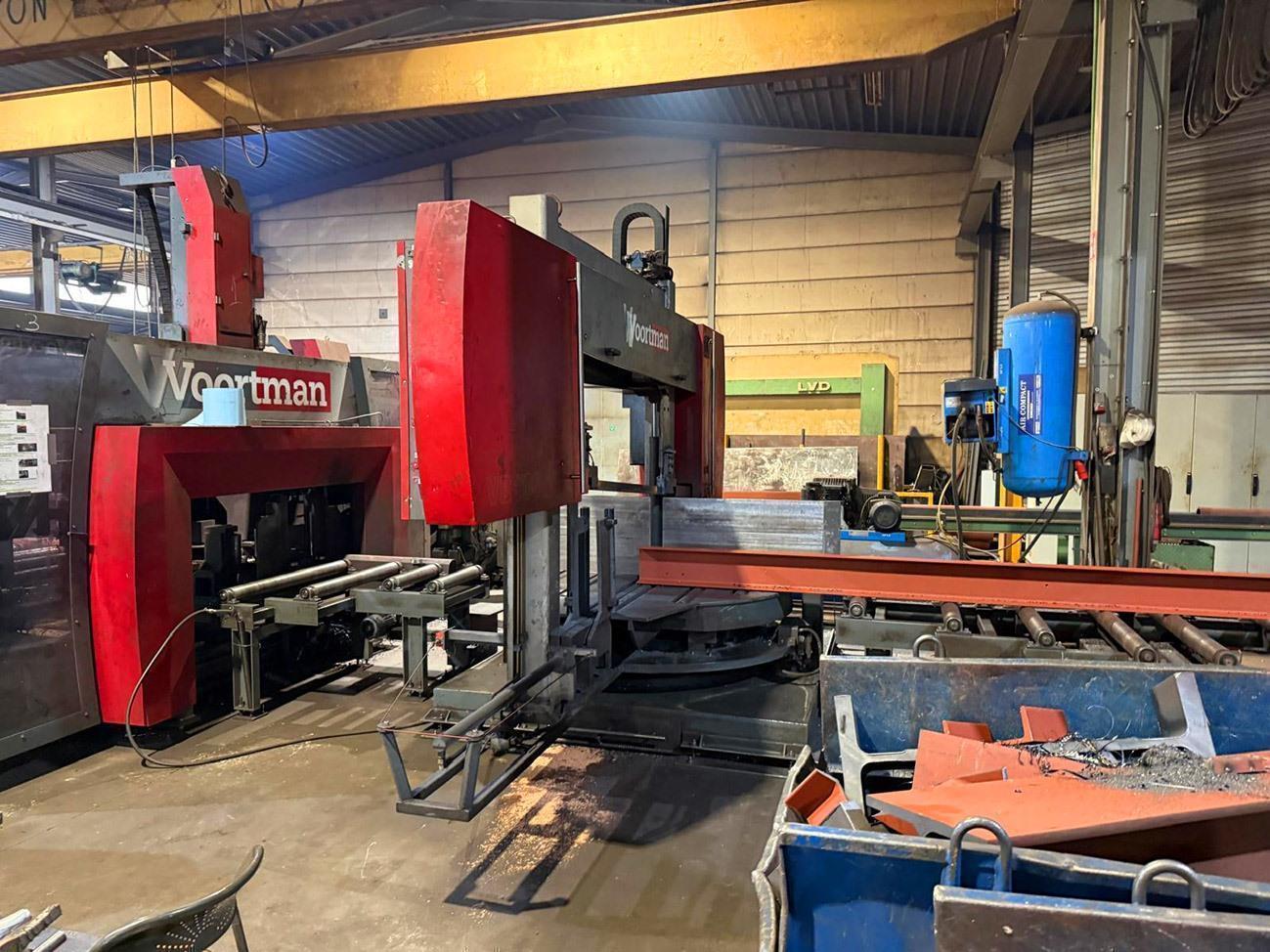

Voortman 1250 x 500 mm drill saw line

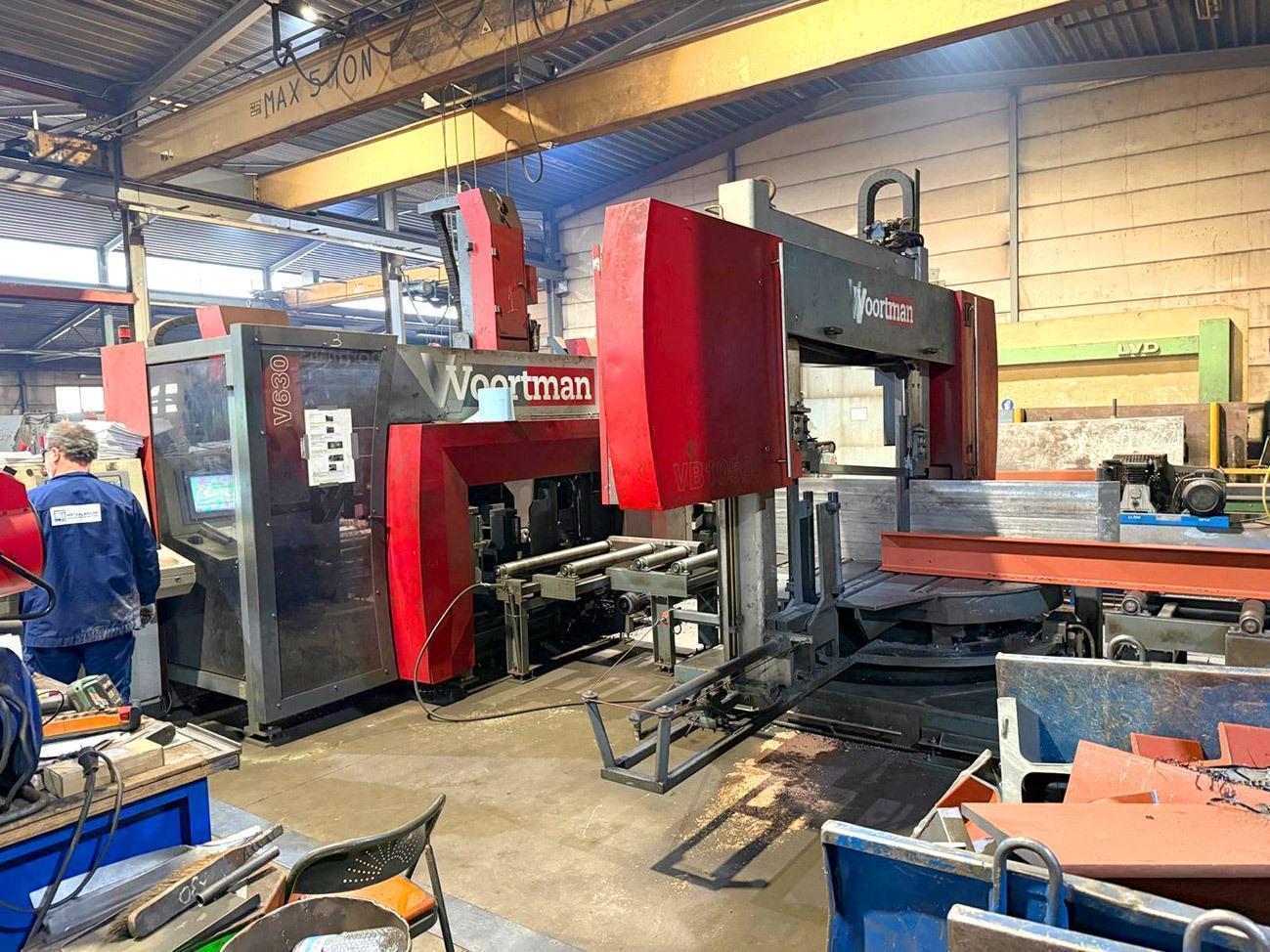

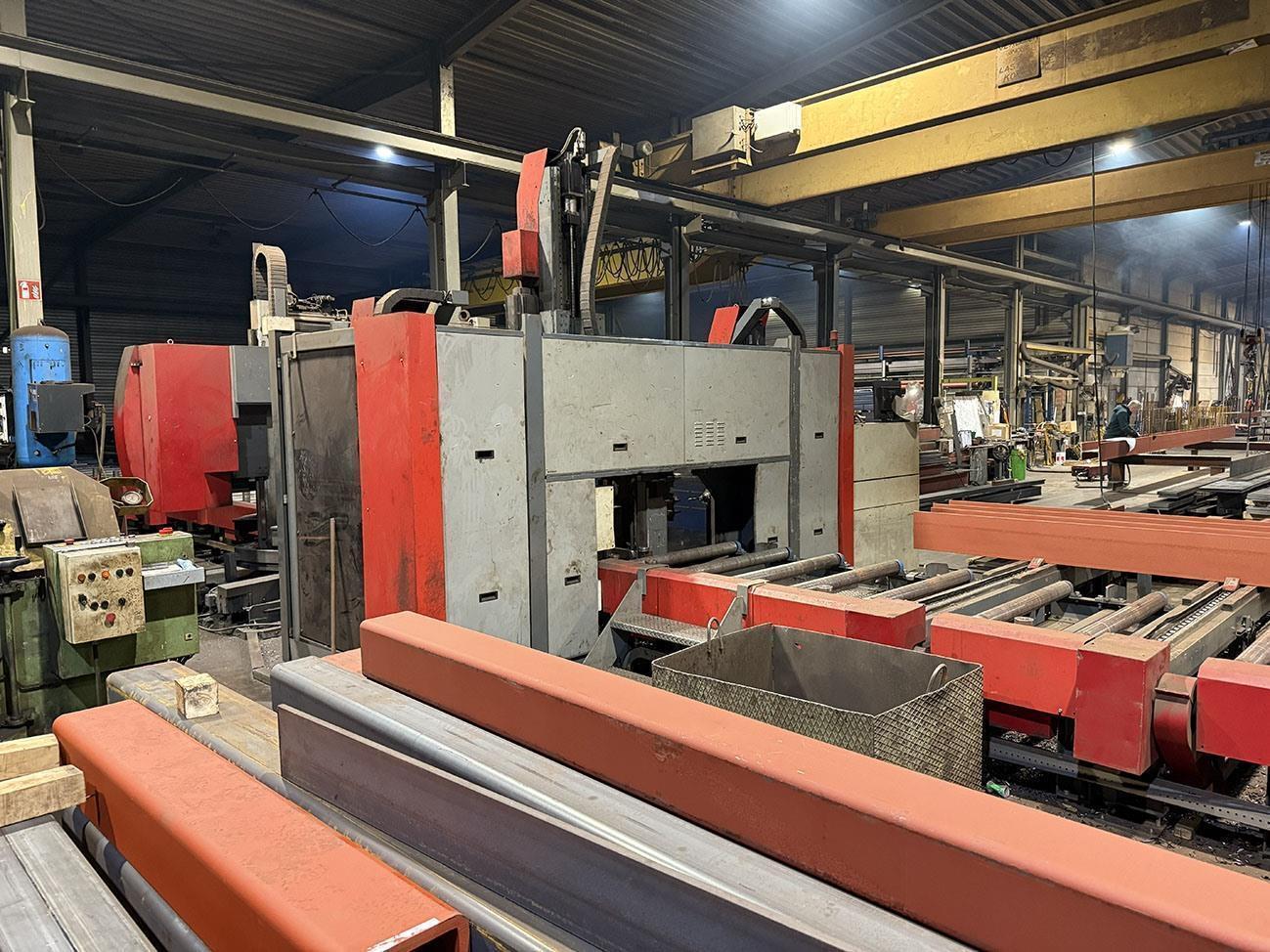

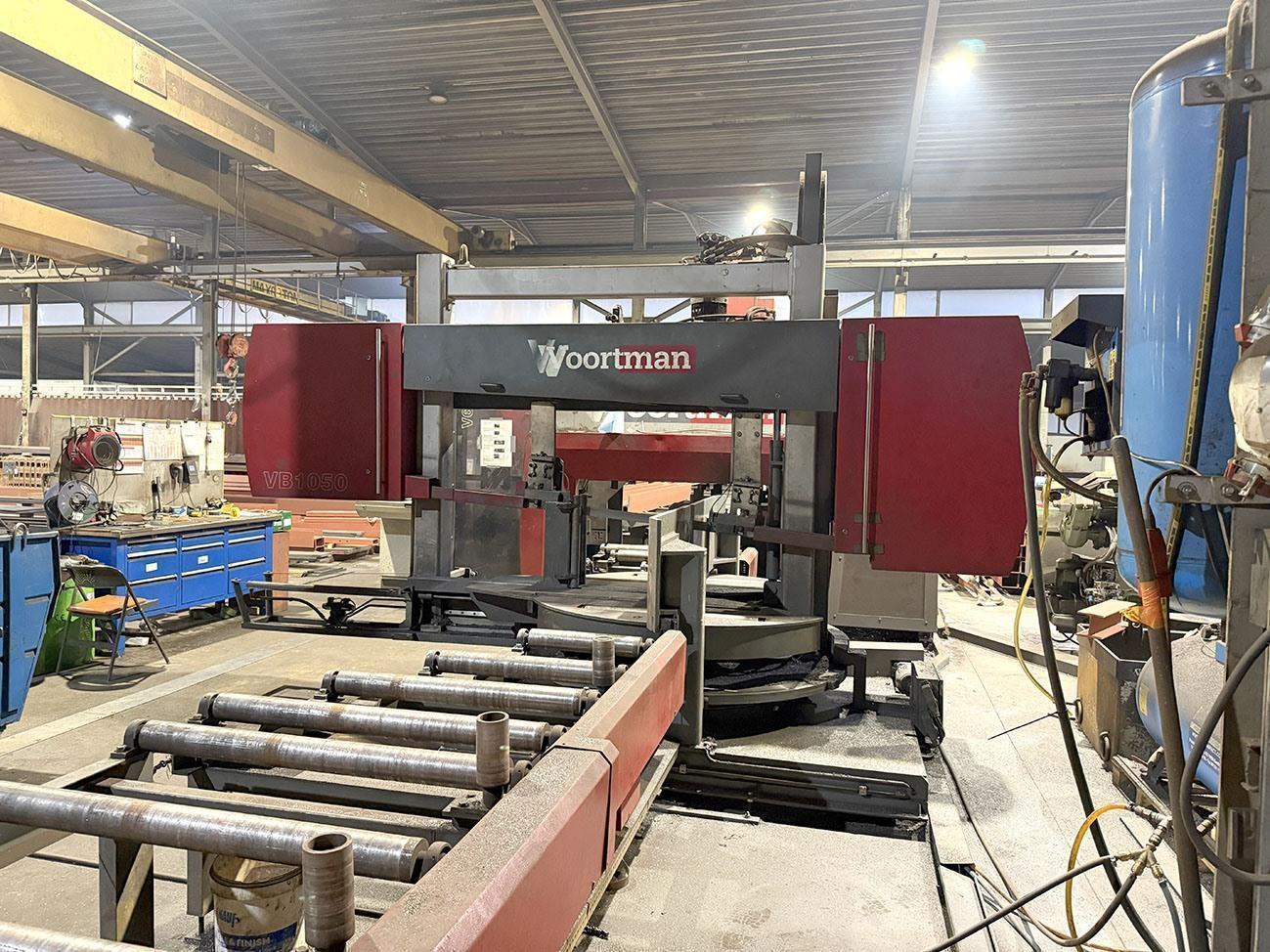

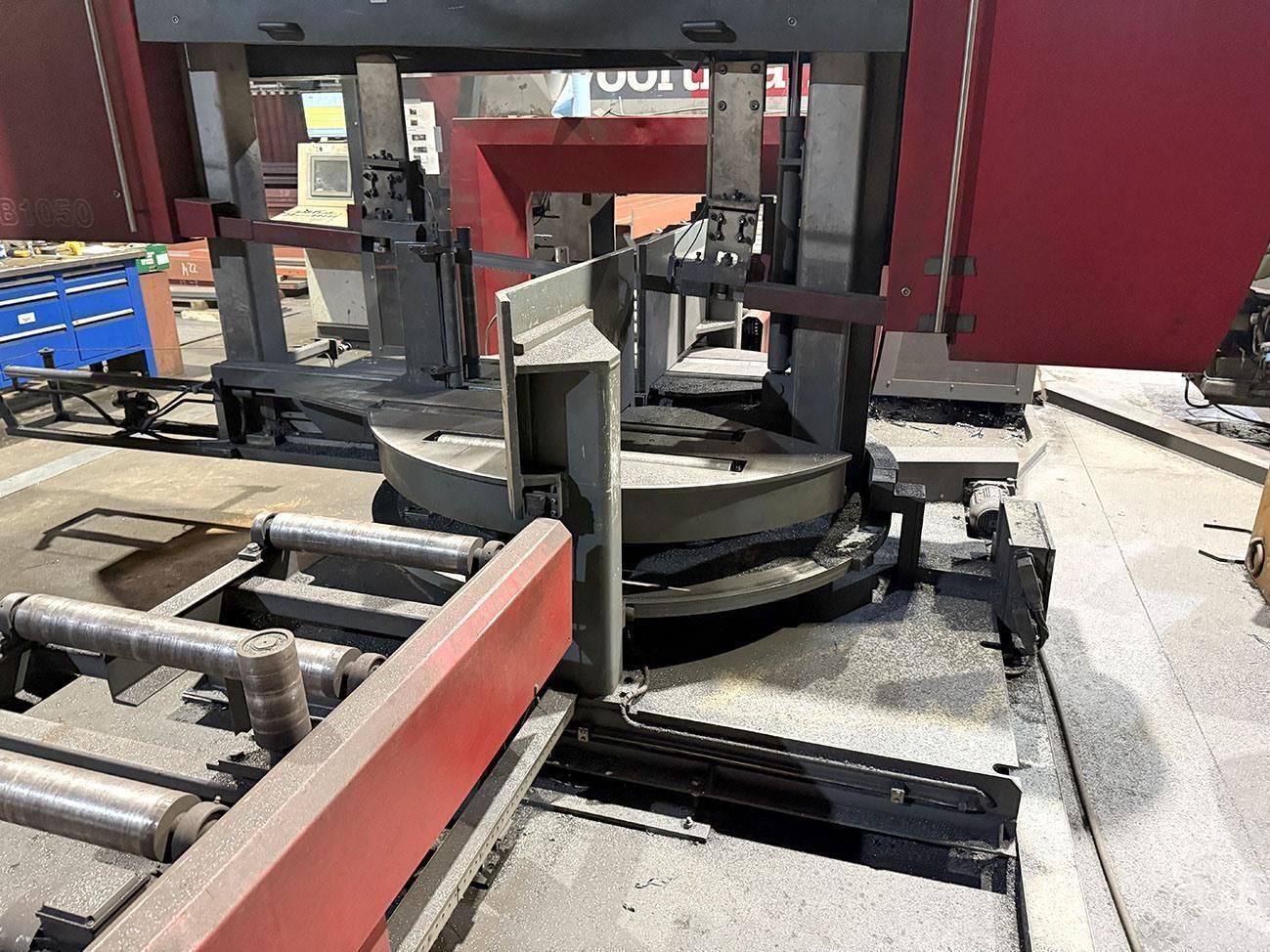

Voortman VB1250 bandsaw
> cap: 1250 x 500 mm
> miter cut +/- 60°: 1000 x 500 mm
> miter cut +/- 45°: 850 x 500 mm
> miter cut -30°: 500 x 500 mm
> sawing speed: 40 > 120 m/min
> power: 7.5 kW
> bandsaw dimensions: 11 000 x 54 x 1.6 mm

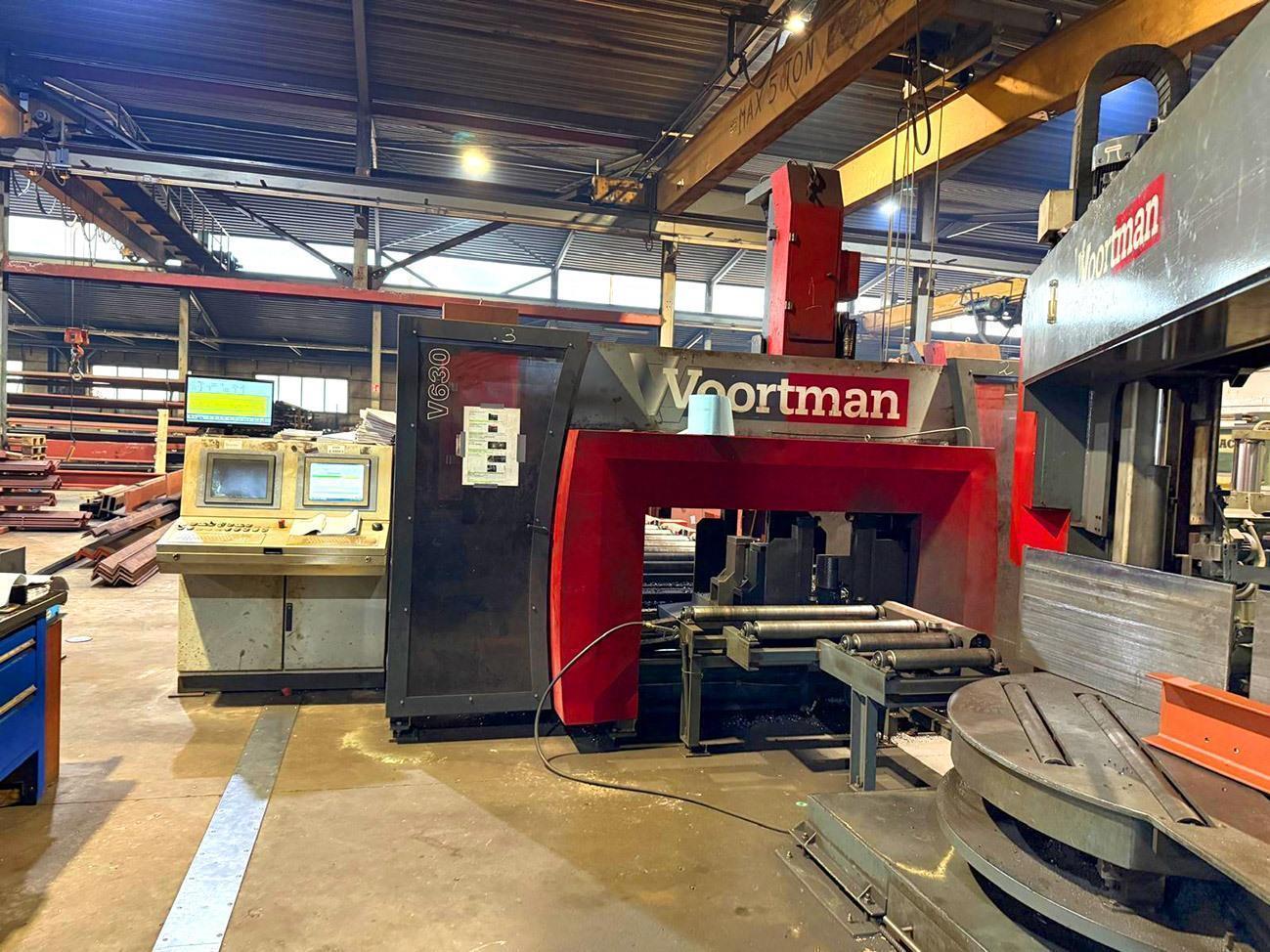

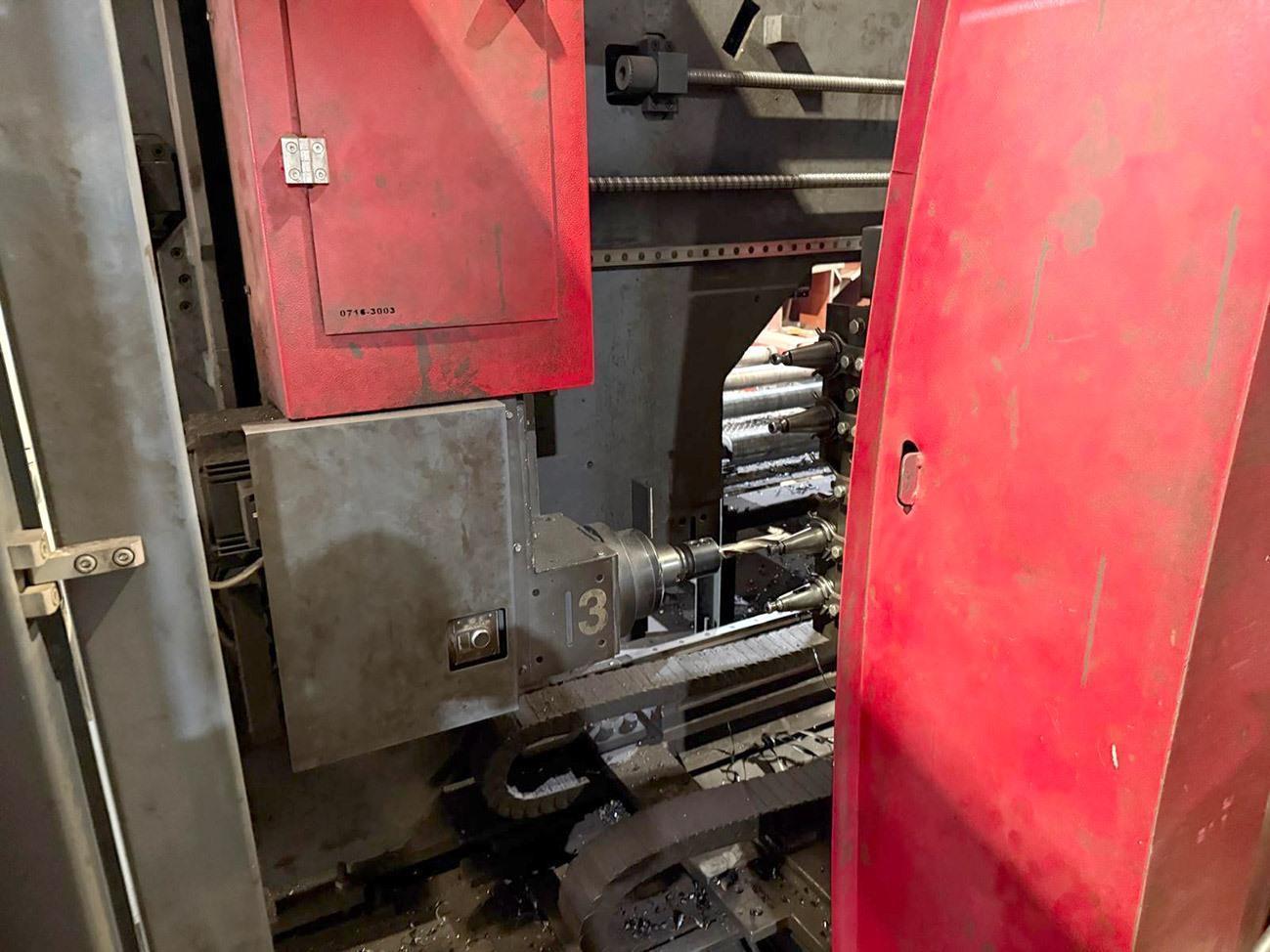

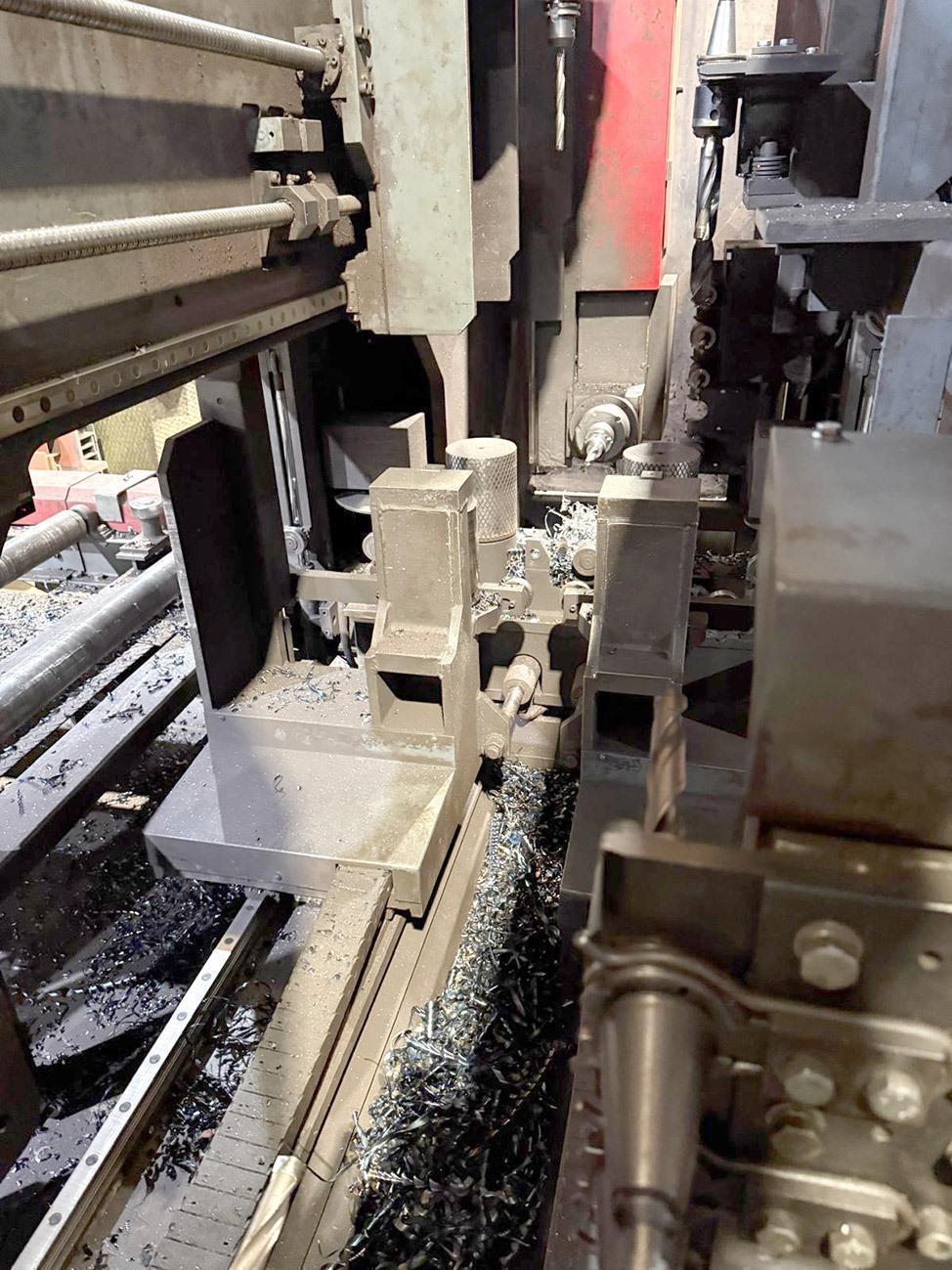

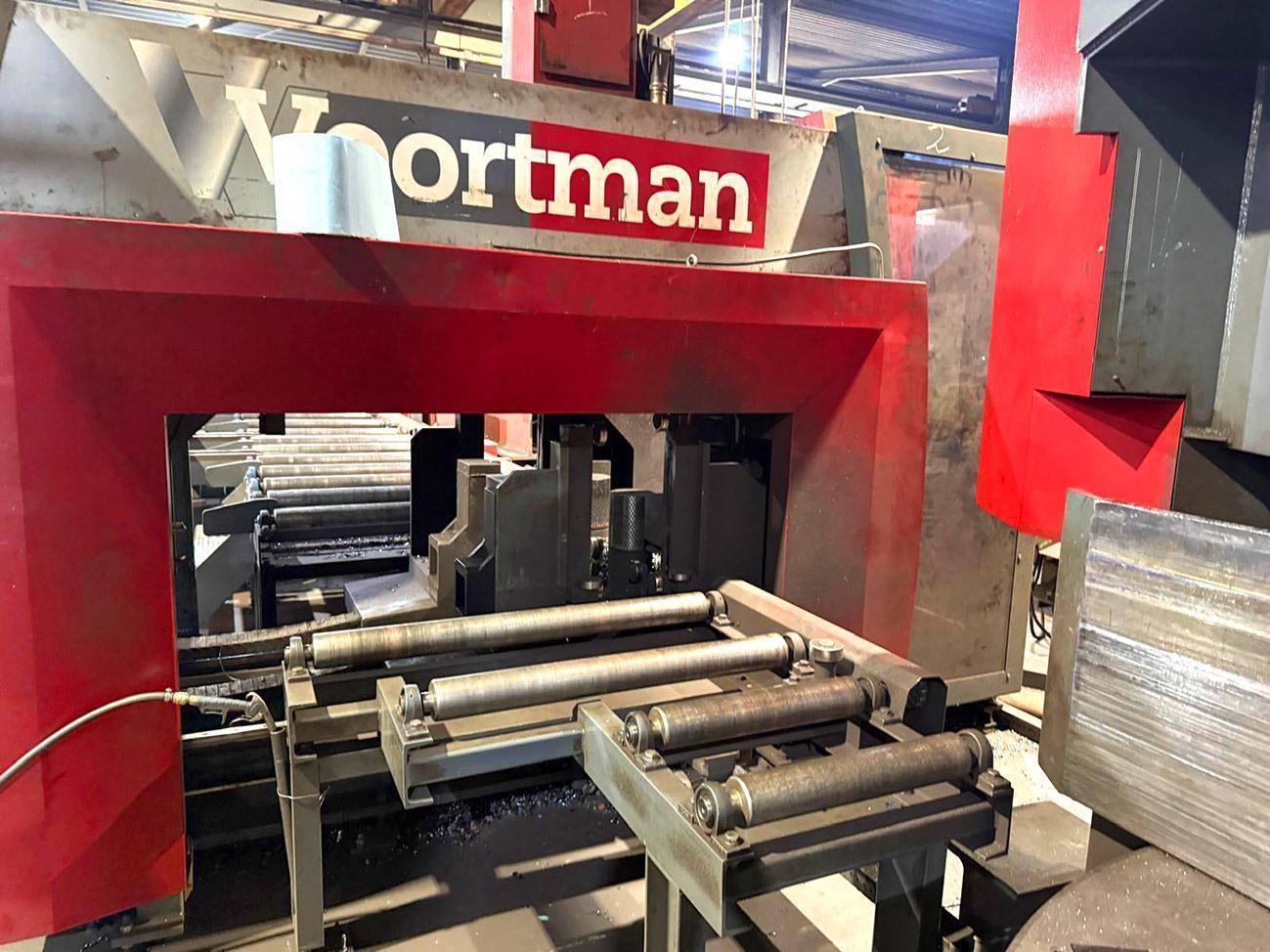

Voortman V630 triple drilling unit
> 2 horizontal drilling units
> 1 vertical drilling unit
> each unit has an automatic tool changer with 5 positions
> spindle: SK40 (cooling through spindle)
Drill diameter: 8/40 mm
> drilling speed: 0 > 2000 rpm
> thread tapping: M8/M24
> profile height measuring included
> center point marking included
> number marking unit included

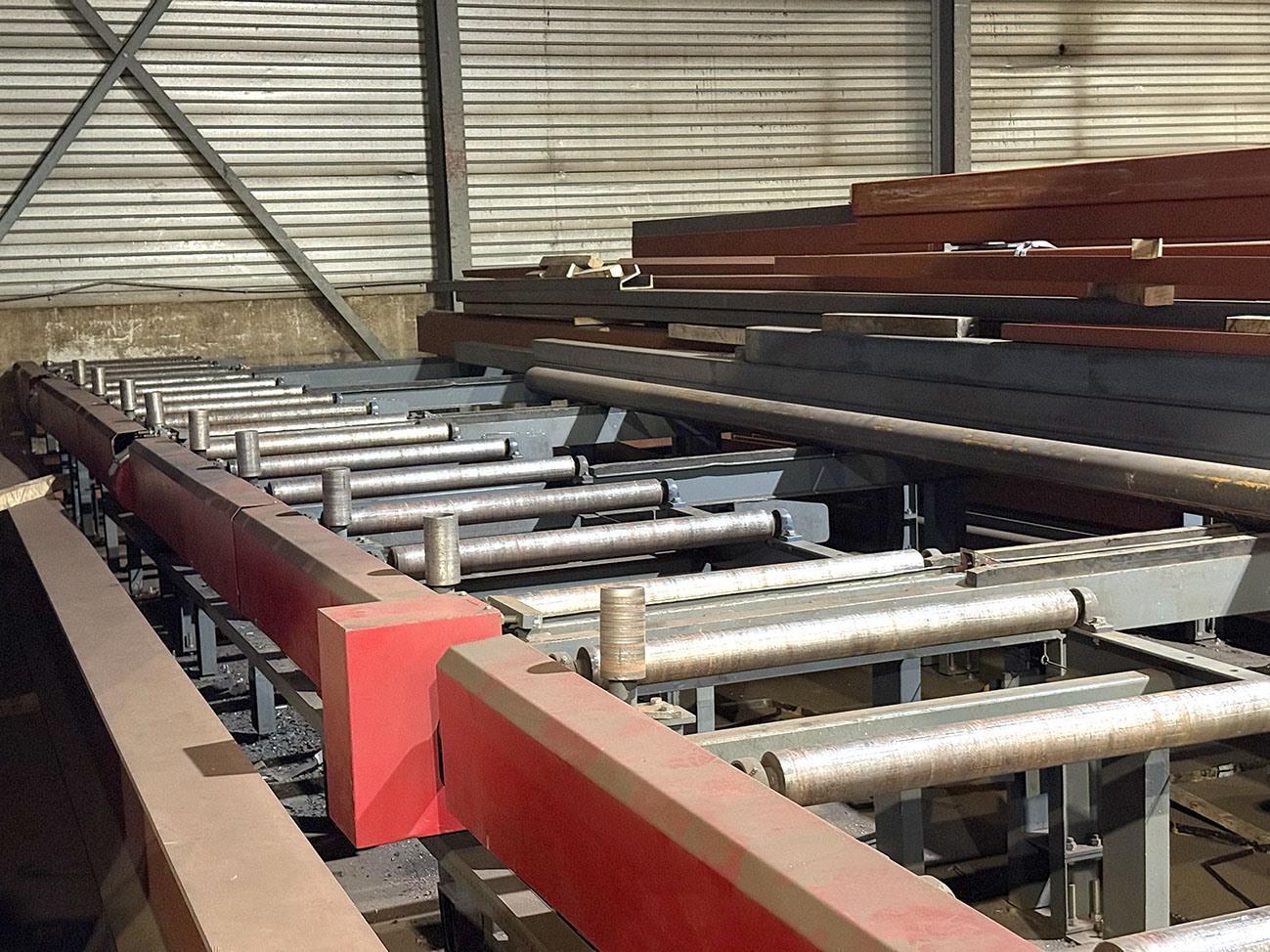

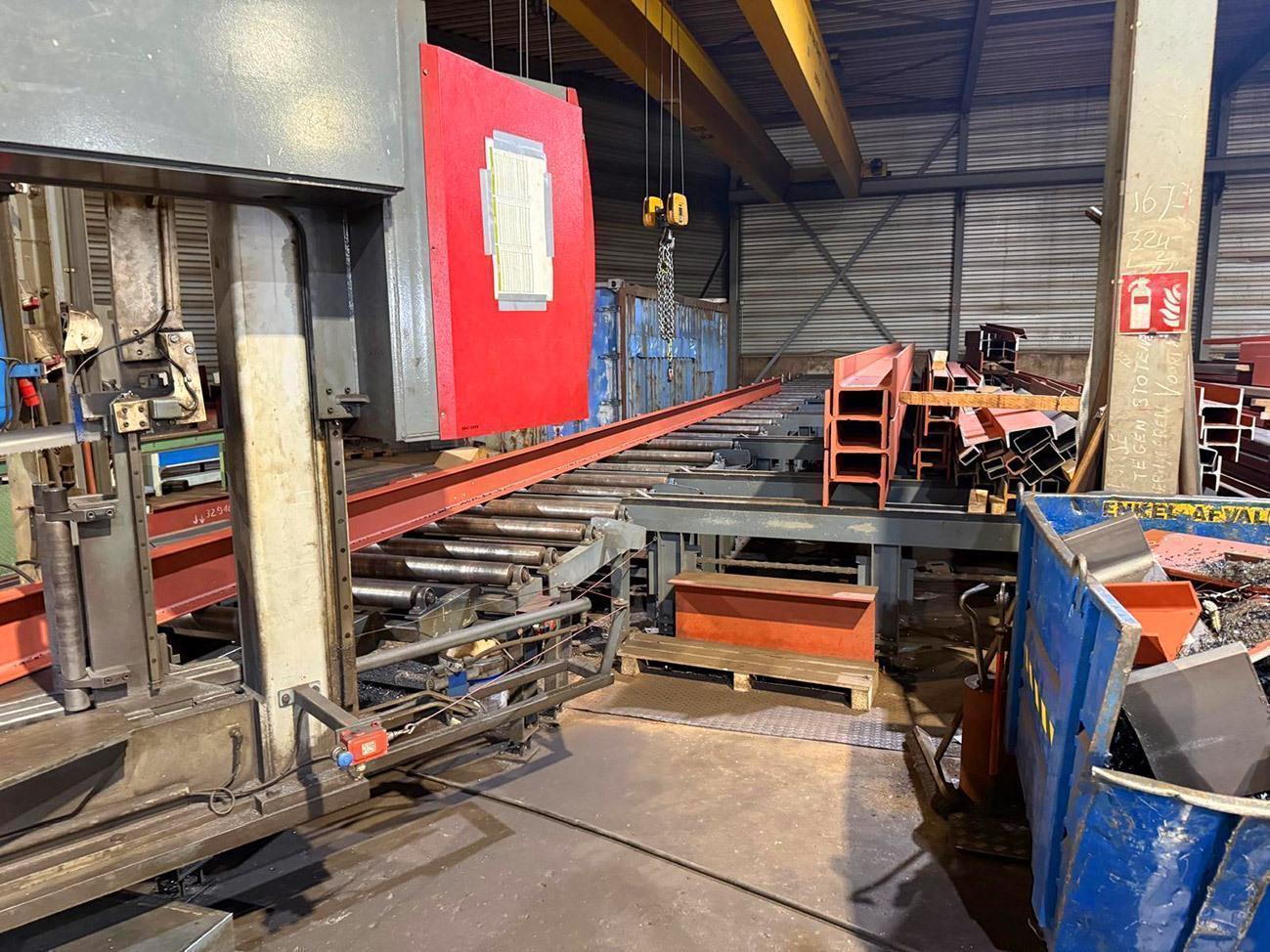

18 meters of infeed roller conveyors
6 crossfeed conveyors of 4 meters length
max width: 1050 mm
cap: 400 kg/m
max positioning weight: 9 tons

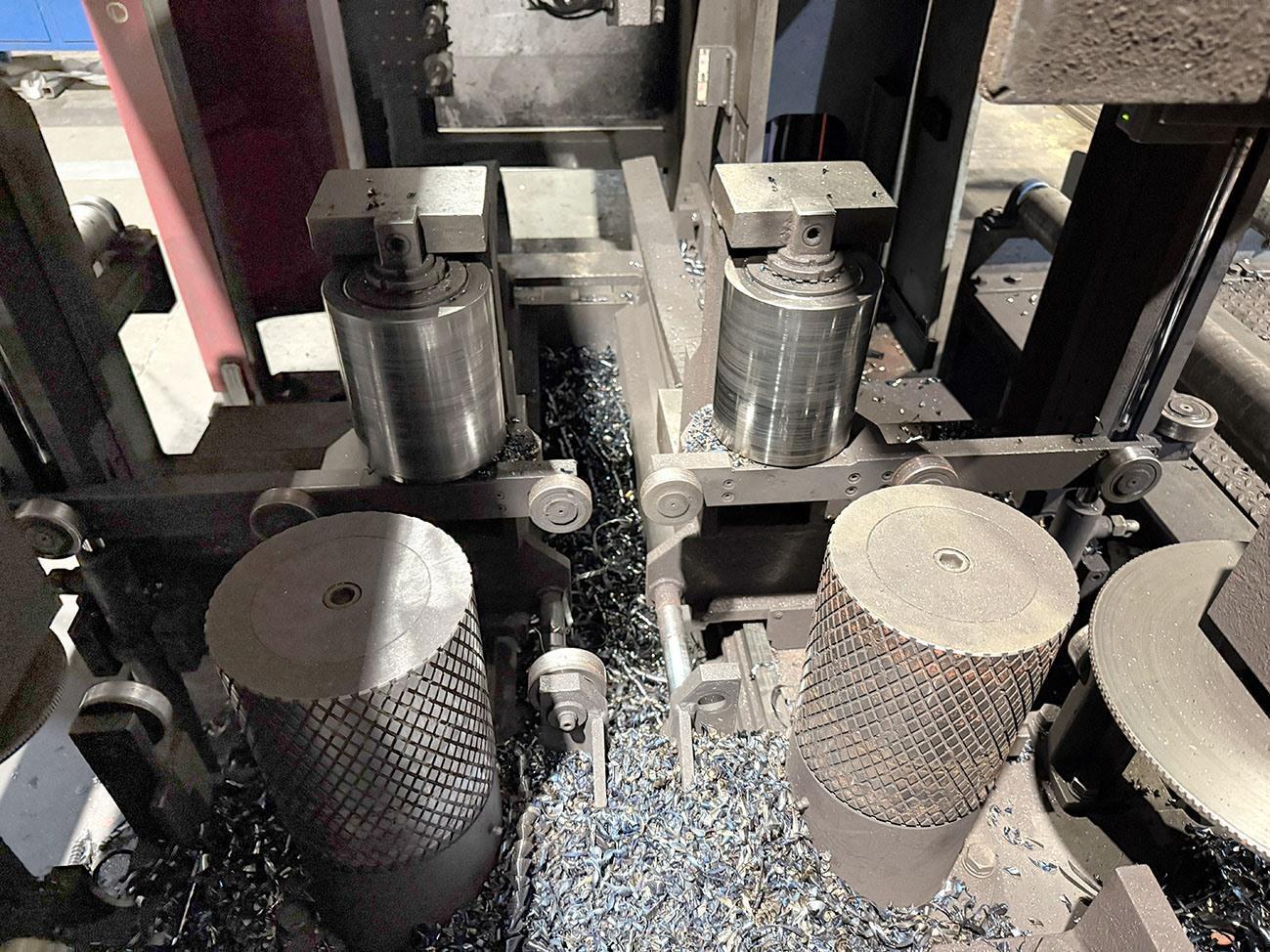

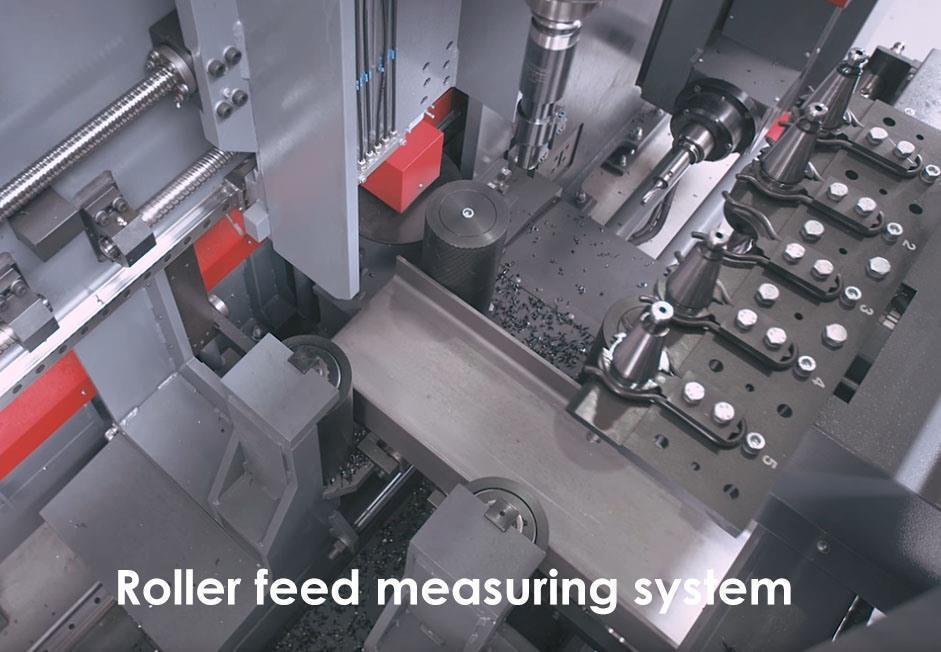

Roller feed measuring system = unlimited measuring length

Vacon 110 CNC control

Hydraulic aggregate
> 4kW - 160 bar
