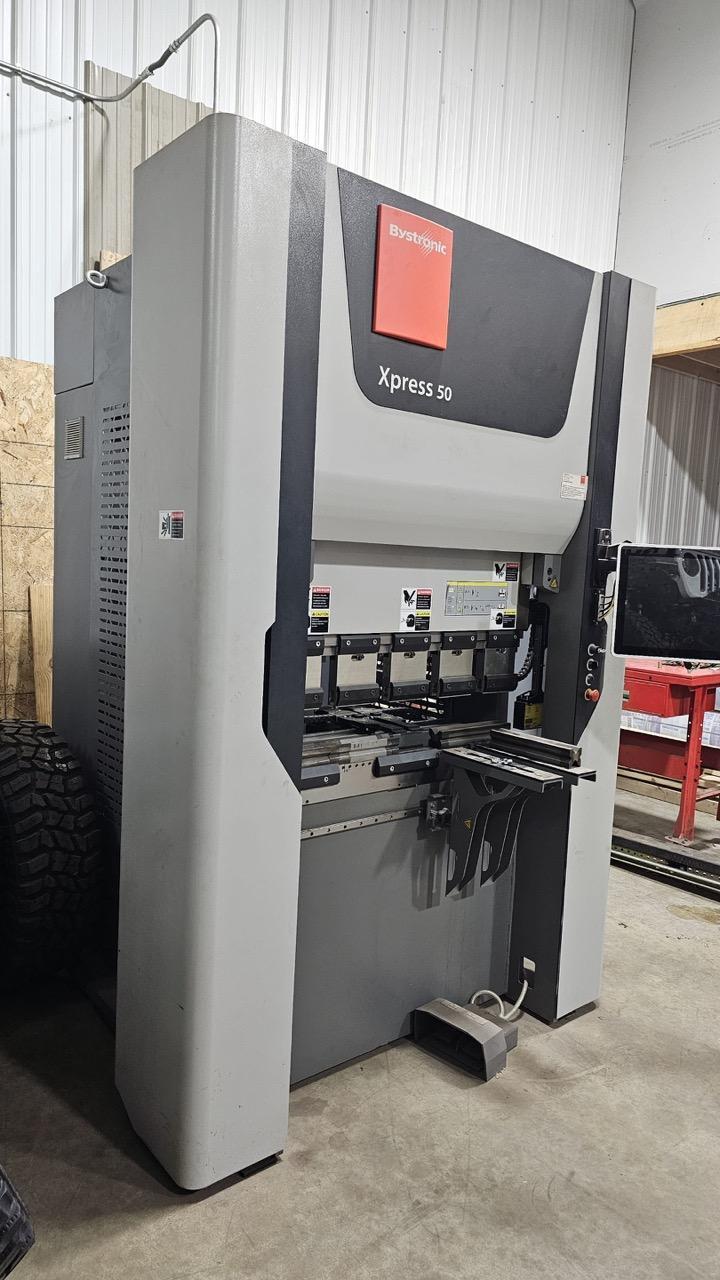

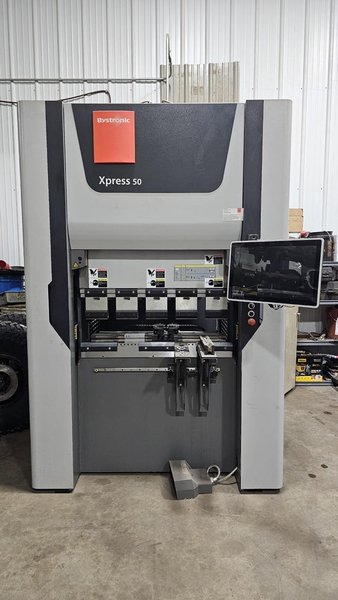

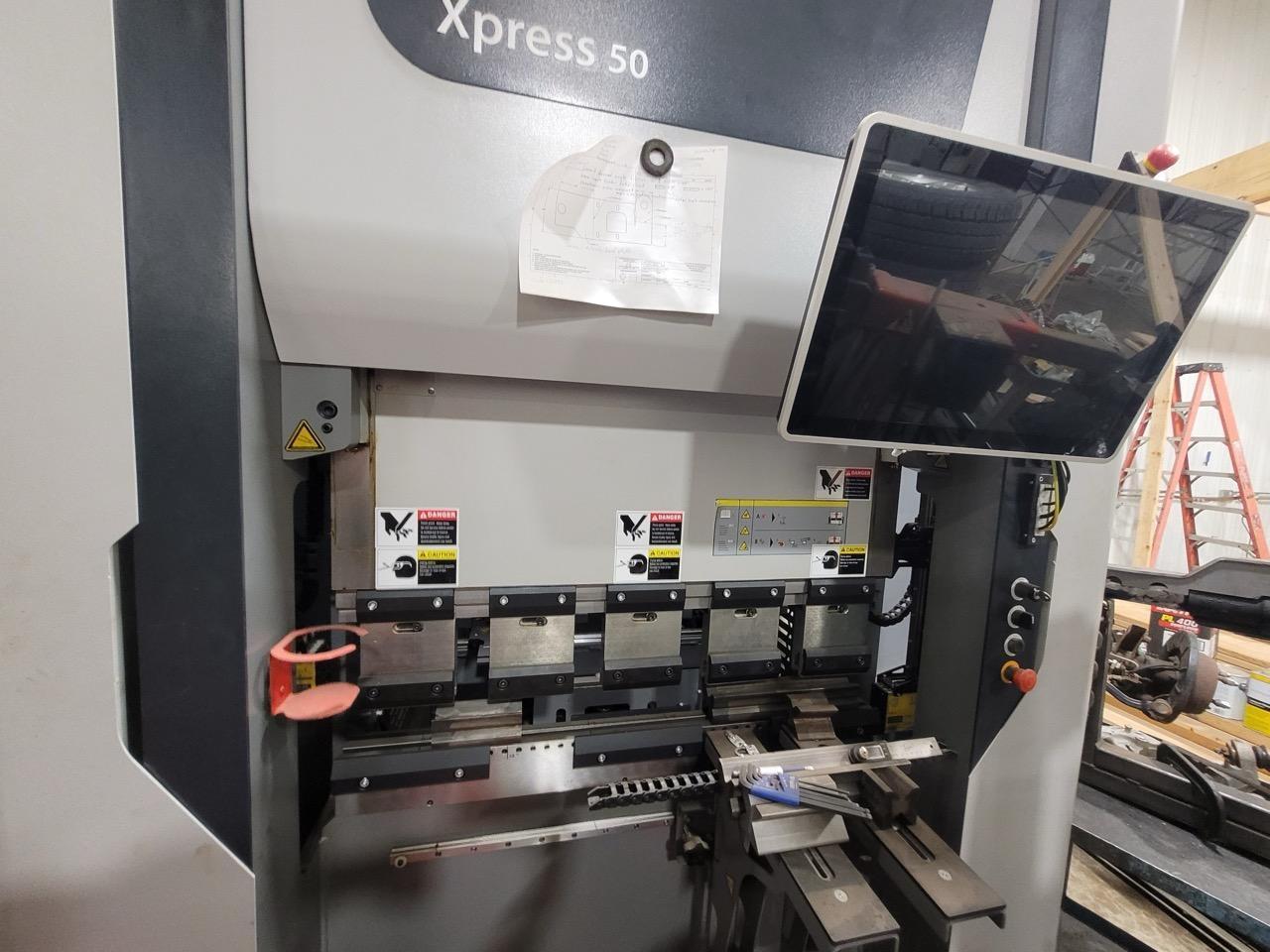

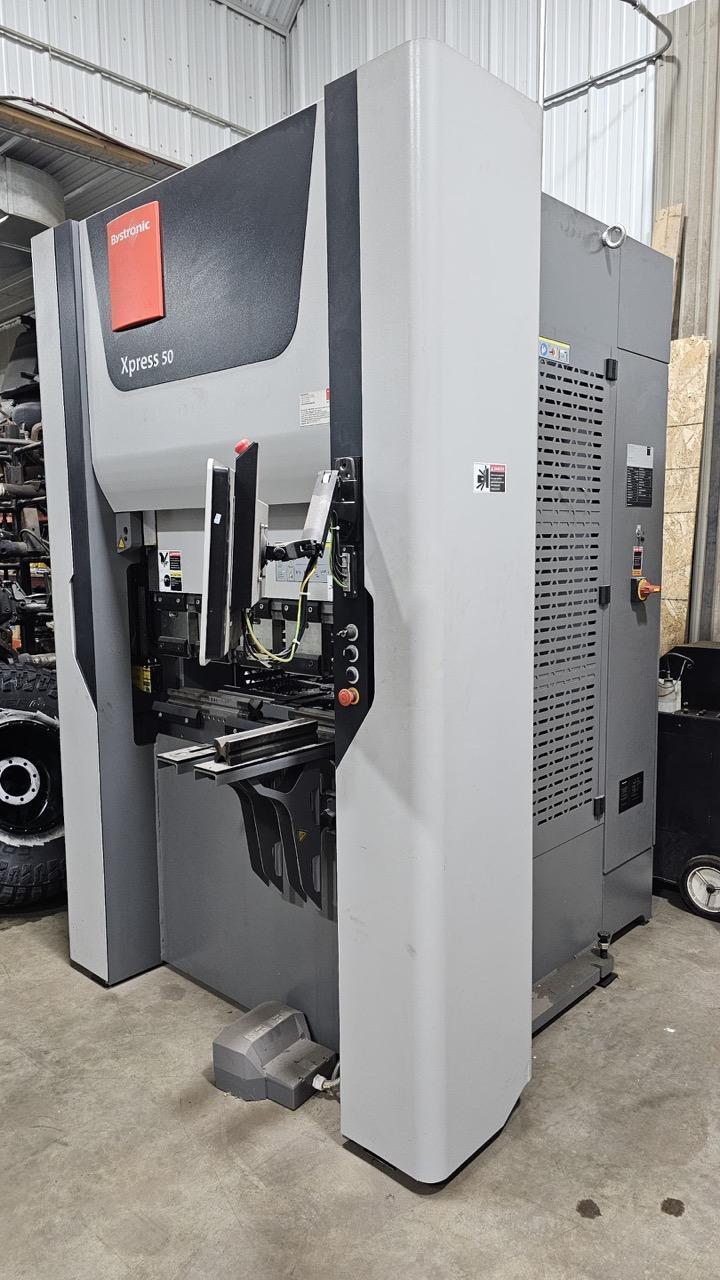

55 Ton X 3.4′ Bystronic Xpress 50 CNC Hydraulic Press Brake, 2019 – 4 Axis Back Gauge, Low Hours
Brand
Category
Type
Model
Xpress 50
Stock #
438489
Year
2019
Condition
Not specified
Location
Not specified
|
Tonnage: 55 US tons
Bending Length: 3′ 4″
Stroke: 7.87″
Open Height: 19.6″
Between Side Frame: 43.3″
Table Width: 2.36″
Max Back Gauge Range: 19.6″
X- Axis Travel: 11.8″
X-Axis Speed: 16″/sec
X-Axis Accuracy: .001″
R-Axis Travel: 3.93″
R-Axis Speed: 3.93″/sec
R-Axis Accuracy: .001″
Z-Axis Travel: 25.5″
Z-Axis Speed: 25.5″/sec
Max. Y-Rapid Traverse: 6″/sec
Max. Y- Working Speed: .393″/sec
Y-Axis Accuracy: .0003″
Oil Capacity: 27 Gallon
Main Motor: 5.5 hp
66″L X 67″W X 105″H 7,800 lbs.
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: – 4-Axis Backgauge – Bystronic CNC Control – All Available Manuals All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
