Chevalier Variable Speed Vertical Milling Machine

Brand
CHEVALIER
Category
Milling Machines
Type
Millers, Vertical
Model
FSG-618
Stock #
34942
Year
1985
Condition
Used

Location

Ohio
REQUEST FINANCING
Preliminary Specifications:

Maximum grinding length- 18”
Maximum grinding width- 6”
Maximum table travel longitudinal- 19”
cross- 7”
Maximum distance from table working surface to spindle center- 18”
Handwheel graduations Cross- .0005"
Downfeed- .0001"
Spindle speed- 3,450 R.P.M.
Wheel size- 8" diameter x 1/2" width x 1-1/4" bore

Equipped with:
6” x 18” Magnetic chuck
Ground table guideways with steel balls
Double V guideways laminated with Turcite-B for saddle travel
Wheel guard

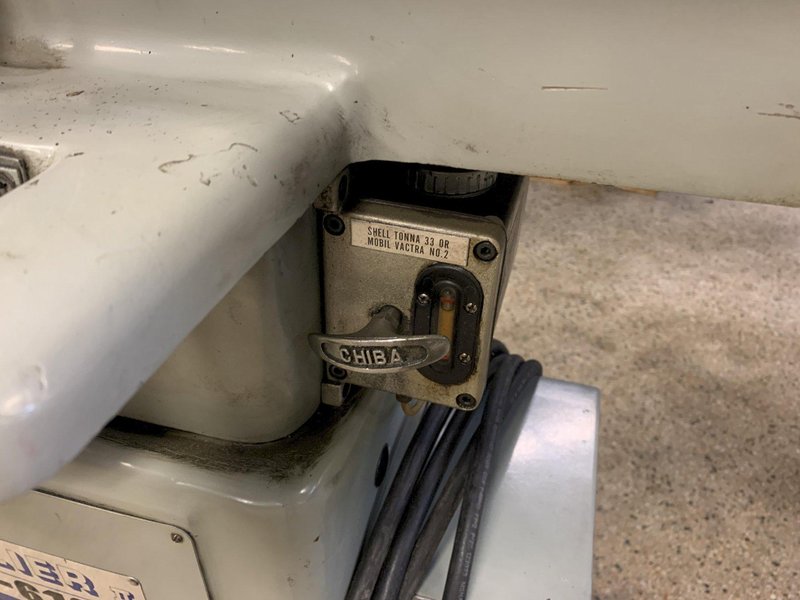

Bijur une shot lubrication
Work light

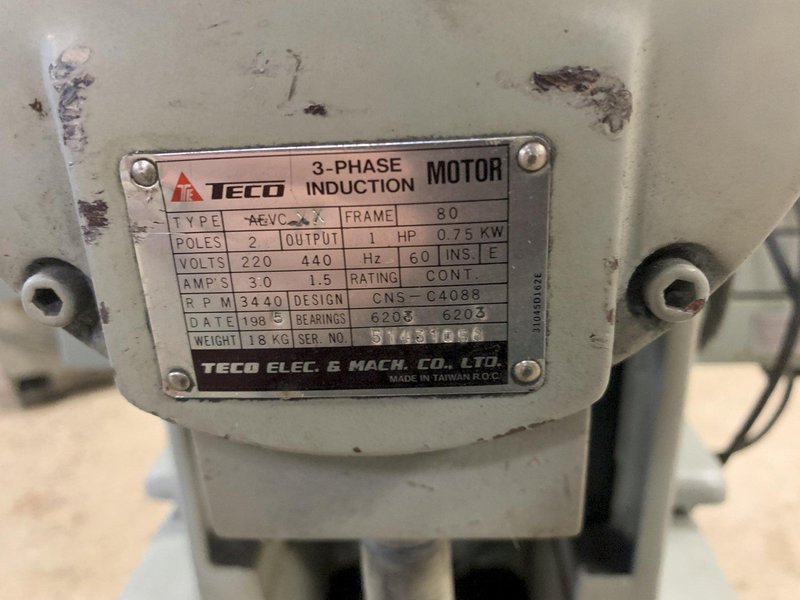

1 H.P. 3/220/ 60 HZ volt spindle motor and electrical controls
Machine is wired for 220 volt
Machine weight- 1,500 Lbs.
Machine dimensions- 54" L-R x 40" F-B x 68" H

Specifications subject to independent verification by the buyer.
Seller can load.
