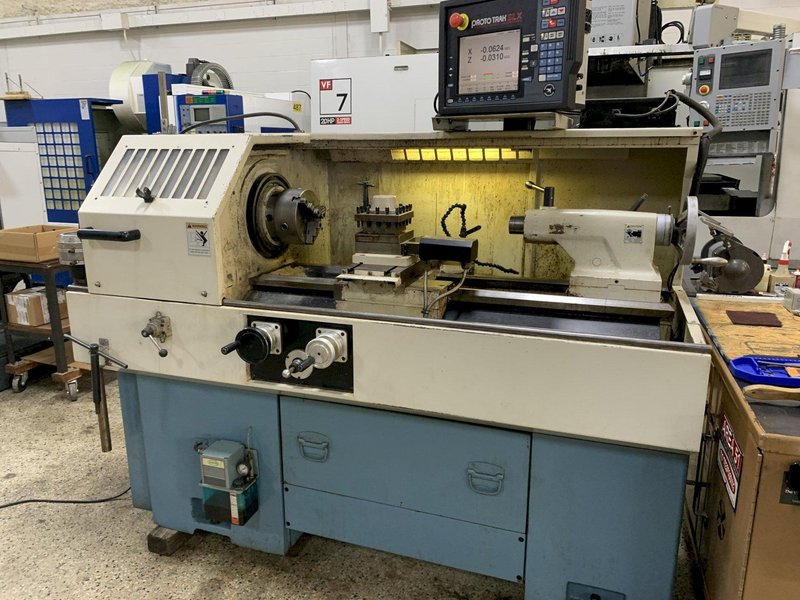

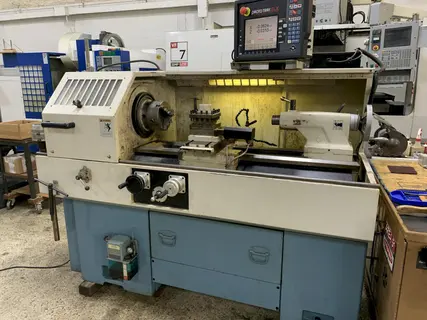

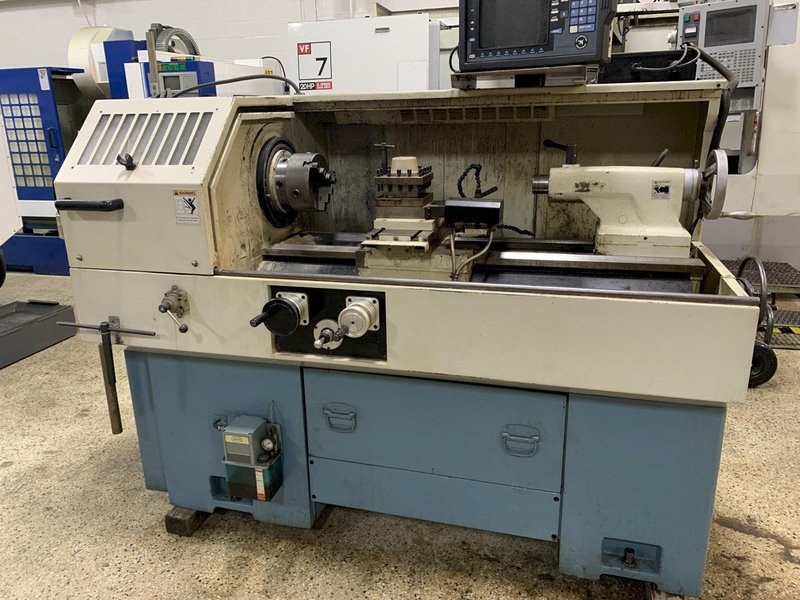

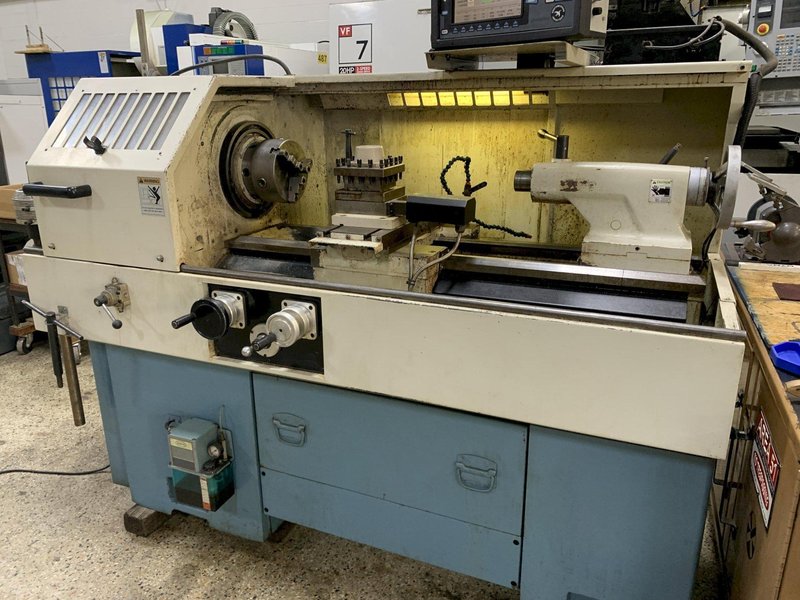

SWI TRAK TRL 1630SX CNC Flat Bed Lathe with Prototrak SLX, S/N 091 CH 62446.

SWI TRAK TRL 1630SX CNC Flat Bed Lathe with Prototrak SLX, S/N 091 CH 62446.

Name: SWI TRAK TRL 1630SX CNC Flat Bed Lathe with Prototrak SLX, S/N 091 CH 62446.
Brand: SOUTHWESTERN INDUSTRIES
SKU: 34938
Availability: PreOrder

Brand

SOUTHWESTERN INDUSTRIES

Location

Ohio

REQUEST FINANCING

Specifications
Files & Videos

arrival and additional details pending

ProtoTRAK 1630SX CNC – Versatile CNC/Manual Lathe with 4-Position Automatic Tool Turret

Key Features

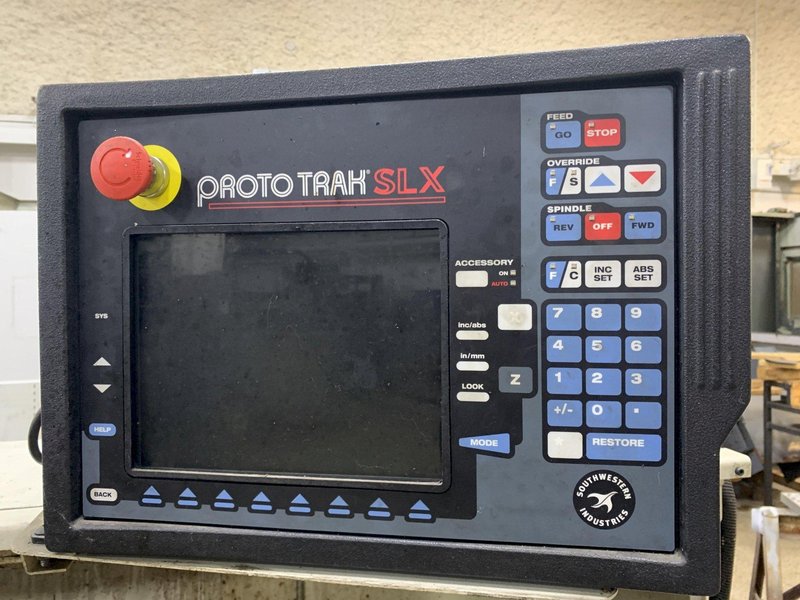

ProtoTRAK SLX CNC Control – Industry-leading conversational programming; switch seamlessly between CNC and manual (DRO) modes
4-Position Automatic Tool Turret – Quick, powered indexing for multi-tool setups; reduces setup time and boosts productivity on complex or repeat jobs
Hybrid Operation – Full CNC for production runs + manual handwheel/jog for one-offs; TRAKing® allows "wind the handle" feel even in CNC mode
Constant Surface Speed (CSS) & Programmable Spindle – Maintains optimal cutting speeds automatically (PENDING)
Enclosed Design – Interlocked sliding door for chip/coolant containment and safety
Rugged Build – Hardened and ground ways; precision-ground ballscrews for accuracy and longevity

Machine Specifications

Category	Specification
Swing Over Bed	16"
Swing Over Cross Slide	8.6
Distance Between Centers	30"
Spindle Bore / Through Hole	2.12"
Spindle Nose	D1-6 Camlock
Spindle Speeds, Programmble	150–2,500 RPM (variable, single range)
Spindle Motor	7.5 HP
Tooling	4-Position Automatic Tool Turret (electric indexing)
Rapid Traverse (X/Z)	X: 100 IPM / Z: 150 IPM (approx.)
Tailstock	MT#4 quill, ≈5–6" travel
Approximate Weight	3,000 Lbs.
Floor Space (approx.)	82" L × 46" W × 72" H

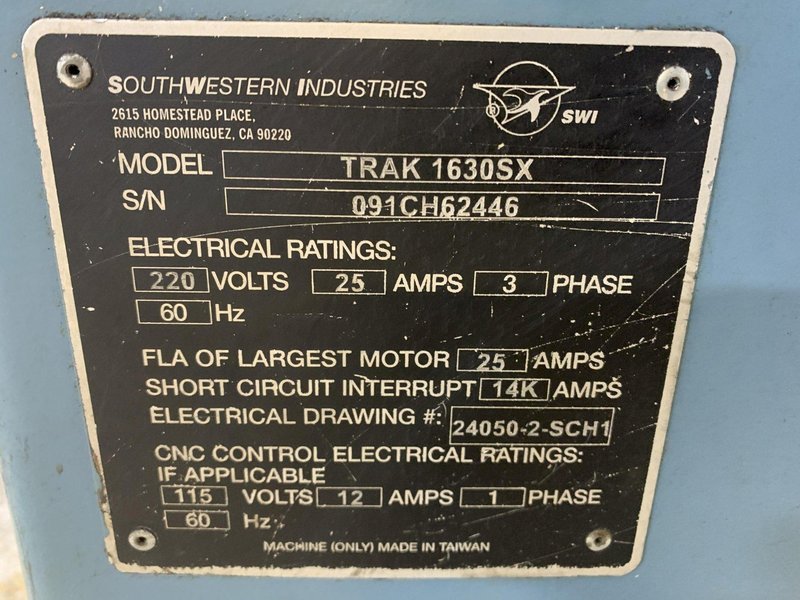

Power Requirements	220V / 3-Phase / 25A full load (typical)

Standard / Typical Equipment (may vary by specific unit/year/configuration)

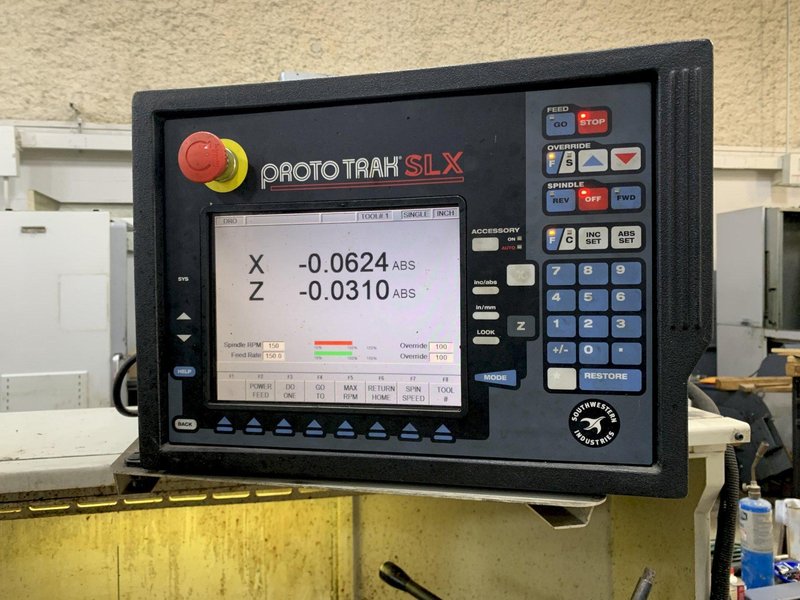

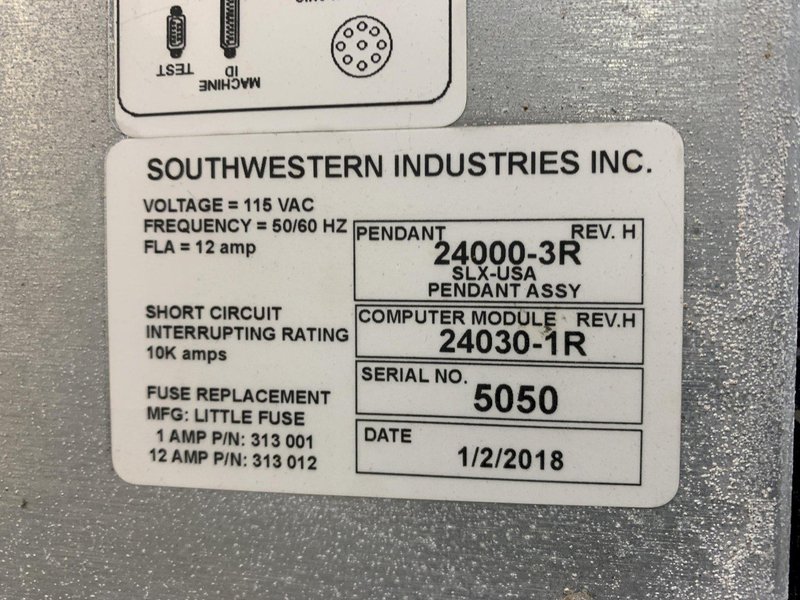

ProtoTRAK SLX CNC Control with 10.4" color screen, USB ports, graphics
4-Position Automatic Electric Tool Turret (for quick tool changes)
8" 3-Jaw Chuck
Air Actuated 5C Collet Attachment, with collets
Live Center
Tailstock
Coolant System
Work Light
Chip Enclosure/Guard
Electronic Handwheels for manual operation
Control Options - TBD

Why Choose the TRAK TRL 1630SX with 4-Way Auto Toolpost? This lathe bridges the gap between traditional engine lathes and full CNC production machines. The ProtoTRAK SLX makes programming intuitive (no G-code required for most jobs), while the 4-position auto turret adds real efficiency for shops running small batches or parts needing multiple tools. With a generous 16" swing, 30" centers, and 2.12" bar capacity, it's ideal for toolroom work, prototypes, maintenance, and light production—especially where quick changeovers matter. Users praise its reliability, ease of use, and Southwestern Industries' support.

Ideal For
