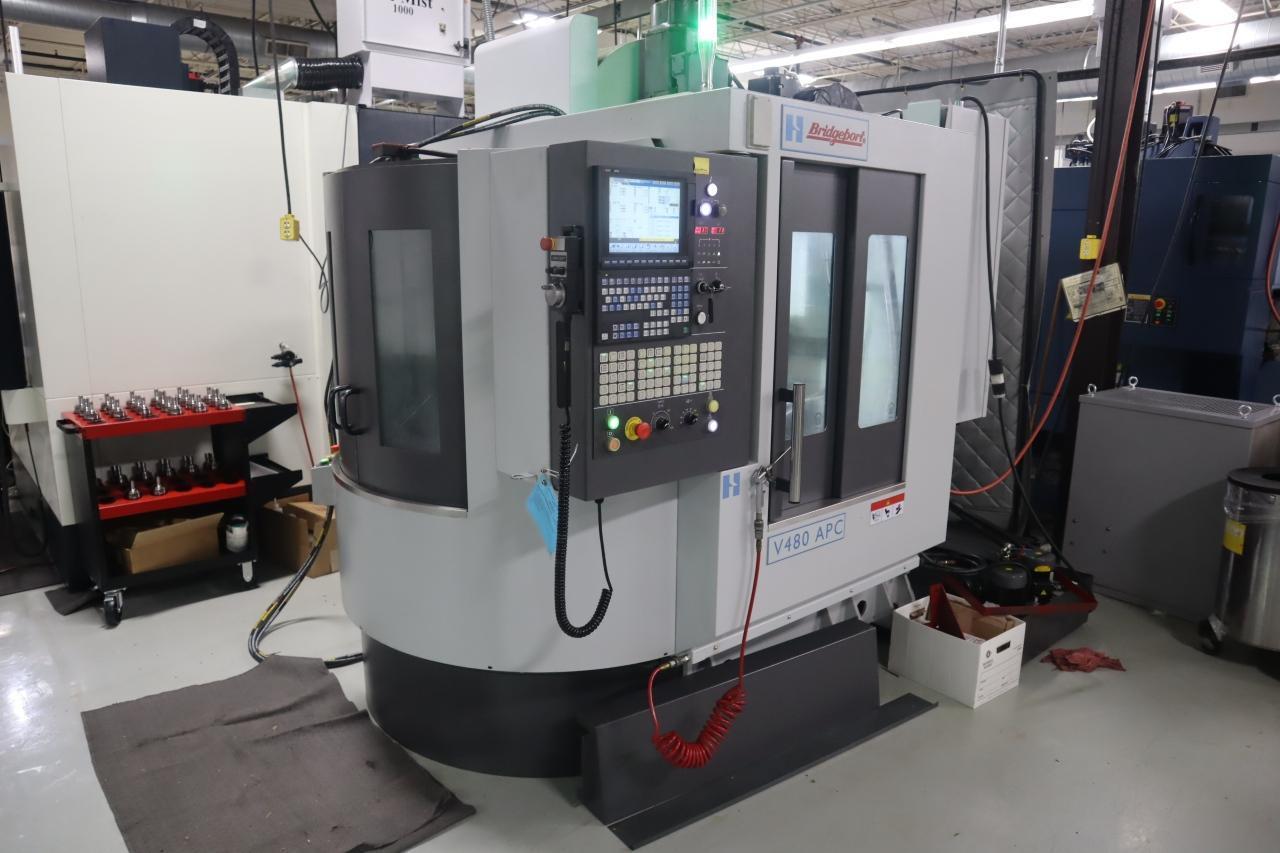

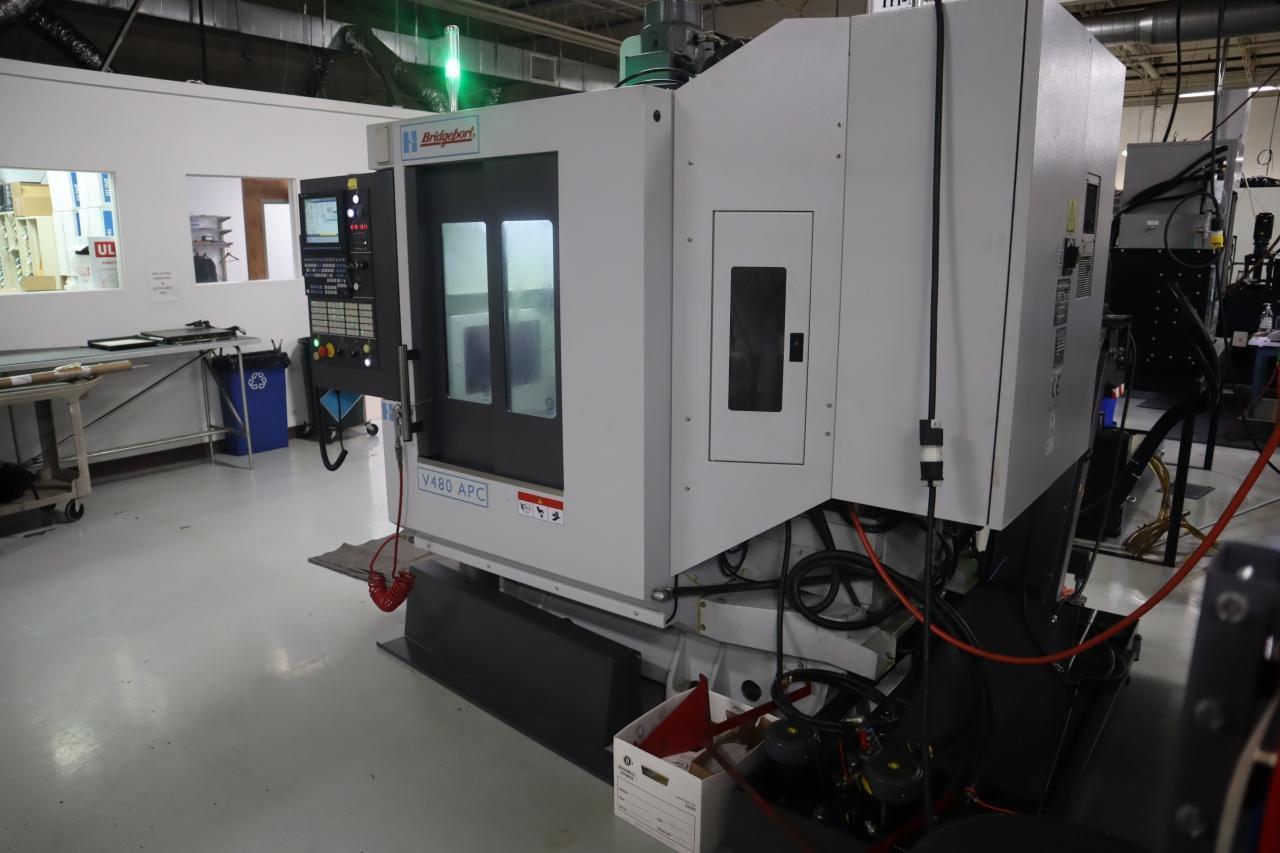

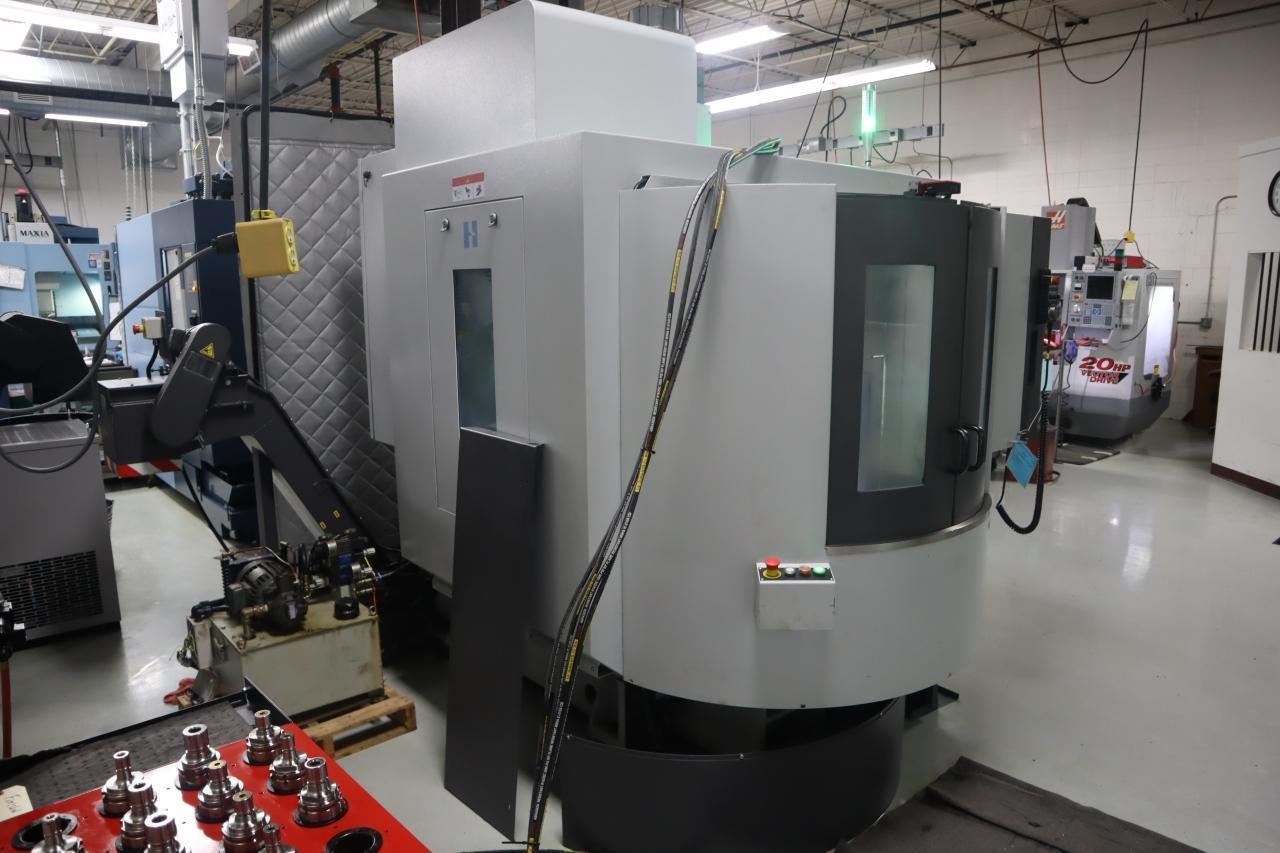

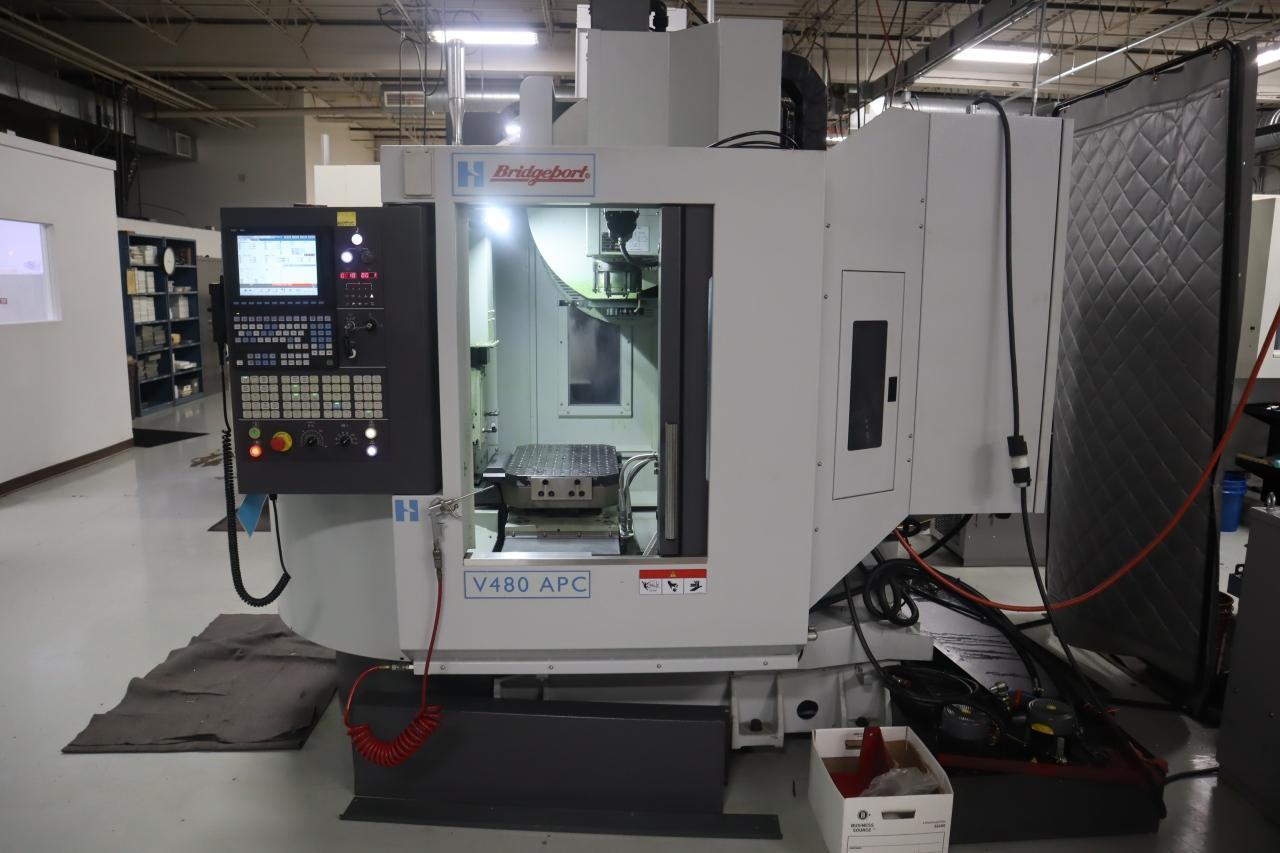

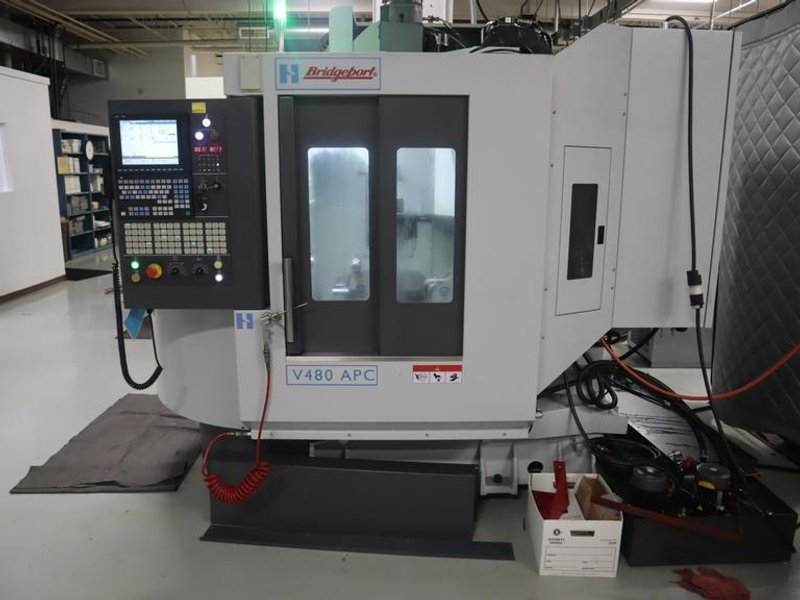

Hardinge-Bridgeport Model V480 APC Vertical Machining Center with 2-Station Automatic Pallet Changer, 10K Spindle, Probing System, Chip Conveyor

Hardinge-Bridgeport Model V480 APC Vertical Machining Center with 2-Station Automatic Pallet Changer, 10K Spindle, Probing System, Chip Conveyor

Name: Hardinge-Bridgeport Model V480 APC Vertical Machining Center with 2-Station Automatic Pallet Changer, 10K Spindle, Probing System, Chip Conveyor
Brand: Unknown
SKU: C1013
Availability: PreOrder

Brand

Not specified

Location

Minnesota

REQUEST FINANCING

Specifications
Files & Videos

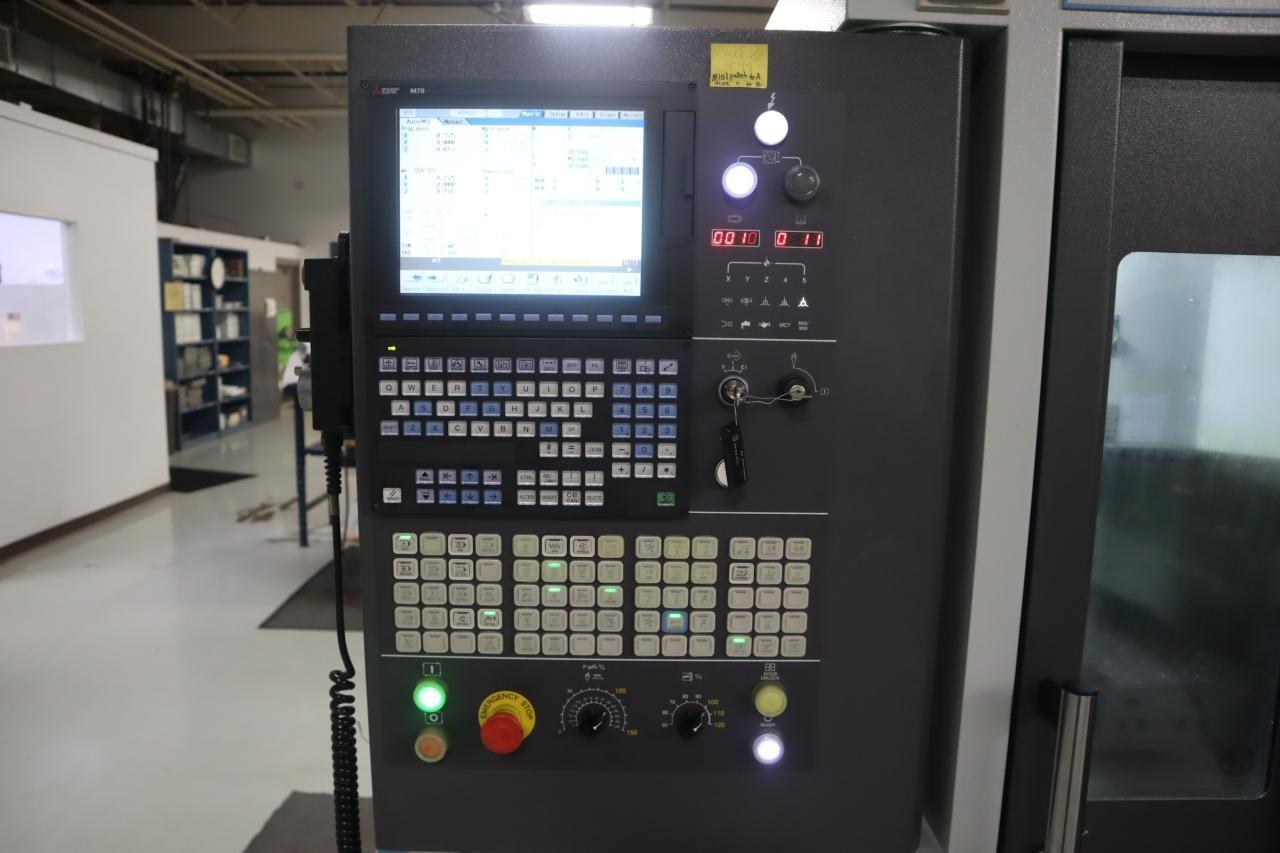

Control: Mitsubishi M70 CNC Control

Machine Travels (X/Y/Z): (480/400/430 mm) or 18.9"/15.75"/16.9"

Number of Pallets: 2

Max Distance Spindle To Pallet Surface: (25 - 655 mm) / 8.86" - 25.79"

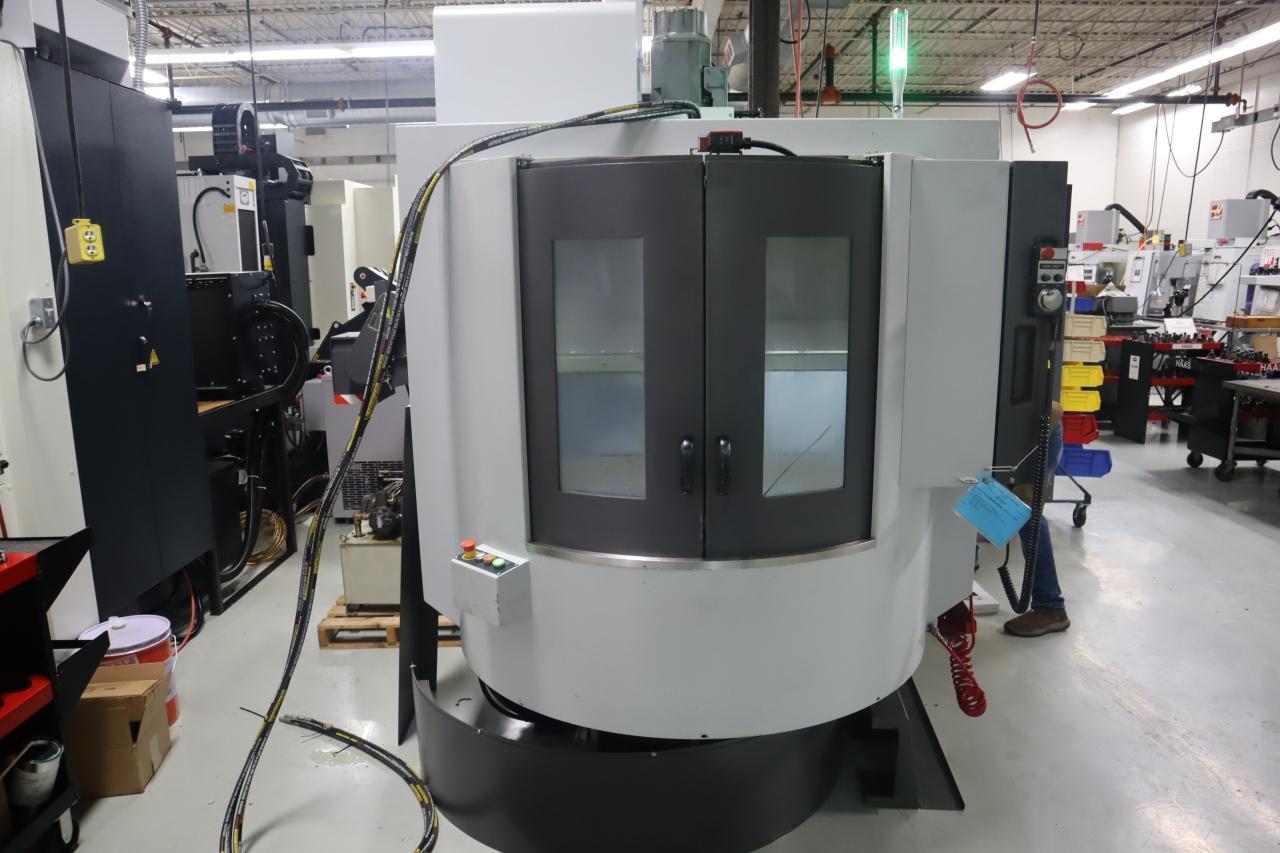

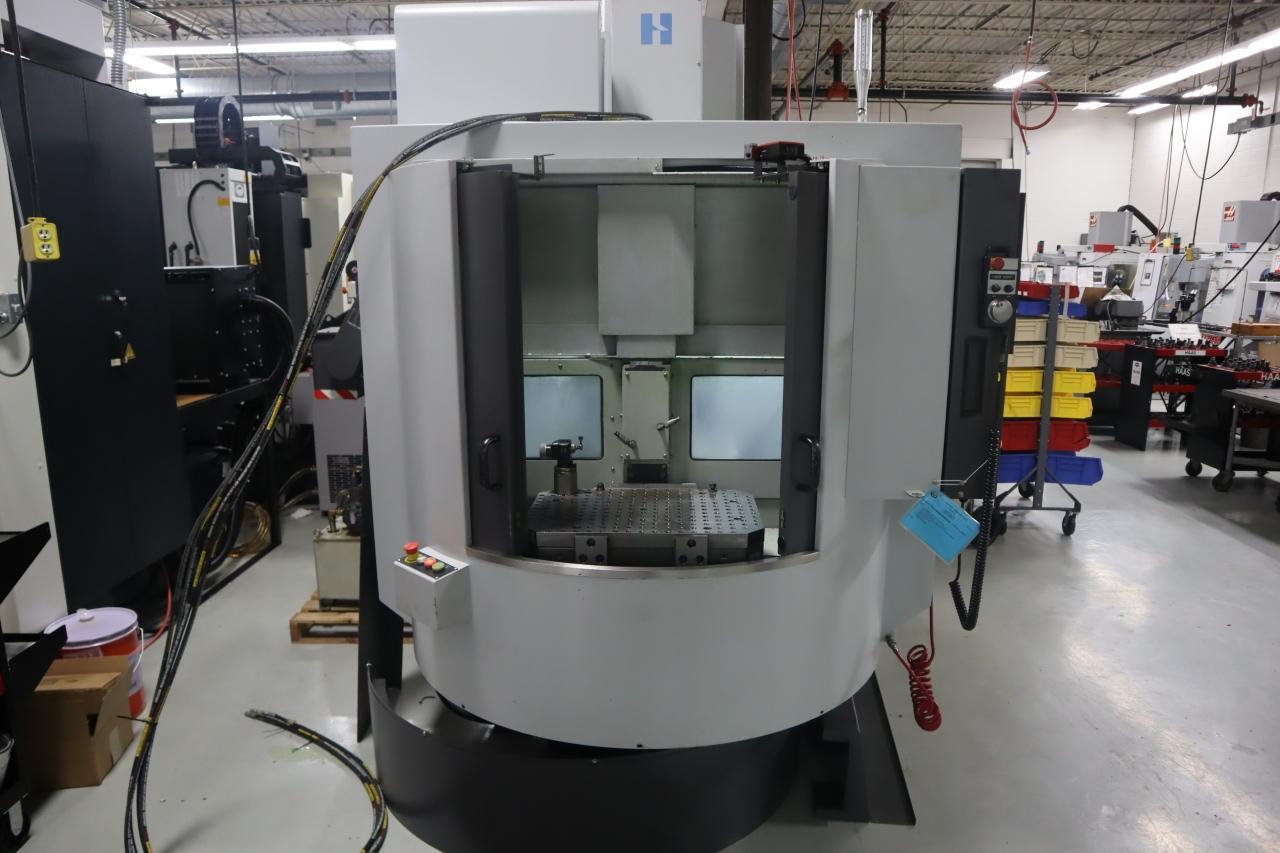

Pallet Change Style: Front Type

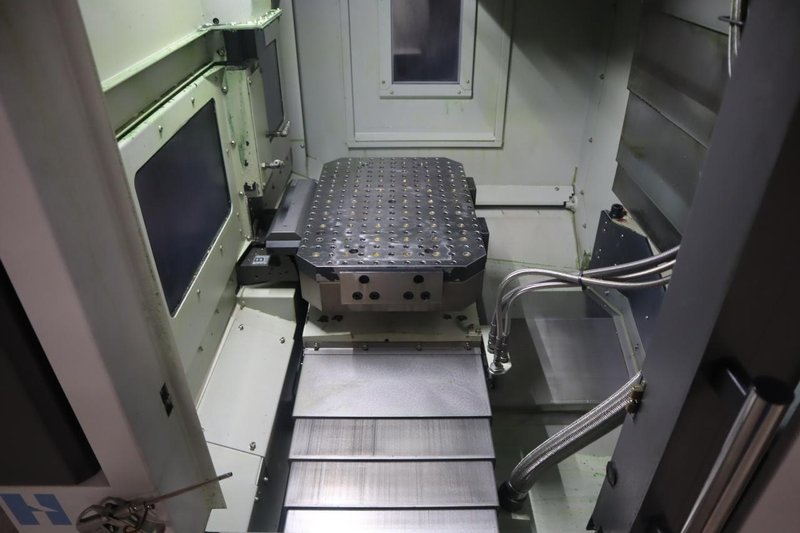

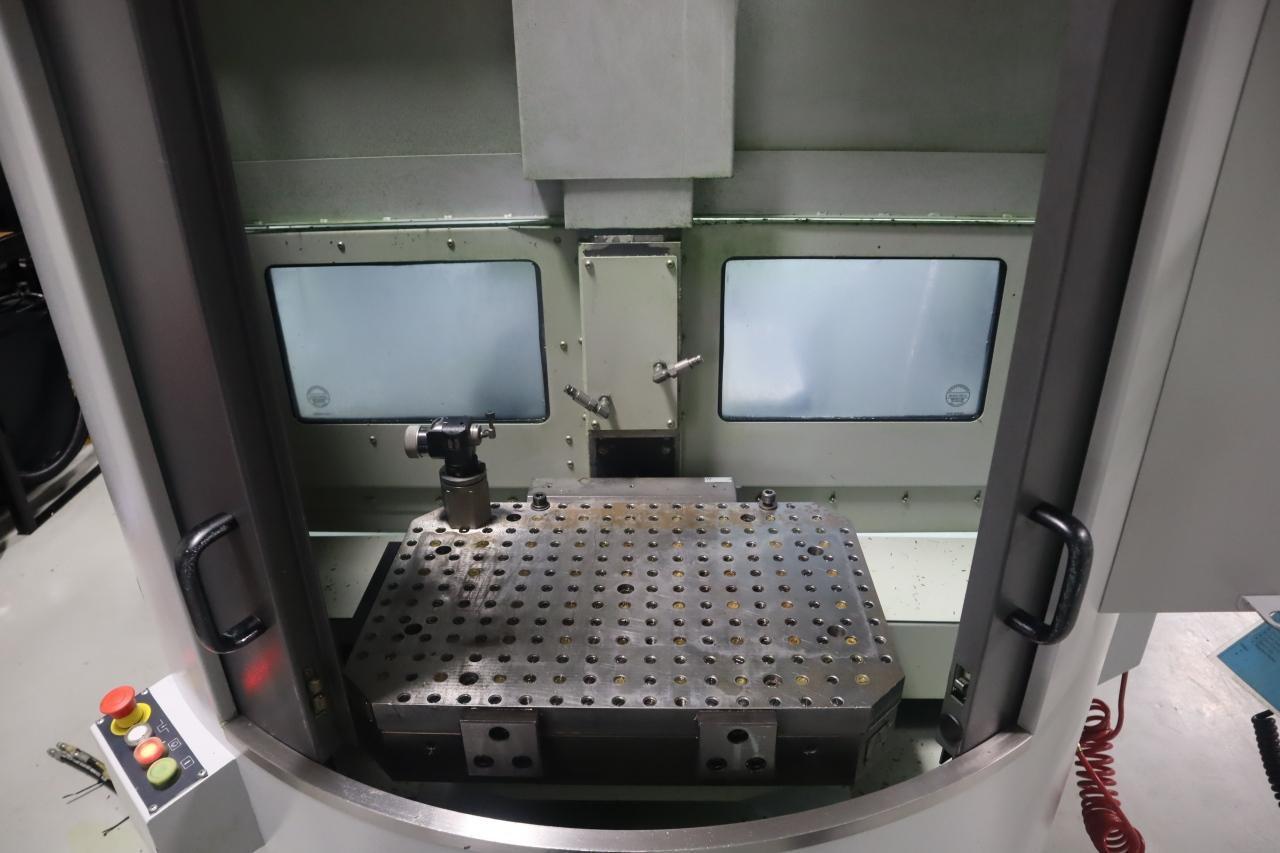

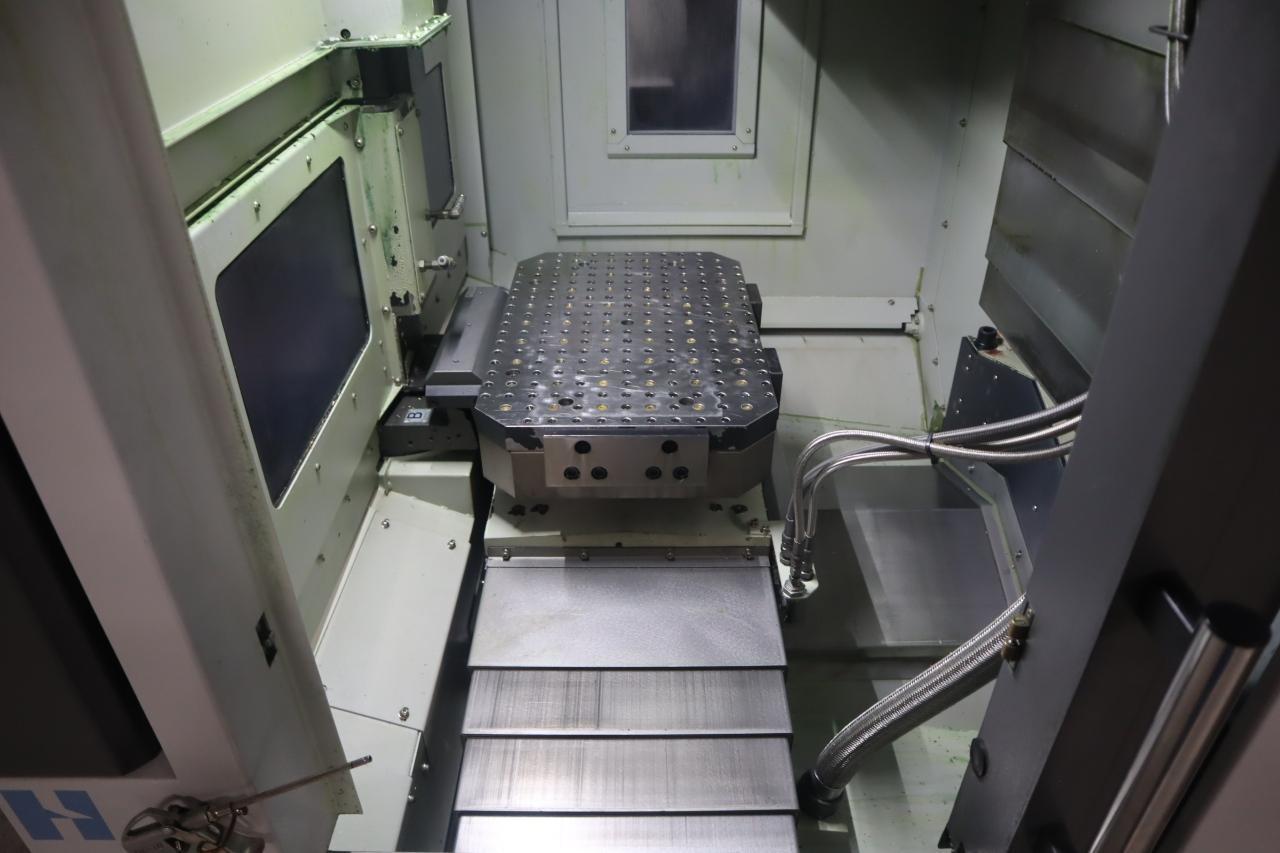

Pallet Size: (600 x 400 mm) / 23.6" x 15.75"

Max Part Height Thru Pallet Door: 400 mm / 15.75"

Spindle Taper: CAT 40

Spindle Speeds: 0-10000 RPM

Spindle Drive: 10 HP

Rapid Traverse (X/Y/Z): 36 m/min

Pallet Change Time: 8 - 10 Seconds

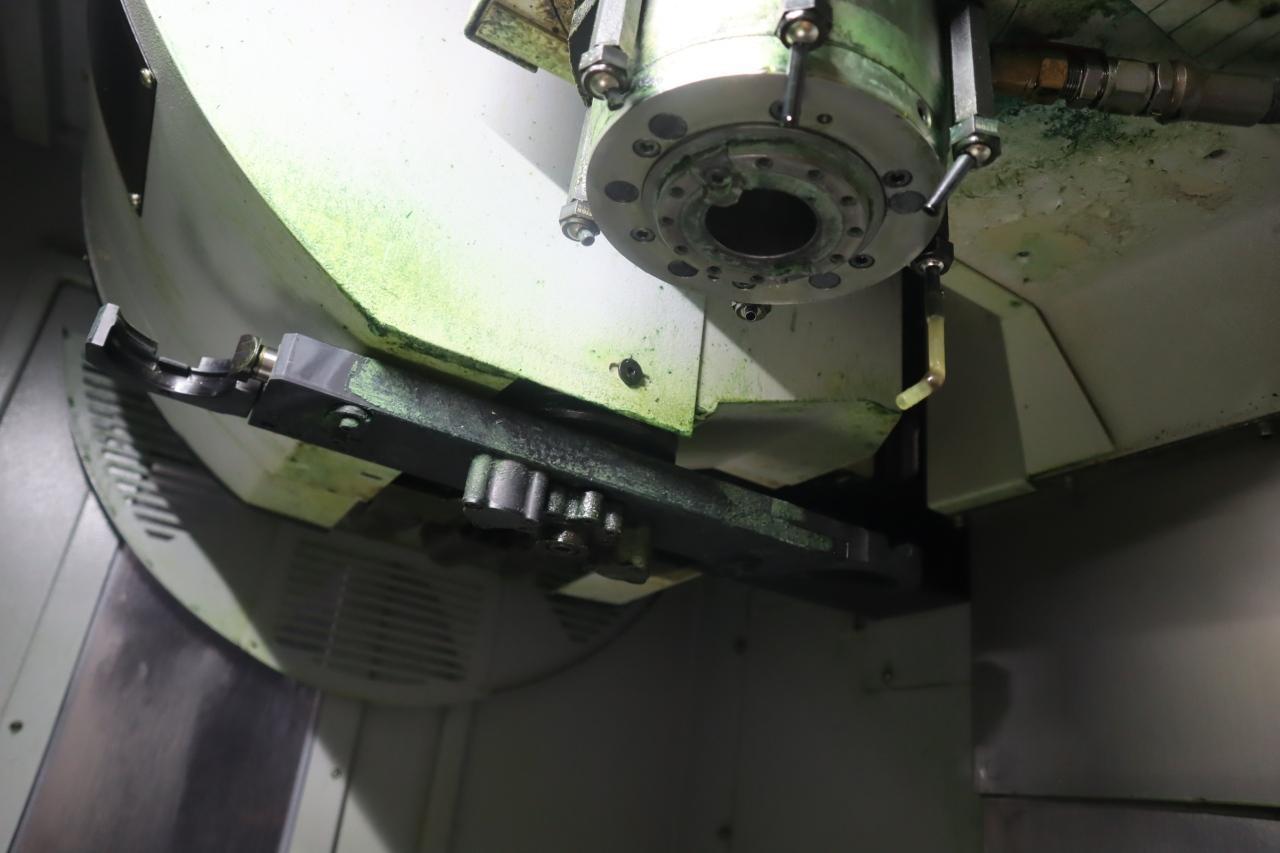

Toolchanger Style: Side Mount , Twin Arm

Toolchanger Capcity: 20 Stations

Max Tool Weight: 15.4 lbs

Max Tool Length/Diameter: 185 mm / 7.28"

Tool Change Time: 2.5 (4.5 Chip to Chip) Seconds

Equipped With:

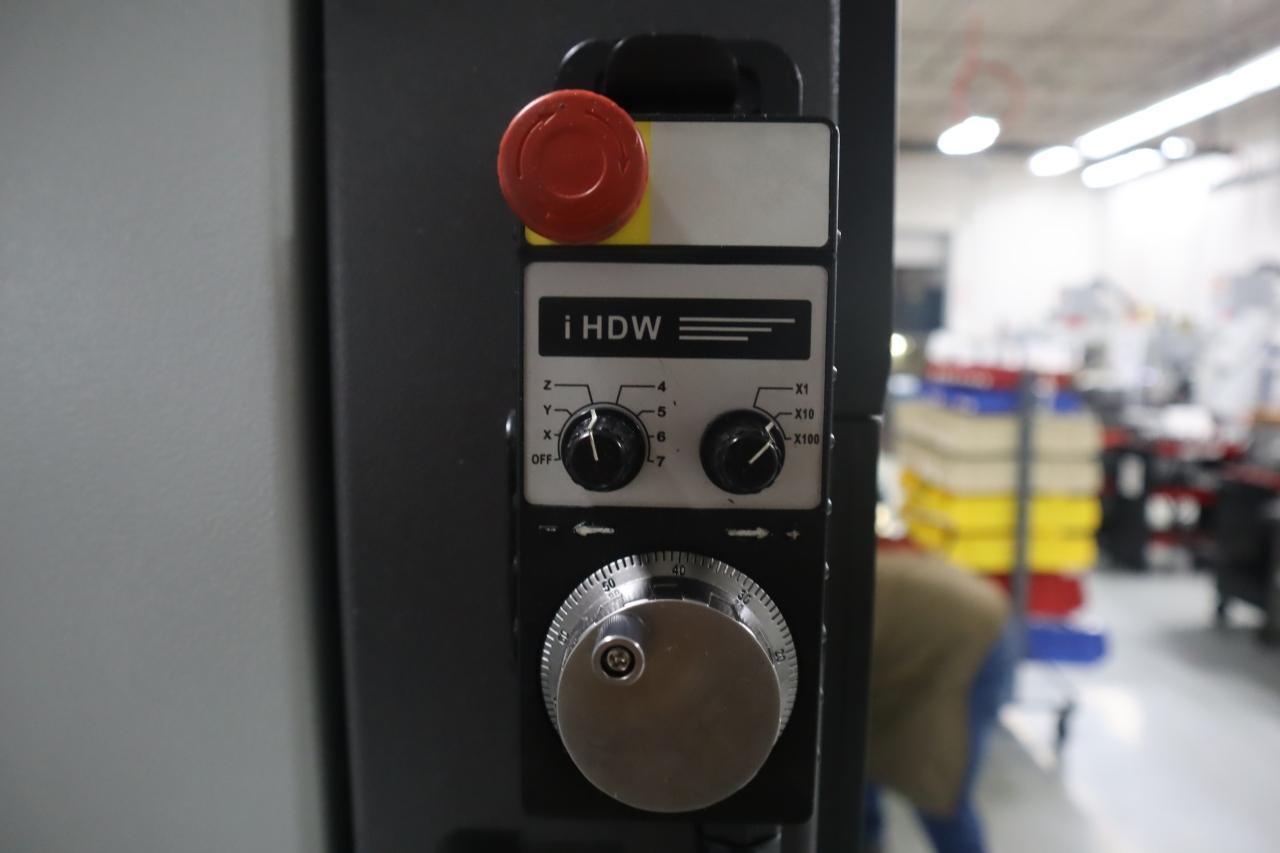

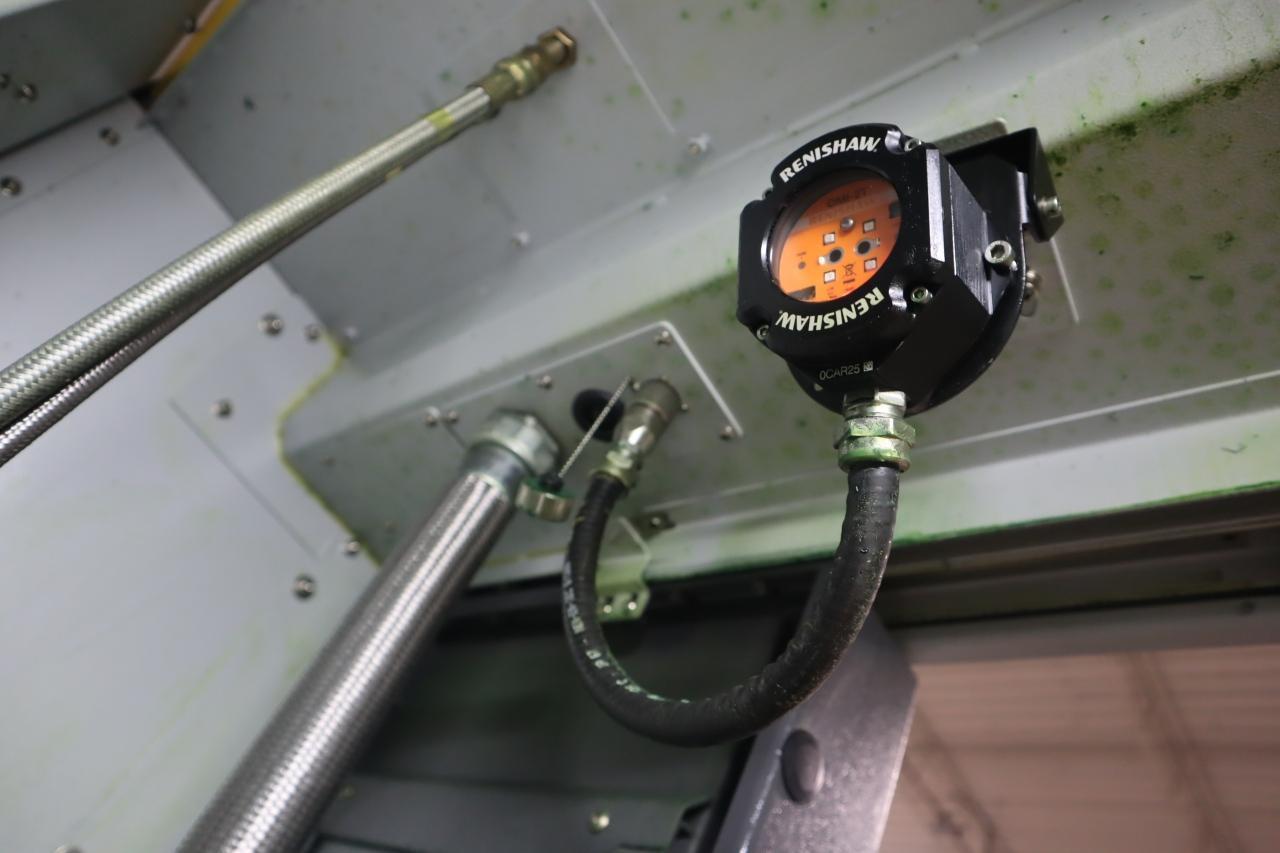

Mitsubishi M70 CNC Control, 10,000 RPM Spindle, CAT 40 Spindle Taper, 20 Station Side Mount Twin Arm ATC, Renishaw Tool and Parts Probing System, Chip Conveyor, Remote Jog Handwheel, 2-Station Pallet Changer with Pallets(2), Coolant Pumps and Tank, RS232 port, Ethernet, Flashcard, USB Port, Manuals

Electrics:

220 Volt, 3 Phase
