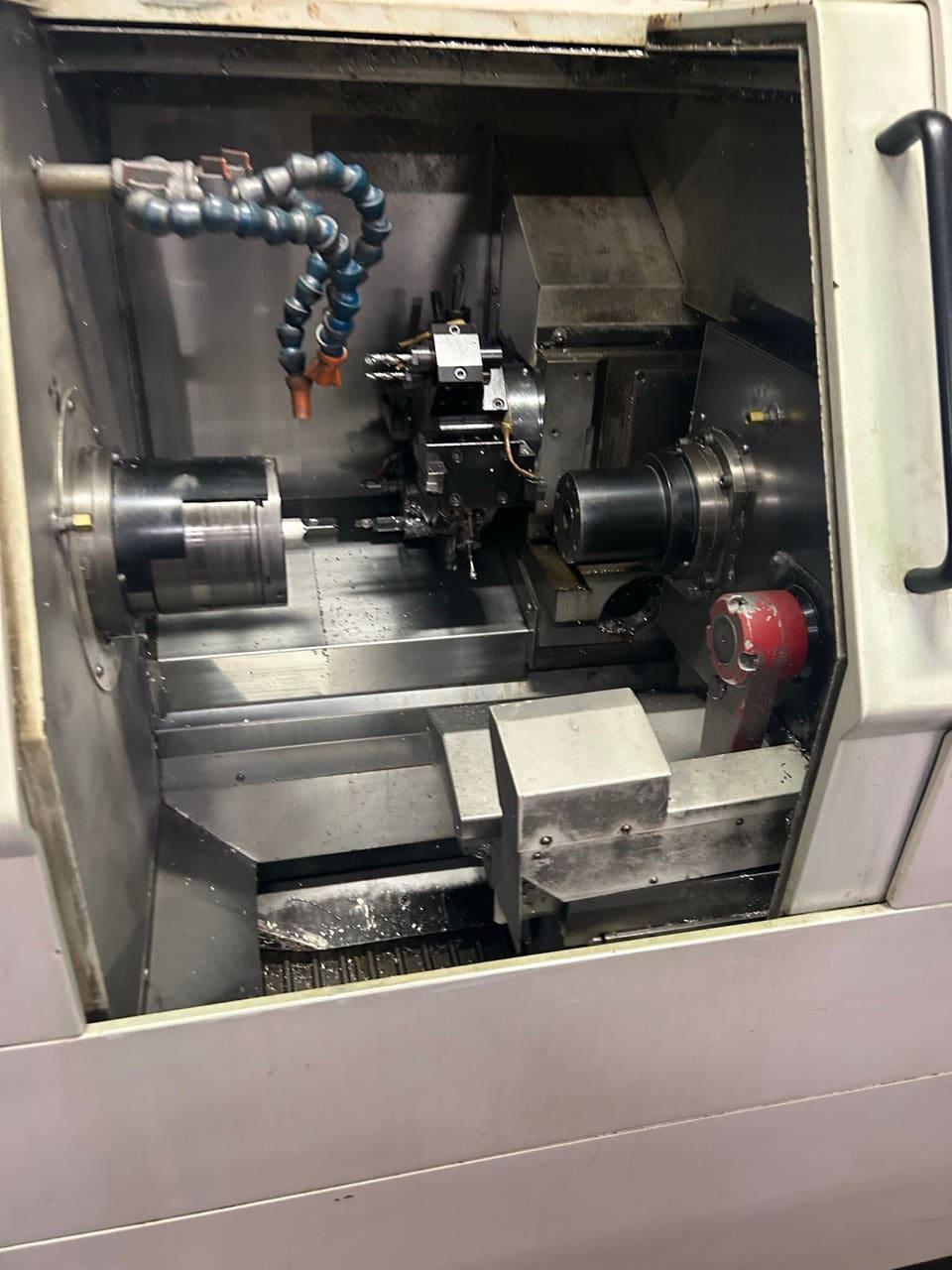

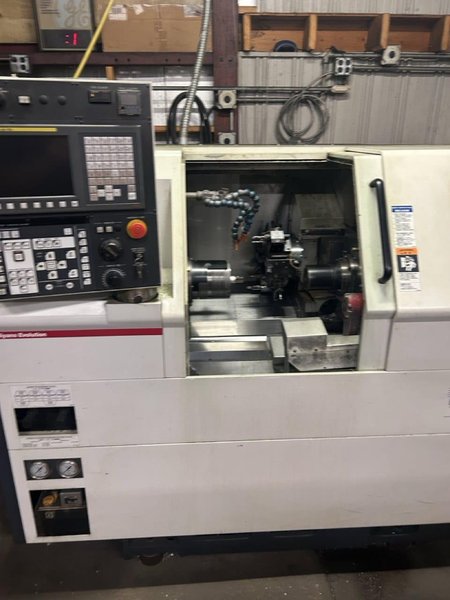

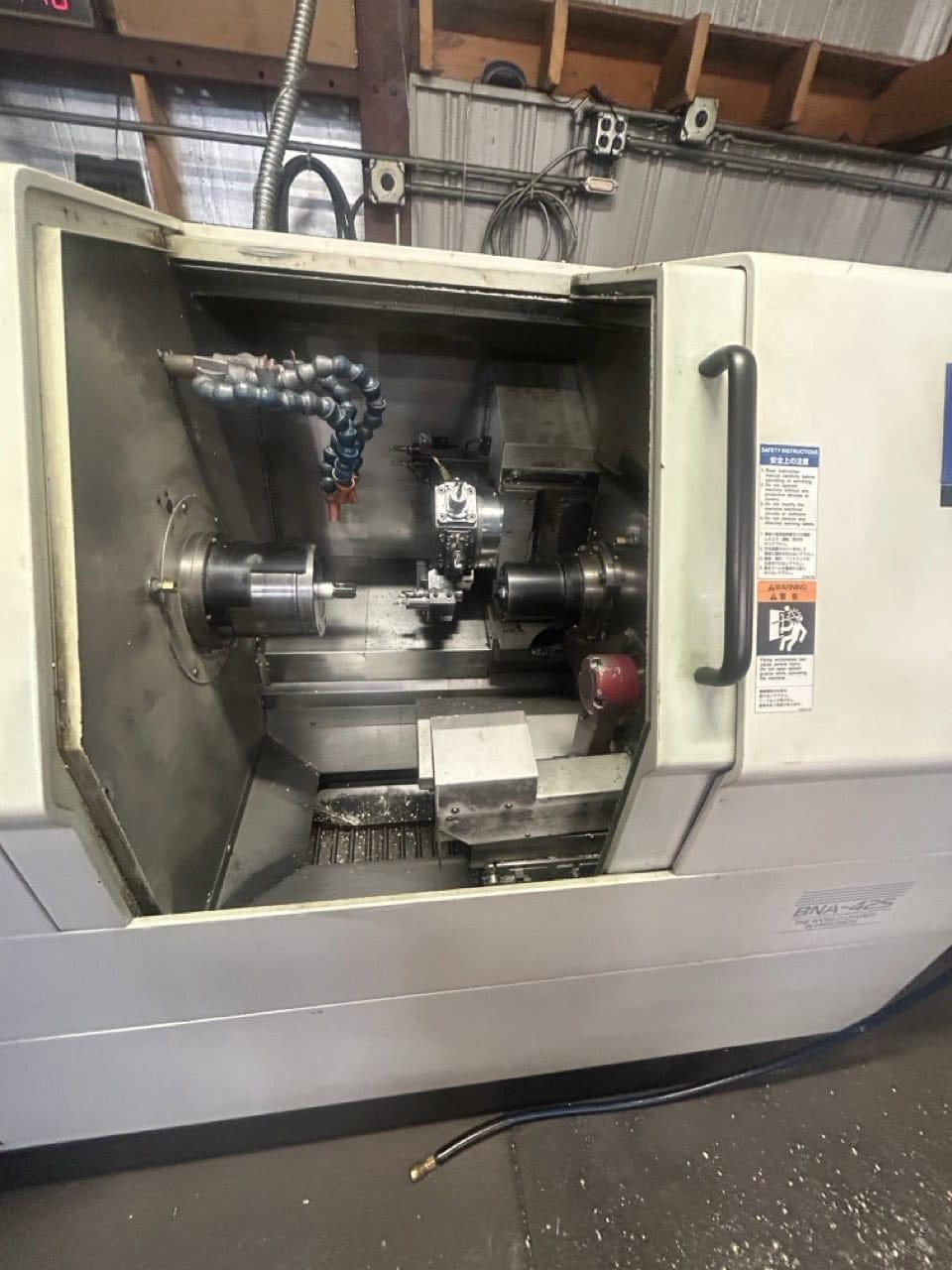

Miyano BNA‑42S CNC Lathe, 2013 – Sub Spindle, Live Tooling, Bar Feeder

Max Machining Diameter (Main Spindle): 1.65″ Max Machining Diameter (Sub Spindle): 1.65″ Max Machining Length: 3.93″ X Axis Travel: 5.31″ Z Axis Travel: 9.25″ B Axis Travel: 12.20″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Inner Diameter of Draw Tube (Main): 1.69″ Inner Diameter of Draw Tube (Sub): 1.18″ Main Spindle Speed: 6,000 RPM Sub Spindle Speed: 5,000 RPM C axis – spindle 1: 0.001° C axis – spindle 2: 0.001°

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Turret Stations: 8

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Number of rotary tools: Max 8 Rotary tool speed: 5,000 RPM Max. drilling diameter: 0.39″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine Weight: 6,500 LBS Machine Dimensions: 84.65″ x 51″ x 65.40″

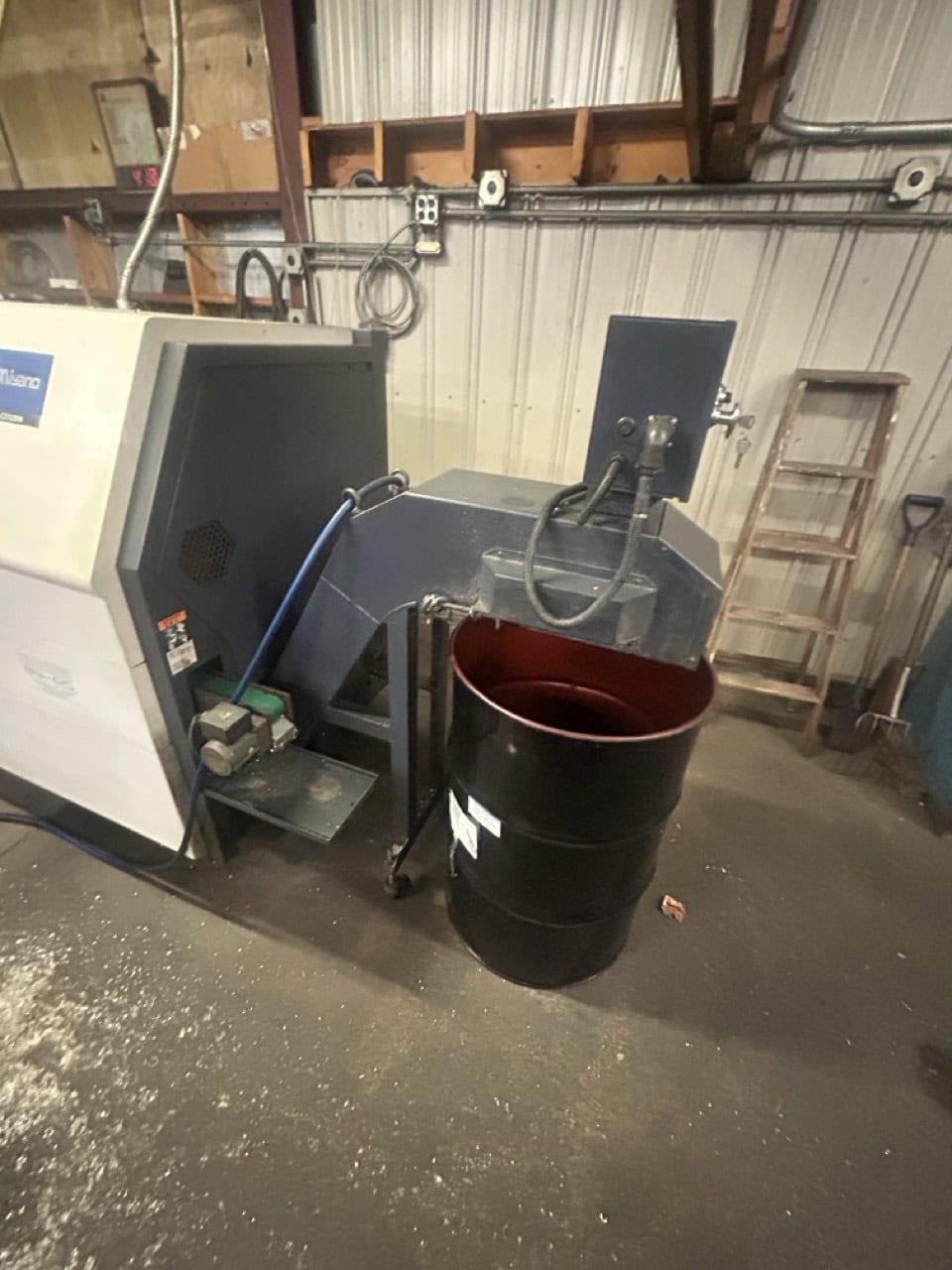

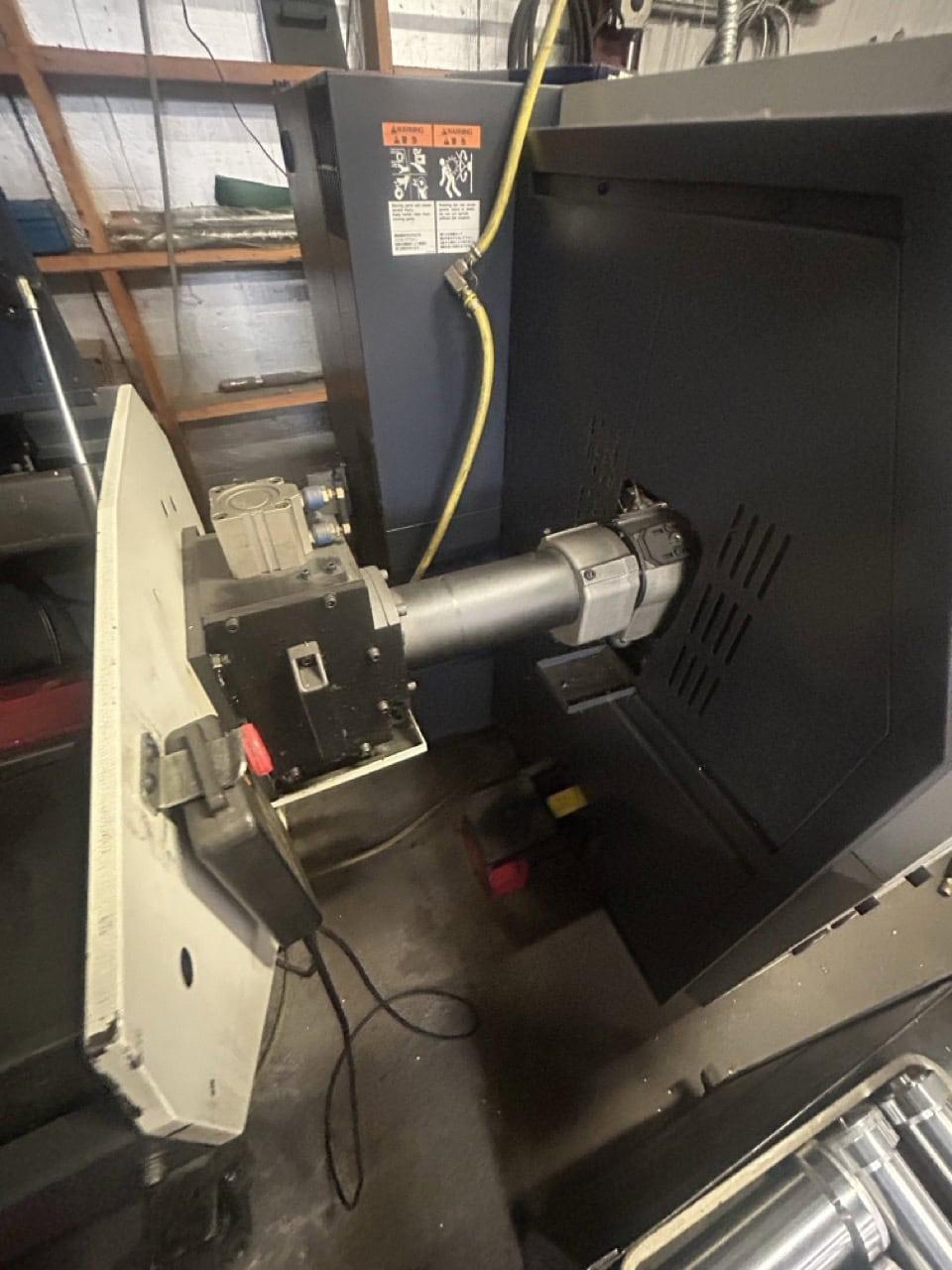

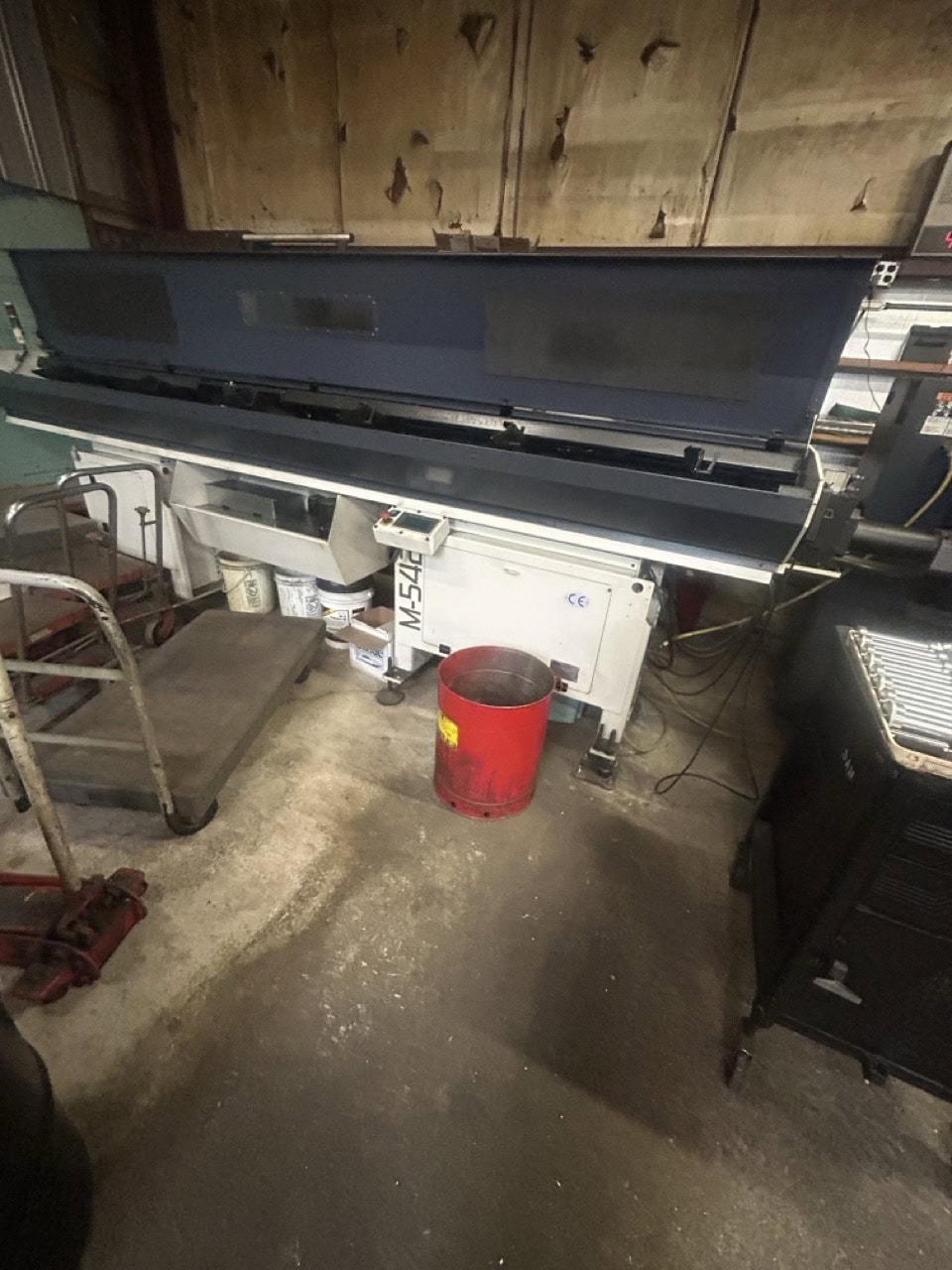

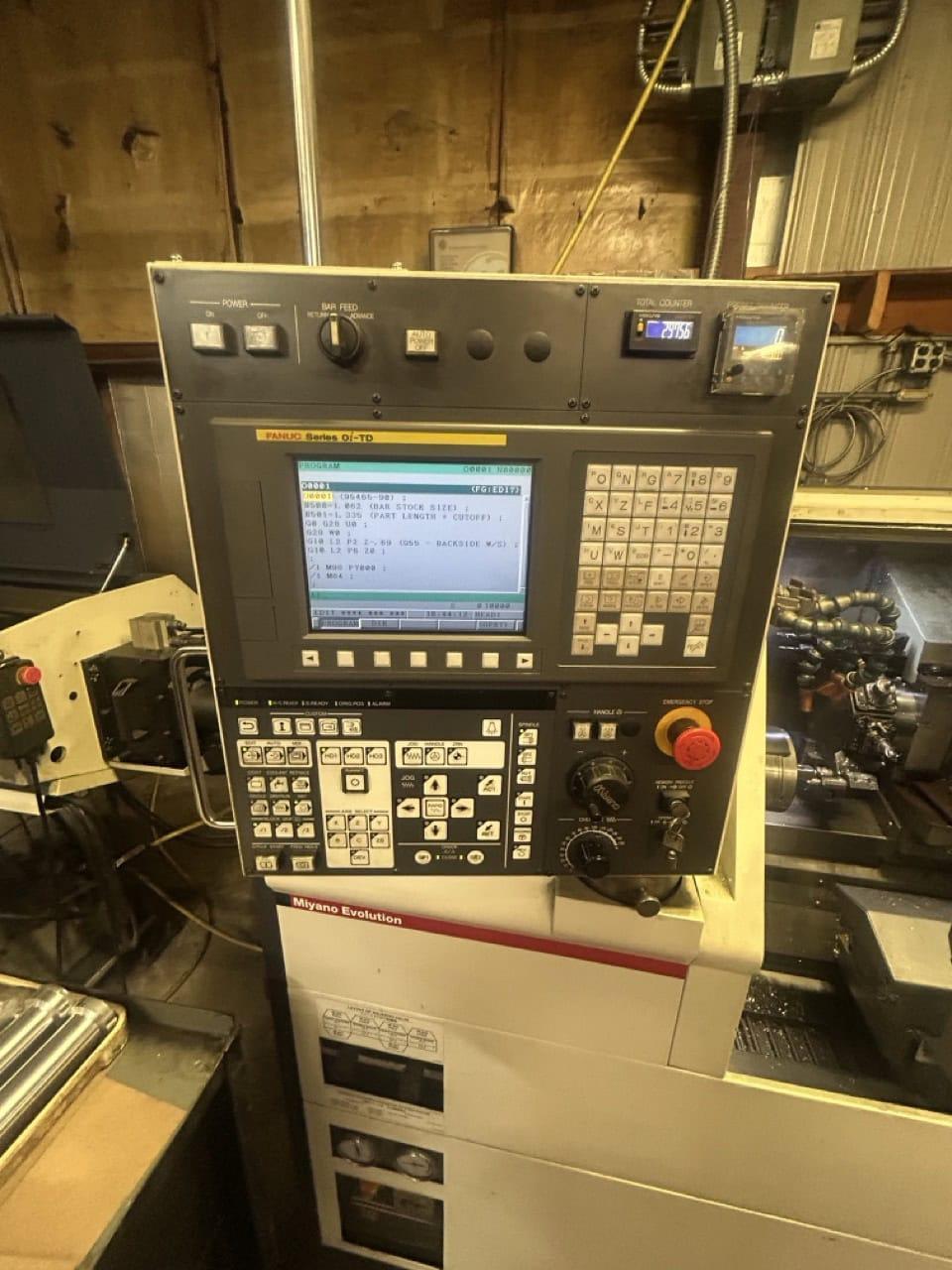

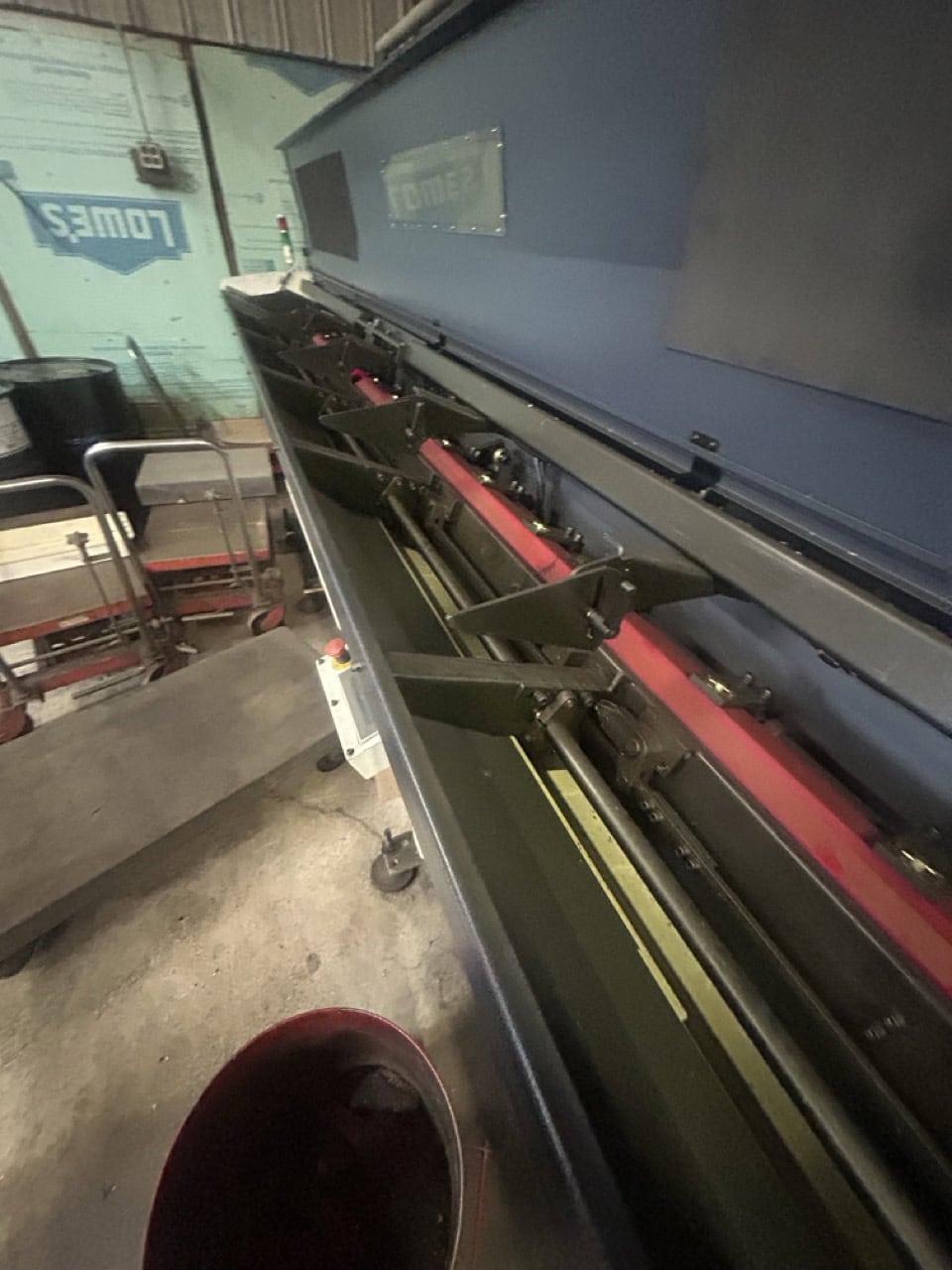

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Fanuc Oi-TD Control Sub Spindle Live Tooling Edge M-542 Bar Feeder Chip Conveyor Parts Catcher

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,*Note: Spindle bearings need to be replaced on the Sub Spindle

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
