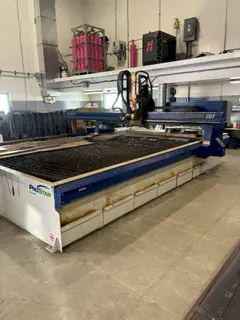

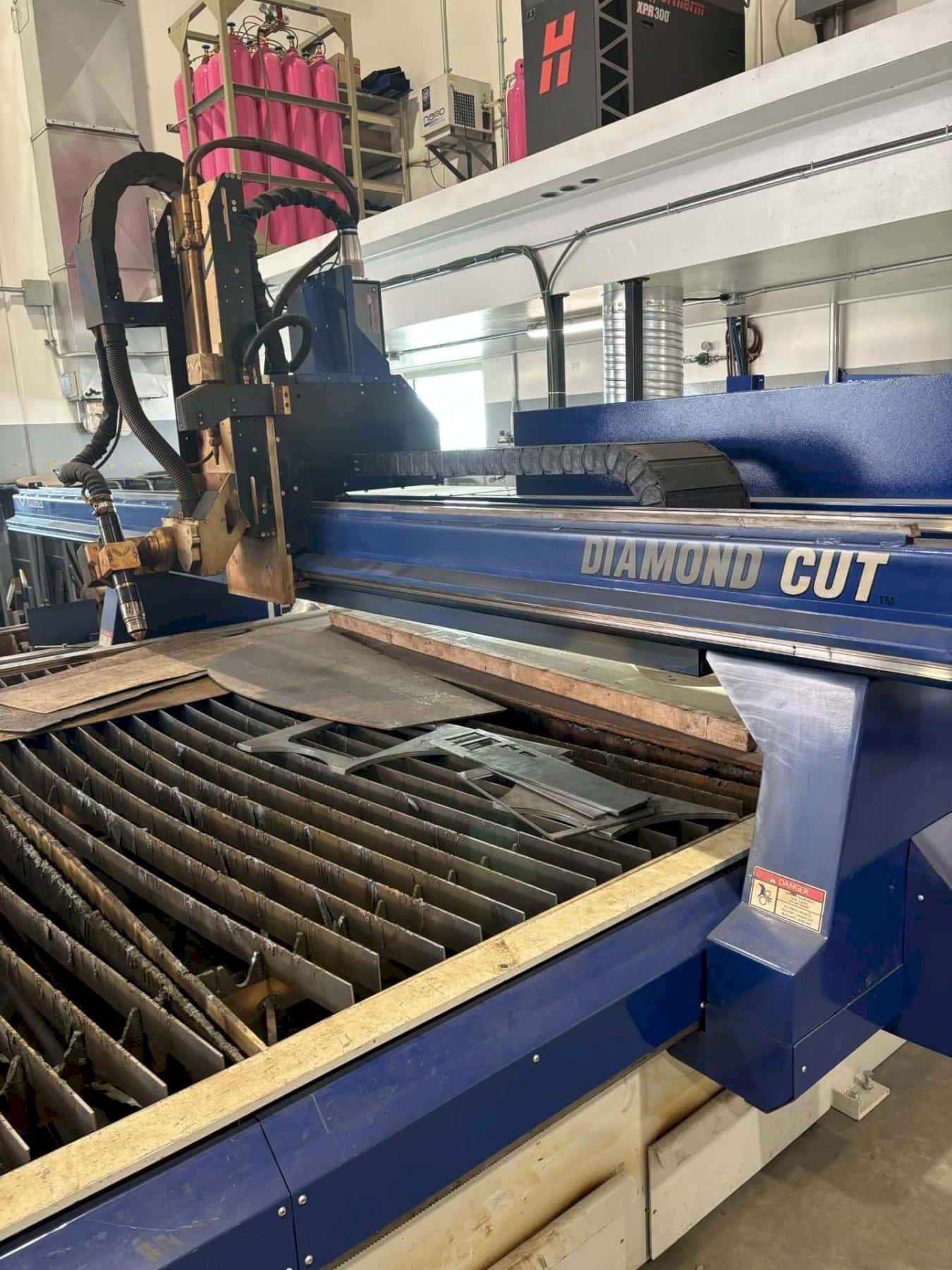

8’ x 12’ Machitech Diamond Cut CNC Plasma, 2020 – Hypertherm XPR 300, 5-Axis Full Contour Beveler

Cutting Table & Motion Nominal cutting dimensions: 8’ x 12’ Positional accuracy: 0.002” Max Traverse Speed: 1,800 IPM Repeatability: 0.001” Maximum table capacity: 4” Space under gantry: 8.5”

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Hypertherm XPR300 Plasma Specs Mild Steel: Pierce capacity (argon-assist): 2” Pierce capacity (standard O₂): 1-3/4” Severance: 3-1/8”

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Stainless Steel: Pierce capacity: 1-1/2” Severance: 3”

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Aluminum: Pierce capacity: 1-1/2” Severance: 2”

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Torch & Beveling Torch lifter stroke: 9.8” Bevel angles: ± 50°

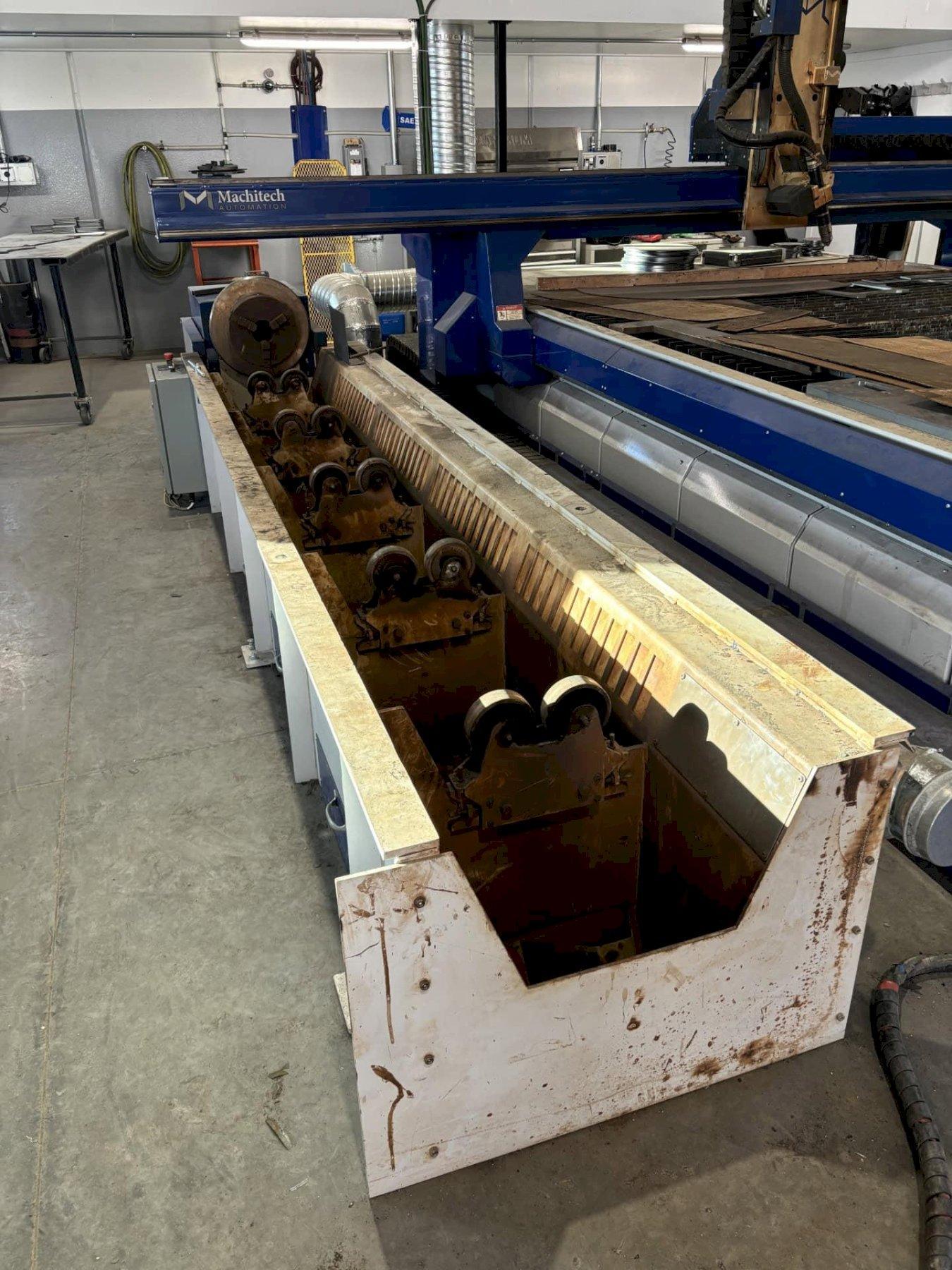

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Pipe Cutting Attachment Pipe length capacity: 10’ Pipe diameter range: 2” up to 12” Capacity: 75 lbs/ft

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Hypertherm XPR 300 Plasma Source Automatic Torch Height Control 5 Axis Full Contour Beveler 10′ Pipe Cutting Attachment Quick Change Oxyfuel Torch

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
