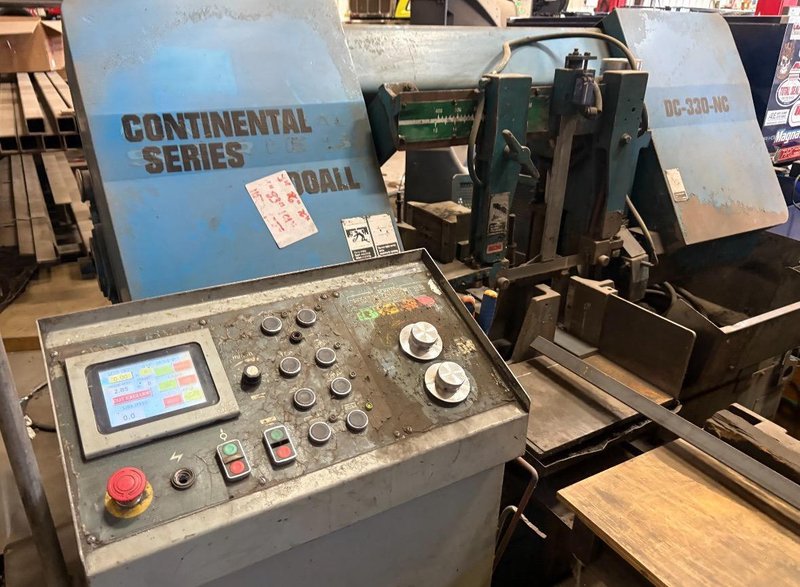

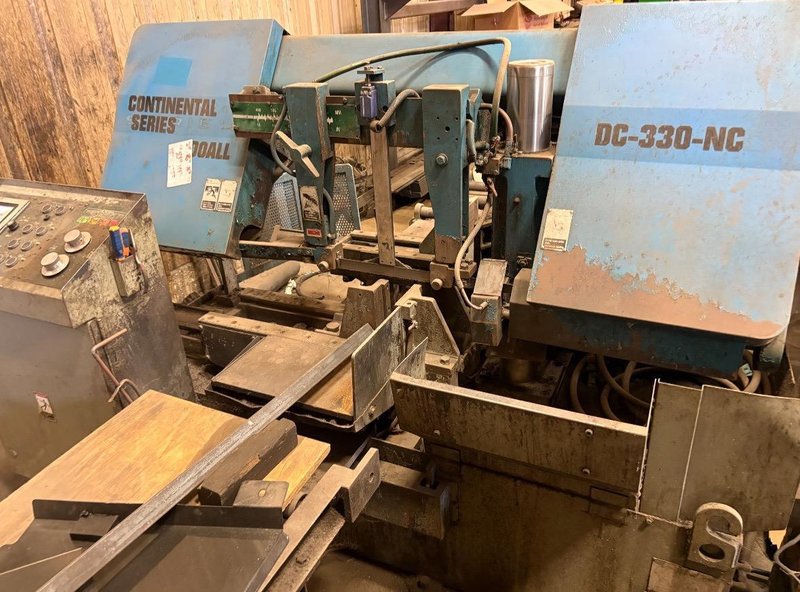

13″ X 15″ DoAll DC-330NC Series Automatic Horizontal Band Saw, 2012
Brand
Category
Model
DC-330NC
Stock #
364131
Year
2012
Condition
Not specified
Location
Not specified
|
Voltage: 230 V, 60 Hz, 3-Phase
Full Load Amps: 22 A
Motor Power: 5 HP (3.7 kW)
Speed Range (variable): 52 to 430 fpm
Cutting Capacity
Round: 13″
Rectangle: 15.75″ x 13″
Saw Blade: 1.25″ x 0.042″ x 167″
Hydraulic System
Motor: 1hp
Reservoir: 16 gallons
Coolant System
Pump: 1/6 hp
Tank: 24 gallons
Indexer / Automation
Incremental Stroke (single): ~19.68″
Max Multiple Index Stroke: 177″
Machine Dimensions: 89″ x 87″ x 56″
Machine Weight: 4,410 lbs
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,New replacement cost $48,000 All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
