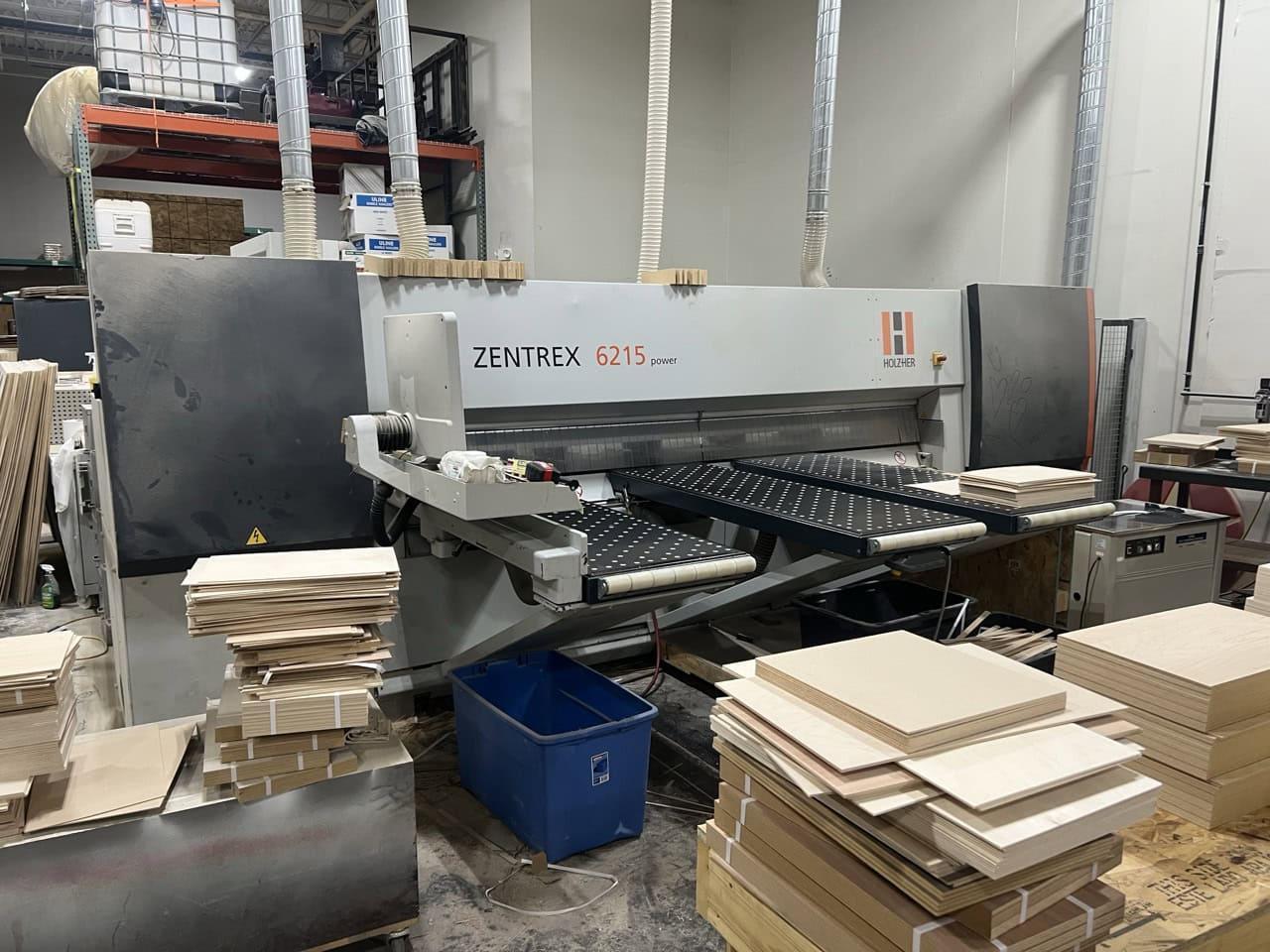

Holz-Her 6215 Horizontal Pressure Beam Panel Saw, 2019

Cutting Capacity

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Max Cutting Length: 3,200 mm (126″) Max Cutting Height: 80 mm (3.15″) Saw Blade Diameter: 350 mm Main Saw Motor: 11 kW Scoring Saw Motor: 2.2 kW Saw Carriage Feed Speed: up to 80 m/min Return Speed: up to 120 m/min

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Pressure Beam & Clamping

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Automatic pressure beam with independent clamping zones Pneumatic material clamping Programmable pressure settings Floating pressure beam for uneven panels Program Fence / Pusher Servo-driven program fence Pusher Speed: up to 90 m/min Positioning Accuracy: ±0.1 mm Integrated side alignment

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Air Table & Material Handling

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Air flotation tables for easy sheet movement Rear loading air tables Side support tables Front air tables with stainless surface

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Controls

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Holz-Her PC-based control system Touchscreen HMI Optimization and cut list management USB / network connectivity Diagnostic and service menus

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electrical

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Voltage: 400V / 50Hz / 3-Phase (typical EU configuration) Control Voltage: 24V Total Connected Load: approx. 15 kW

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Options & Equipment

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Automatic Label Printer (cut part labeling) Grooving Unit Postforming Device Automatic Angle Cutting Unit Power-Driven Pressure Beam Additional Air Tables Rear Loading System Barcode Scanner Integration Optimization Software Package Offcut Management System Dust Extraction Connection Ports

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dimensions & Weight

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Overall Length: approx. 6,000 mm (236″) Overall Width: approx. 5,500 mm (217″) Overall Height: approx. 1,600 mm (63″) Weight: approx. 5,500 kg (12,100 lbs)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Series: DBS19V2 Country of Manufacture: Austria CE Marked: Yes
