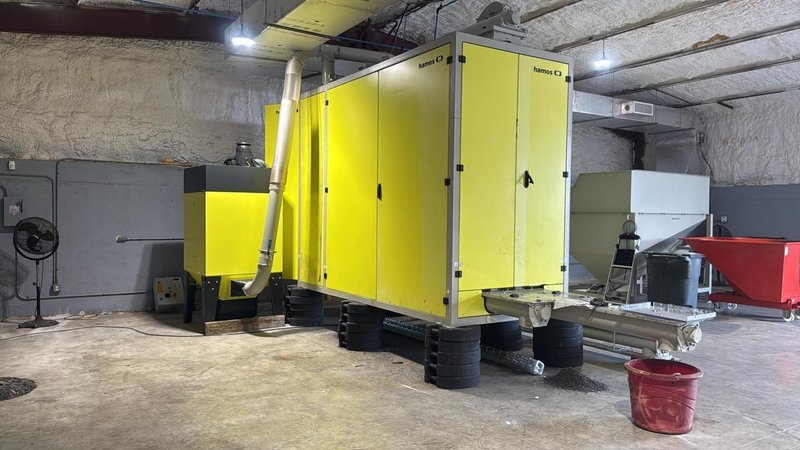

Hamos KWS2522-2 Electrostatic Separator for Cable Recycling, 2024

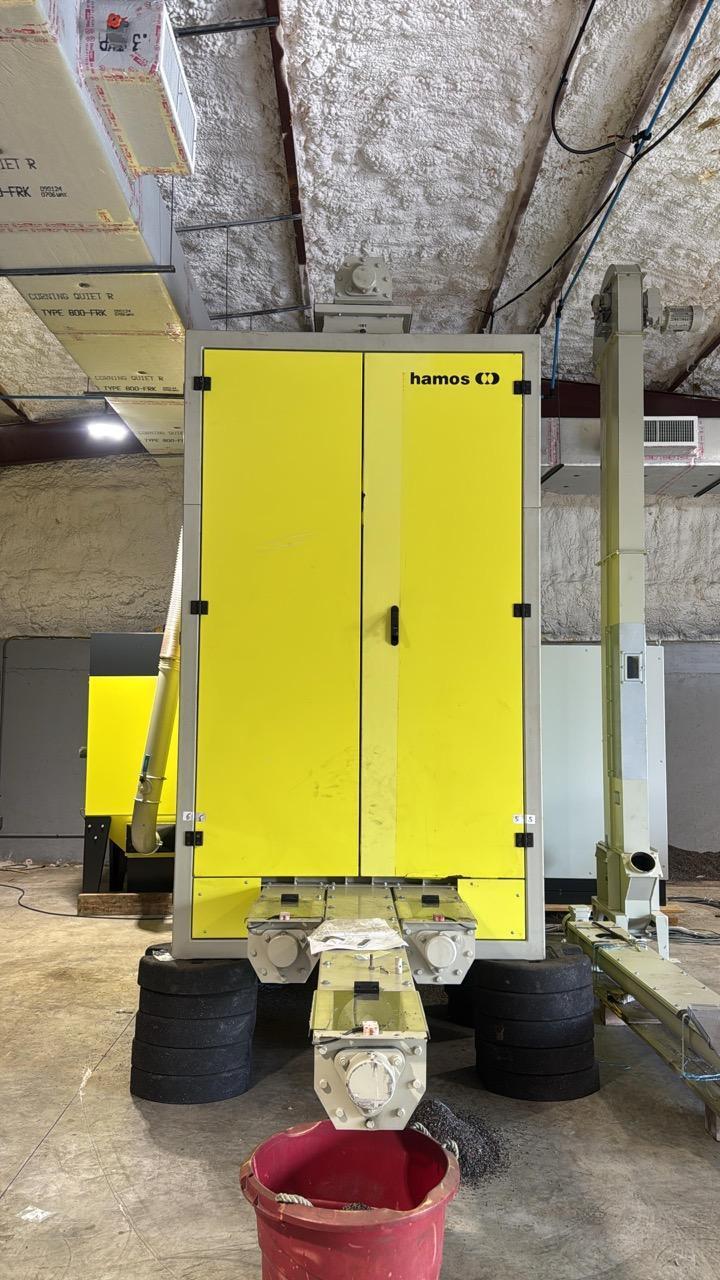

Hamos KWS2522-2 Electrostatic Separator for Cable Recycling

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Application: Cable recycling, Separation of metals inside plastic mixtures (e.g. leftover copper in shredded plastics) The electrostatic separator is used in the final steps of the cable recycling process, after a disnimetric separation, to recover the final 1-5% of metals contained in the plastics mix. With an input throughput of 1.3 metric tons/hour (= 2,645 lbs/hour), this translates to 22 metric tons of extra copper recovered each month.

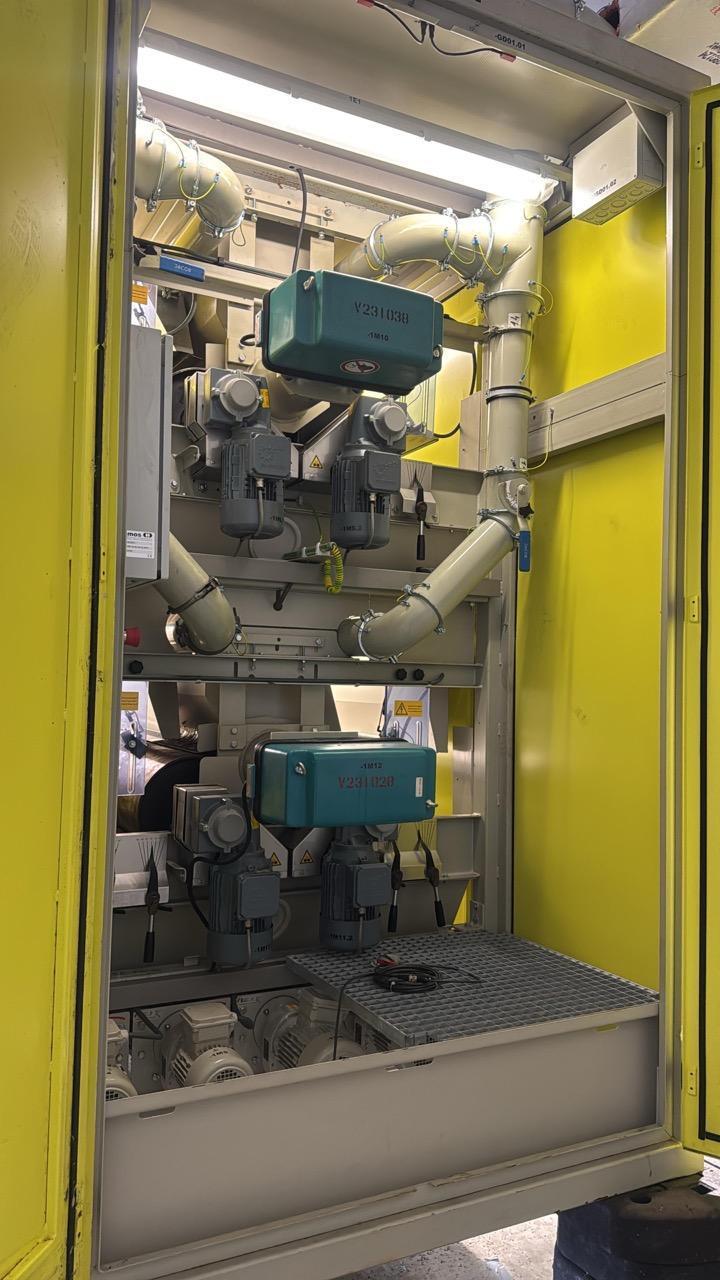

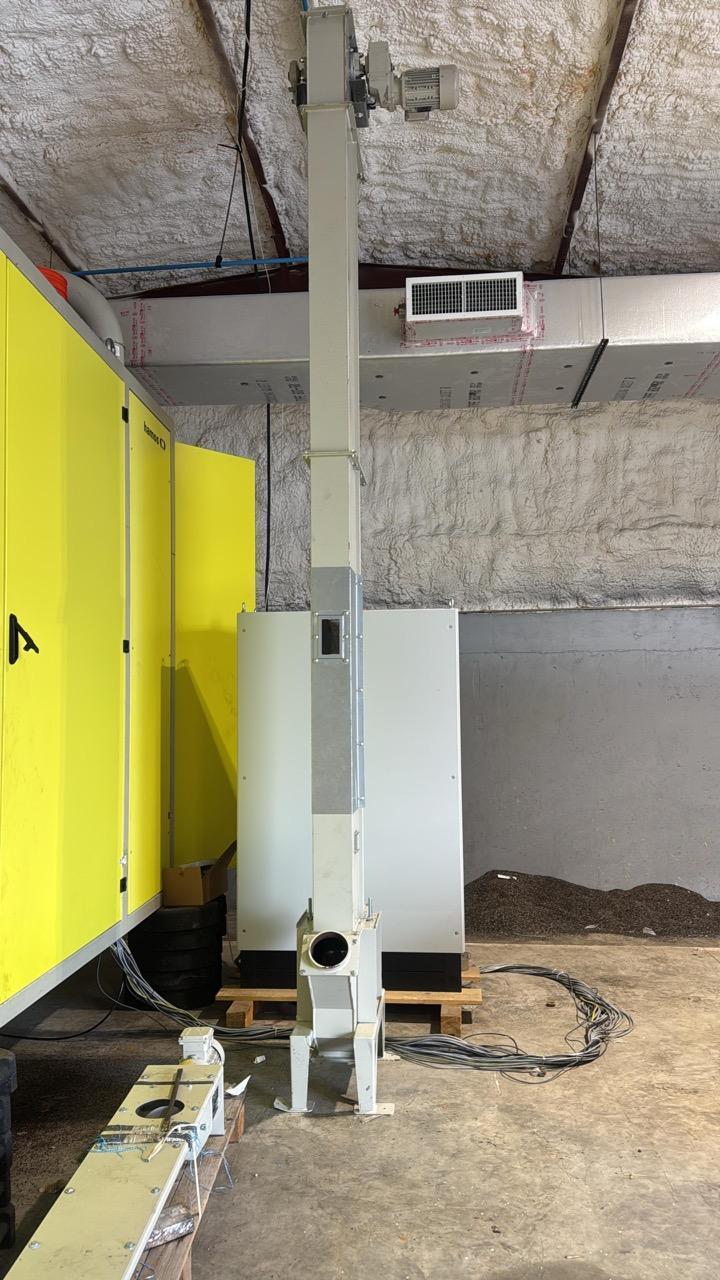

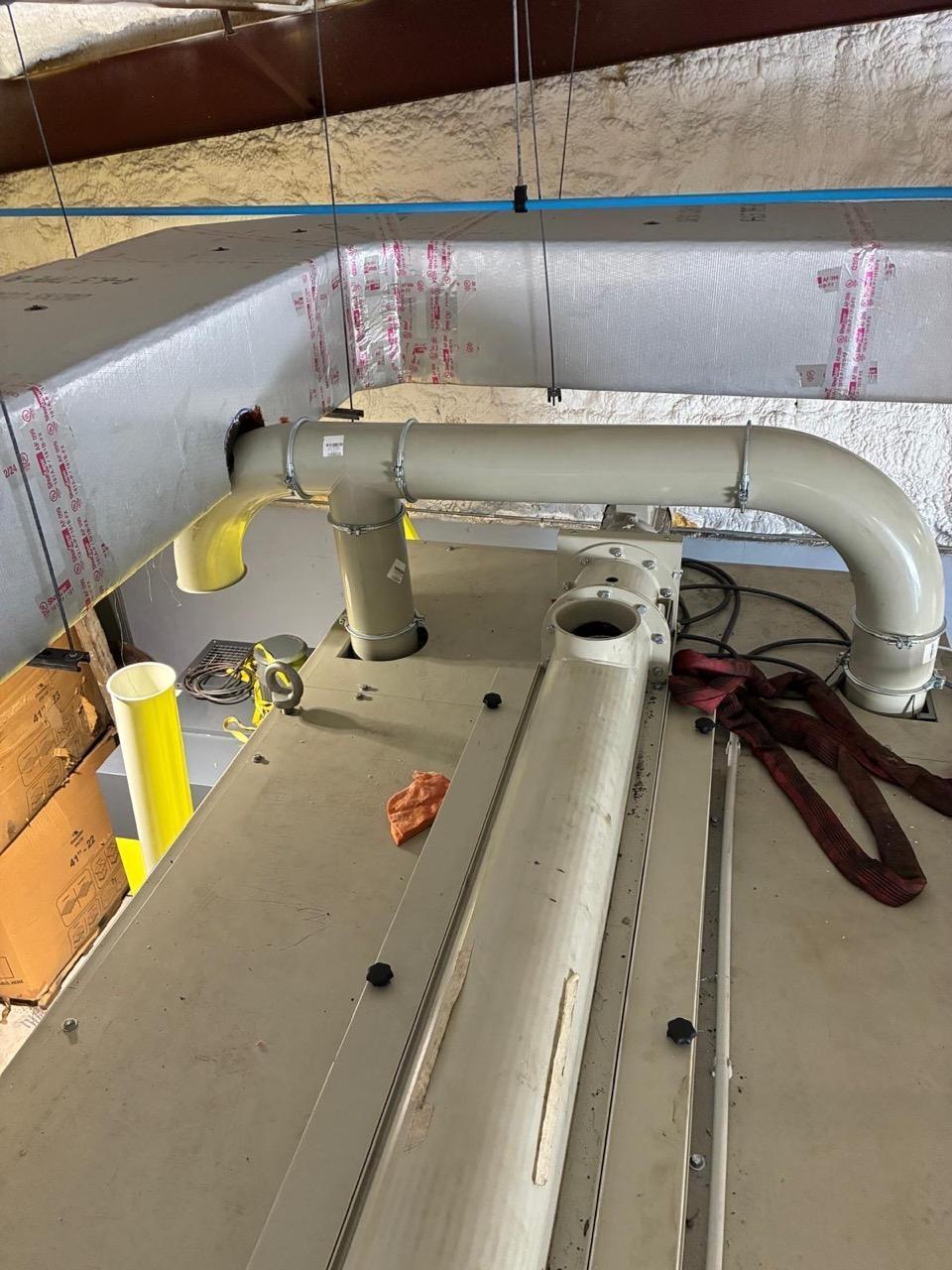

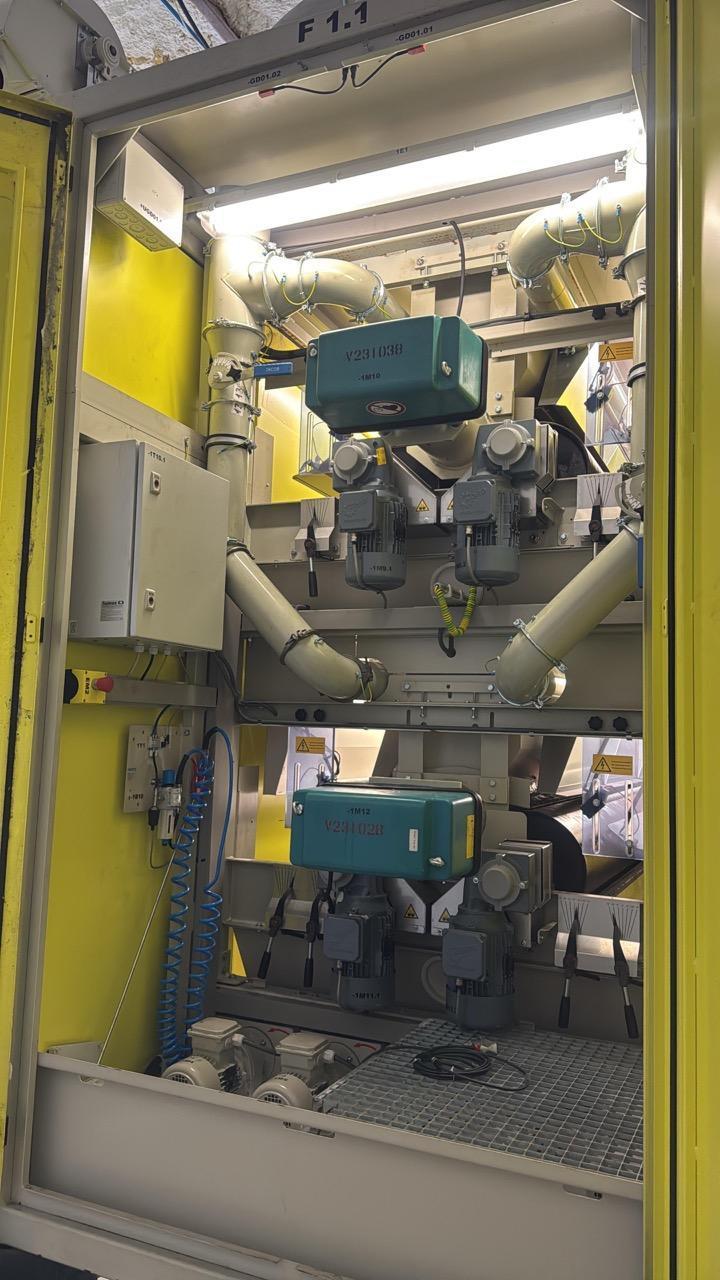

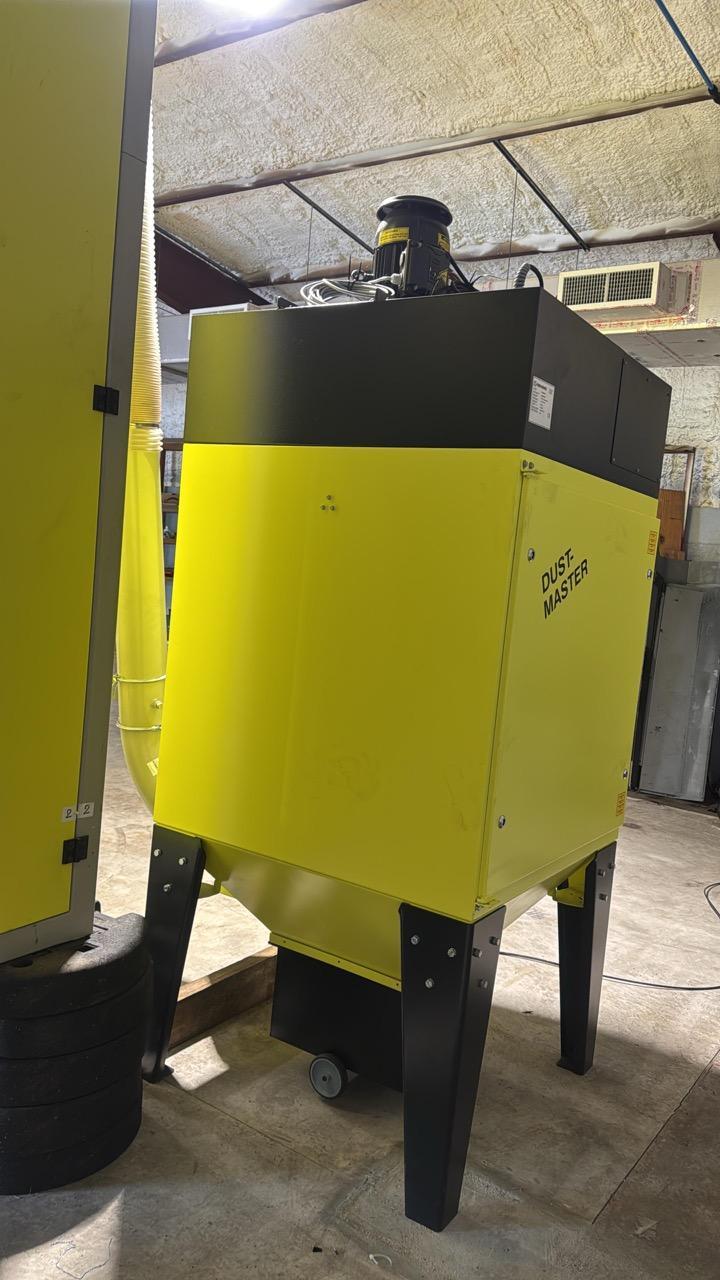

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,System includes: – Inlet silo (capacity 100 cubic feet) – Bucket elevator and output transport screw – Separation module with 4 rotating drums – 3 Transport screws for 3 sorted output fractions: plastics, metals and mixed leftover. – Dust exhaust system

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Technical Specifications: • Throughput capacity: approx. 1.3 metric tons/h (depending on input material) • Input material size: between 0.08 in and 0.4 in (cubic granulate) • Separation voltage: 15,000 – 30,000 V (corona electrostatic system) • Separation efficiency: up to 95-98 % dependent on material characteristics Please note: to achieve the separation, the material must be dry (surface humidity: < 0.2 %), and free of wood, films (layer thickness < 0.05 in), fibres and fibre balls • Power supply: 400V, 3Ph Power consumption: Installed power rating approx. 25 kW • Dimensions of the whole line assembled (L × W × H): 23 × 27 × 16.5 feet • Weight: 6.6 metric tons (= 13,227 pounds)
