SUNNEN ML-4000-D | Hones

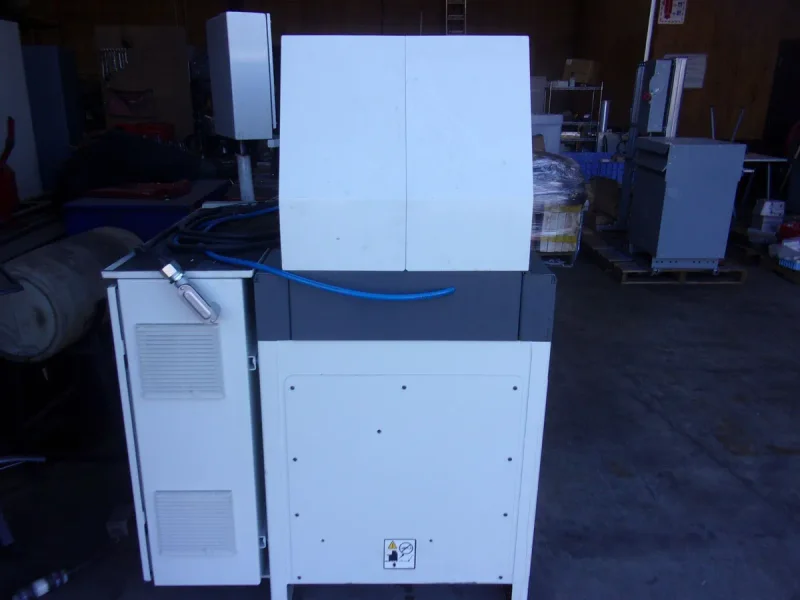

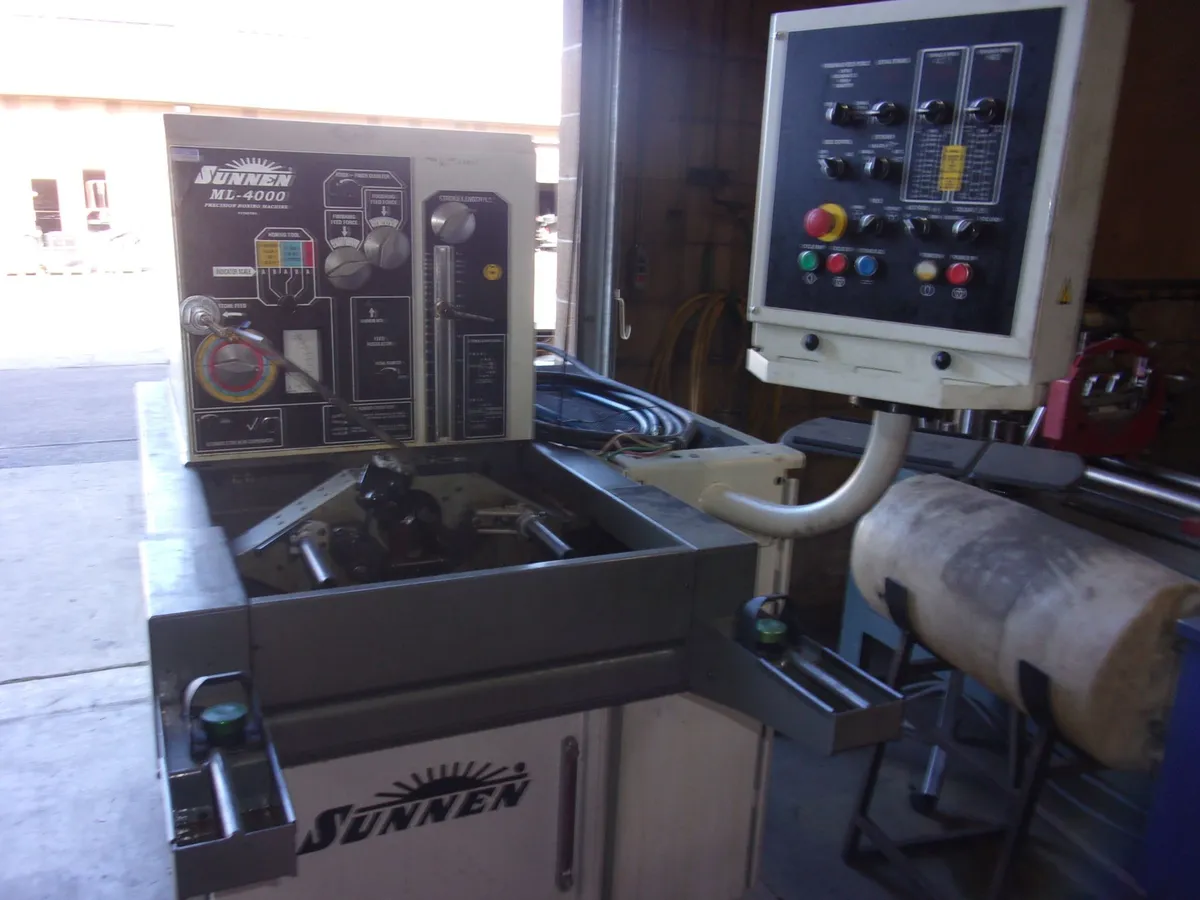

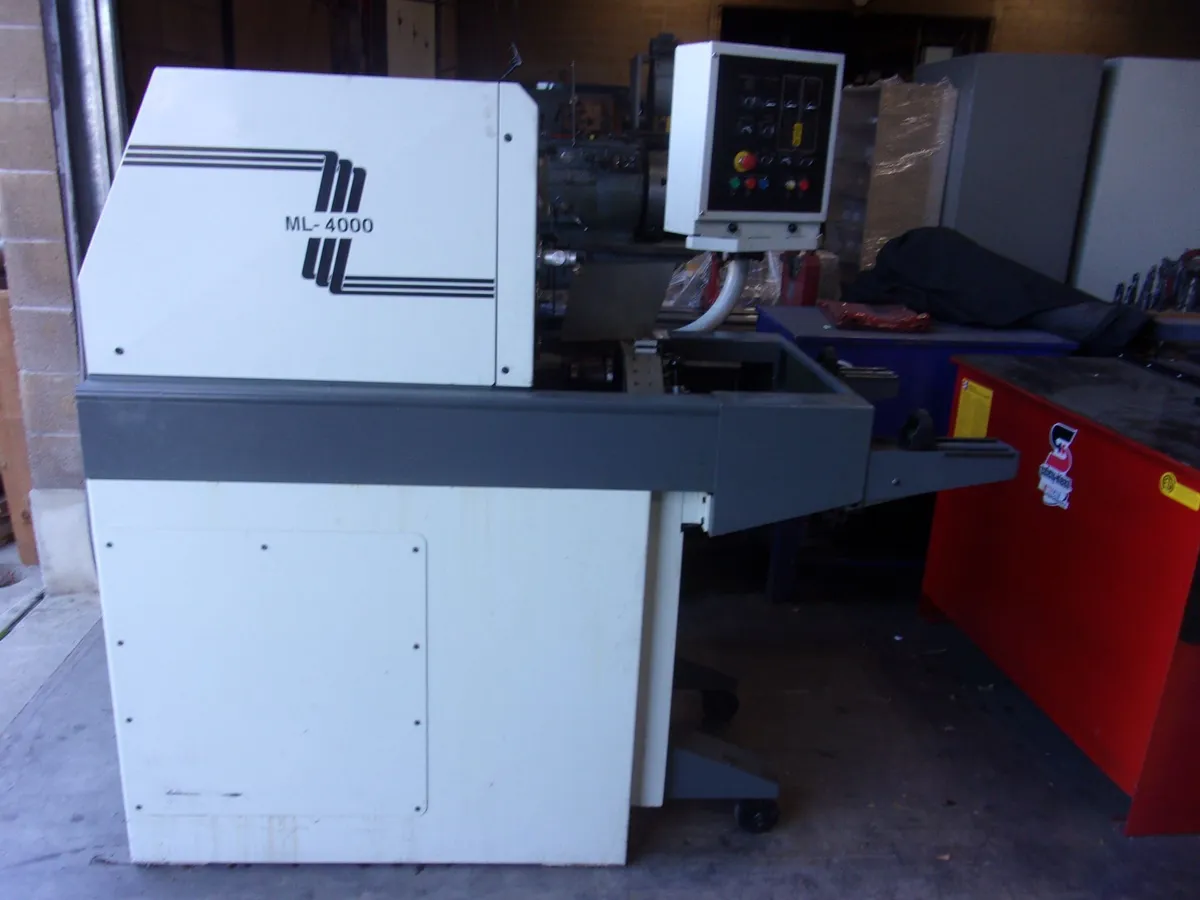

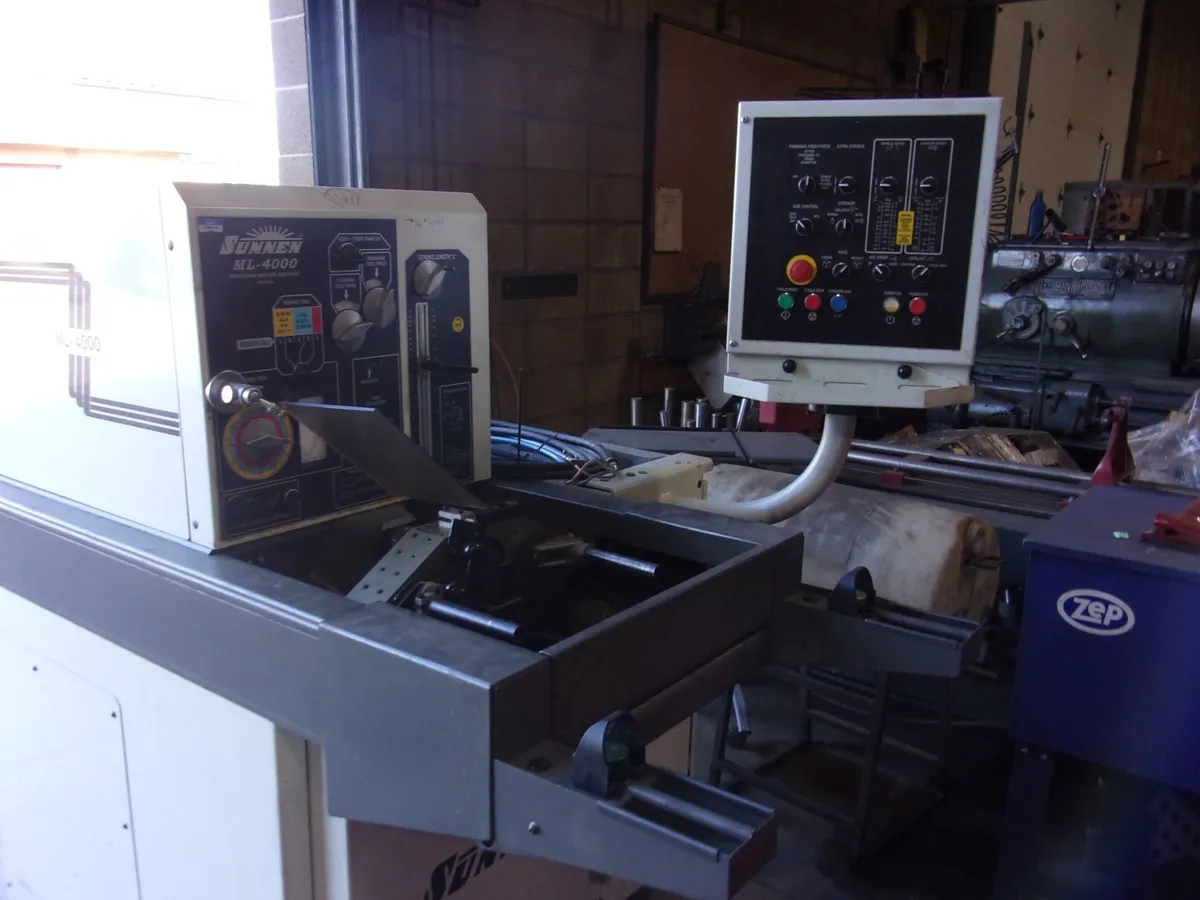

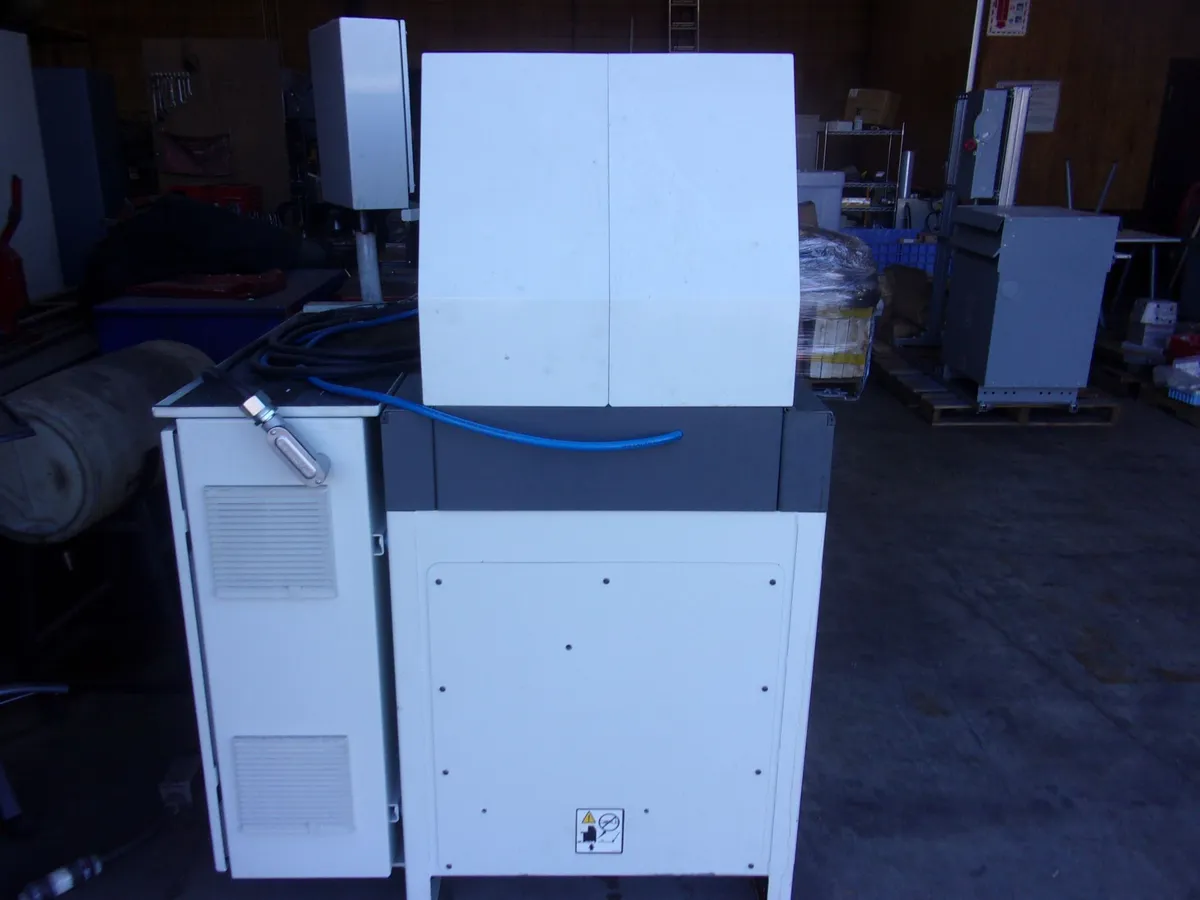

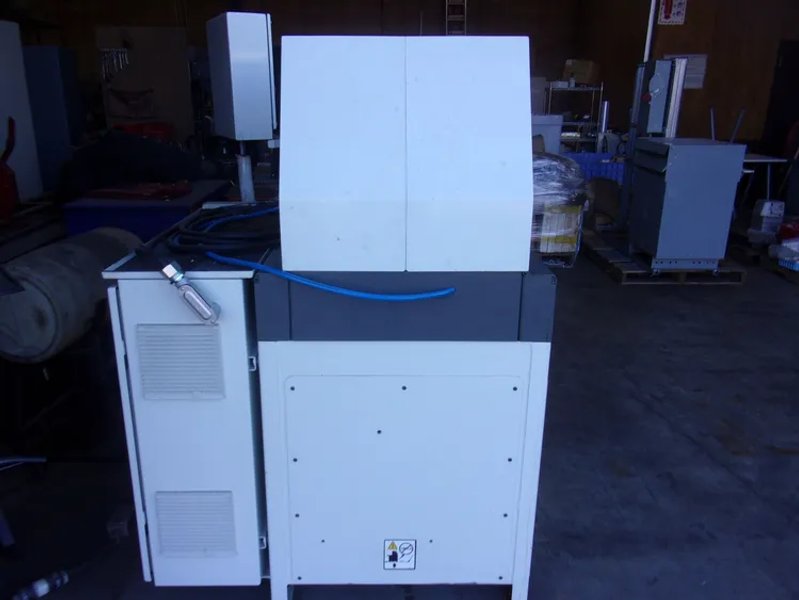

Sunnen ML-4000-D Power Stroking Hone

SPECIFICATIONS:
Diameter Range (ID) – Manual Stroking……………………..0.060″ – 6.50″
Diameter Range (ID) – Power Stroking………………………0.060″ – 4.00″
Automatic Sizing…………………………………………1.25″ – 2.00″
Stroke Length…………………………………………..0.236″ – 6.70″
Spindle Speeds………………………………………….200 – 3000 RPM
Stroke Rate………………………………………………60 – 500 SPM
Spindle Motor………………………………………………….5.5 HP
Stroker Motor………………………………………………….1.5 HP
Pump Motor…………………………………………………….1/2 HP
Coolant Flow………………………………………….3 Gallons/Minute
Coolant Capacity……………………………………………32 Gallons

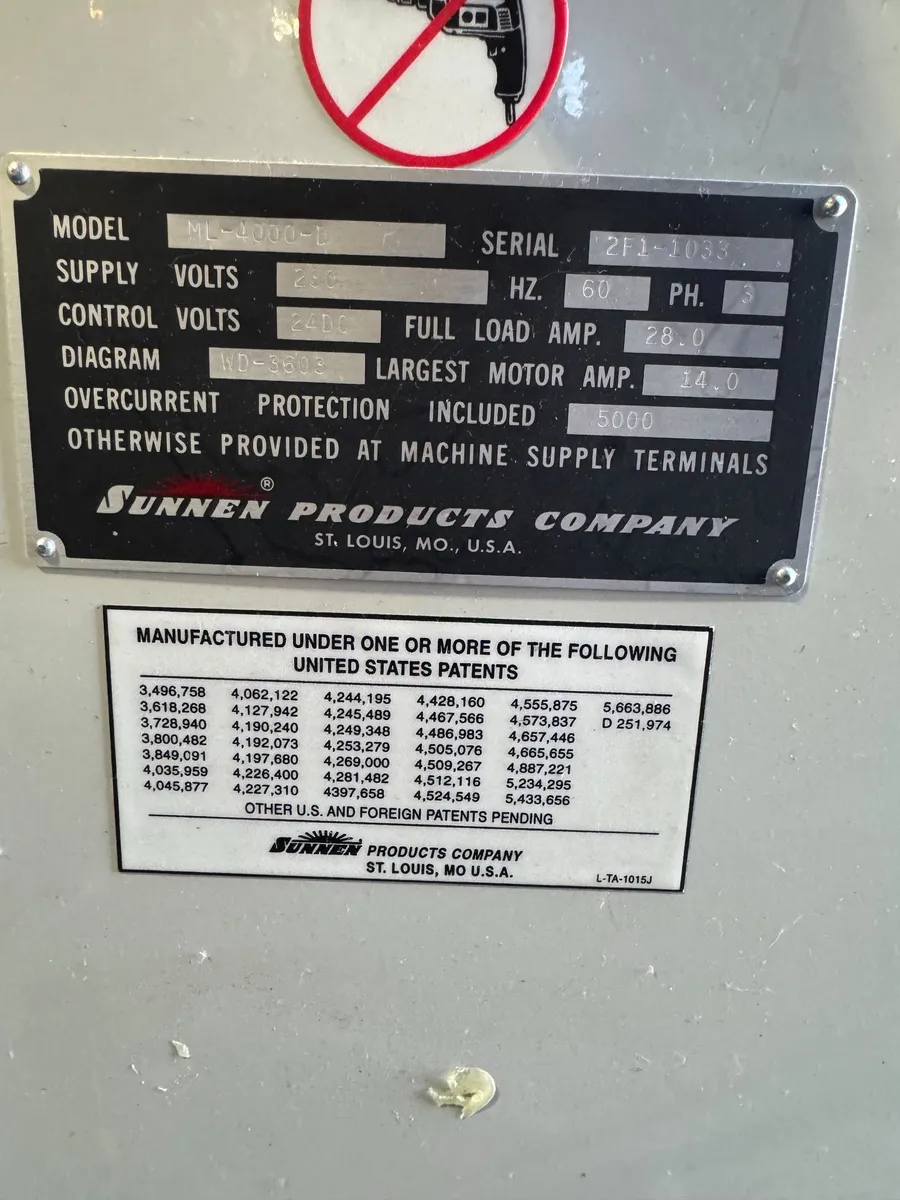

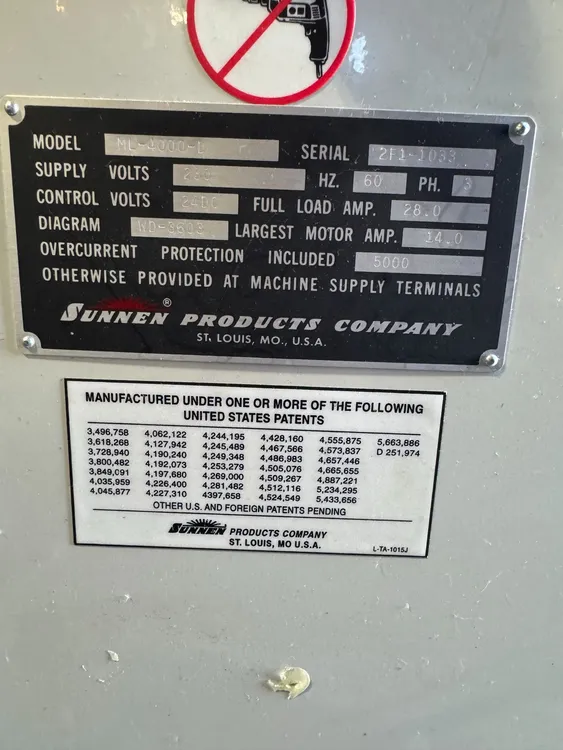

Electrical………………………………………..230V/3Phase/50/60 Hz
Pneumatic Requirements………………………………………….80 PSI
Approximate Dimensions……………………………..64″ L x 48″ W x 75″H
Approximate Weight………………………………………….1,875 Lbs.

EQUIPPED WITH:
Spindle Speed Adjustable in Fine Increments
Detachable Coolant Cart
