2015 DMG MORI NLX 2500Y/700

Name: 2015 DMG MORI NLX 2500Y/700
Brand: DMG MORI
SKU: 34084
Availability: PreOrder

Brand

DMG MORI

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

Lathes, Bar, CNC

Manufacturer:

DMG MORI

Model:

NLX2500SY/700

Year:

2017

Stock #:

34084

Status:

For Sale

Description

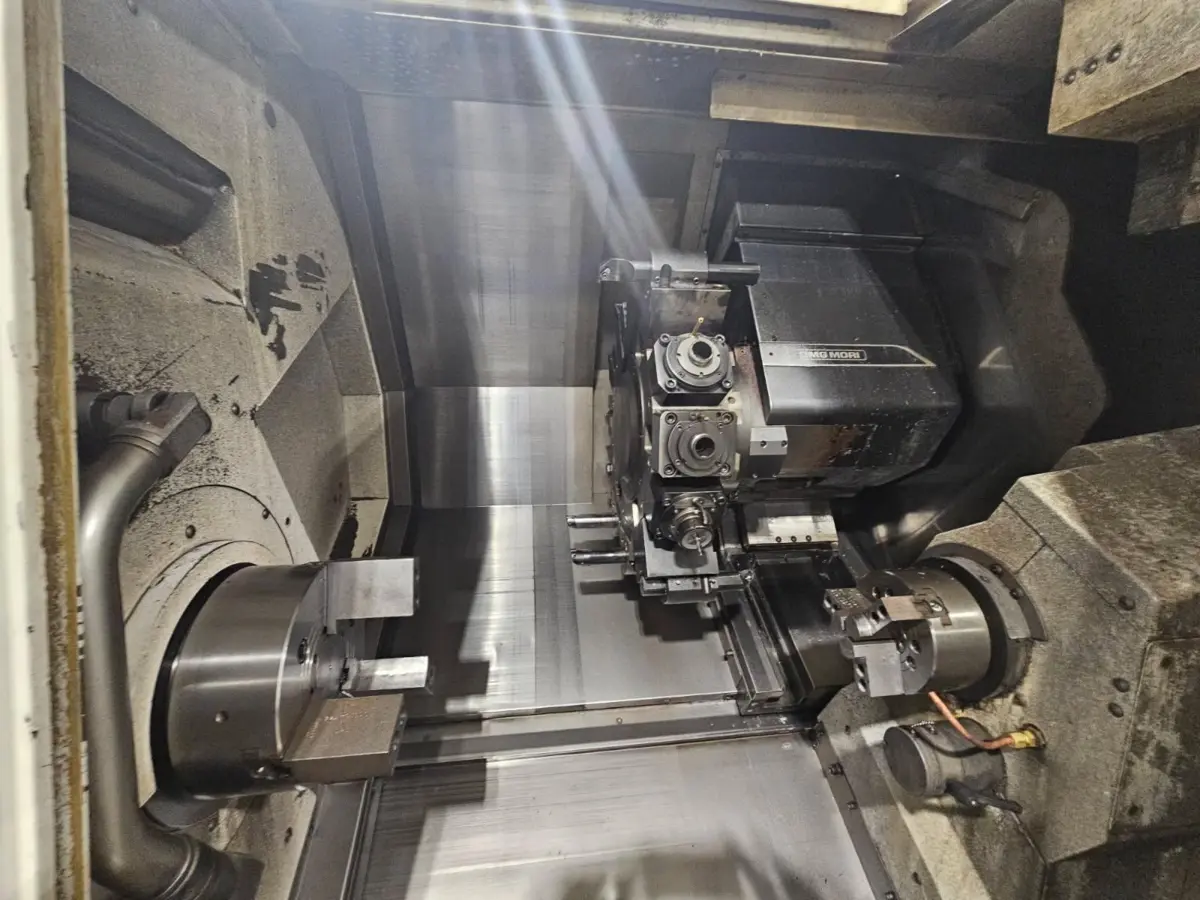

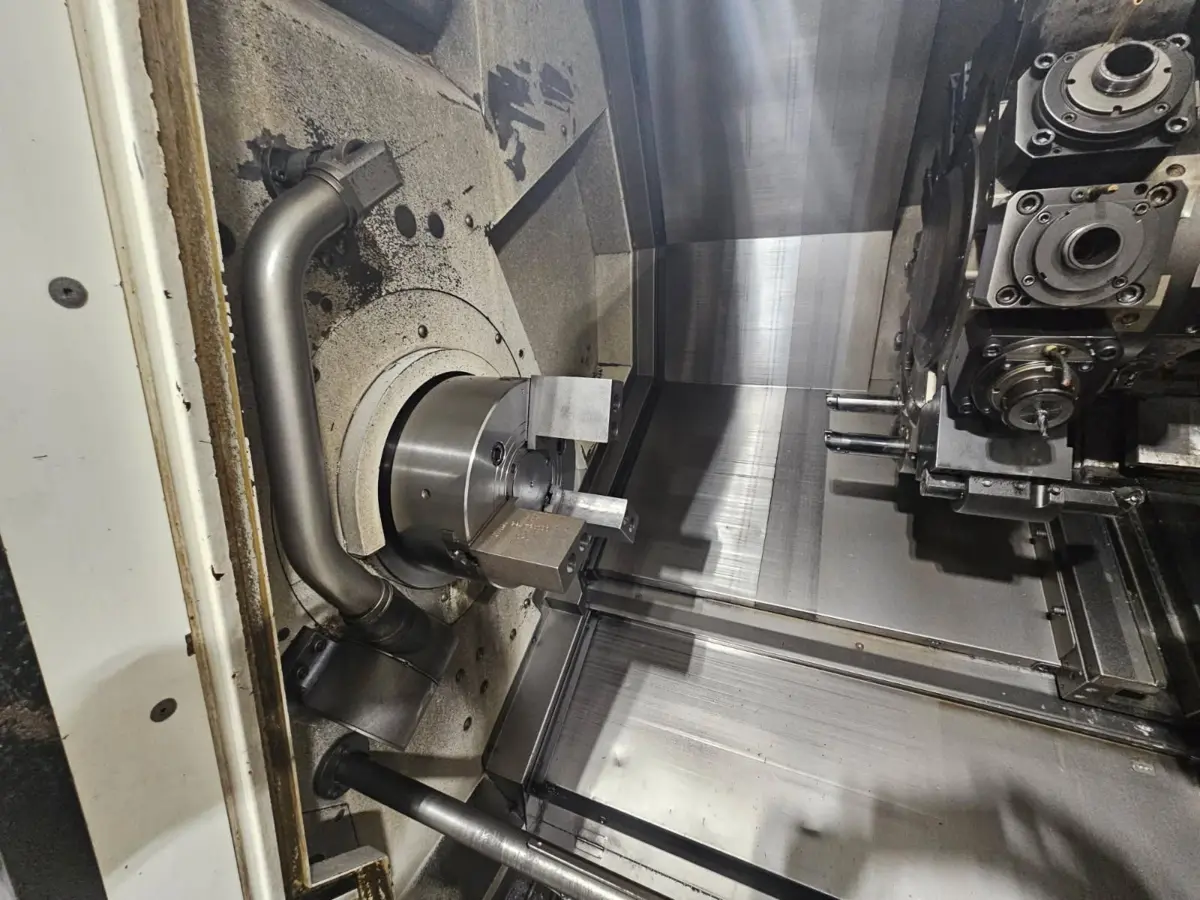

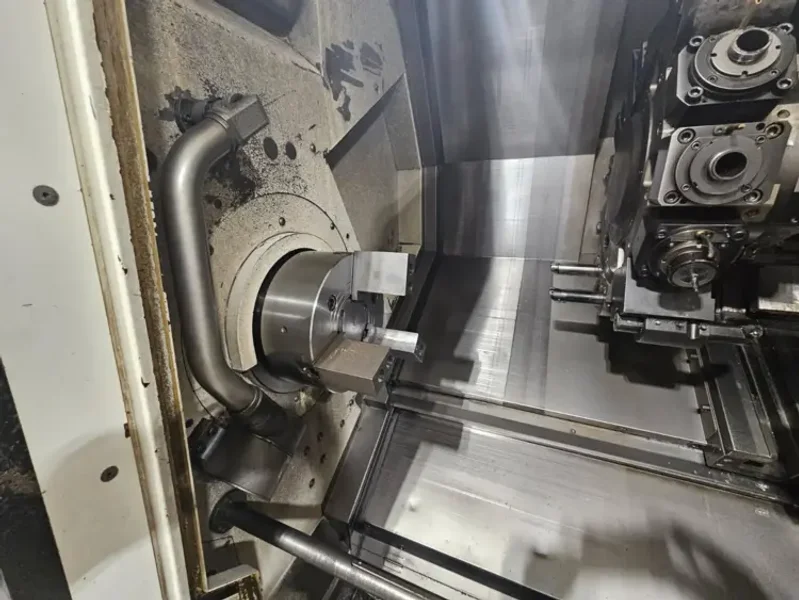

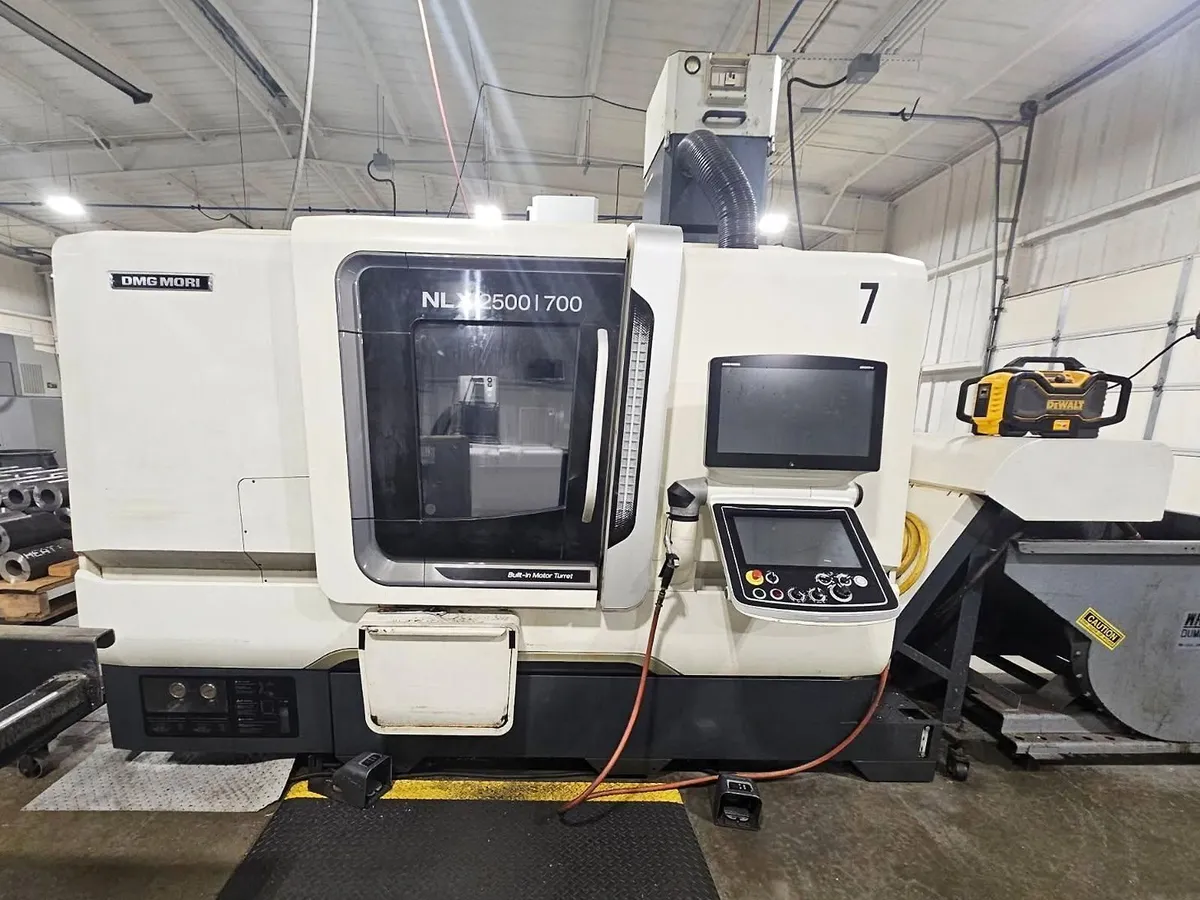

This 2017 DMG MORI SEIKI NLX2500SY is a high‑performance Y‑axis, sub‑spindle CNC lathe designed for complete machining in one setup, maximizing productivity and reducing handling time. Its rigid construction, powerful milling capabilities, and advanced control make it ideal for complex, multi‑axis turning work in production and job‑shop environments.

ImperialMetric

Bar Capacity	3.1"	78.74 mm
Power	25 hp	18.6 kW
Max RPM	4,000 RPM	4,000 RPM
Turning Dia	18.1"	459.74 mm
Live Tooling	Yes	Yes
Sub Spindle	Yes	Yes

SPECIFICATIONS:
X Axis Travel: 10.2"
Z Axis Travel: 31.3"
Rapid Rate Z Axis: 1,181 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1,181 IPM
Max Turning Diameter: 18.1"
Max Turning Length: 27.7"
Max Swing: 23.2"

MAIN SPINDLE:
Spindle Speed: 4,000 RPM
Spindle Motor: 25 HP
Main Spindle Speed: 4,000 rpm
Main Spindle Nose: A2-8
Main Spindle Bore: 3.54"
Main Bar Capacity: 3.1"
Main Spindle Motor: 25 hp
Travels (C Axis): 0.001 Deg

SUB-SPINDLE:
Sub Spindle Speed: 6,000 rpm
Sub Spindle Nose: A2-5
Sub Spindle Motor: 15 hp
Travels (B Axis, Sub-spindle): 28.9"

TURRET:
Turret Type: Block Style
Turret Positions: 12 Stations
Turret Index Time: 0.27 sec
Rotary Tool Spindle Speed: 10,000 rpm
Travels (Y Axis): +/- 2.0"
Rotary Tool Spindle Motor: 7.5 hp

EQUIPPED WITH:
Celos M730UM MAPPS V CNC Control
Live Tooling
Sub Spindle w/ C-Axis
Y-Axis
Parts Catcher
Tool Setter
Chip Conveyor

Dimensions: 174" x 93" x 87"
Weight: 17,000 Lbs.
