BWE 350/200 COPPER & BRASS CONTINUOUS EXTRUSION/CONFORM/CONCLAD LINE

Brand
Not specified
Category
Forging & Foundry Machines
Type
Continuous Casting Machines
Model
Not specified
Stock #
117138
Year
Not specified
Condition
Used

Location

Not specified
REQUEST FINANCING

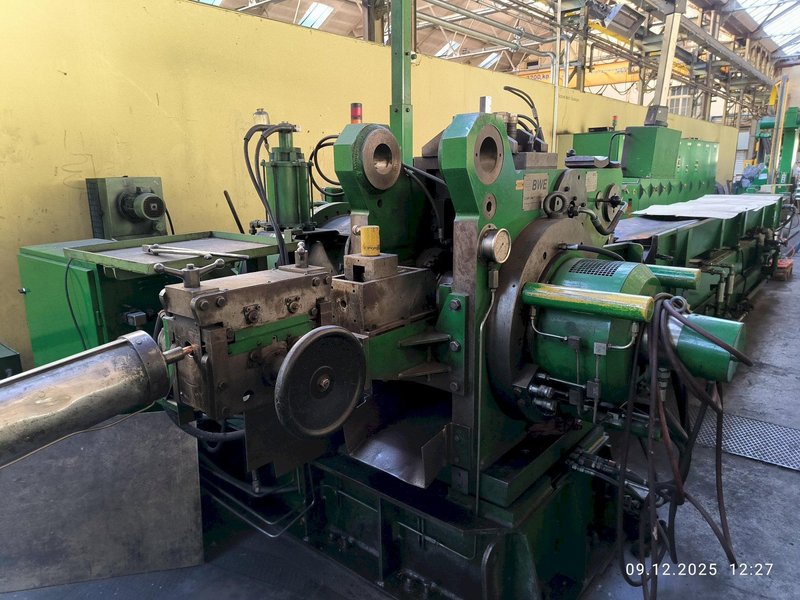

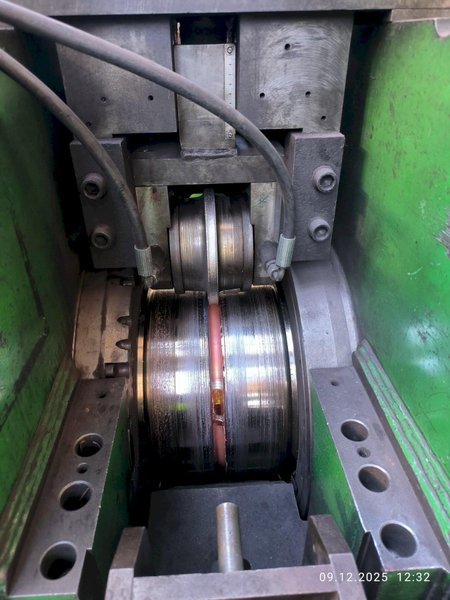

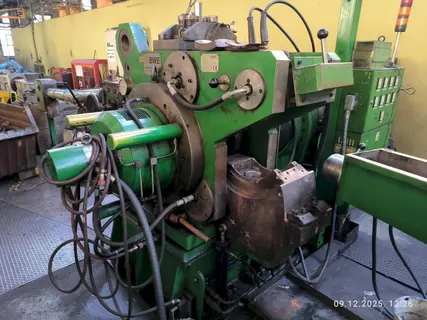

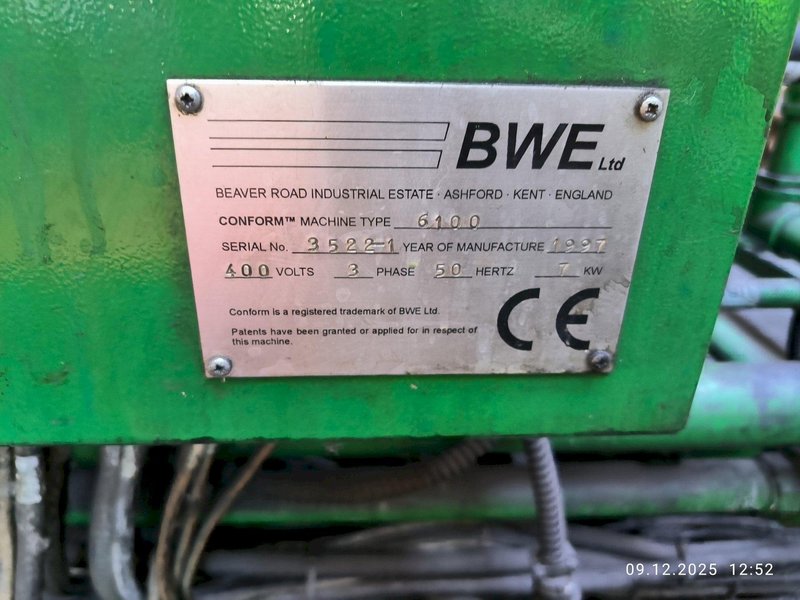

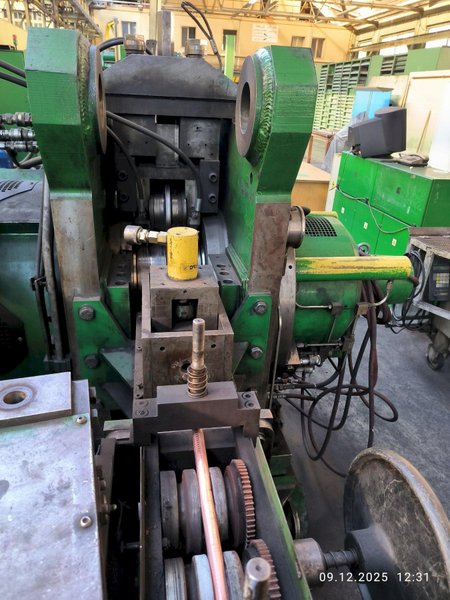

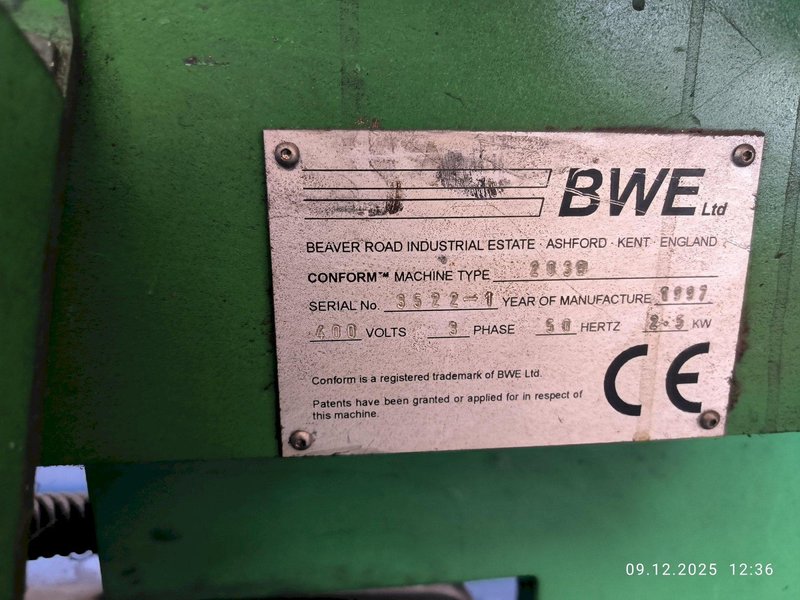

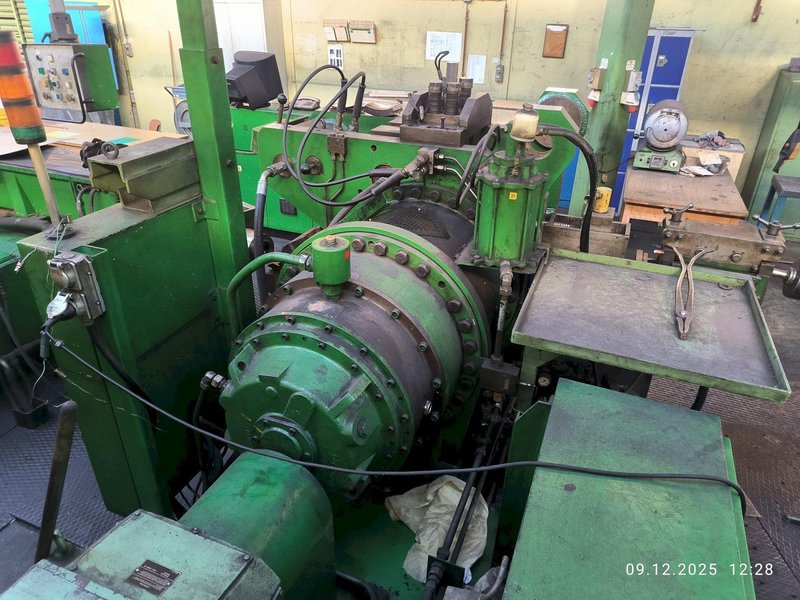

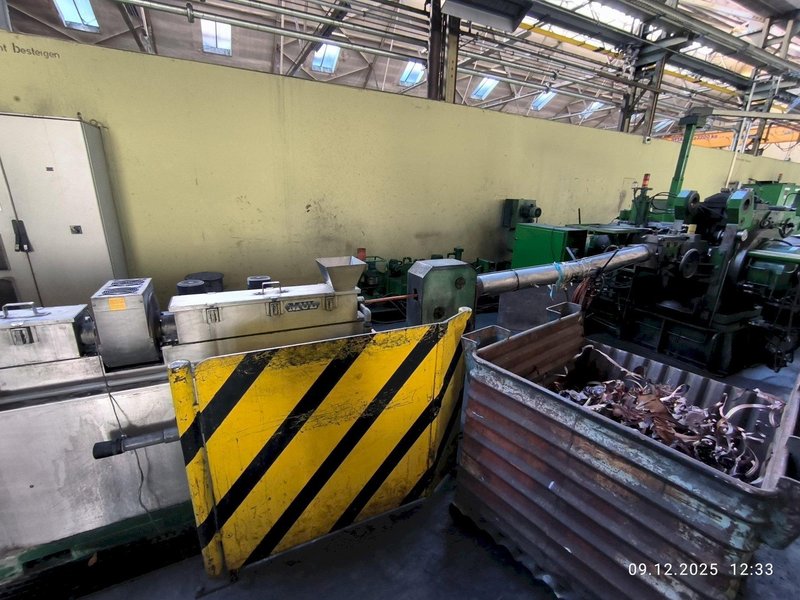

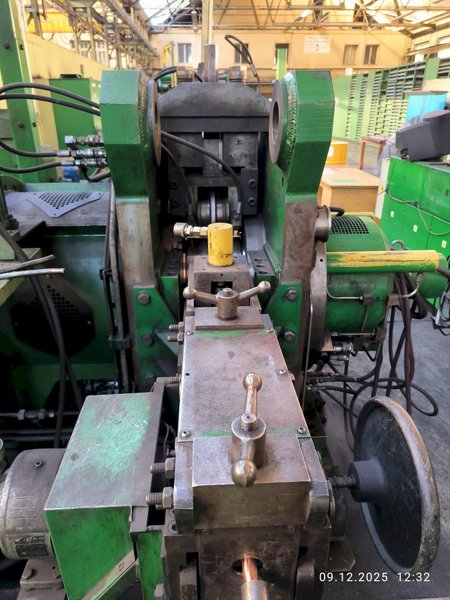

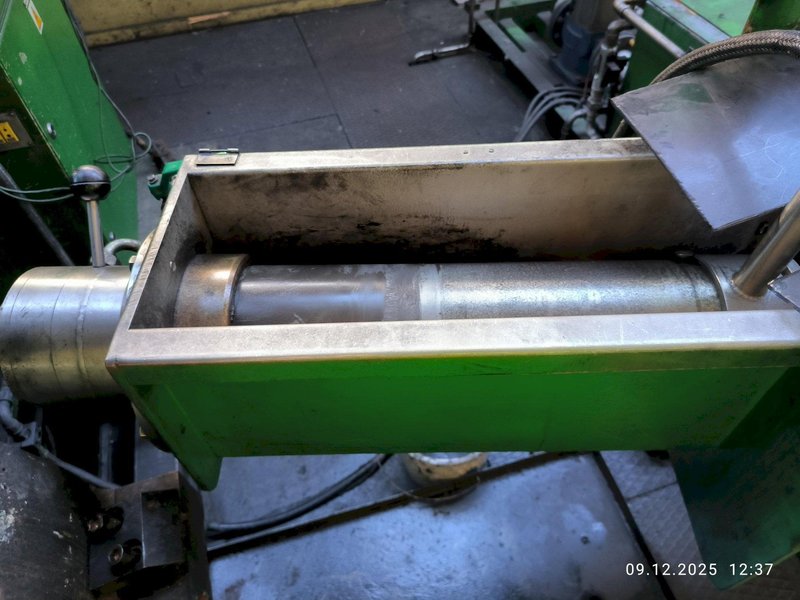

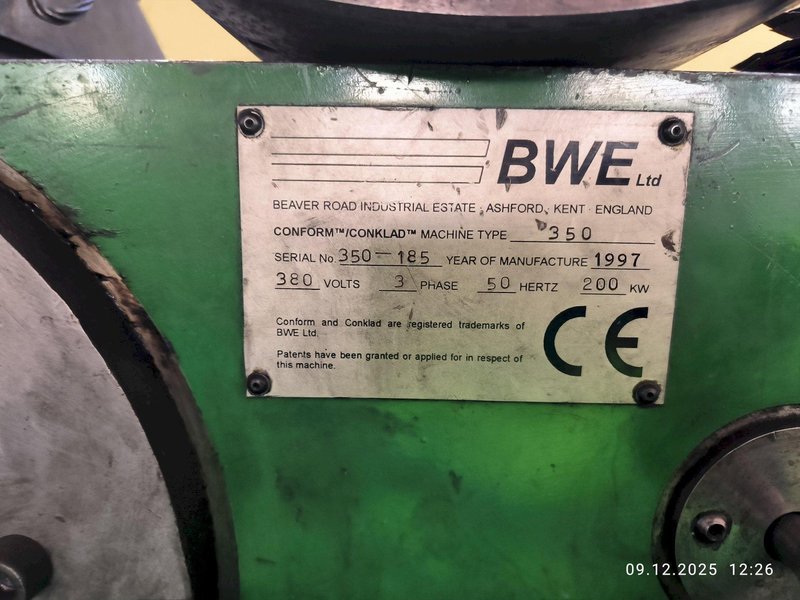

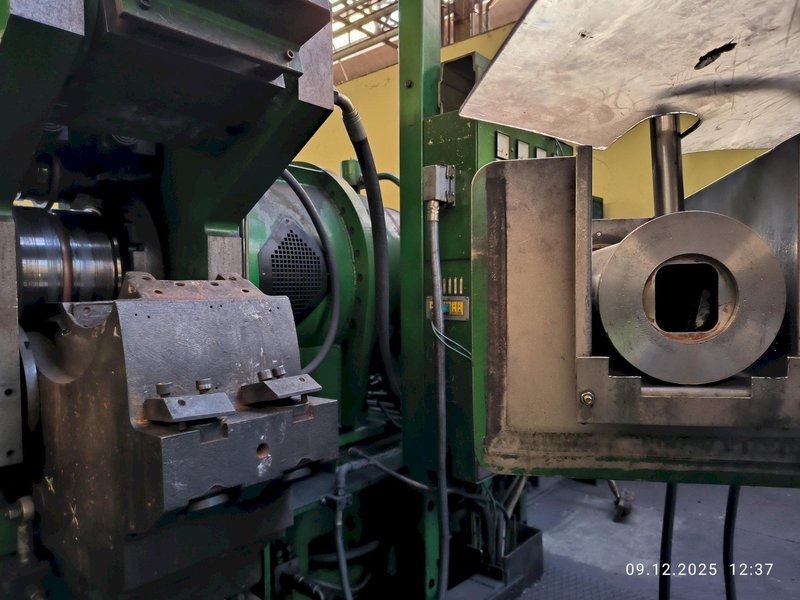

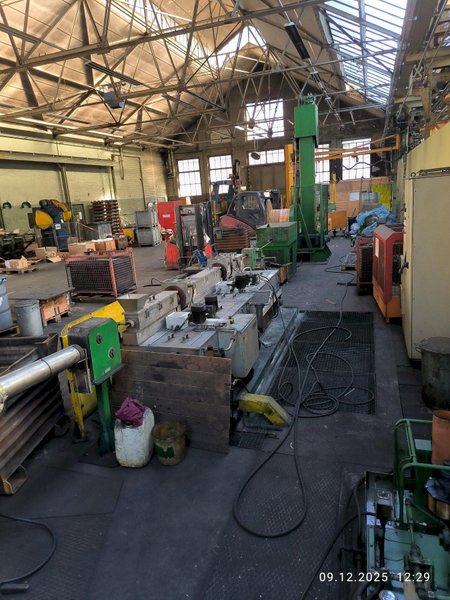

BWE LTD. 350/200 CONFORM / CONCLAD CONTINUOUS COPPER BRASS EXTRUSION LINE
COPPER BRASS PROFILE EXTRUSION CLADDING

SPECIFICATIONS:

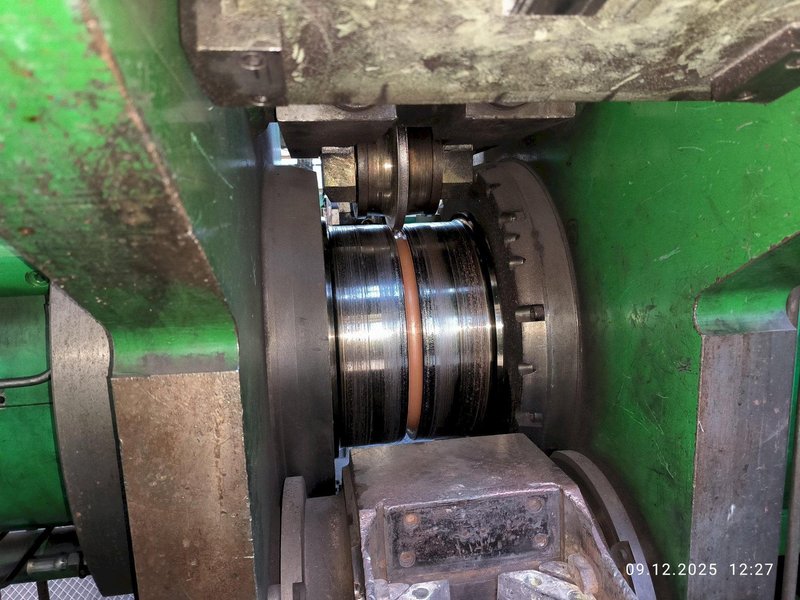

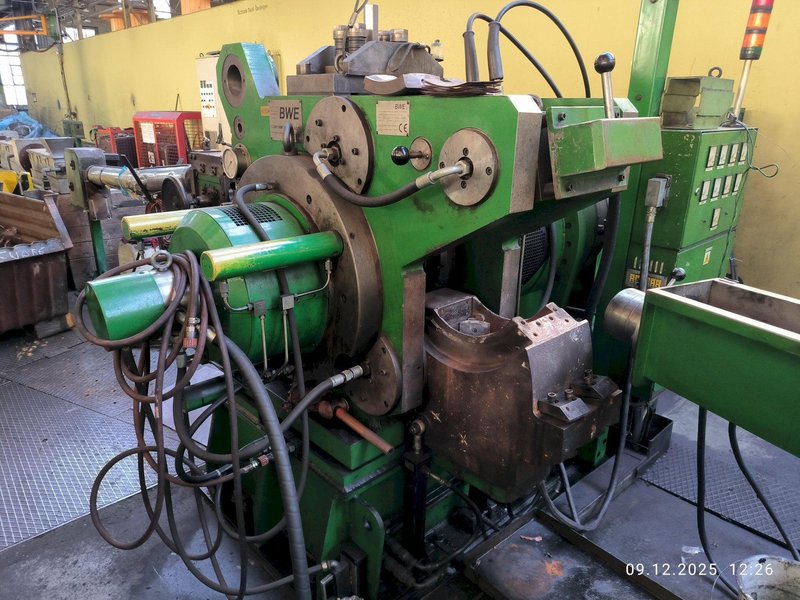

TYPE - 350/200 SGR COPPER SECTION EXTRUSION

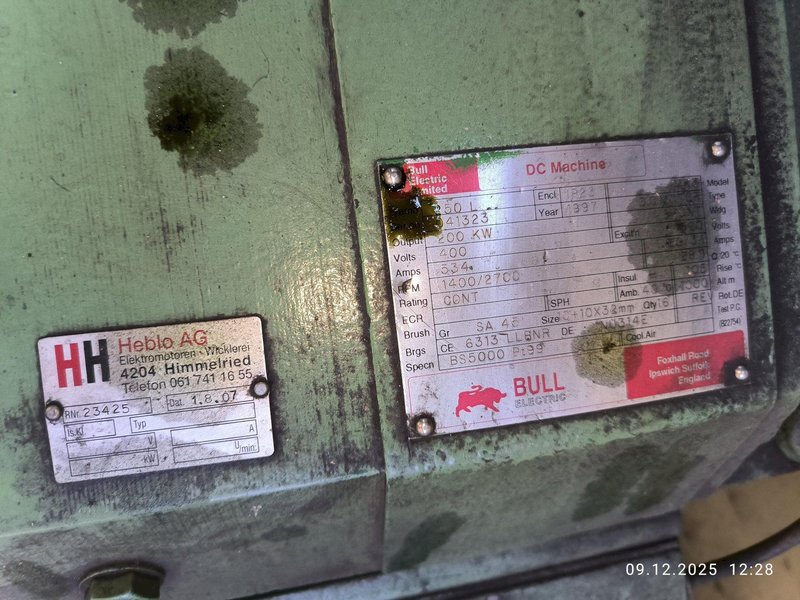

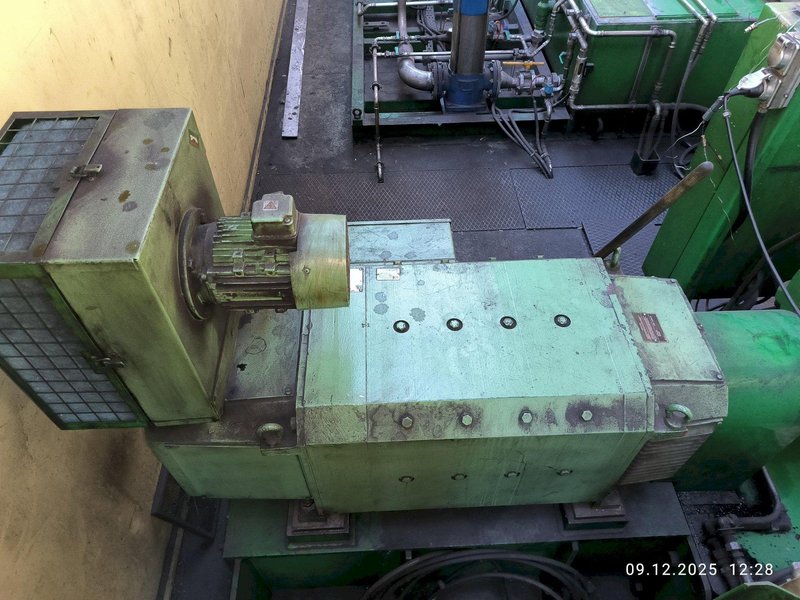

MAIN DRIVE  - 200KW / 400VOLTS / 1400 - 2700 RPM / DC
MAXIMUM EXTRUSION SPEED - 100 METER PER MINUTE
MIMIMUM PRODUCT DIMENSION - 2MM²
MAXIMUM CIRCLE DIAMETER - 45MM
MINIMUM/MAXIMUM CROSS SECTION AREA - 25MM² - 200MM²
FEEDSTOCK - ONE (1) ROD / DIA 16MM

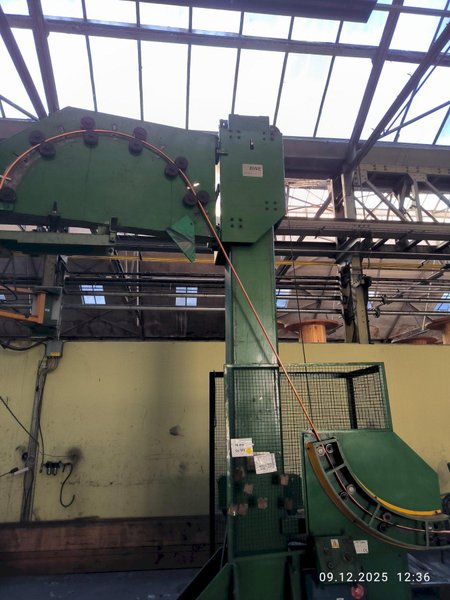

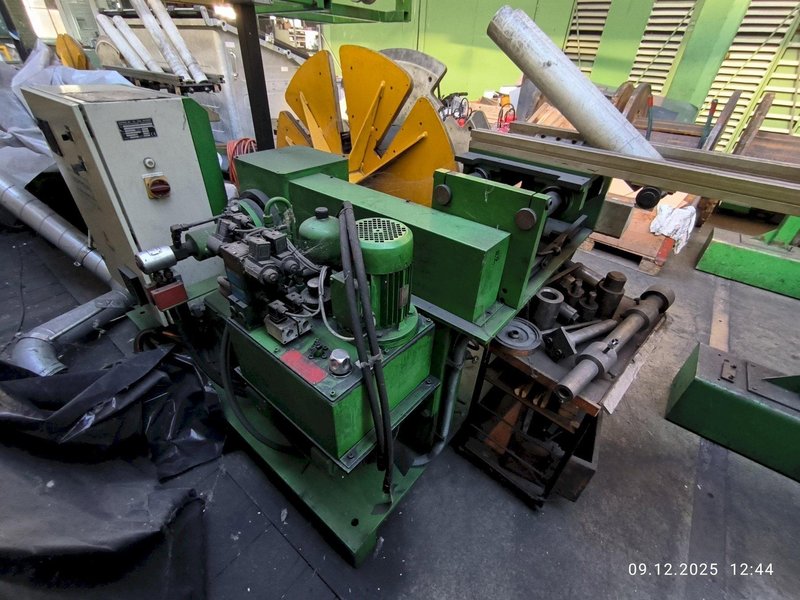

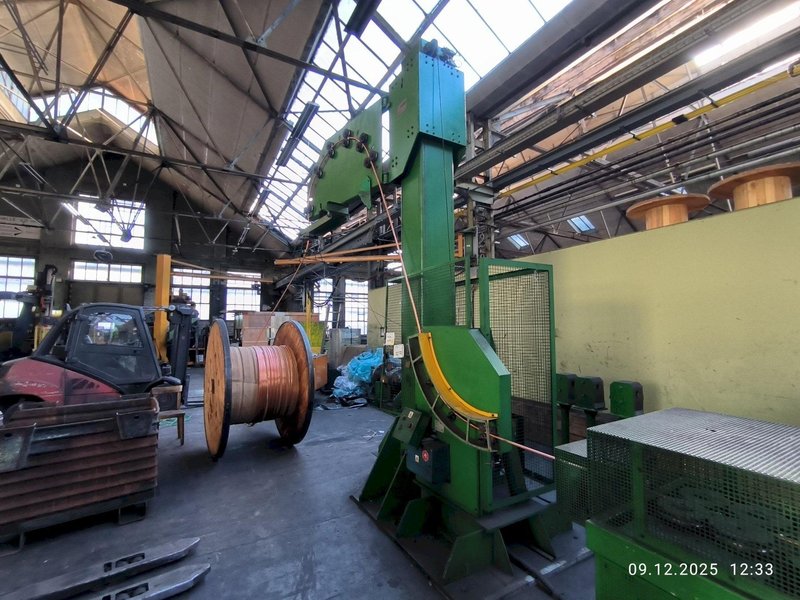

PAY-OFF #1:
MANUFACTURER - BWE LTD.
TYPE - SINGLE OVERHEAD FEEDSTOCK PAY-OFF / BWE 2039
MAXIMUM ROD DIA - 16MM

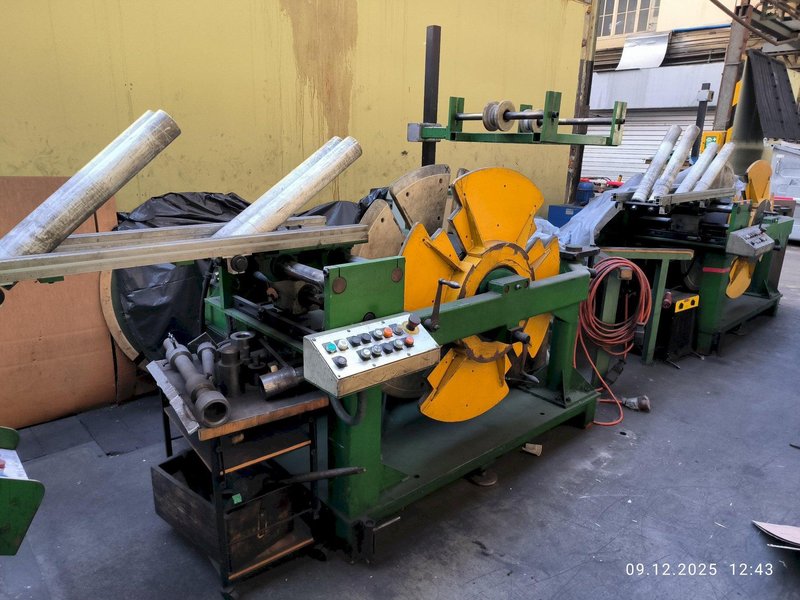

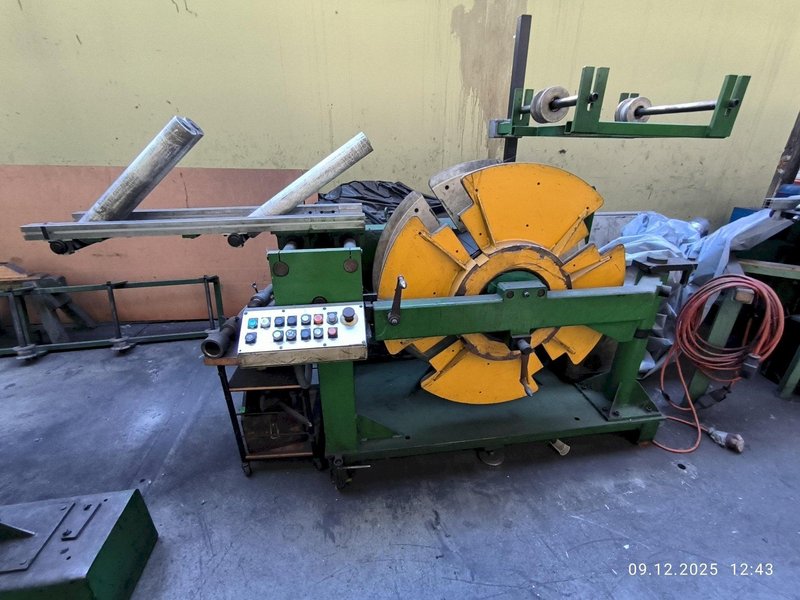

PAY-OFF #2:
TYPE - DOUBLE FEEDSTOCK PAY-OFF FOR CLADDING / 2 STATIONS
MAXIMUM ROD DIA - ALUMINUM 15MM / COPPER 12.5MM
MAXIMUM WEIGHT OF FEEDROD COIL - 3000KG
MAX COIL OD - 1700MM
MIN / MAX COIL ID - 500 - 600MM
MAXIMUM COIL WEIGHT/WIDTH - 850MM
MAX SPEED - 50 METER PER MINUTE

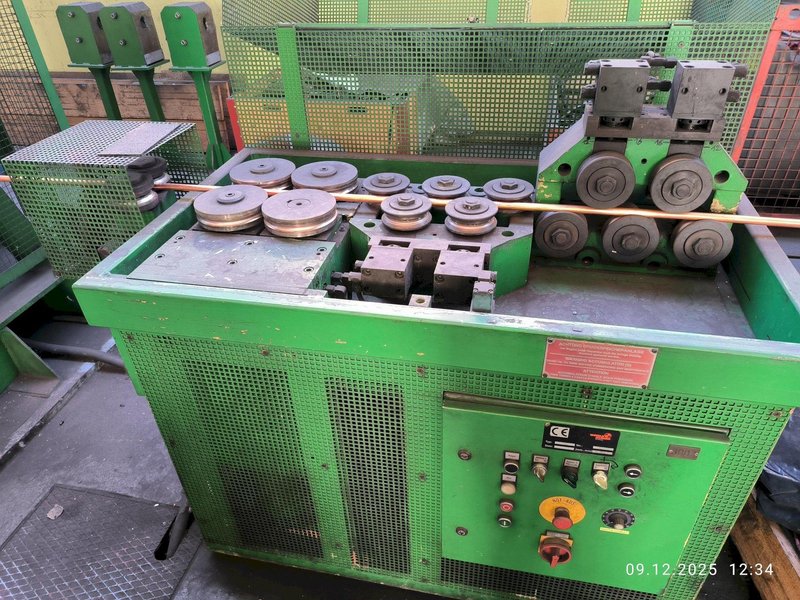

STRAIGHTENING UNIT:
MANUFACTURER - WITELS ALBERT GERMANY
DIA RANGE - 8 - 16MM
NUMBER OF VERTICAL ROLLS - 9
NUMBER OF HORIZONTAL ROLLS - %

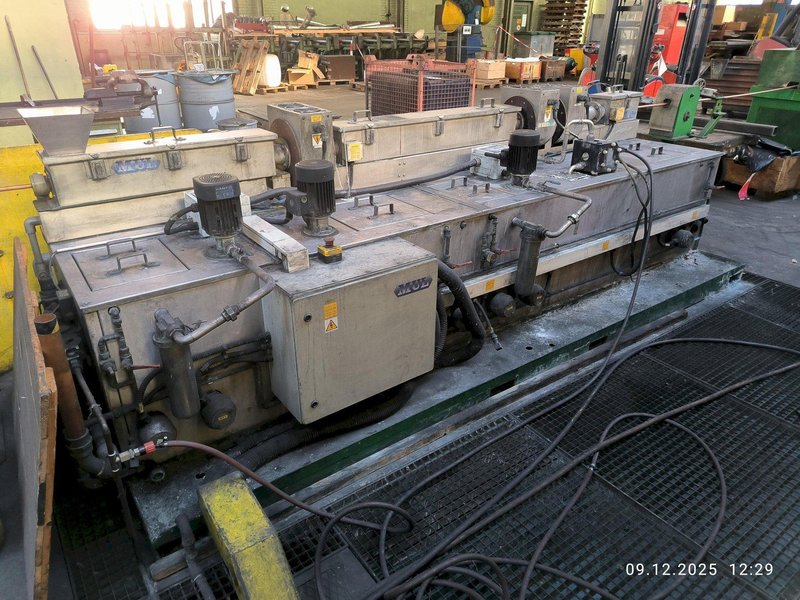

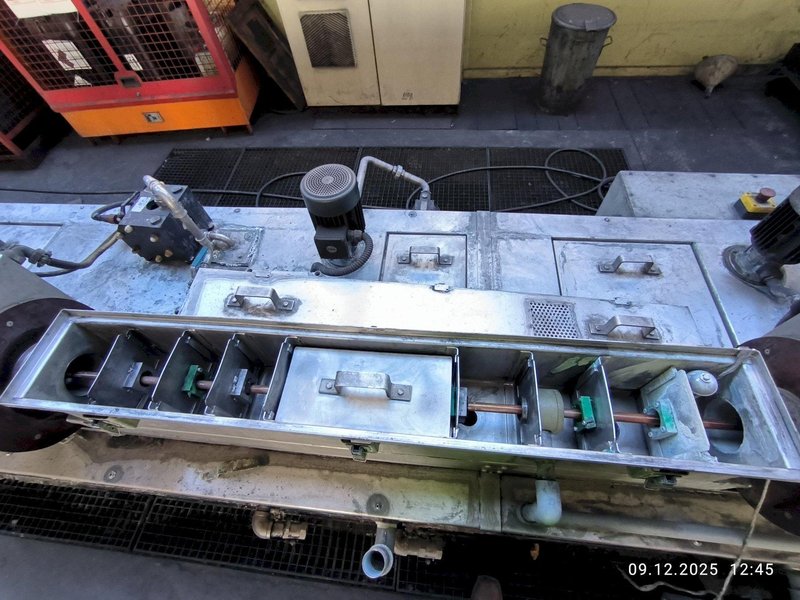

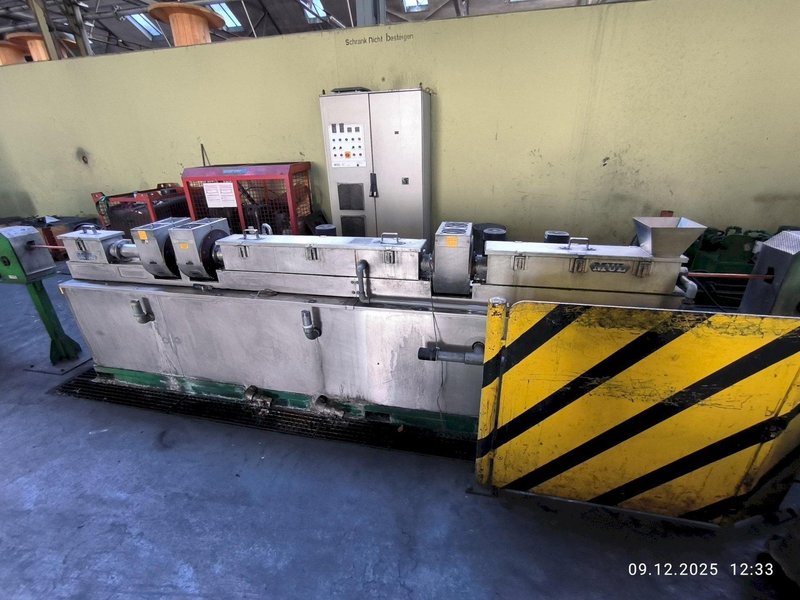

MATERIAL CLEANING SYSTEM:
MANUFACTURER - BWE/MUL
TYPE - ULTRASONIC CLEANING
MAXIMUM FEEDSTOCK SIZE - 19MM DIA
MAXIMUM FEEDSTOCK SPEED - 25  METERS PER MINUTE
CLEANING TRANSDUCERS - 2 X 1KW OUTPUT
RINSE TRANSDUCER - 1 X 1KW OUTPUT
MAXIMUM ELECTRICAL LOAD - 100KVA
COMPRESSED AIR SUPPLY - 16M³ PER HOUR @ 560KN/M²

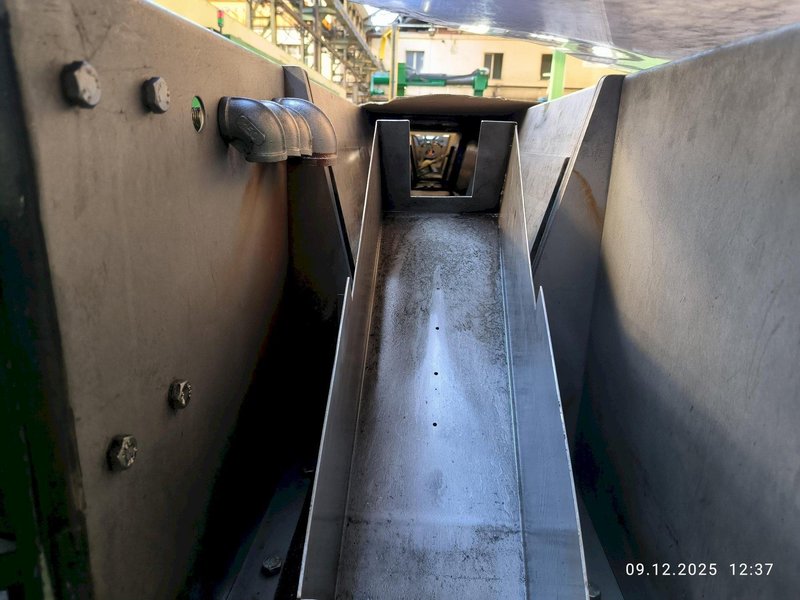

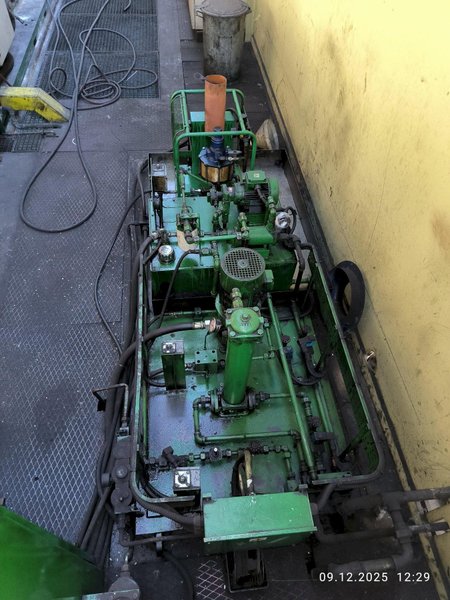

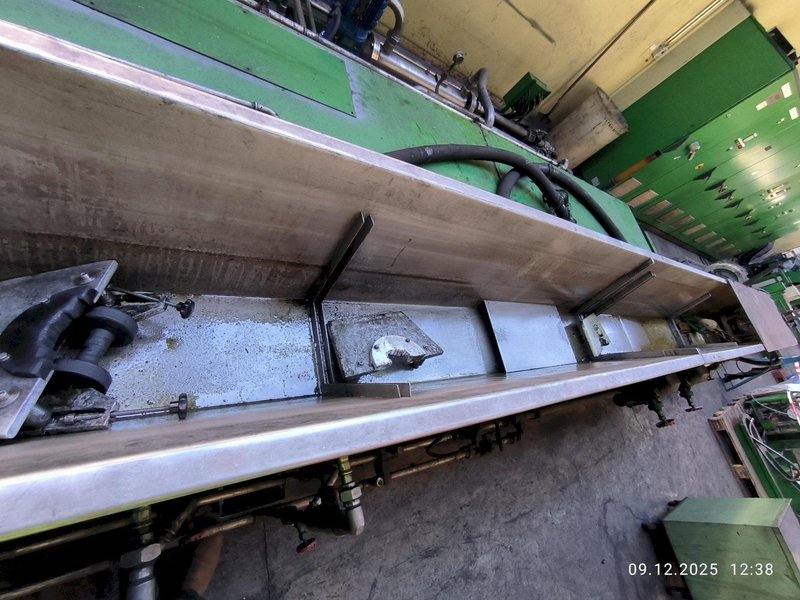

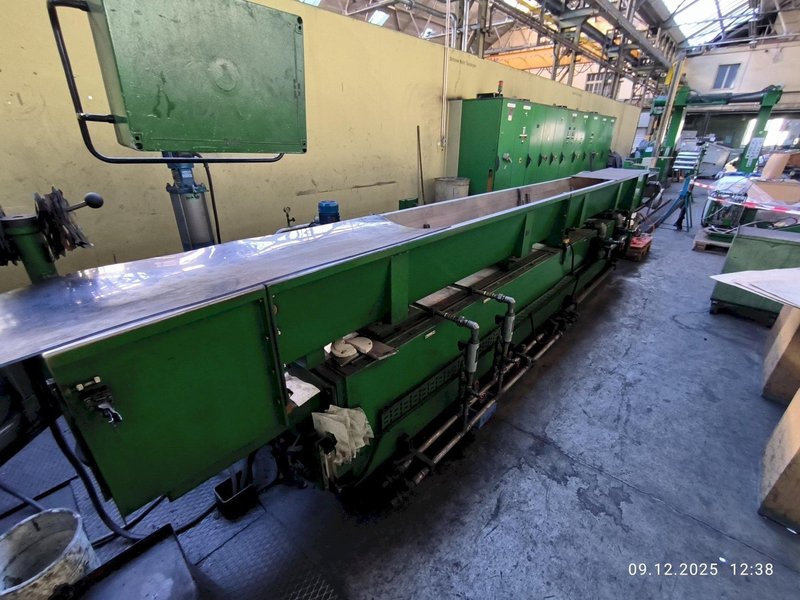

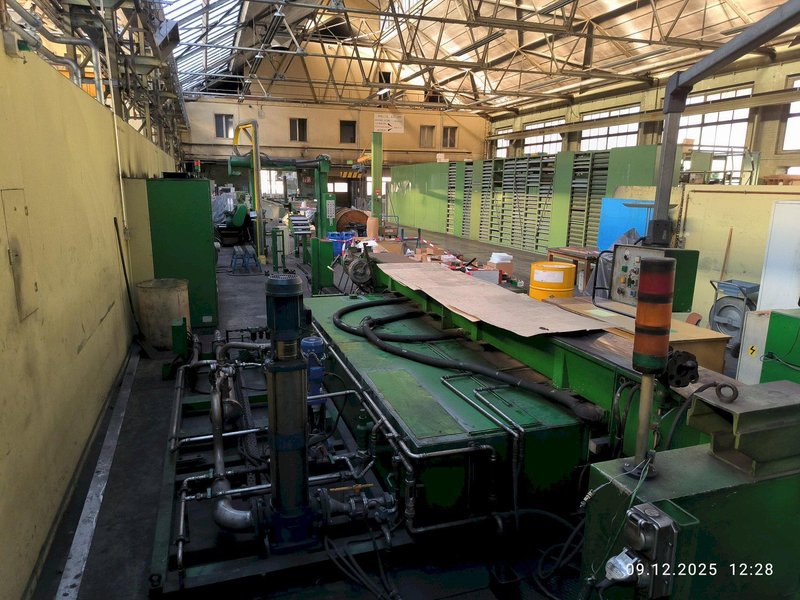

COOLING STATION:
MANUFACTURER - BWE
MAXIMUM HEAT REMOVAL - 300KW
CONFORM MACHINE PUMP CAPACITY - 110 LITERS PER MINUTE
PRODUCT COOLING PUMP CAPACITY - 300 LITERS PER MINUTE
COOLING WATER FLOW RATE - 450 LITERS PER MINUTE

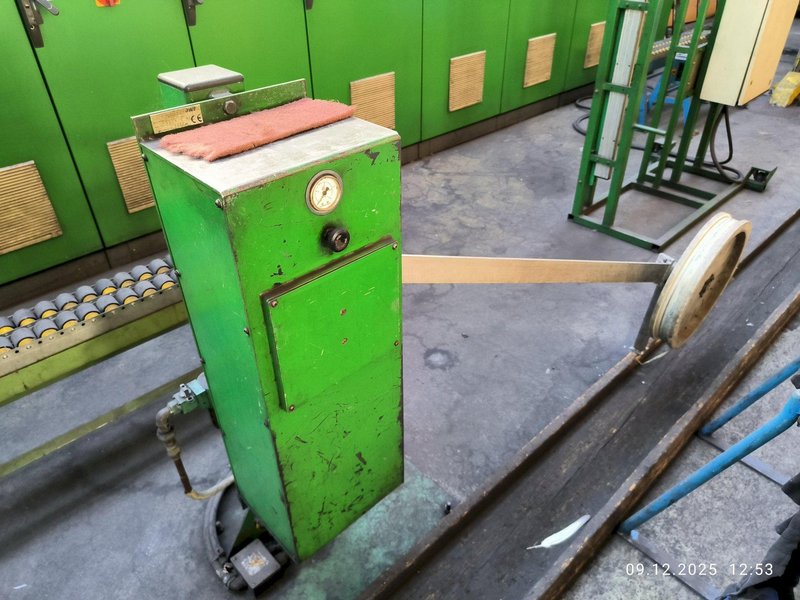

SINGLE PNEUMATIC CONTROLLED DANCING ROLL AT EXIT

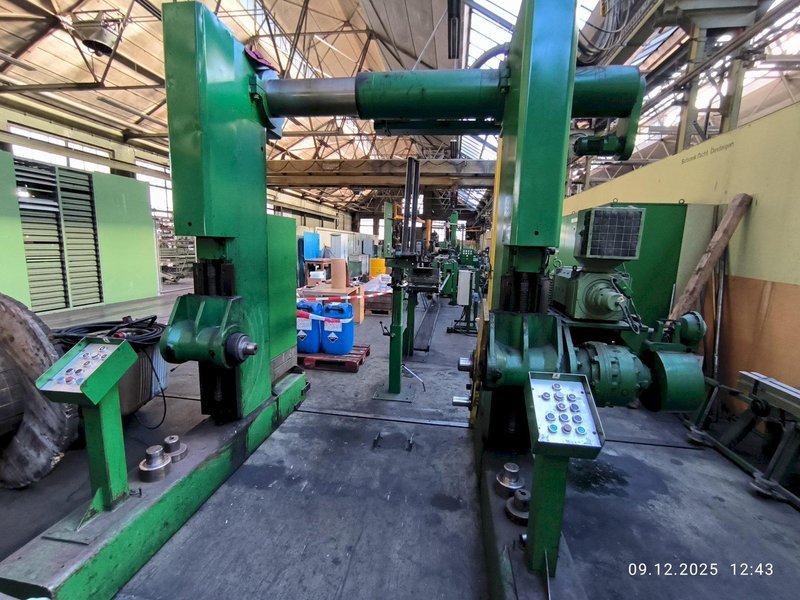

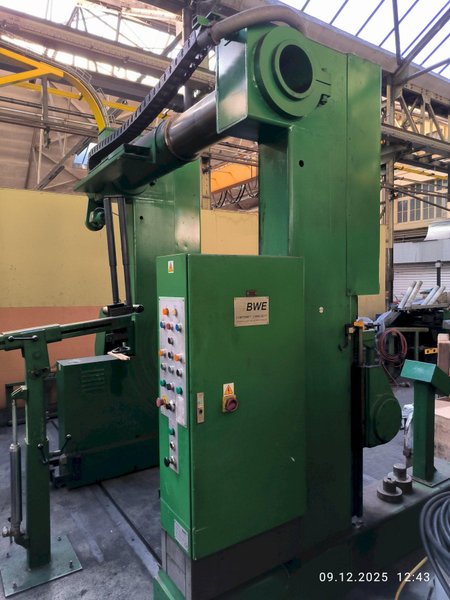

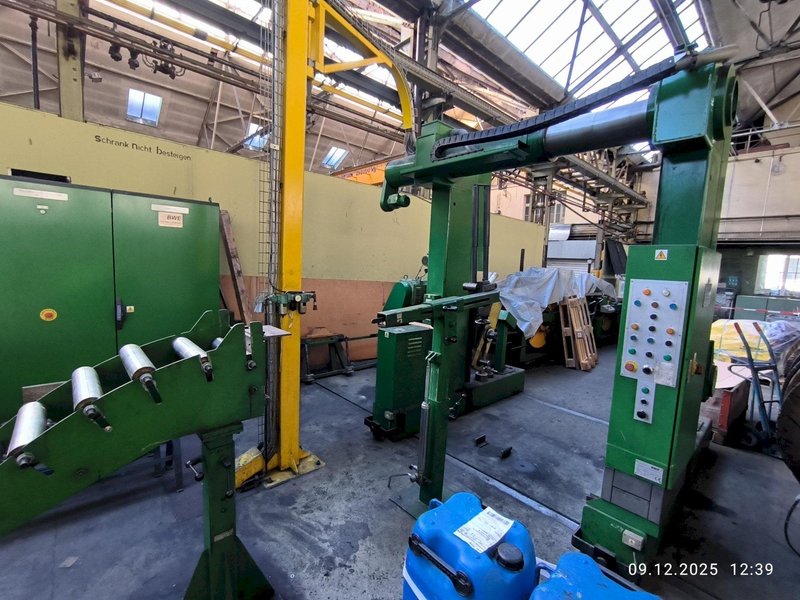

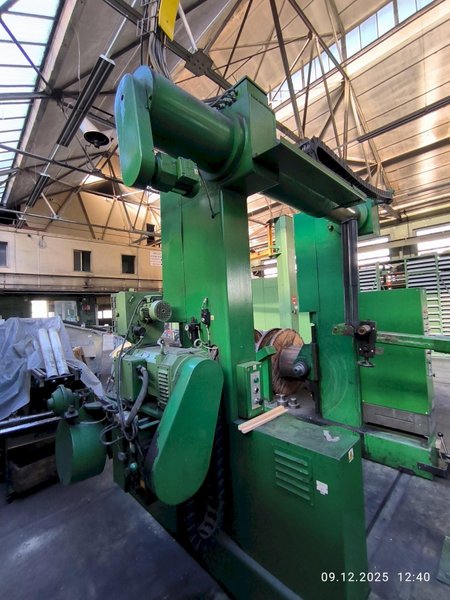

WINDER:
MANUFACTURER - BWE
TYPE - TRAVERSING PORTAL TAKE-UP / 2000MM FLANGE
CAPACITY - 10TONS
MAX SPEED - 12RPM
Watch https://youtu.be/H8O-GgDbPV0
