USED ROLL-IN MODEL TF1420 14" X 20" VERTICAL TILT FRAME BANDSAW

USED ROLL-IN MODEL TF1420 14" X 20" VERTICAL TILT FRAME BANDSAW

Name: USED ROLL-IN MODEL TF1420 14" X 20" VERTICAL TILT FRAME BANDSAW
Brand: ROLL-IN
SKU: 11248
Availability: PreOrder

Brand

ROLL-IN

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

Saws, Band, Vertical

Manufacturer:

ROLL-IN

Model:

TF1420

Year:

2021

Stock #:

11248

Status:

For Sale

Serial #:

21539TF

Description

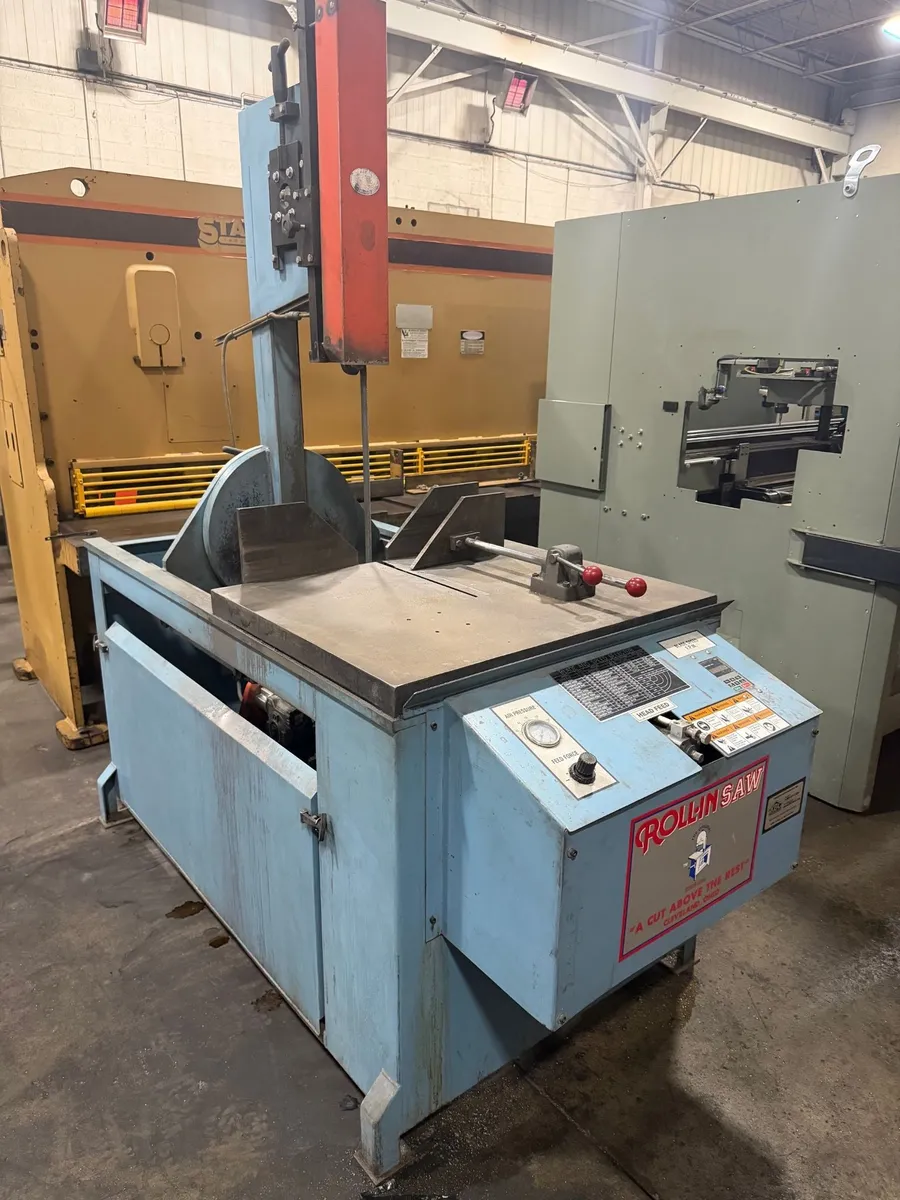

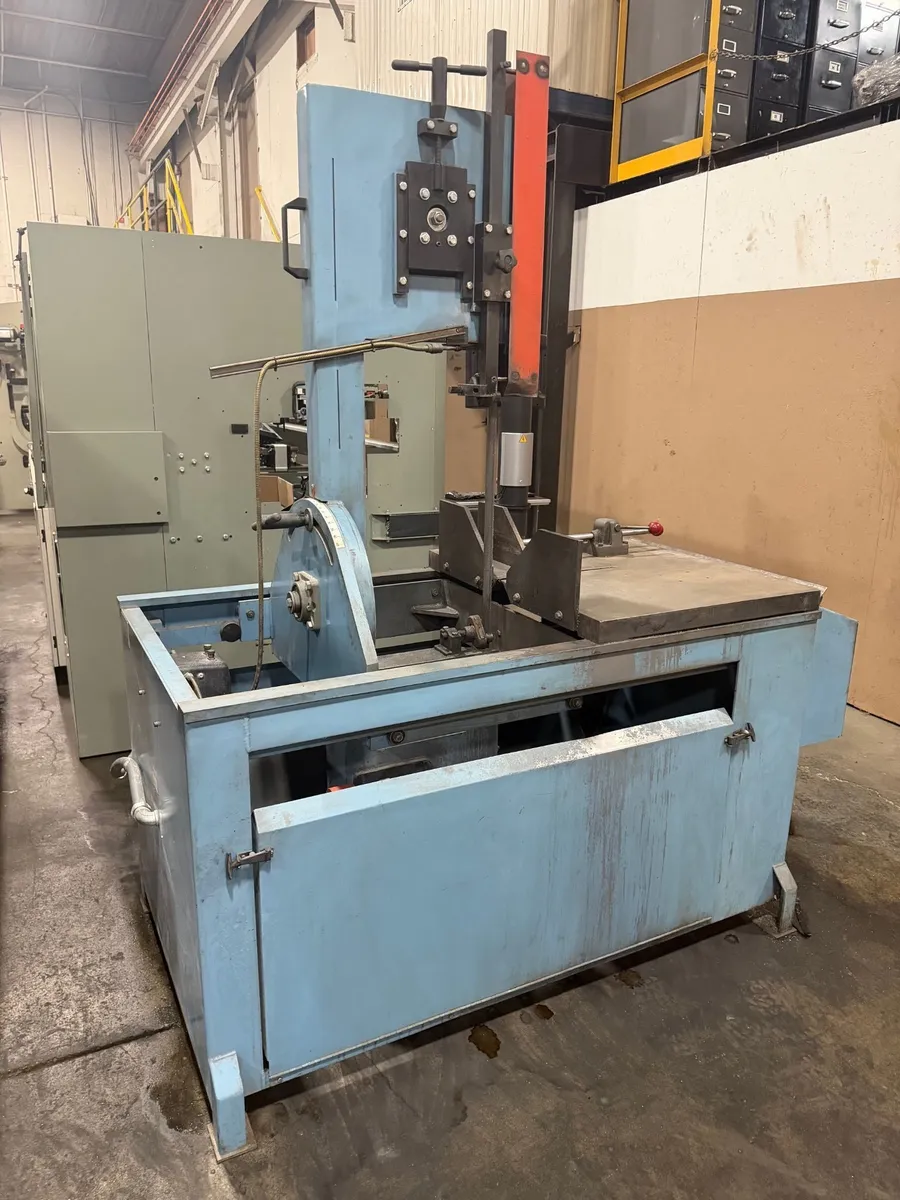

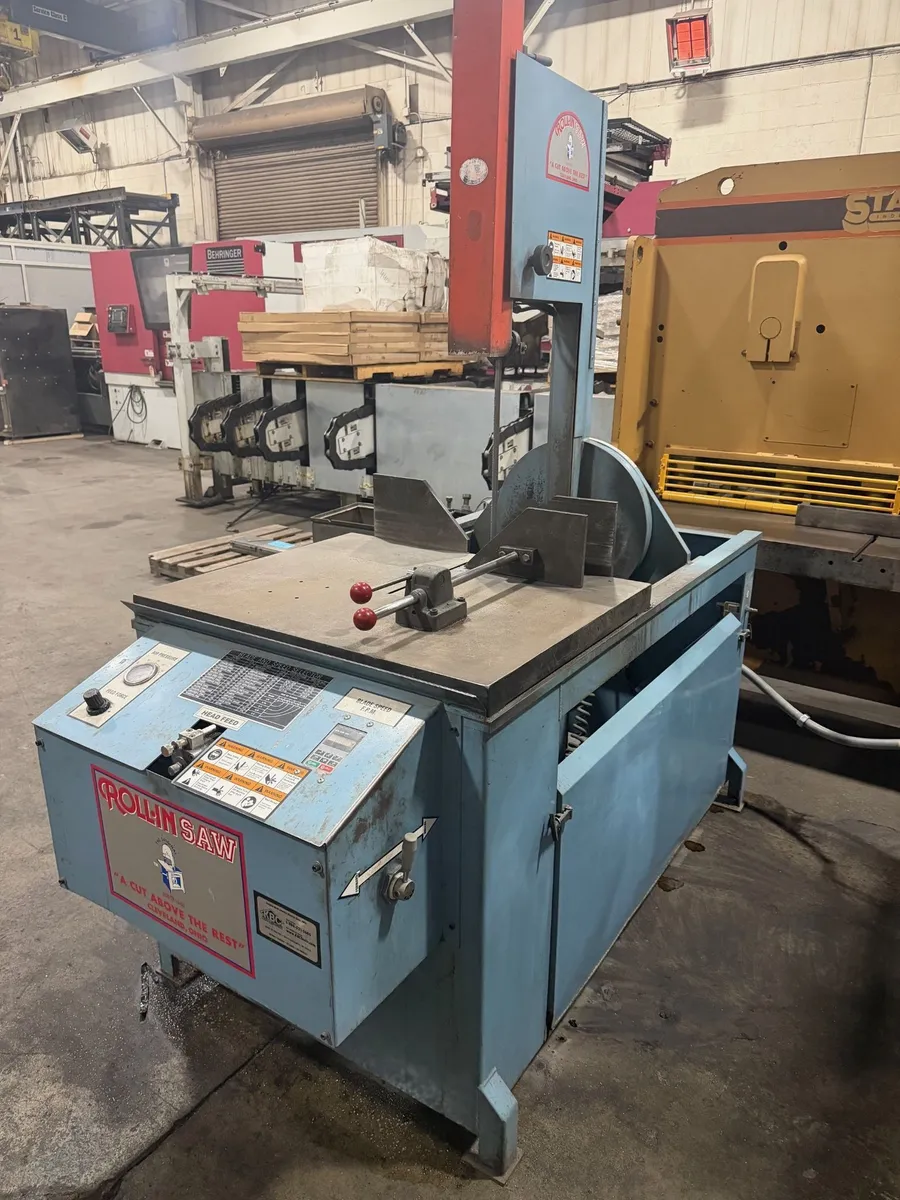

2021 Roll-In Model TF1420 Vertical Tilt Frame Bandsaw, 14" x 20" cutting capacity. Features digital blade speed control, adjustable blade feed, and mist coolant. Powered by a 2 HP motor. Ideal for precise cutting needs.

ImperialMetric

Throat	14"	355.6 mm
Work Height	20"	508 mm
Power	2 hp	1.5 kW
Blade Width	1"	25.4 mm
Blade Length	155"	3,937 mm
FPM	70 - 400	70 - 400
Dimensions	37" X 66" X80"	37" X 66" X80"
Weight	1400 Lbs.	1400 Lbs.

Brand: Roll-In
Model: TF1420

Specifications:
Cutting capacity @ 90 degrees: 14" W x 20" T
Cutting capacity @ 45 degrees: 13" W x 15" T
Miter range: 45 degrees both directions
Capacity under guide: 20"
Throat: 14"
Blade size: 12'11" x 1" x .035"
Blade acceptable widths: 1/4", 3/8", 1/2", 5/8", 3/4", 1"
Blade speeds: 70 - 400 FPM

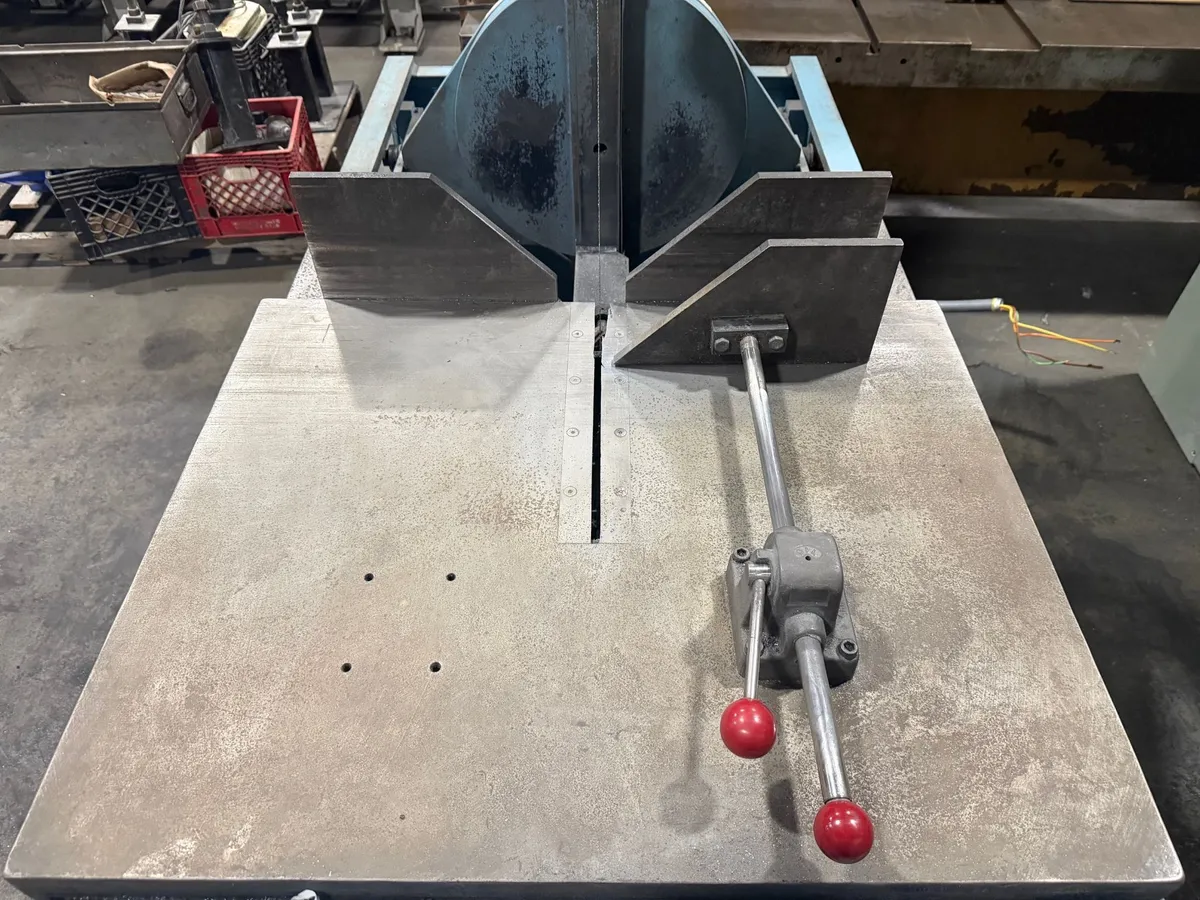

Table size: 32-1/4" x 26-1/4"
Table height: 37"
Main motor: 2 H.P.
Voltage: 440 volt 3 phase
Dimensions: 37" x 66" x 80" (saw only)
Weight: 1,400 Lbs.

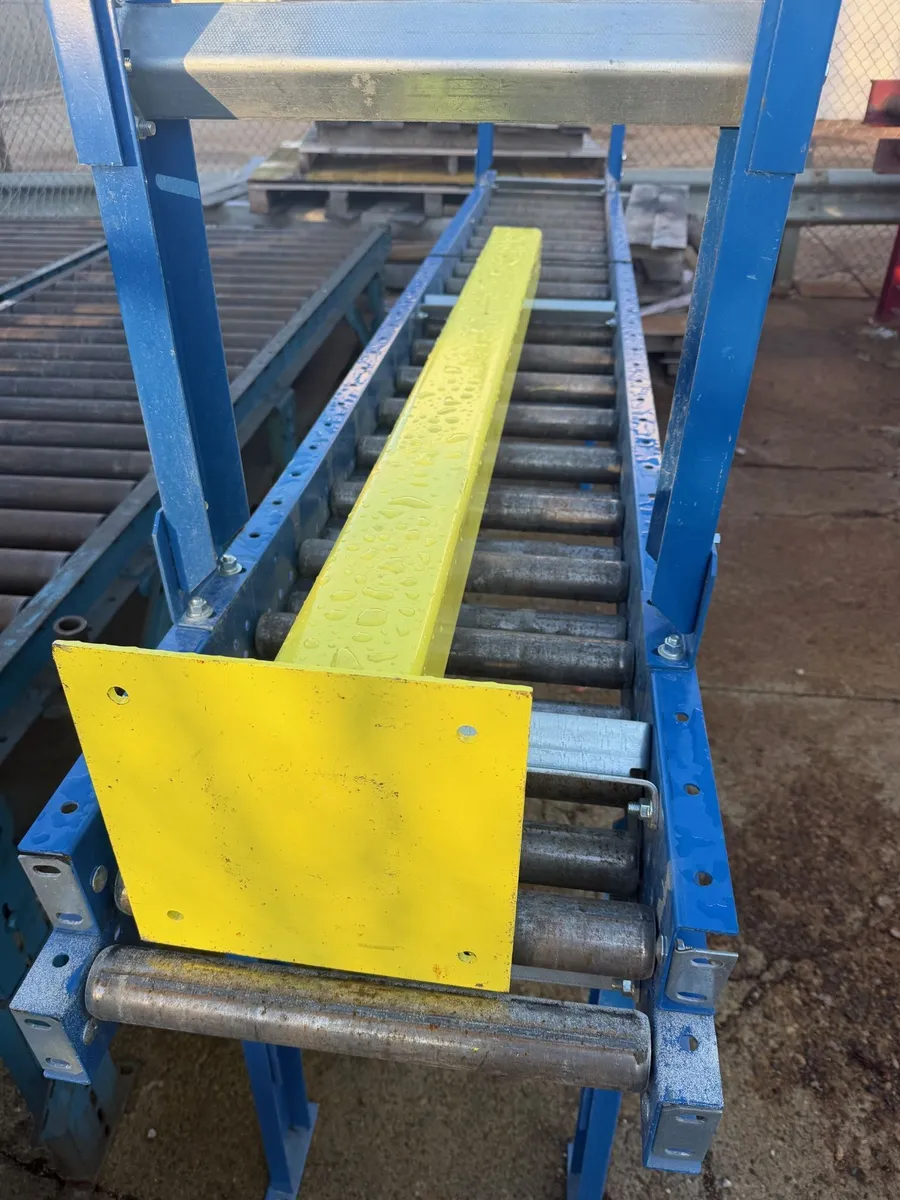

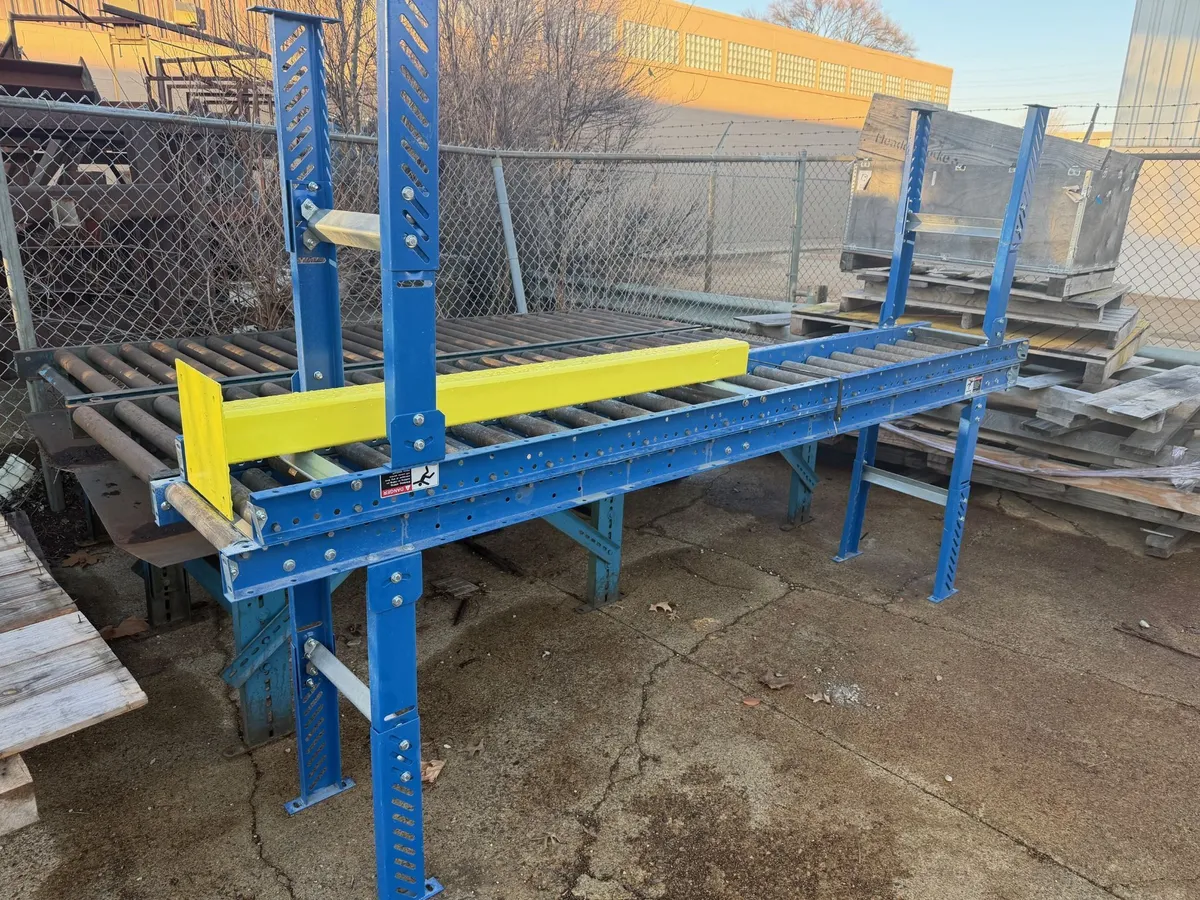

(2) 120" Manual roller conveyors.

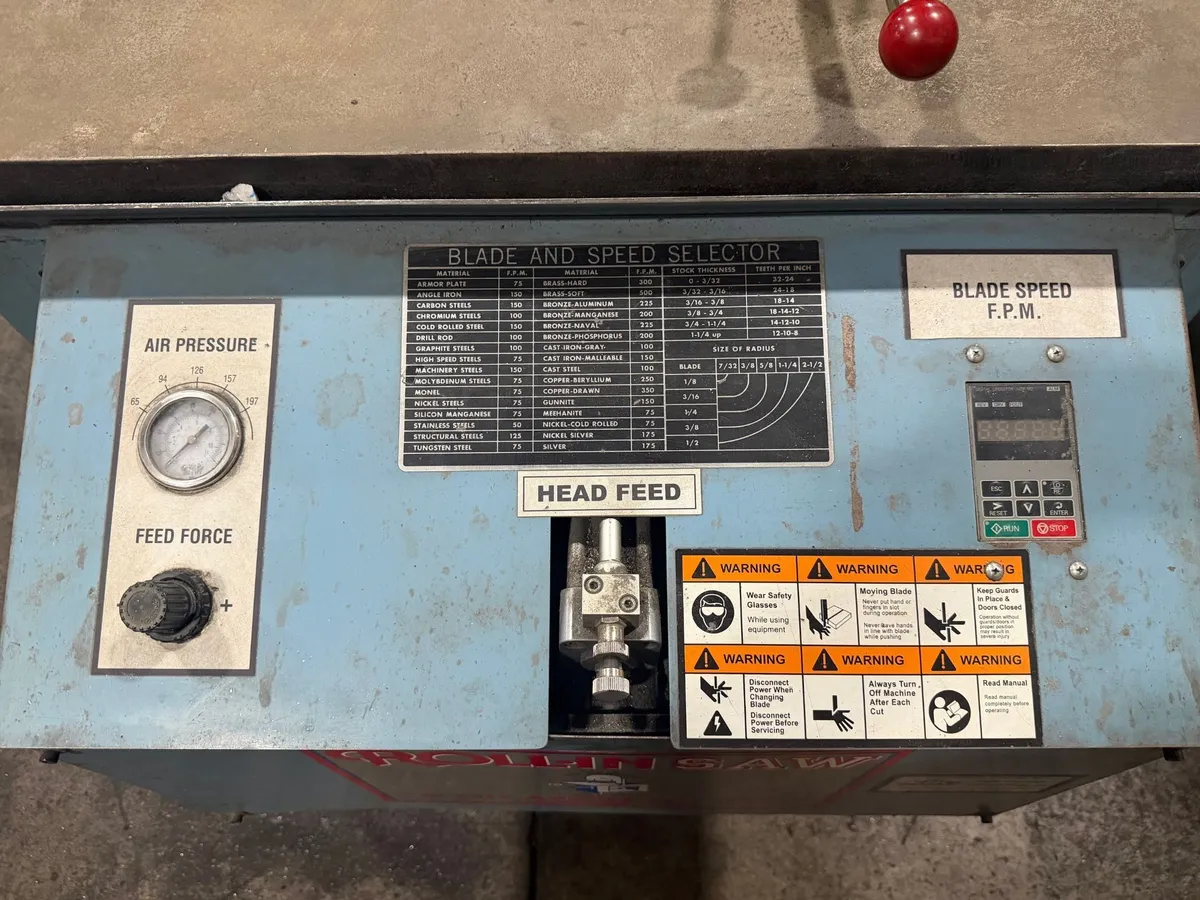

Digital blade speed control with readout.
Air over oil adjustable blade feed system.

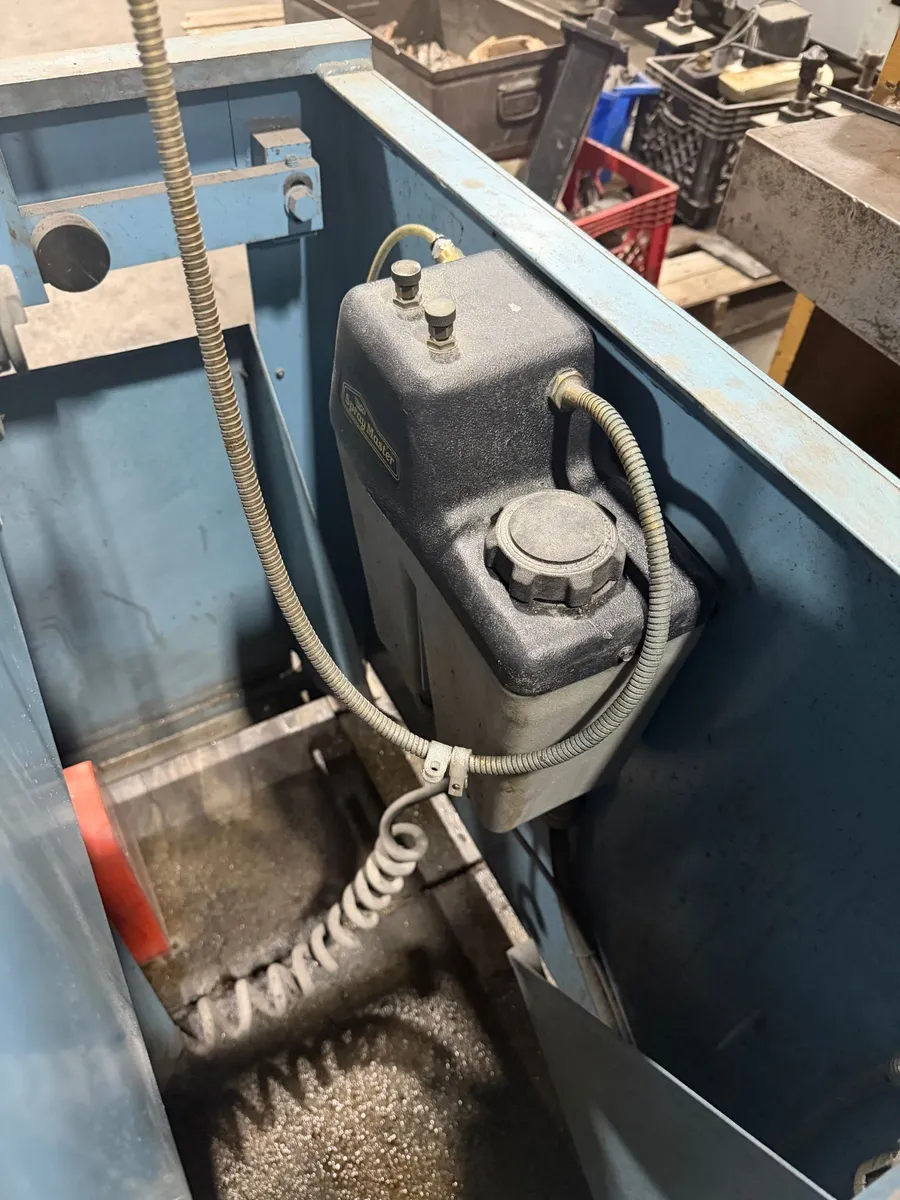

Mist coolant.
Manual blade tension.

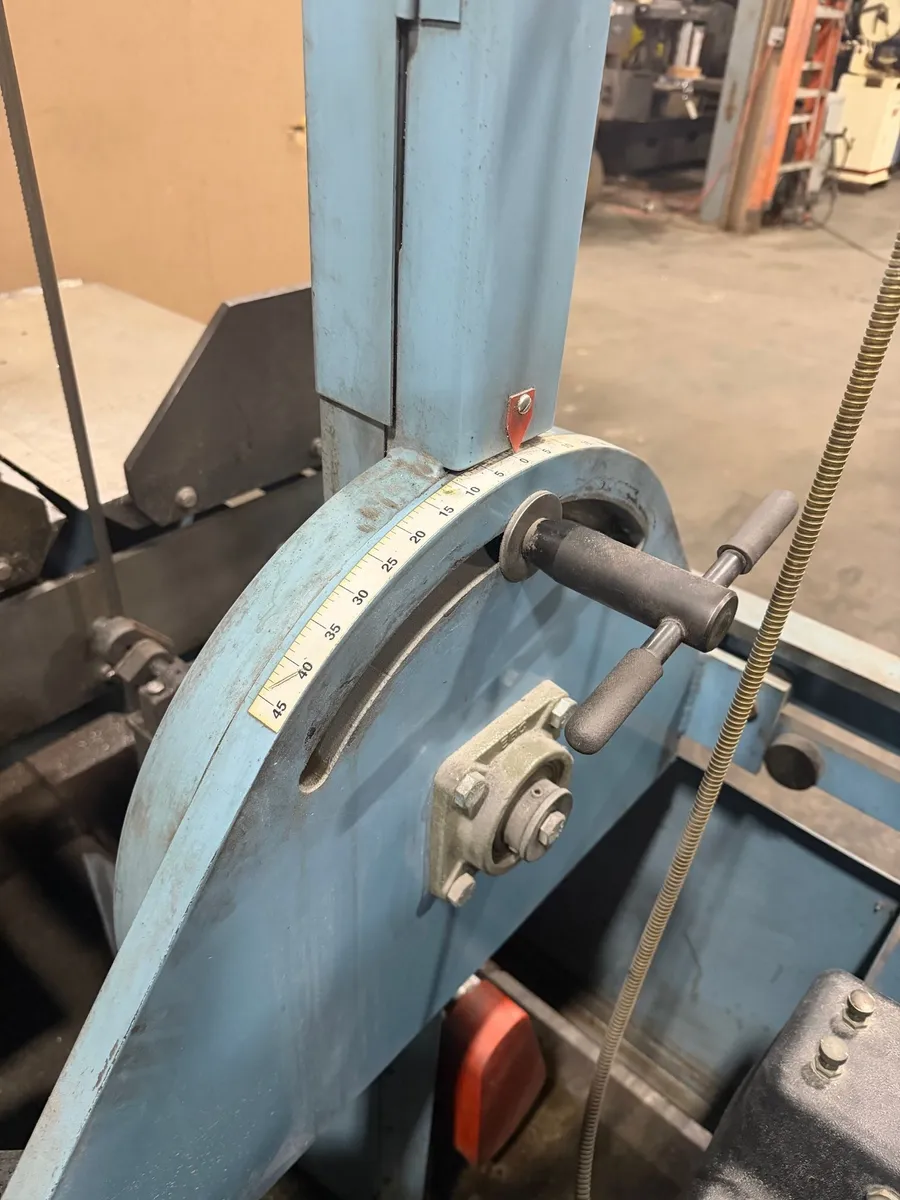

Manual head tilt with miter scale.
