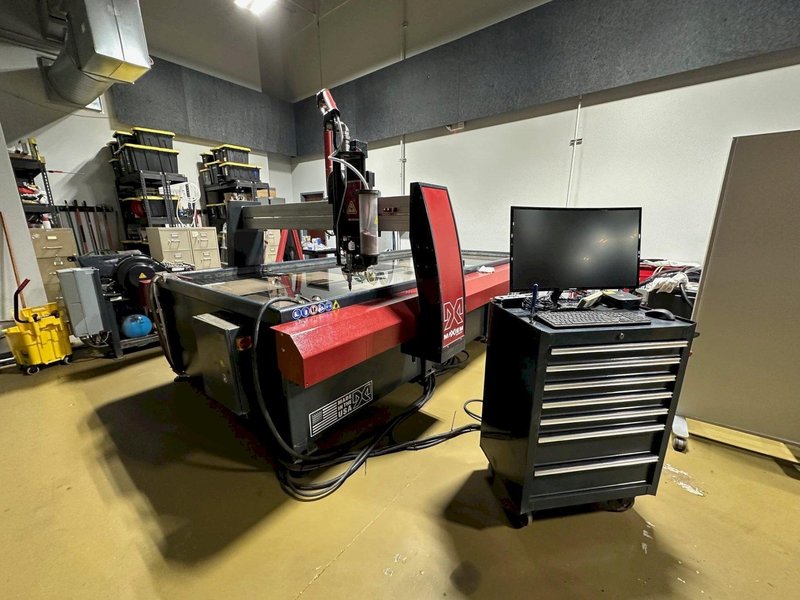

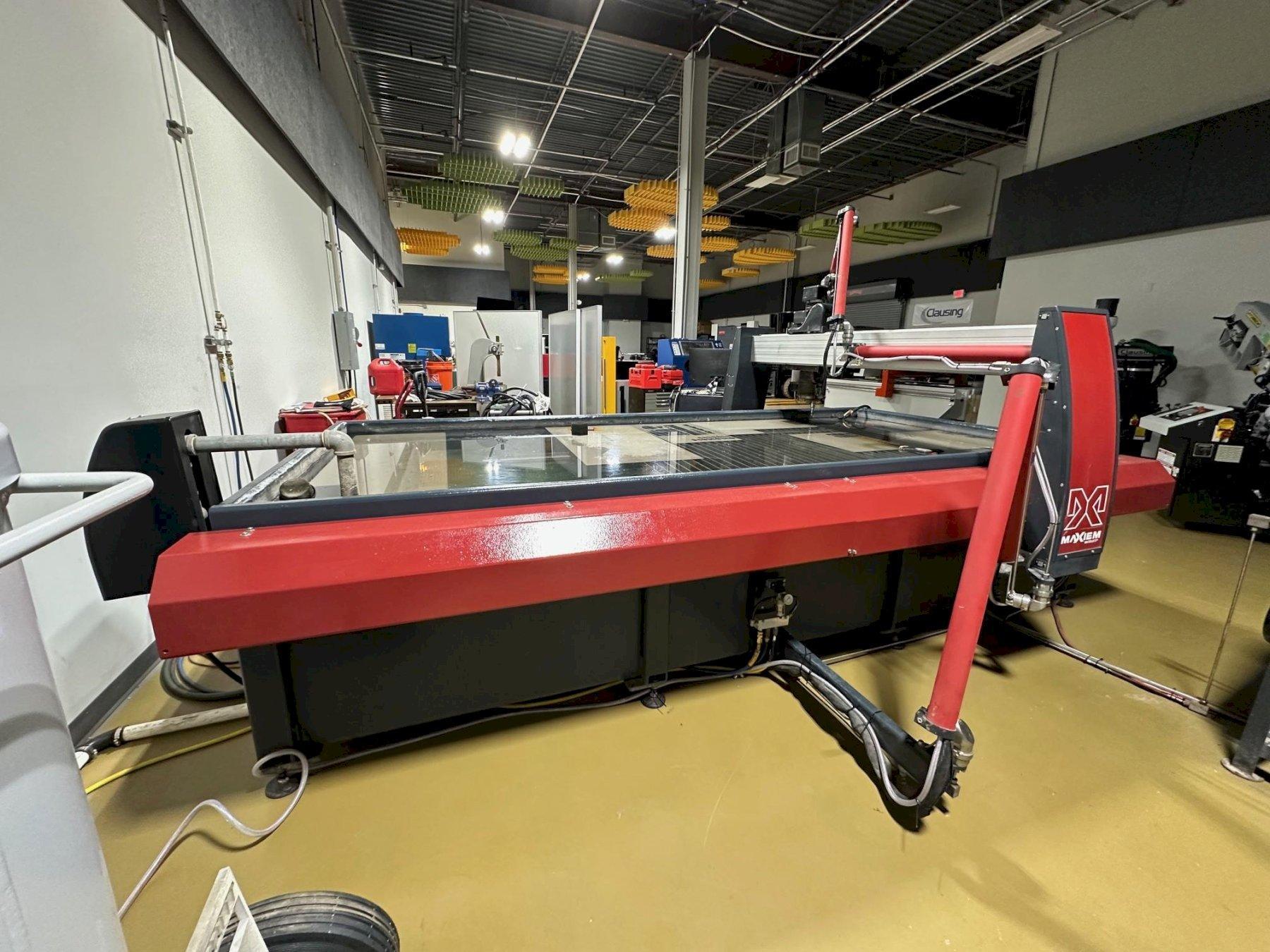

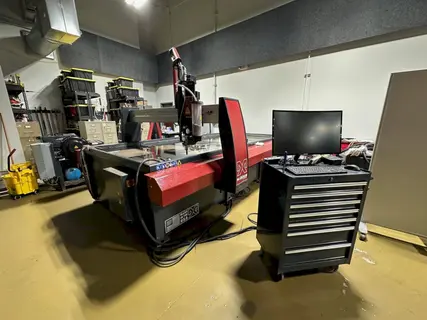

Maxiem 1530 5' x 10' Waterjet

Used Maxiem Model 1530 5’ x 10’ Abrasive Waterjet Cutter

 Manufactured 2018, Approximately 1,800 Hours

 Table Size:                                            146” x 68”

Cutting Capacity:                                   120” x 62”

Parking Area for Carriage for Loading:    29”

Z-Axis Travel                                         12” Programmable

Table Support Load                               300 Lbs Sqr/Ft

Material Support Slats:                          4” x 14 Ga. Galvanized Steel (34)

Rapid Traverse Speed:                          500” IPM

Drive System:                                       Closed Loop Linear Drive System w/ 1 Micron Resolution

Direct Drive Pump Horsepower:             30 HP

Pump Pressure:                                    50,000 PSI

Nozzle Configuration:                            0.014” Orifice, 0.030”/4” Mixing Tube

Garnet Feed System:                            Gravity Feed 15 lbs. Hopper

Computer:                                            PC Based w/ Wide Screen Monitor, Keyboard, Mouse

Software:                                              Omax Intelli-Max Basic Control Software

Footprint:                                              169”L x 130”W x 126” H (Without Controller)
Weight:                                                 4,000 Lbs.

Operating Weight:                                 15,700 Lbs.

 Control

·       Windows PC Based Controller

·       Wide Screen Monitor

·       Mobile Control Station, E-Stop, & Pause Button

·       Network Compatible

·       Hub Control for Ease at Adding Future Accessories

·       USB Ports for Quick File Loading/Backup

Software

·       OMAX Intelli-MAX Software Designed Specifically for Waterjet Cutting

·       CAD/CAM Software Included with Easy to Use Drawing Library

·       Ability to Import Popular CAD Format Files

·       Intelli-Visor – Ability to monitor up to 200 different machine function for increased productivity

 The Omax Intelli-MAX Software Suite, which includes Layout and Make, (Cad & Cam Software), is revolutionary machine control software written specifically for abrasive waterjet systems and simplifies control of the jet stream while cutting. From producing drawings in Layout, to utilizing Generation 3 Cutting Model calculations in Make, the state-of-the-art Intelli-MAX software brings optimal efficiency to your MAXIEM cutting activities.  This software provides ease of programing without operator intervention during the cutting process.

 The Intelli-MAX Advantage:

• Faster cutting and higher precision than all competitor control software in its class
• Operates on widely compatible Windows® operating systems
• Fast and easy programming with MAXIEM's built-in CAD/CAM system or program using nearly any popular CAD/CAM system
• Built-in cutting models and automatic cutting strategies, the software provides the fastest cutting and highest precision in its class, while minimizing consumables for the lowest cost parts

Drive System

·       Exclusive Intelli-Trax AbrasiveJet Linear Drive System Designed Specifically for Waterjets

·       Brushless Servo Motors & Drive Closed Loop Feedback For High Positioning & Accuracy

·       0.000039” (1 micron) Resolution Drive System for High Accuracy, Smooth Motion, Low Maintenance

·       Motorized Z-Axis with Heads Up Traverse Available

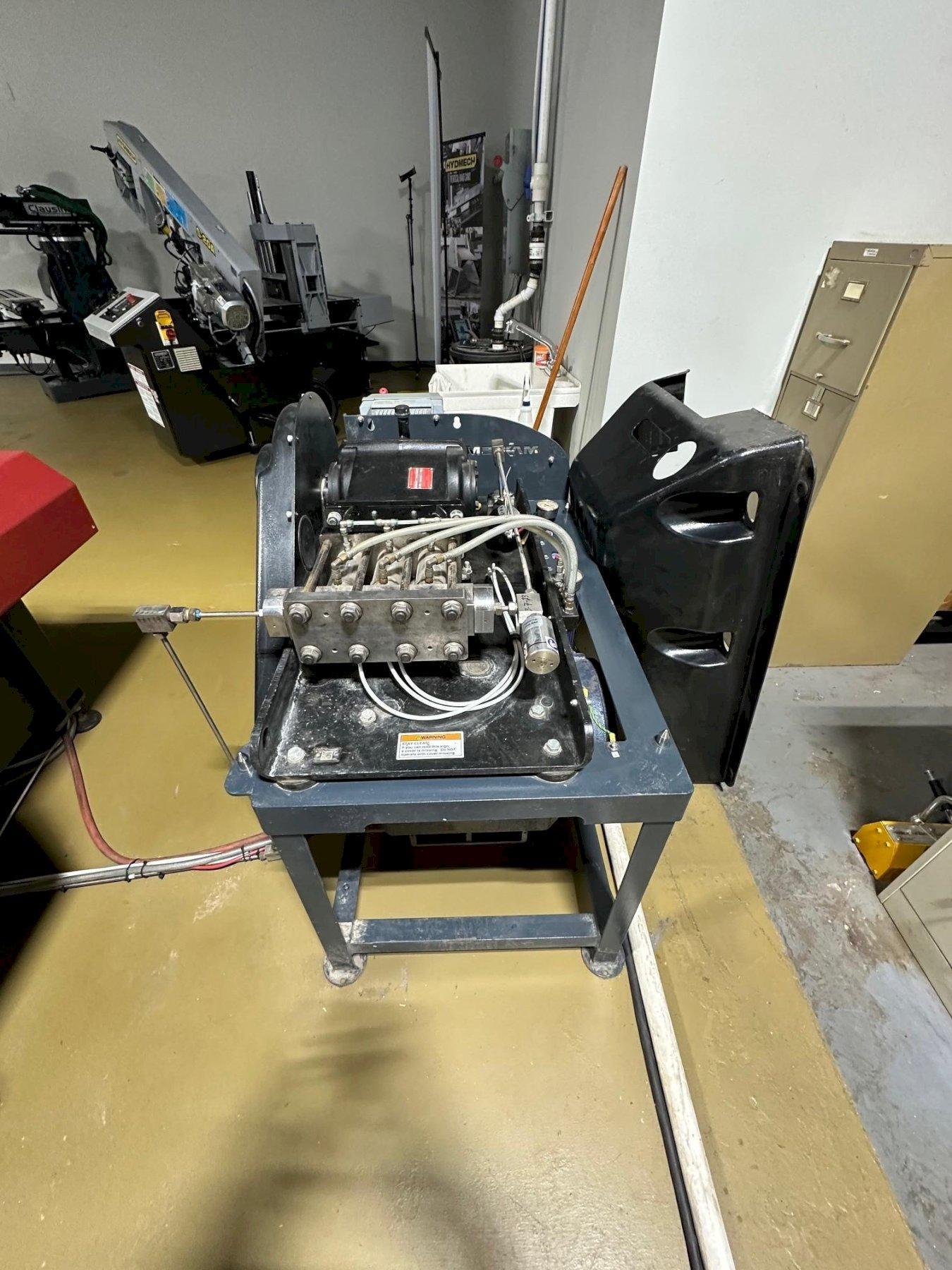

Pump

·       High Efficient 30 HP OMAX Variable Speed Pump Delivering the Most JET Horsepower at the Nozzle than Other Types of Waterjets

·       50,000 PSI While Providing Faster Cutting than Other Waterjets with Higher Pressure Pumps

·       Wired 3/60/460 Volt Only

 The MAXIEM pump offers the same Variable Frequency Drive (VFD) capability of the OMAX market leading pump, giving you the flexibility to adjust the motor's RPM for high and low pressure operations. MAXIEM direct drive pump technology delivers the same high reliability found in proven OMAX pump technology.

 MAXIEM pumps are the latest in direct drive plunger pump technology, designed for tough industrial use. Engineered for optimal efficiency, the MAXIEM pump delivers more than 85% of the electrical input power to the cutting nozzle. This translates into less energy usage, faster cutting speed per unit of input power, and lower cost per finished part than other pump technologies.

  Equipped With:

·       Scissor High Pressure Plumbing

·       Water Level Control

·       15 Lb Garnet Hopper

·       Mobile Multi Drawer Control Station with Wide Screen Display

·       OMAX Nozzle

·       OMAX High Efficient Low Noise 30 HP Variable Speed Direct Drive Pump

·       OMAX Intelli-MAX Basic CAD/CAM Control & Software

·       X-Axis Industrial Drive Covers

·       Safety Torque Sensing Drives to Protect Motion System

·       Intelli-Visor Monitor System for Predictable Maintenance and Ease of Operation

 DESIGNED & BUILT IN USA

 FOB:  St. Louis, MO
