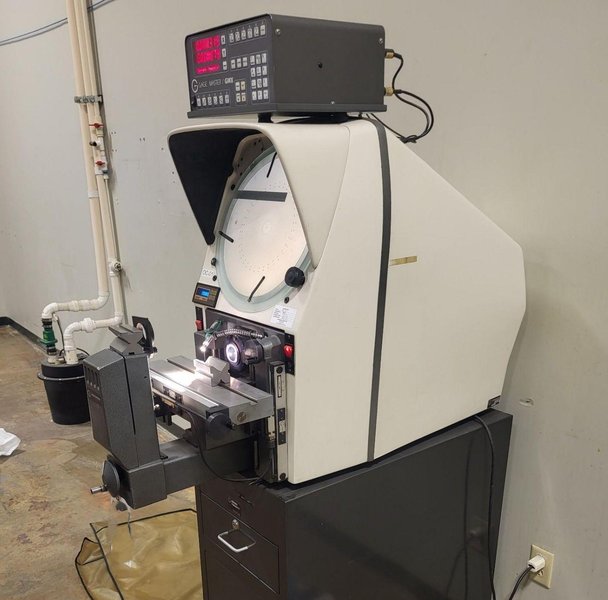

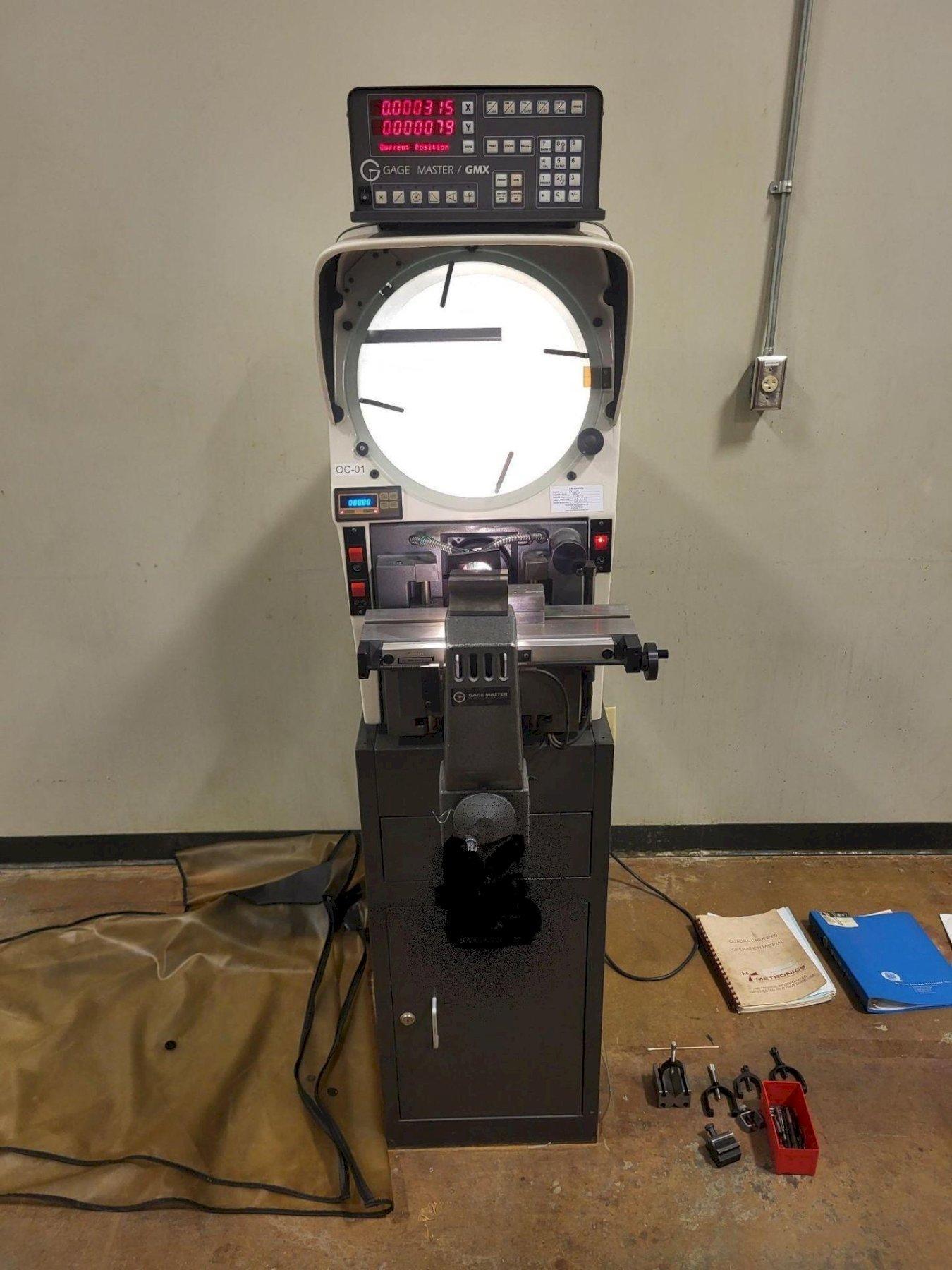

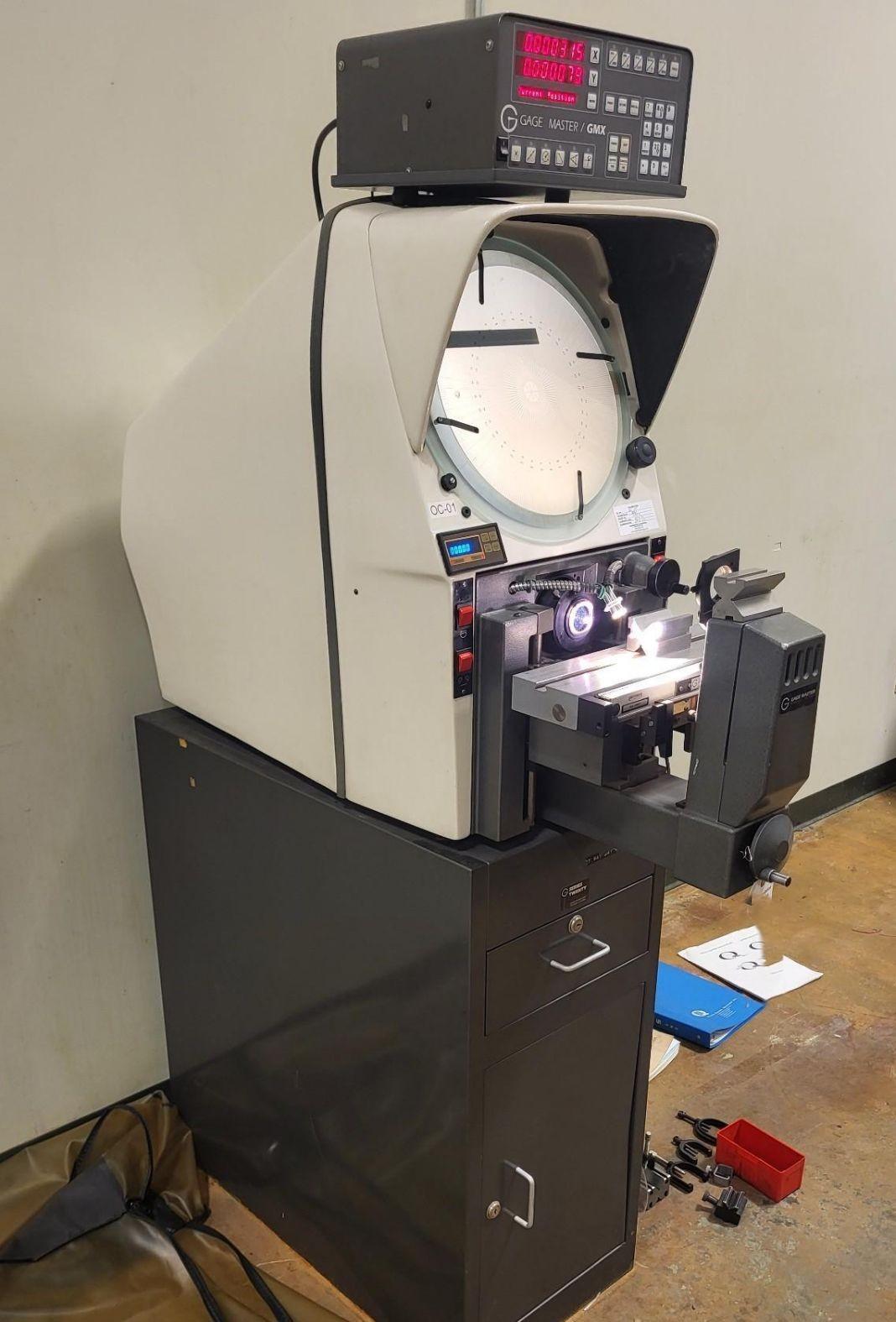

14" Gagemaster Model 29/GMX Bench Top Optical Comparator, S/N 146266690.

14" Gagemaster Model 29/GMX Bench Top Optical Comparator, S/N 146266690.

Name: 14" Gagemaster Model 29/GMX Bench Top Optical Comparator, S/N 146266690.
Brand: GAGEMASTER
SKU: 34934
Availability: PreOrder

Brand

GAGEMASTER

Location

Ohio

REQUEST FINANCING

Specifications
Files & Videos

Preliminary Specifications:
Screen Size, Overall - 14-3/4"
Screen Size, Viewing Area - 13-1/4"
Table Size - 4" x 14-3/4"
Table Travel, Horizontal - 7"
Table Travel, Vertical - 4"
Focus Adjustment - 1.5"
Angle Measuring - 360º Chart Rotation
Throat Clearance - 8"
Electrics - 1/60/110-120 volt
Dimensions - 20" wide x 48" deep x 36" high
Net Weight, Approx - 150 Lbs.
Estimated Shipping Weight - 400 Lbs.

Equipped with:
GMX Computational Digital Readout
Internal Edge Sensing (no sensor or cables)
Electronic Digital Angle Display
Rapid X-Axis Table Positioning
Single Lens Mount with (1) 10x Lens
(Additional lenses available for substitute or purchase)
Fiber Optic Surface Illumination
Tungsten-Halogen Projection
Screen Mounted Chart Clips

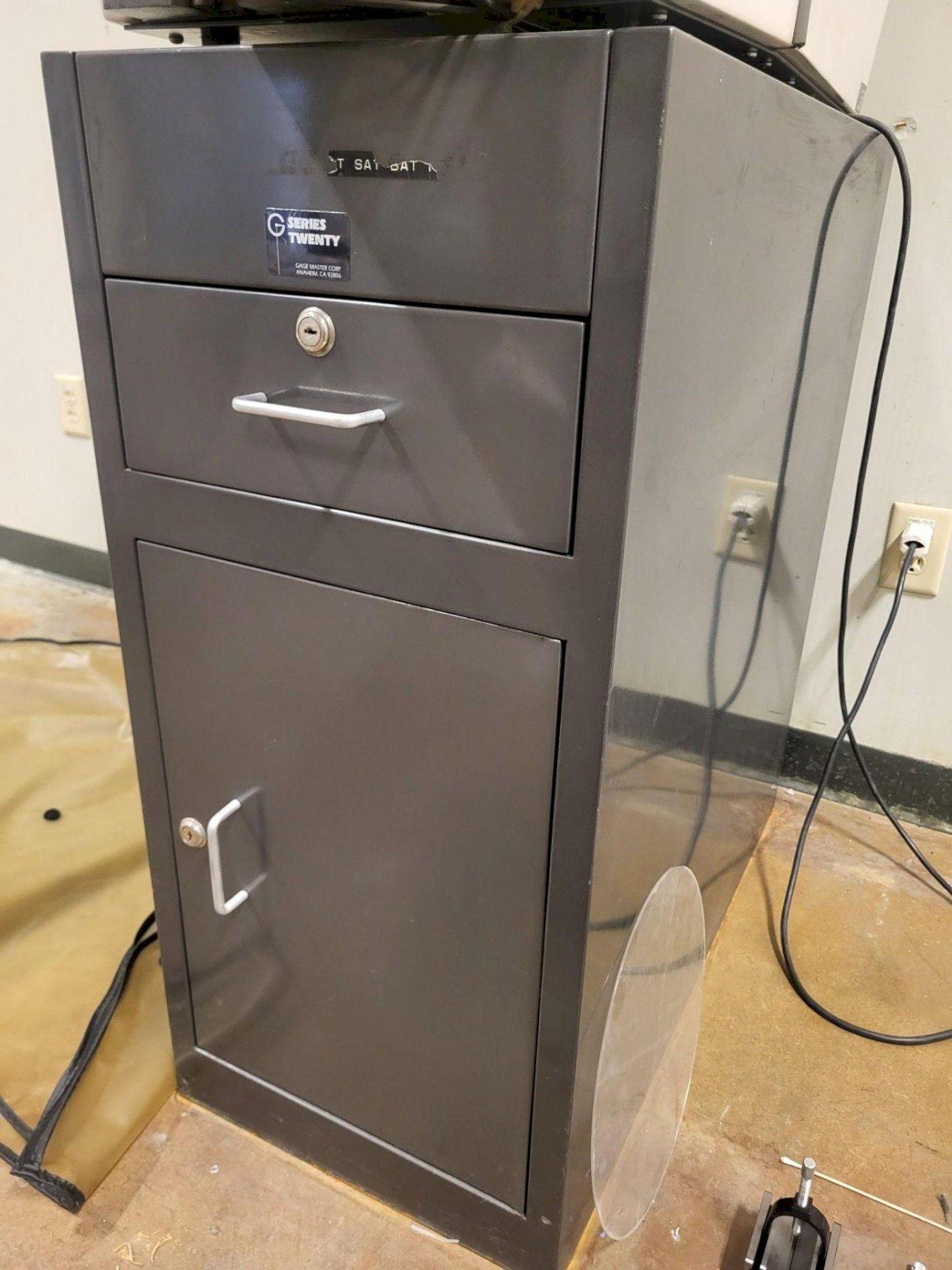

Cabinet Base

Arrival and availability pending.
Specifications are subject to independent verification by the buyer.
Note factory literature providing in photos is for reference only.
Advanced Machinery has sold approx 30 similar Gagemaser machines.
