Brecknell DCSB6060-10 NTEP 5 x 5 Platform Electronic Floor Scale, 10,000 x 2 lbs

Brecknell DCSB6060-10 NTEP 5 x 5 Platform Electronic Floor Scale, 10,000 x 2 lbs

Name: Brecknell DCSB6060-10 NTEP 5 x 5 Platform Electronic Floor Scale, 10,000 x 2 lbs
Brand: BRECKNELL
SKU: 56748
Availability: PreOrder

Brand

BRECKNELL

Location

Minnesota

REQUEST FINANCING

Specifications
Files & Videos

Capacity	10000 Lbs.
Readability	2 Lbs.
Platform Size	5 x 5'
Accuracy	NTEP at 5,000 divisions, Class III
Construction	0.25 inch thick deck with safety tread
Finish	Powder coat paint
Interface Cable Length	15' with tinned leads (included)
Washdown Rating	IP65 dust and water protection
Units	lb, kg, oz
Indicator Housing	Heavy dut stainless steel, IP65 dust and waterproof
Interfaces	Serial Port 1: Full-duplex RS-232 Serial Port 2: Full-duplex RS-232 or half-duplex RS-485
Functions	Motion, Zero, Net, Gross, Tare, Total, Counting, Peak/Hold, Checkweighing, Percentage Weighing

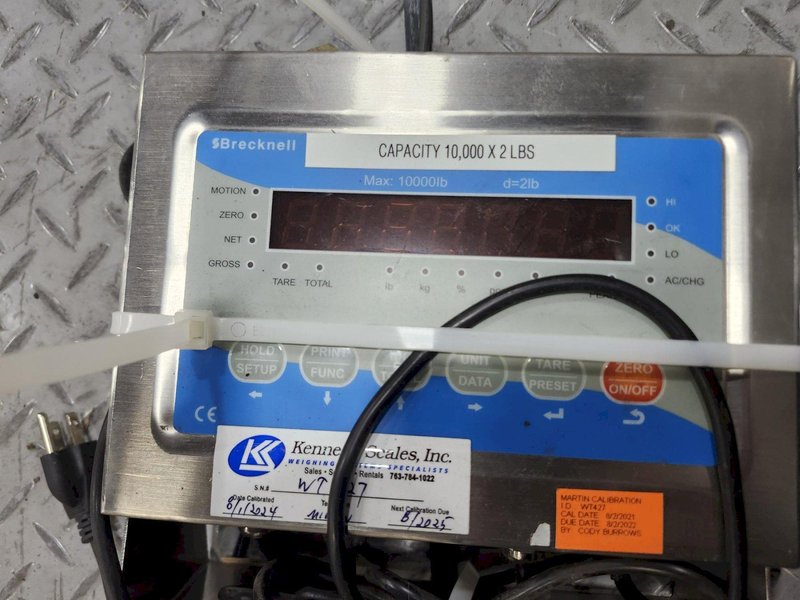

Keyboard	Hold/Setup, Print/Func, N/G/Total, Unit/Data, Tare/Preset, Zero/On/Off
Levelling Feet	4 top access holes for quick levelling
J-Box Construction	Stainless steel, top access
Load Cell Material	Alloy tool steel potted
Load Cell Rated Output	3mv/V
Overload Protection	150% of rated capacity
End Loading	100% of rated capacity
Operating Temperature	14°F to 104°F (-10°C to 40°C)
Certifications	Indicator: NTEP COC# 11-119 Platform: NTEP COC# 02-070

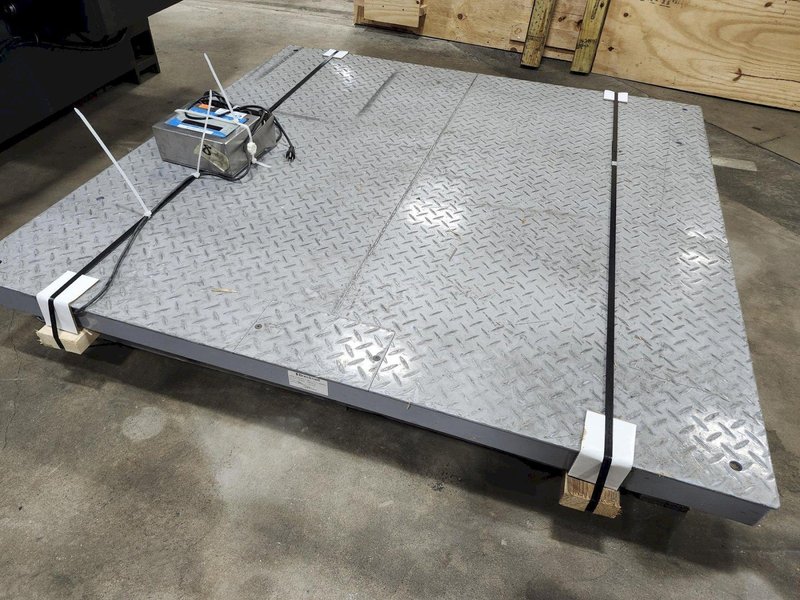

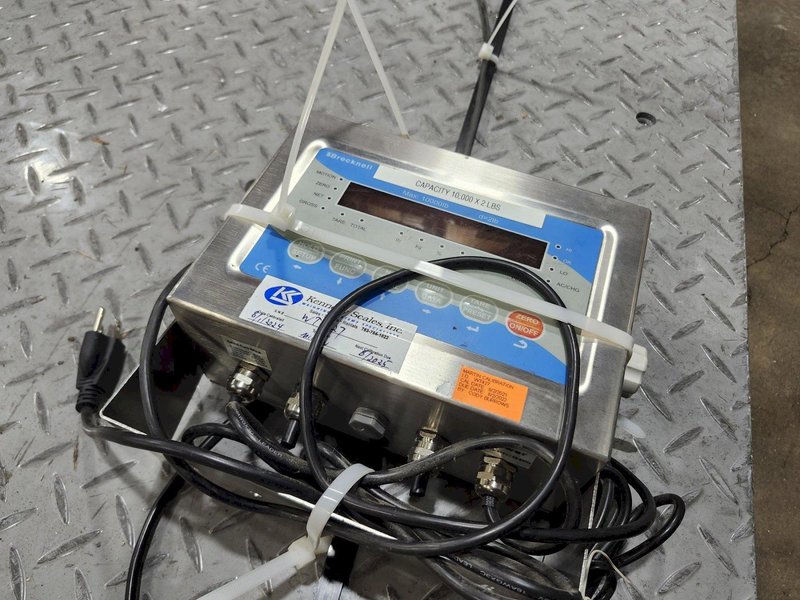

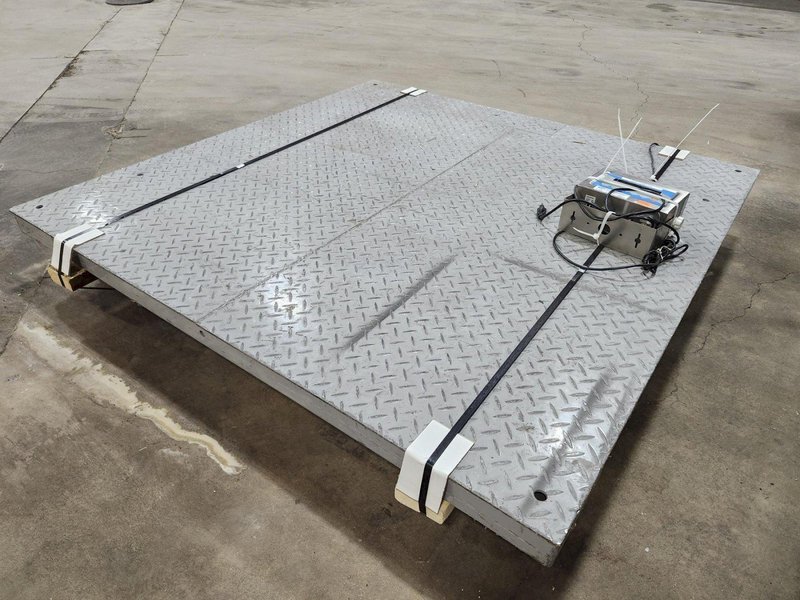

The Brecknell DCSB6060-10 5 x 5 NTEP floor scale has a capacity of 10,000 lbs with a 2 lbs readability. Brecknell DCSB NTEP certified legal for trade industrial floor scales are IP65 rated washdown and comes precalibrated with the SBI-521 stainless steel LED indicator. Pre-calibrated to SBI-521 LED indicator Easy Installation - Units can be placed into service with no on-site installation required A/D Conversion Rate - Up to 25 measurements per second NTEP approved Legal for Trade IP65 Rated washdown Counting, checkweighing, Net, Gross, Total and percentage weighing Stainless swivel stand included Powder coated base
