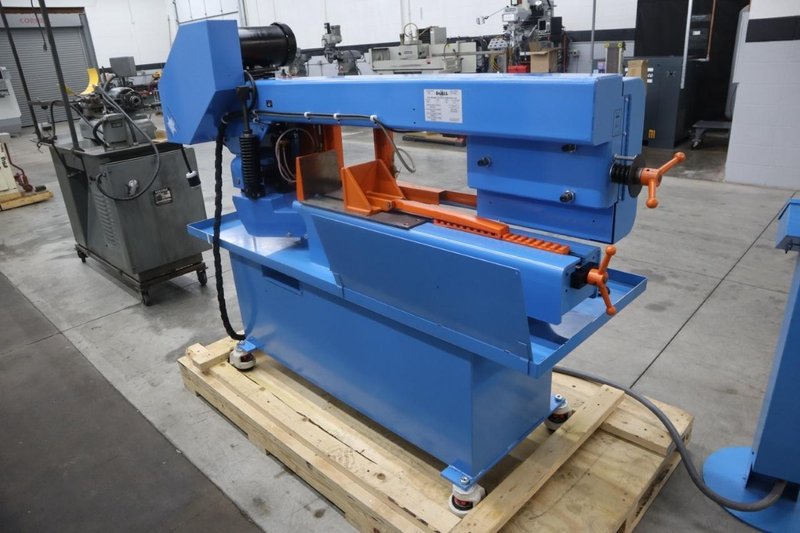

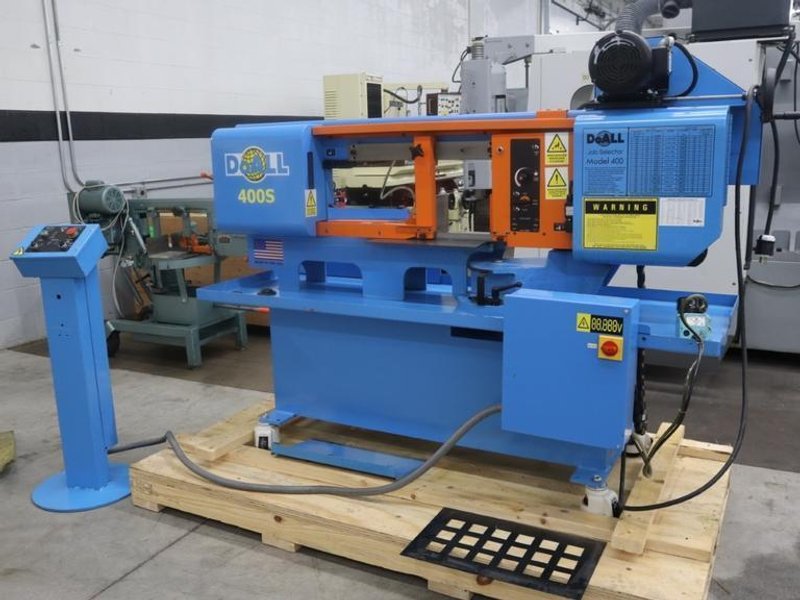

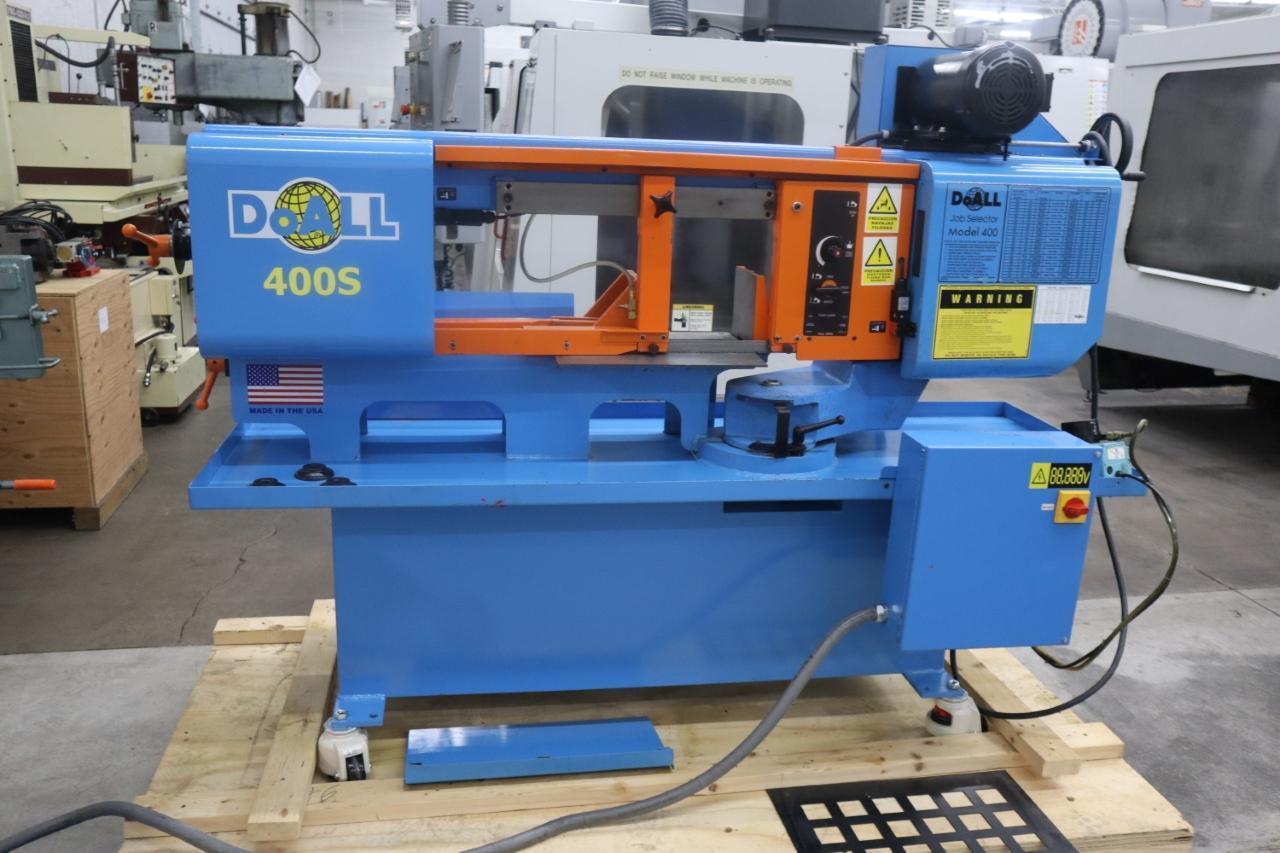

DoAll 400S 10" x 16" StructurAll Band Saw, 45 Degree Miter, Variable Speed

Brand
Model
400S
Stock #
7316
Year
2018
Condition
Not specified

Location

Not specified

Cutting Capacity @90 Degrees: 10" X 16" Rectangle - 10.75" Round

Miter Capacity (Degrees): 45 Degrees

Miter Cutting Capacity (Inches): 9" W x 10.75"H at 45 Degrees

Wheel Size: 14.5" Diameter

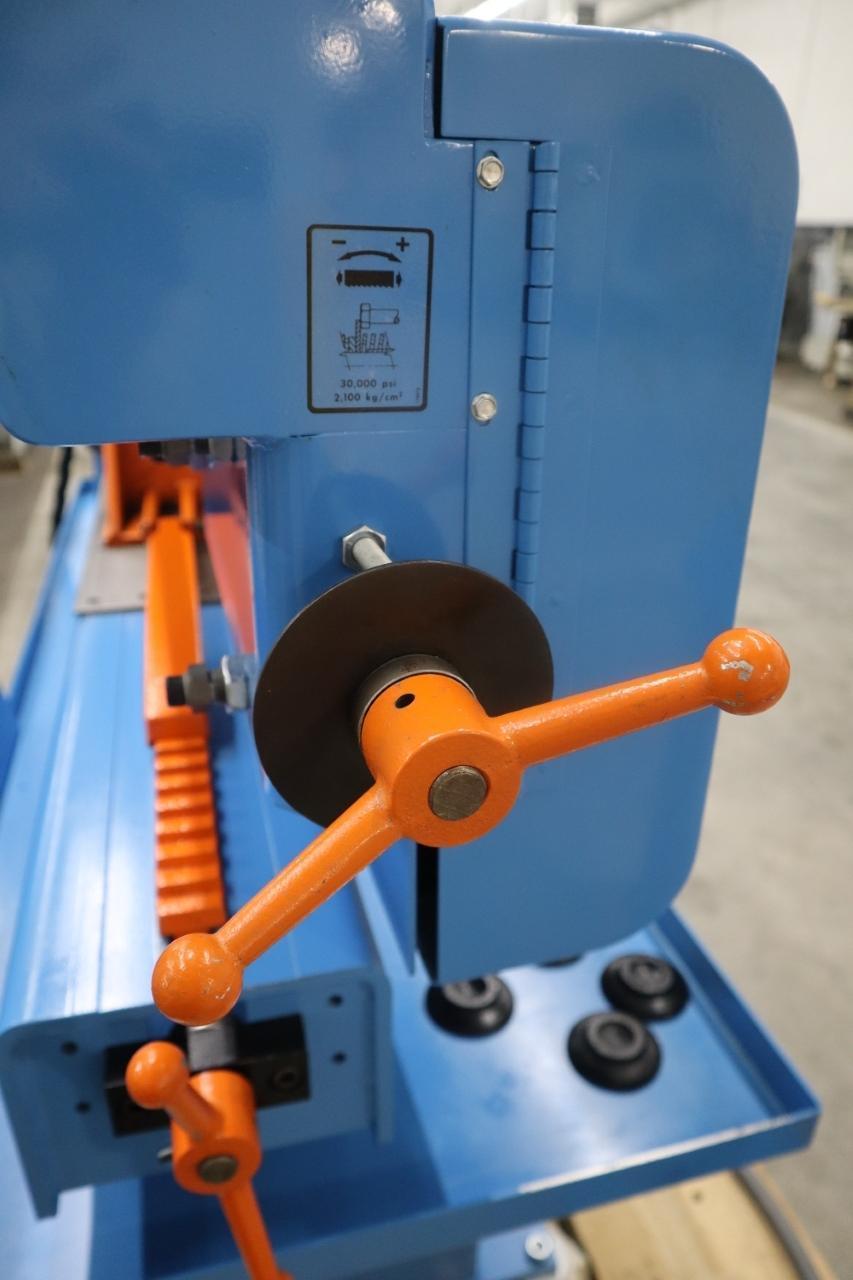

Blade Size: 1" x 158" x .035" Max

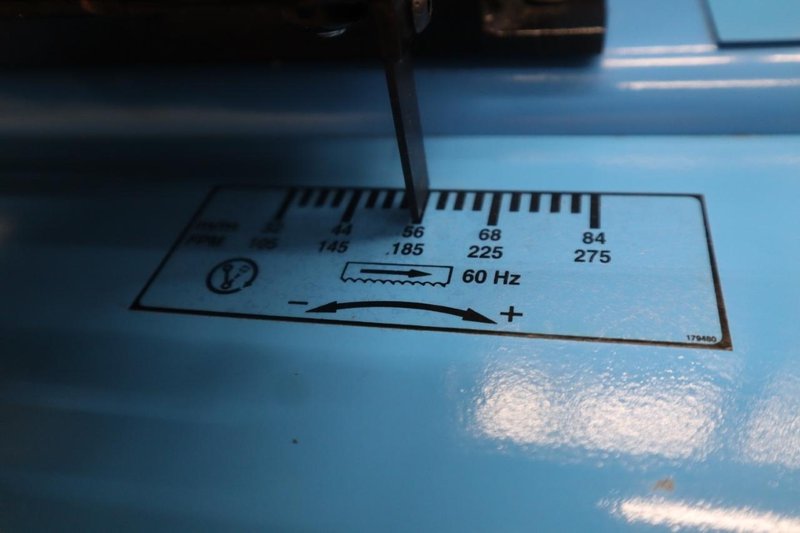

Blade Speeds: Variable Speed 105-275 FPM

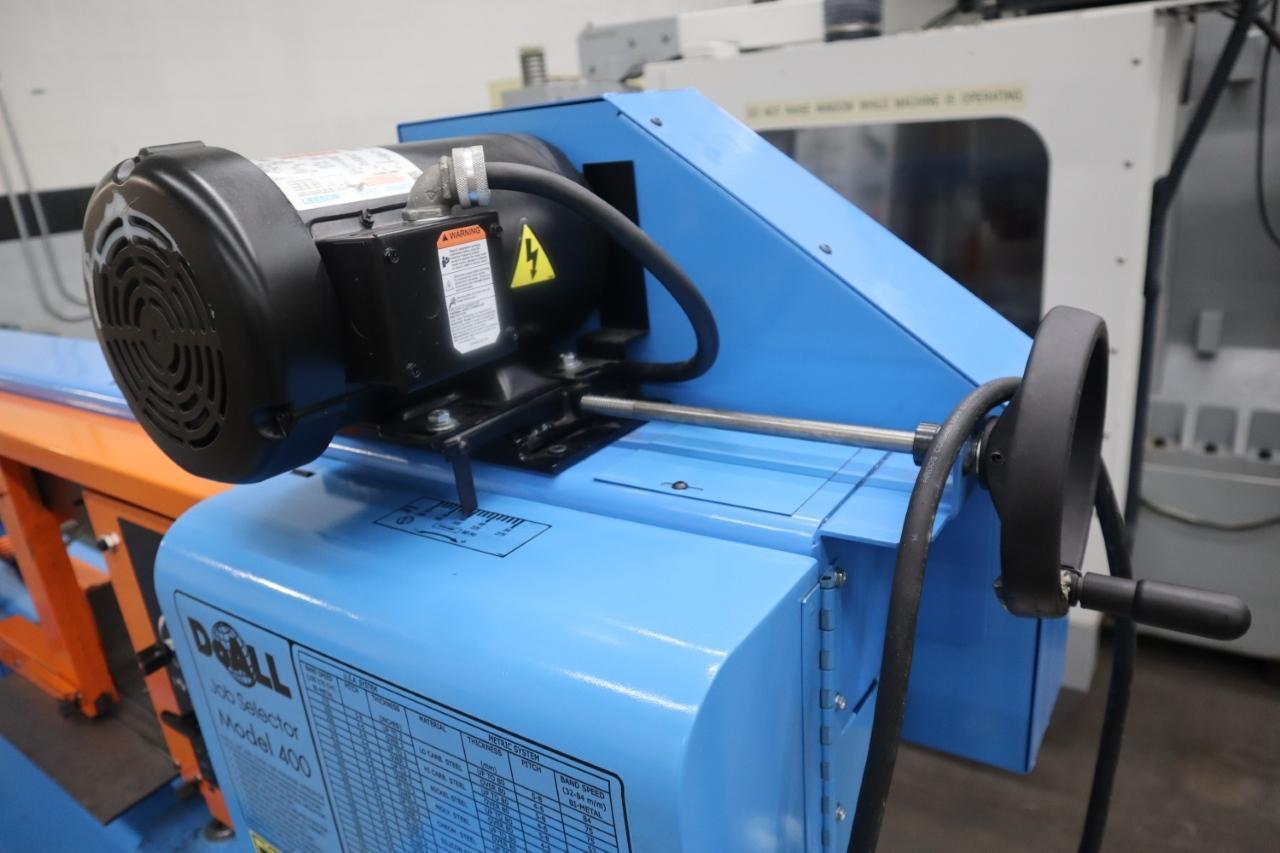

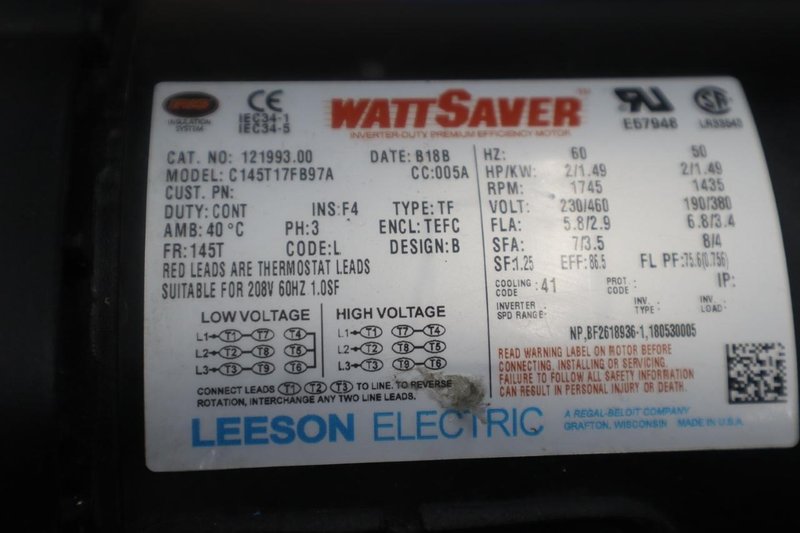

Drive Motor: 2 HP

Description:

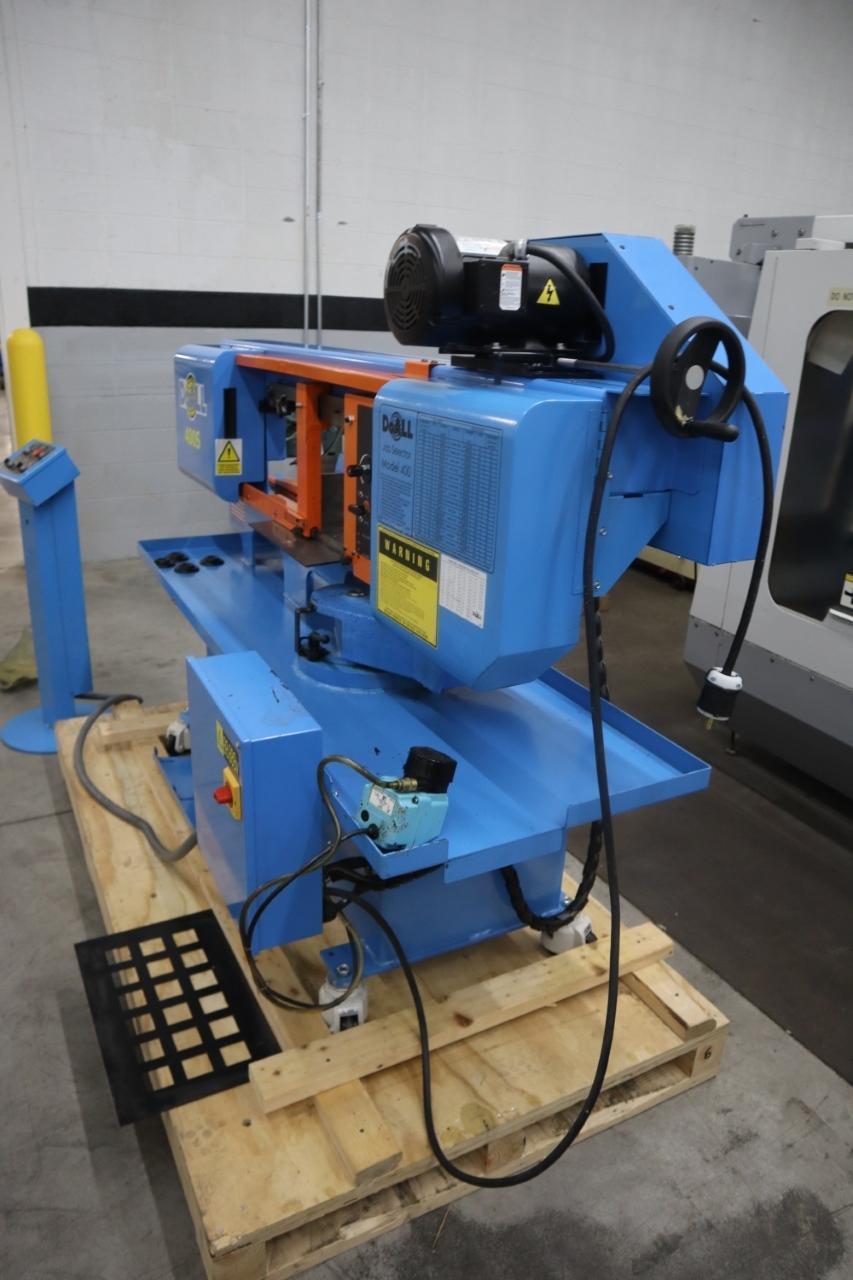

DoAll 400S Band Saw is an introductory machine in the StructurALL family of band saws and is suited for cutting all types of structural materials. Swiveling 45 degrees, it's the ideal machine for the small to medium fabricator or machine shop, looking to make extremely accurate (straight or miter) cuts in smaller quantities. The 400S features a 9" high x 16" wide capacity of rectangles and 10-3/4" rounds at 90 degrees. This manual machine can be equipped with a variety of options to further ease operation, such as pneumatic head-lift and pneumatic vise attachments.

Equipped With:

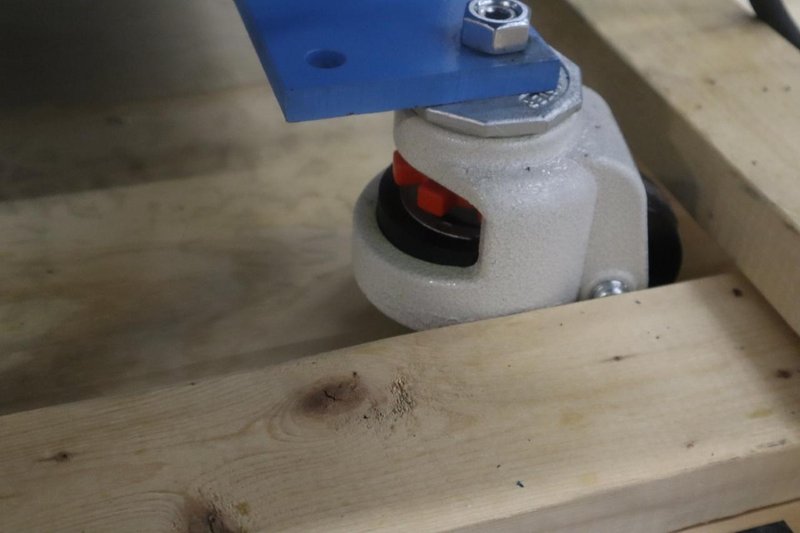

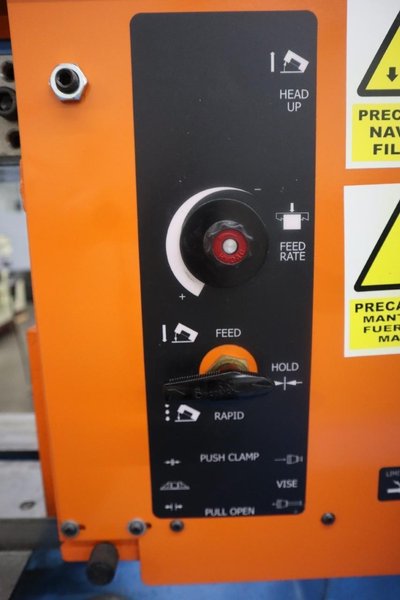

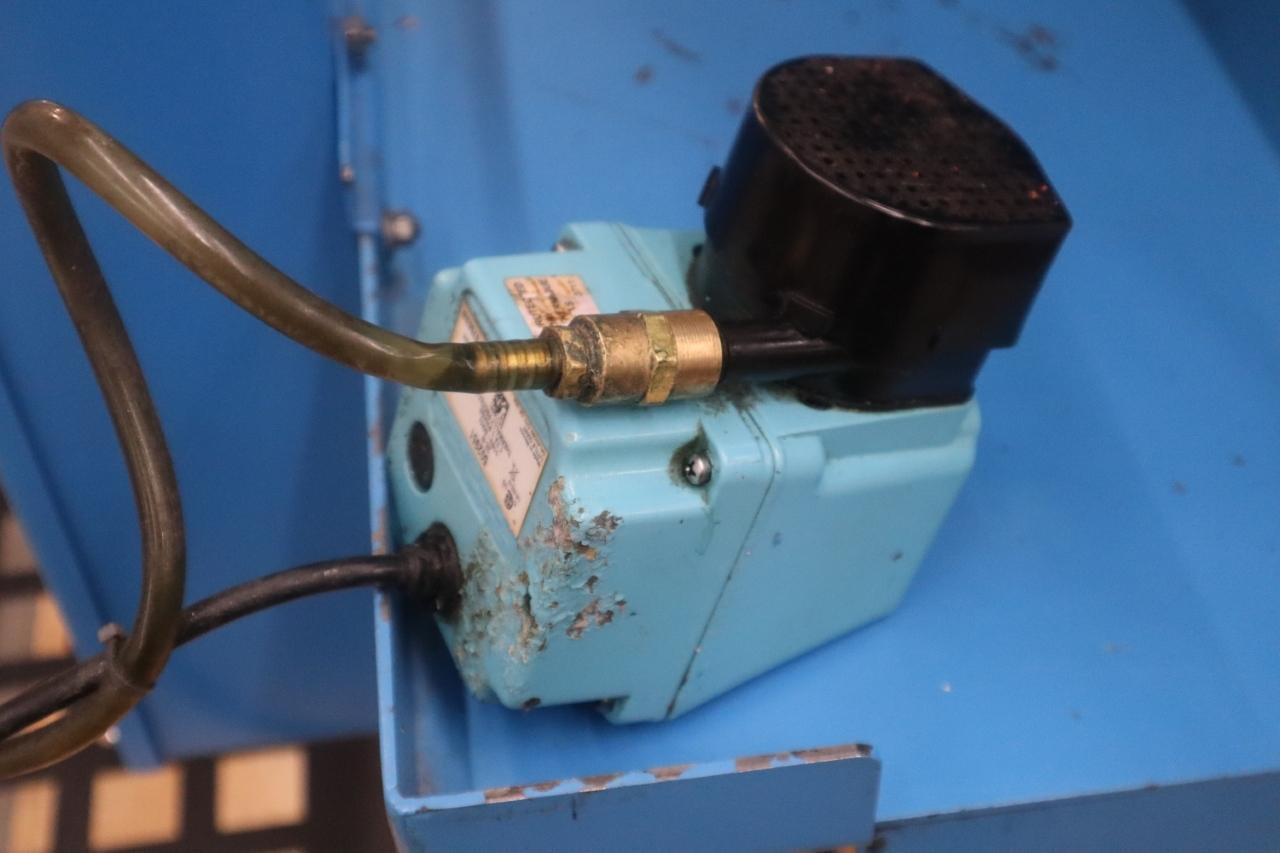

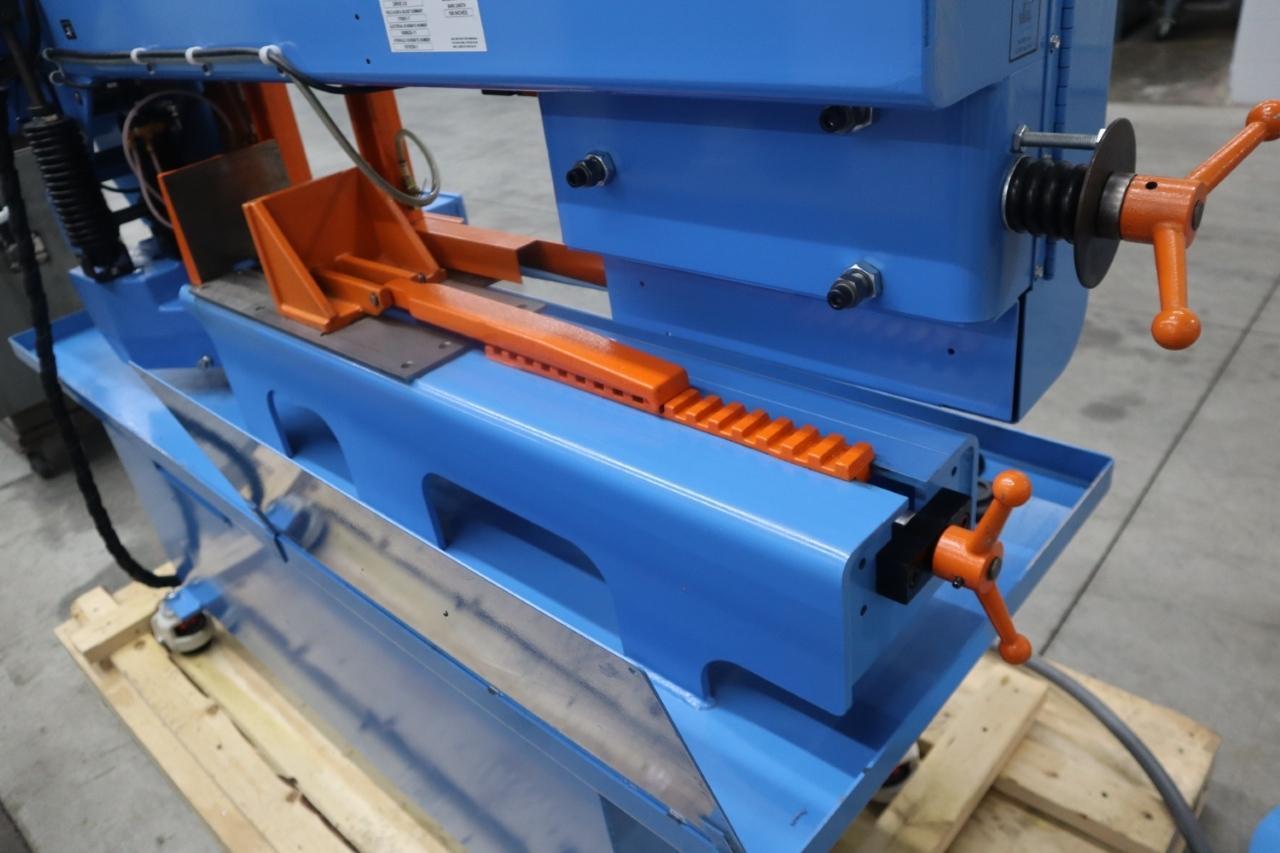

45 Degree Swivel Mitering Head, Manual Clamping Vise, Manual Blade Tensioning, Variable Band Speeds, Variable Blade Feed Rate, Manual Elevation, Portable on Casters with Screw Feet and Machien Pads, Coolant Pump, Powered Blade Cleaning Brush, 2 HP Drive Motor

Electrics:

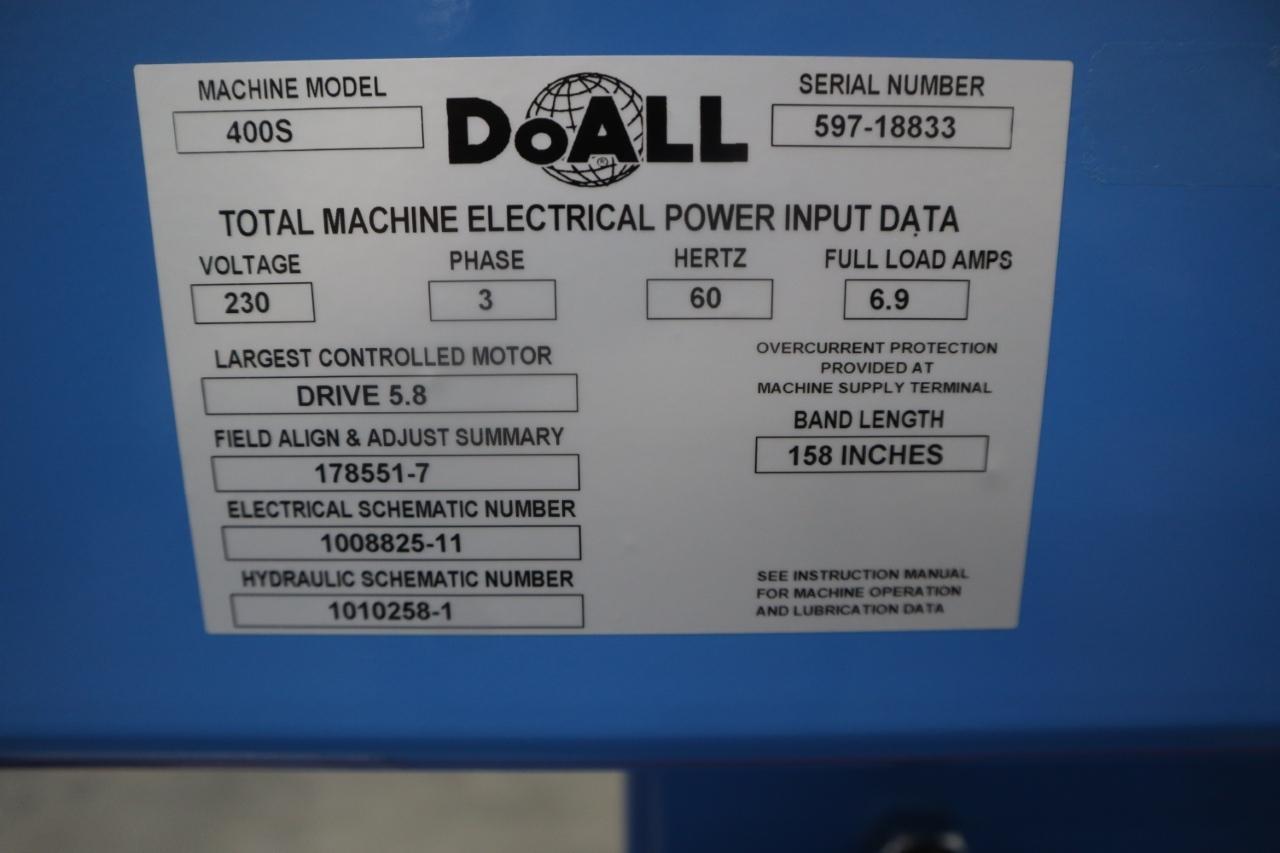

230 Volt, 3 Phase
