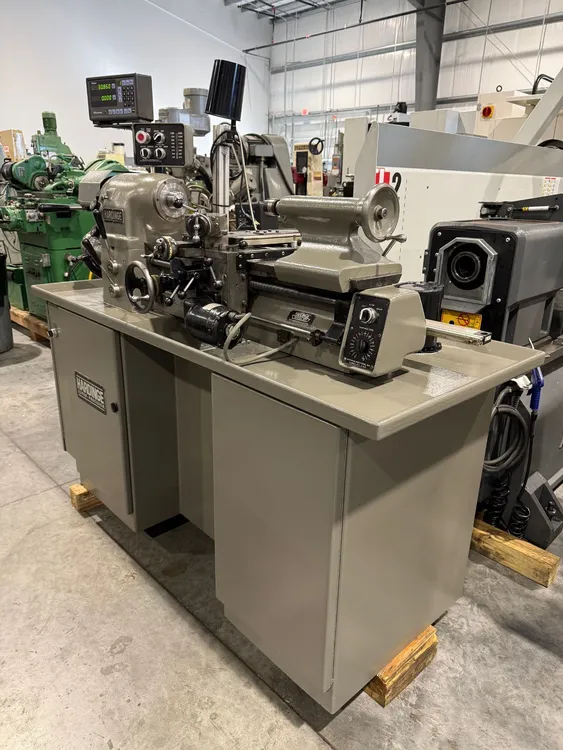

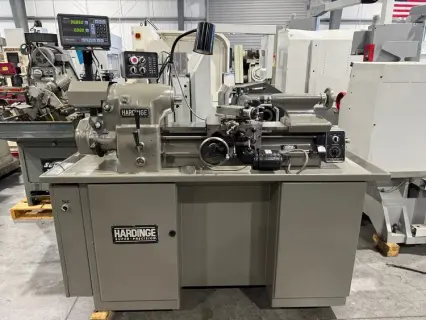

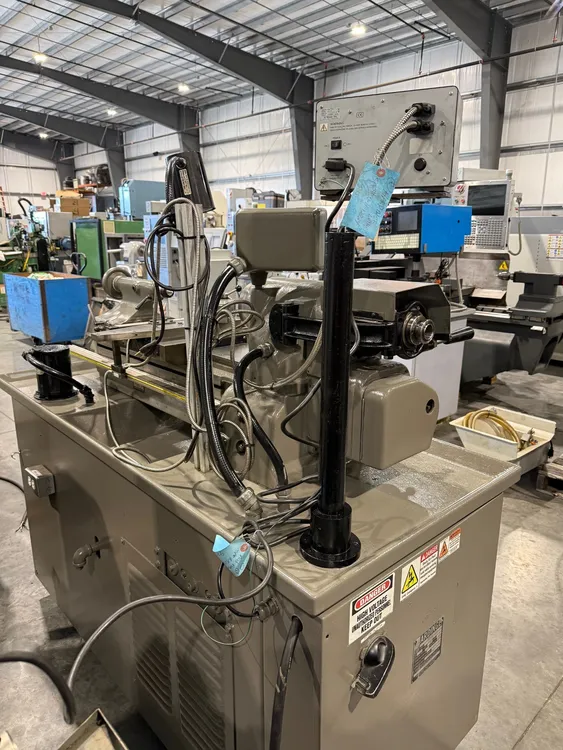

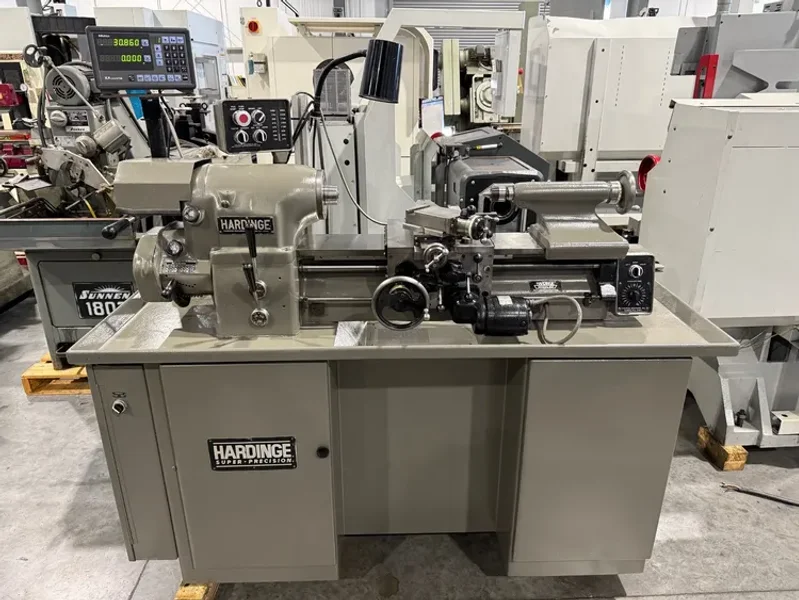

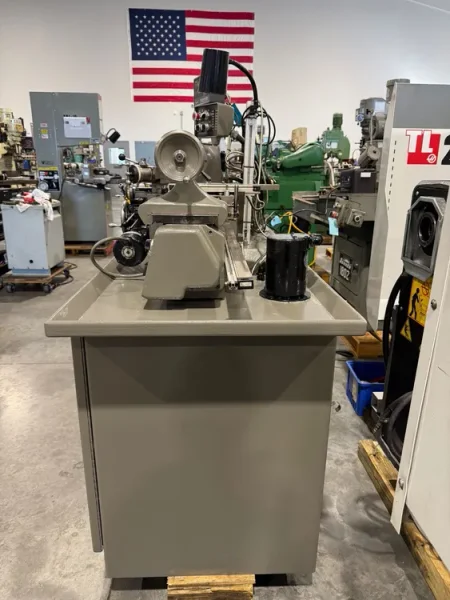

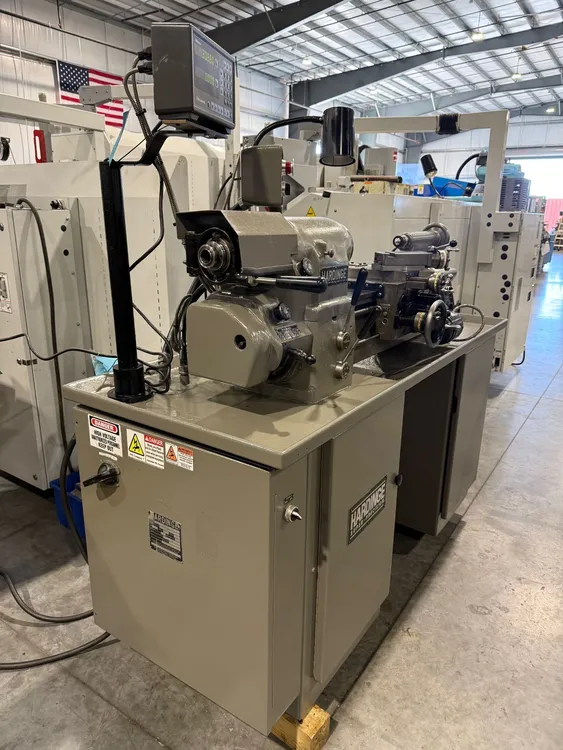

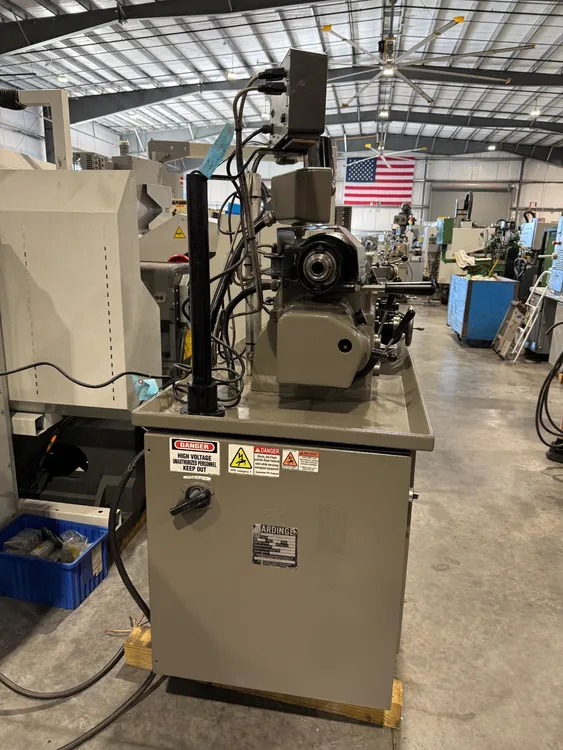

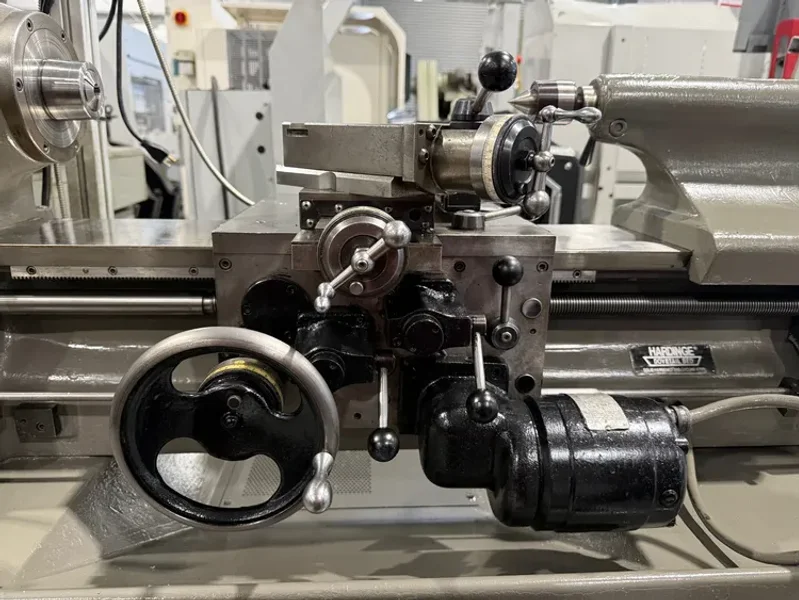

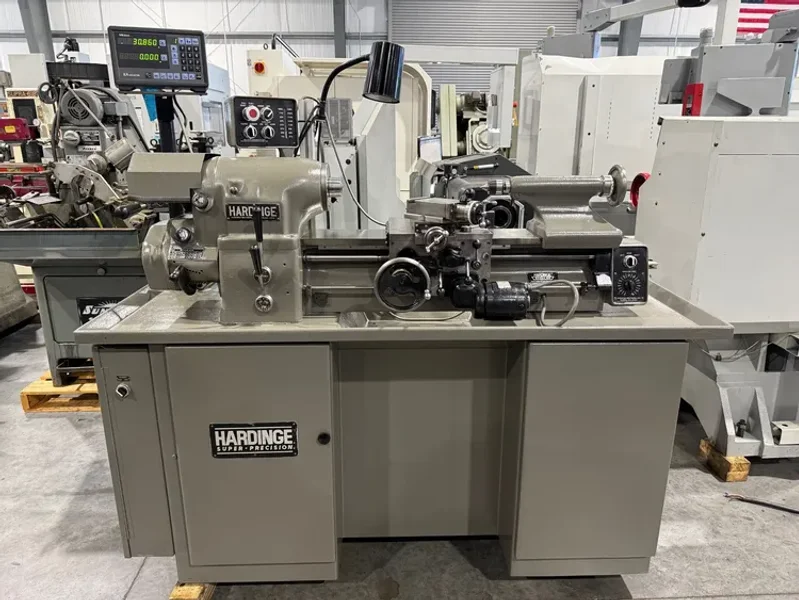

HARDINGE HLV-H Precision Tool Room Lathe “METRIC” 1988’ USA #8090

HARDINGE HLV-H Precision Tool Room Lathe “METRIC” 1988’ USA #8090
Reference #8090
Model # HLV-H
Serial # HLV-H-12824
Year of manufacture- 1988’
Spindle construction- HARDINGE ball bearing
Spindle nose- Tapered spindle nose

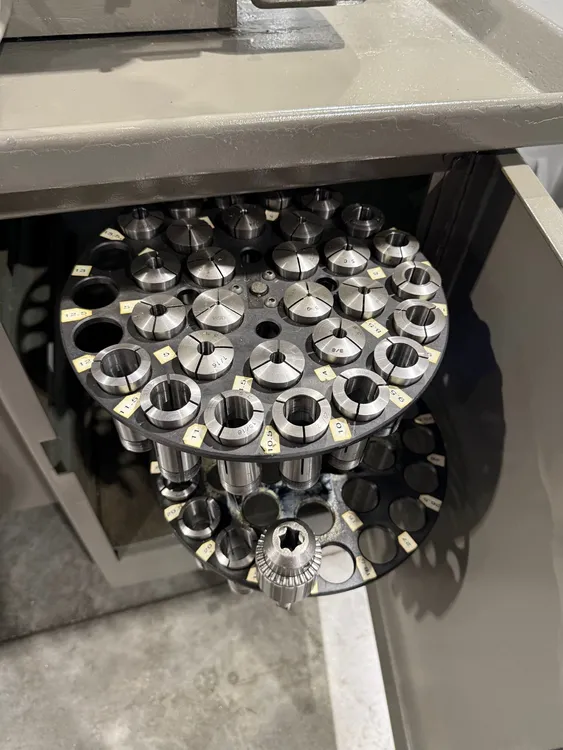

Spindle capacity with round type 5C collets- 1-1/16"
Spindle capacity with step chucks- 1-1/16" – 6”
Spindle capacity with jaw chucks- 5”
Spindle capacity with expanding collets- 3”

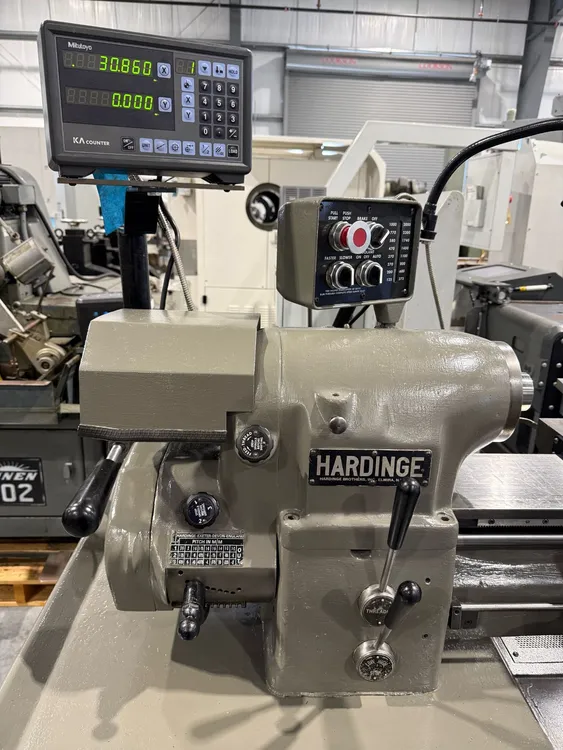

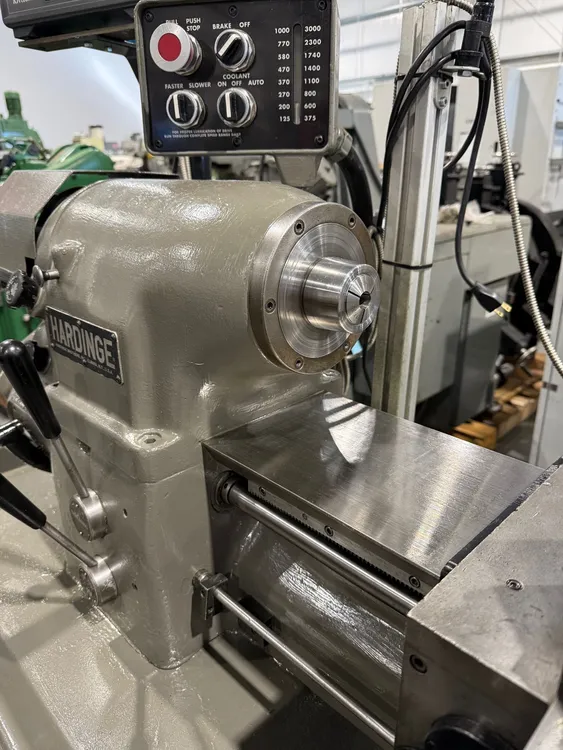

Variable spindle speeds- 125-3,000 R.P.M.
Hole through spindle- 1-1/4”
Swing over bed- 11”
Swing over carriage- 9”
Swing over cross slide- 6”
Distance between centers- 18”

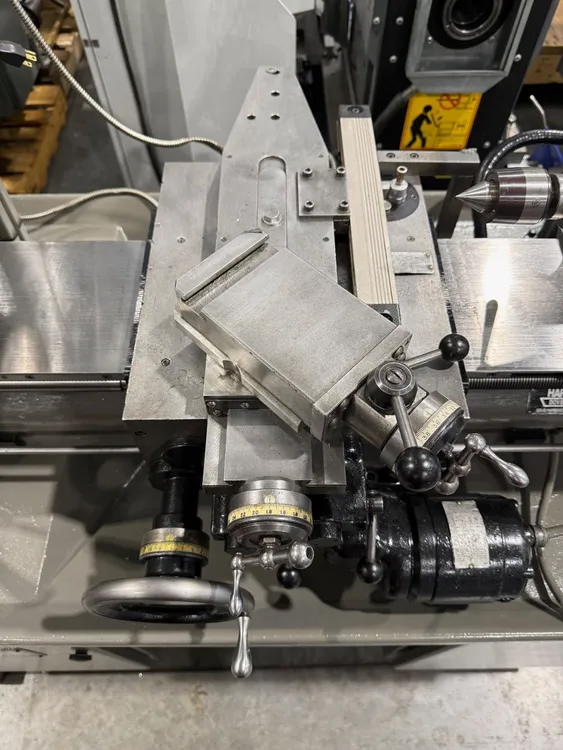

Compound slide travel- 3”

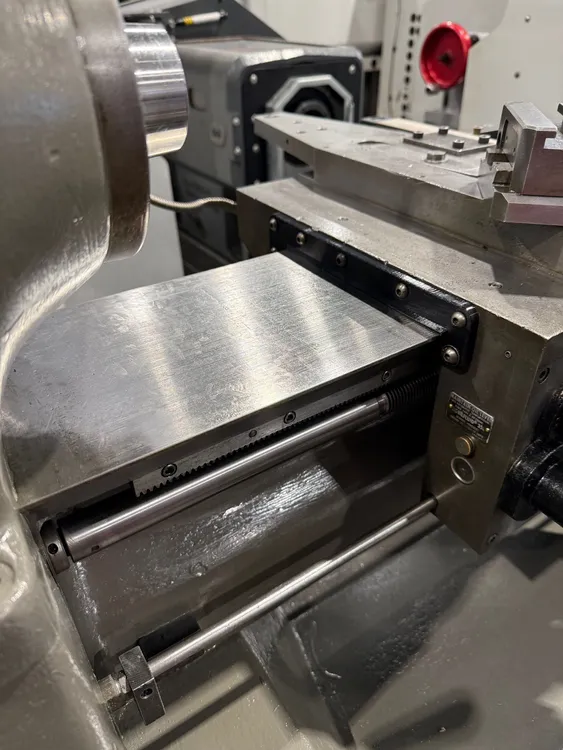

Carriage power feed range- 5/16-7 I.P.M.
Cross slide power feed range- 3/16-4 I.P.M.

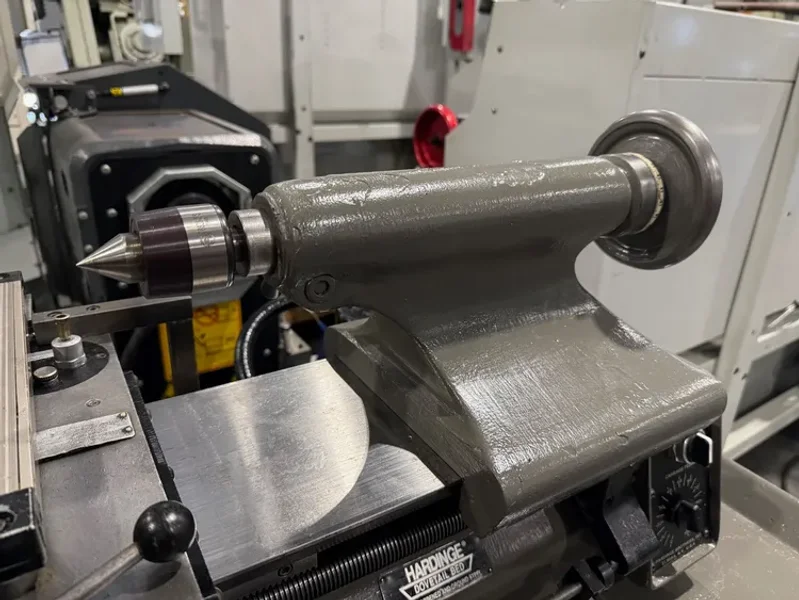

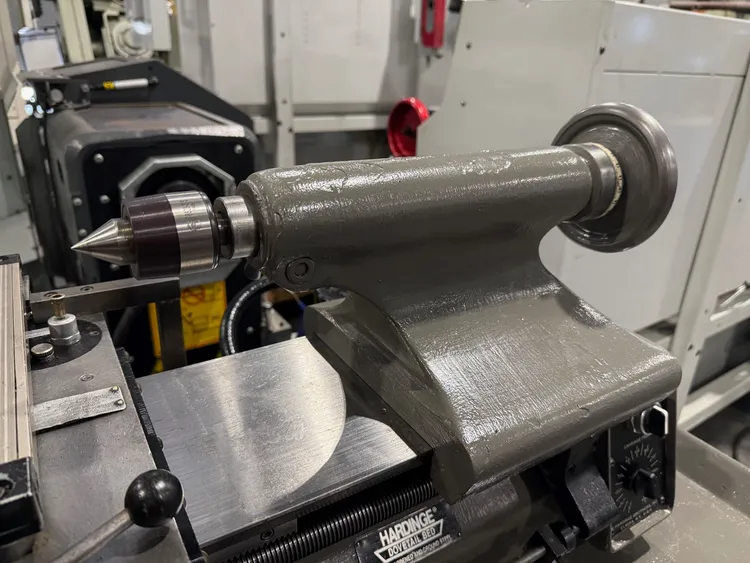

Tailstock spindle diameter- 1-3/8"
Tailstock spindle taper- #2 MT

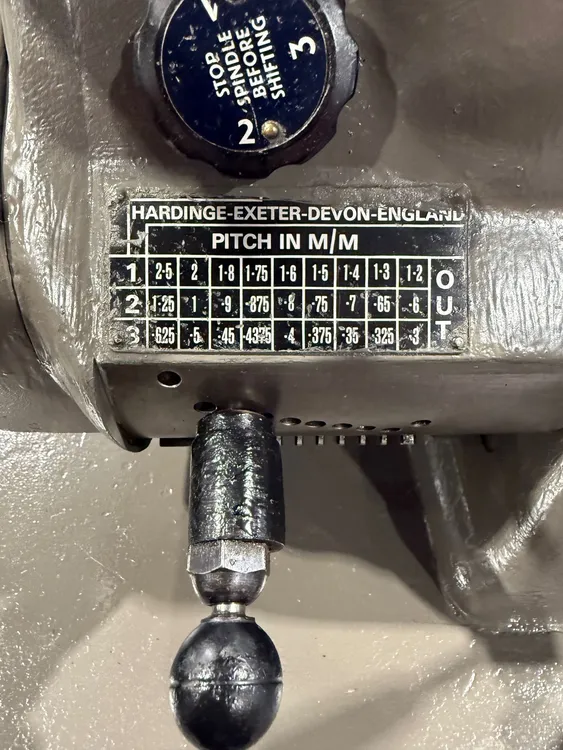

Metric Range of threads in gear box (27) .3 -2.5 MM
