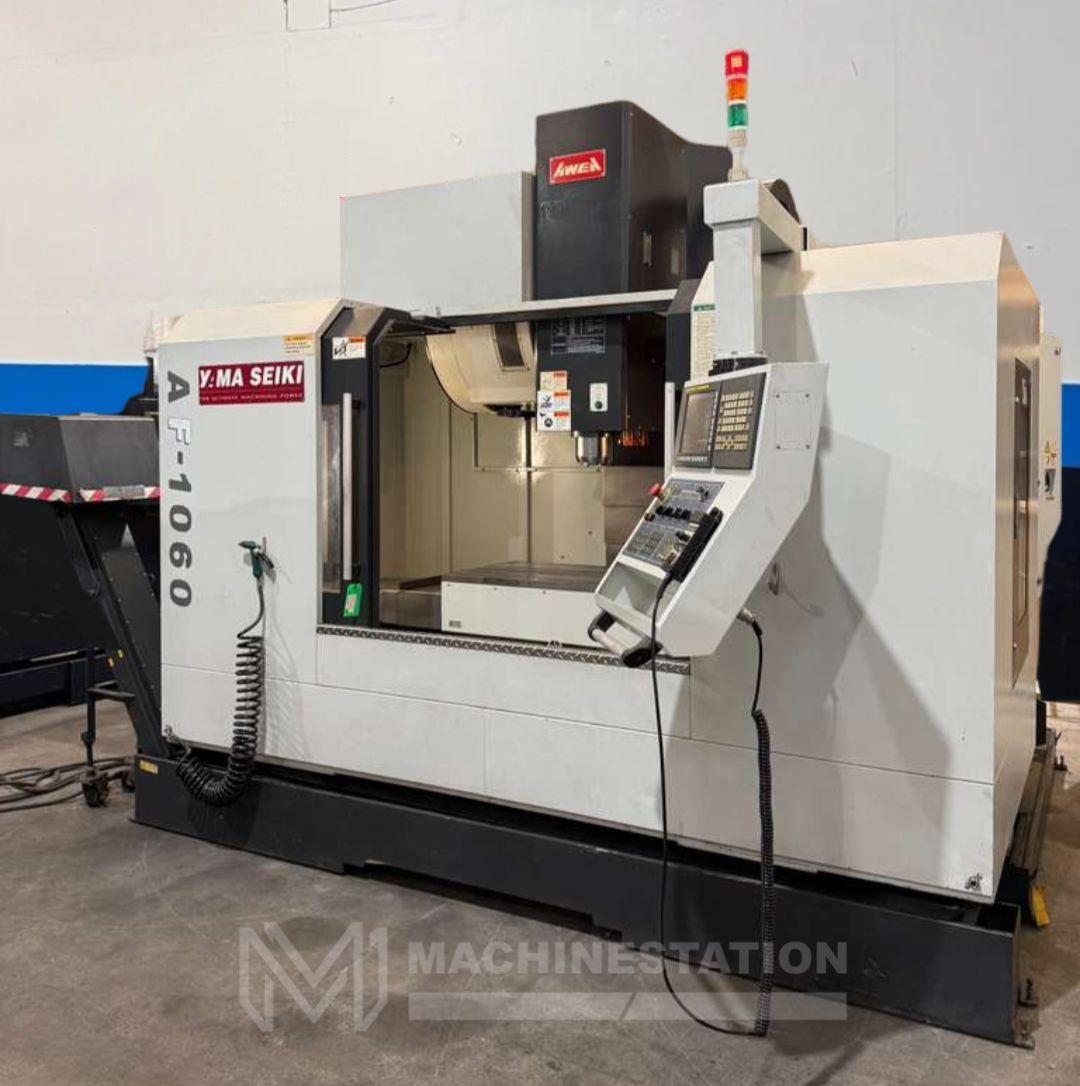

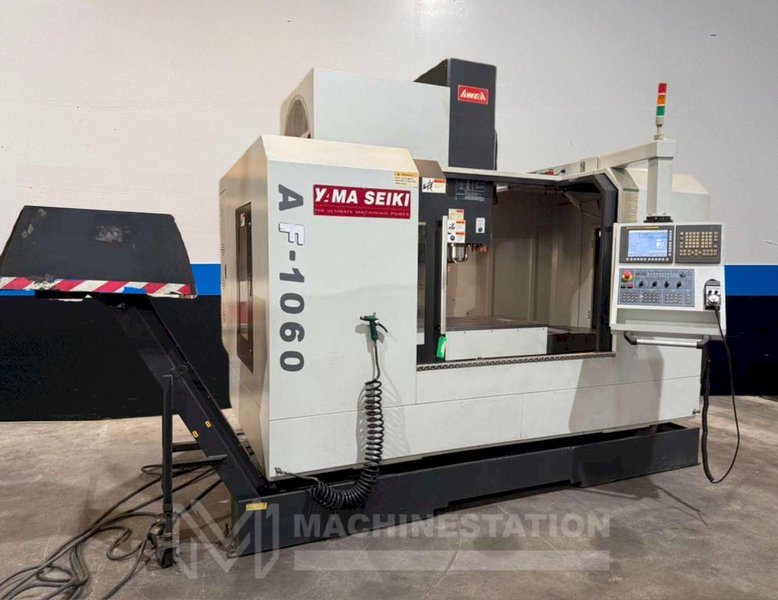

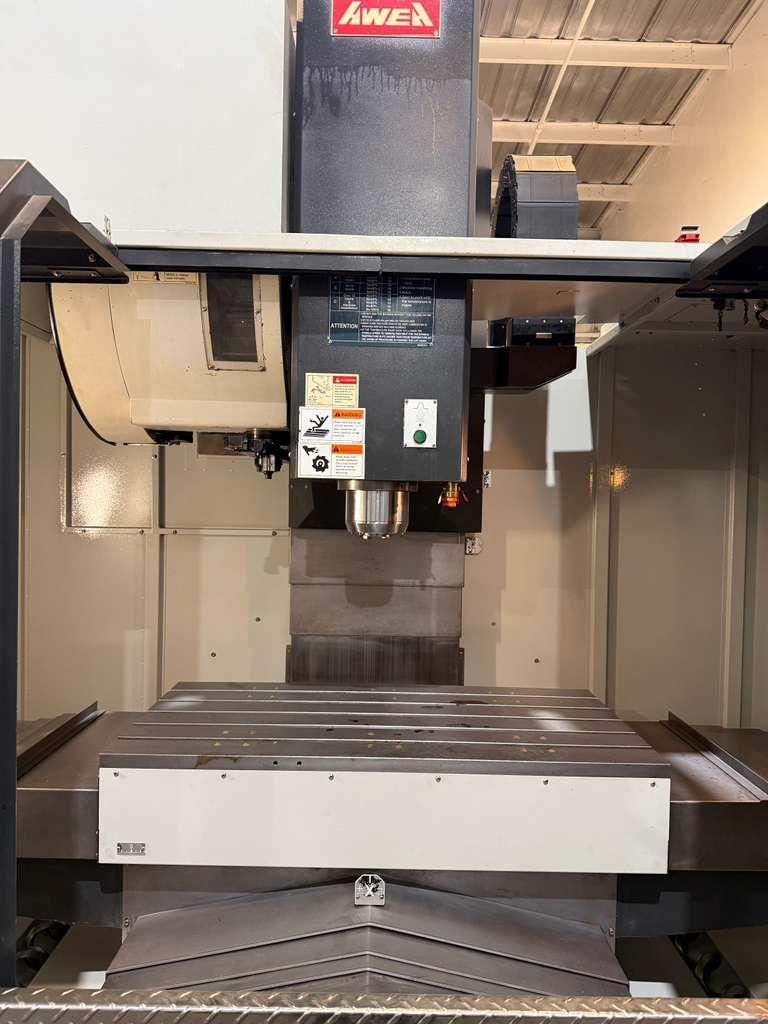

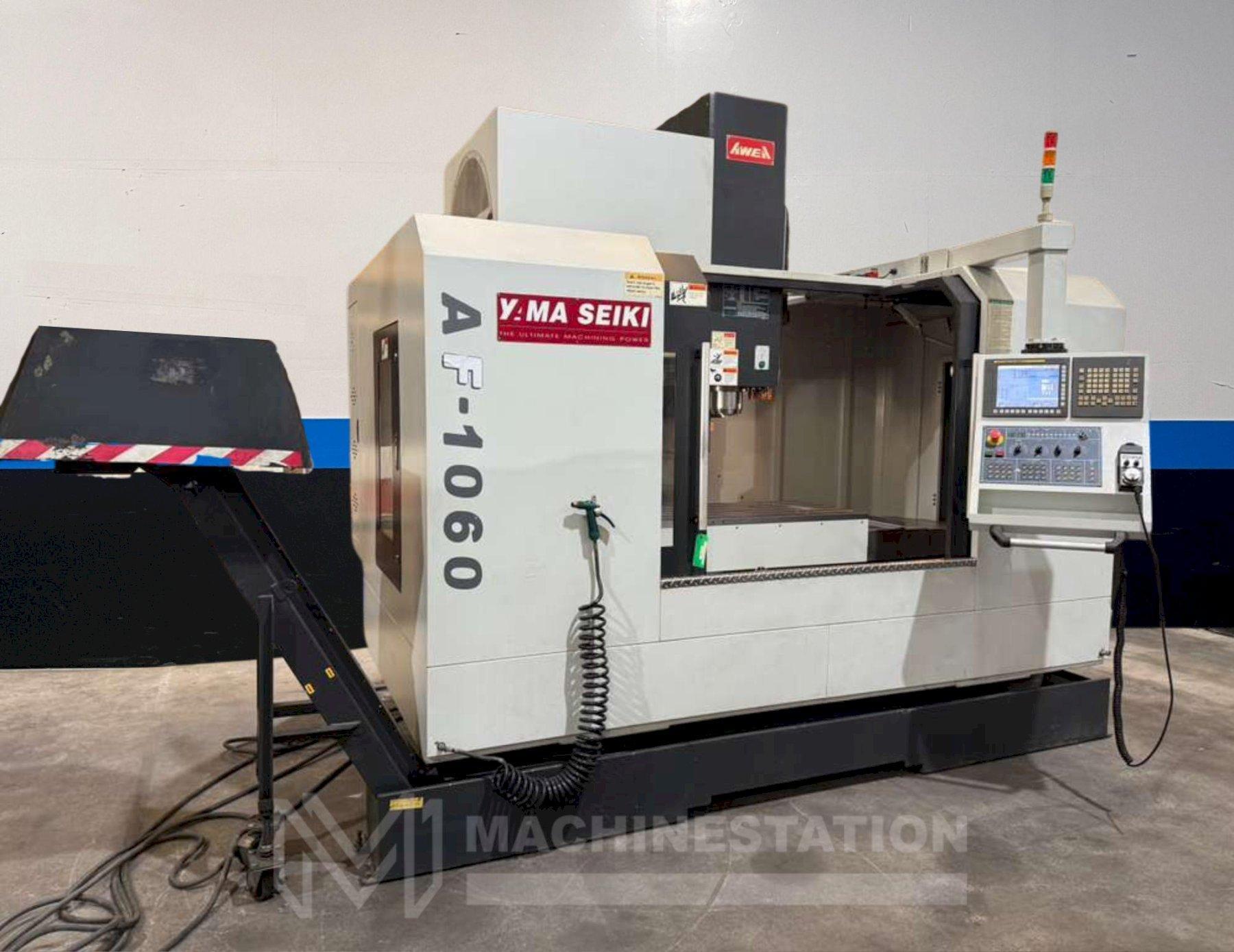

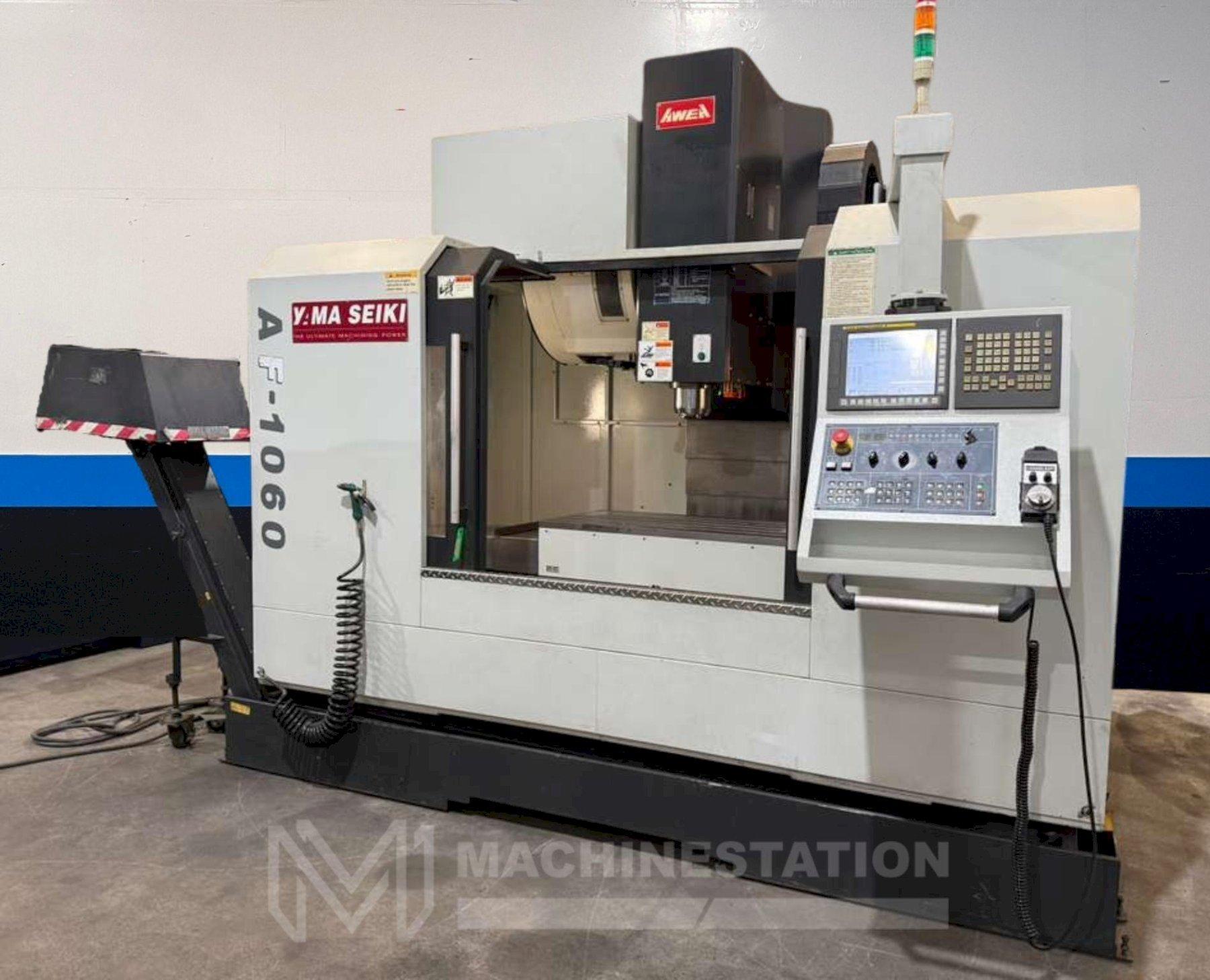

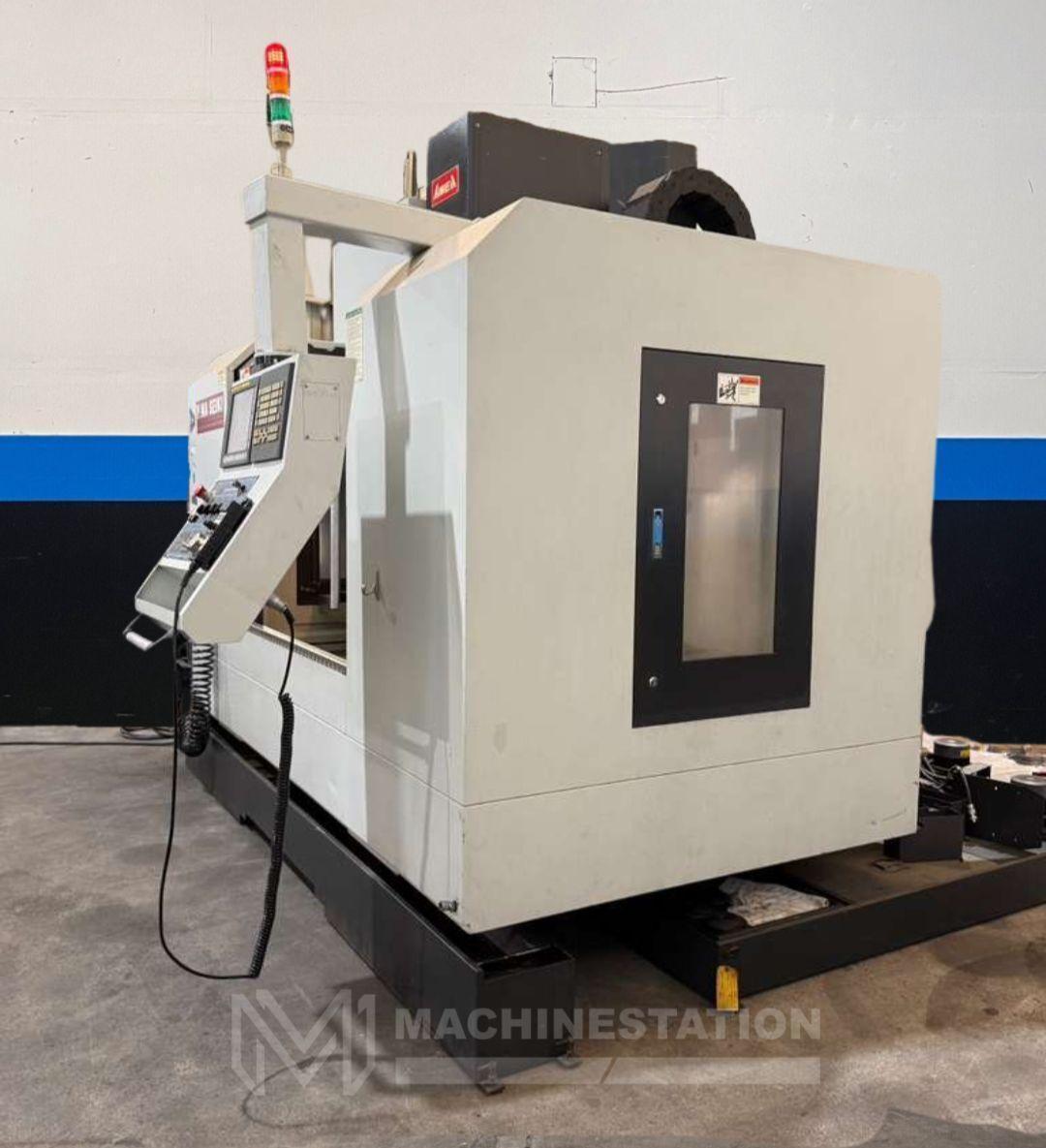

Yama Seiki AF-1060 CNC Vertical Machining Center – 12000 RPM TSC Mill

Yama Seiki AF-1060 CNC Vertical Machining Center – 12000 RPM TSC Mill

Name: Yama Seiki AF-1060 CNC Vertical Machining Center – 12000 RPM TSC Mill
Brand: YAMA SEIKI
SKU: 113009
Availability: PreOrder

Brand

YAMA SEIKI

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	YAMA SEIKI
Model:	AF1060
Year:	2012
Condition:	Used – Excellent

Features:

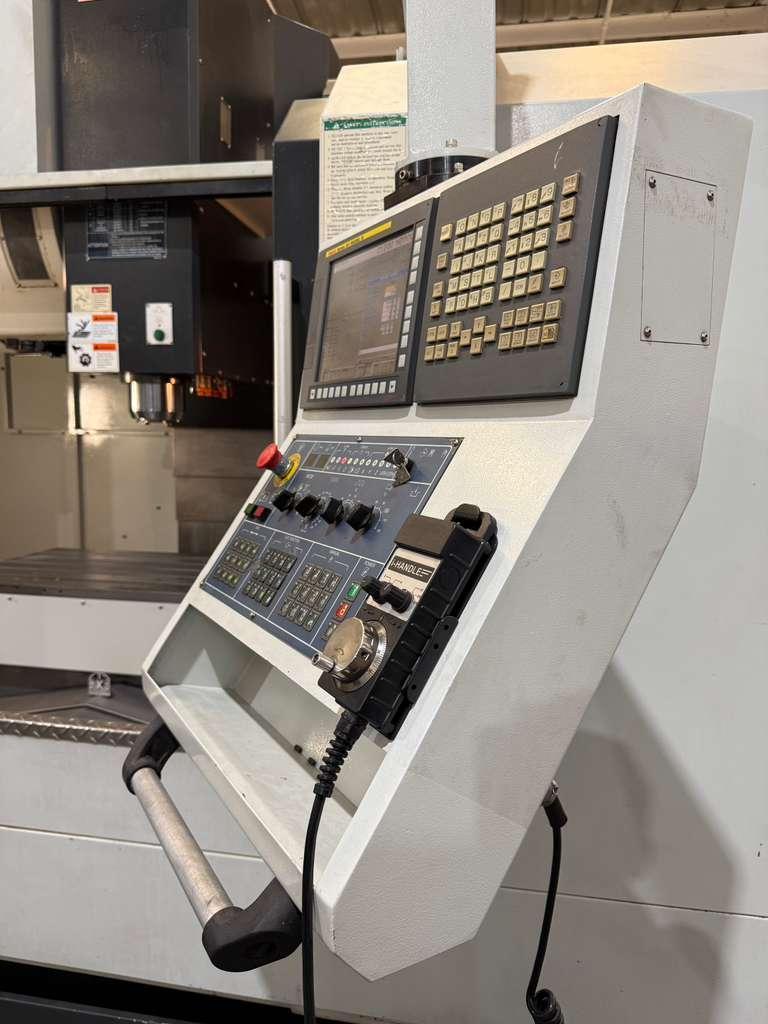

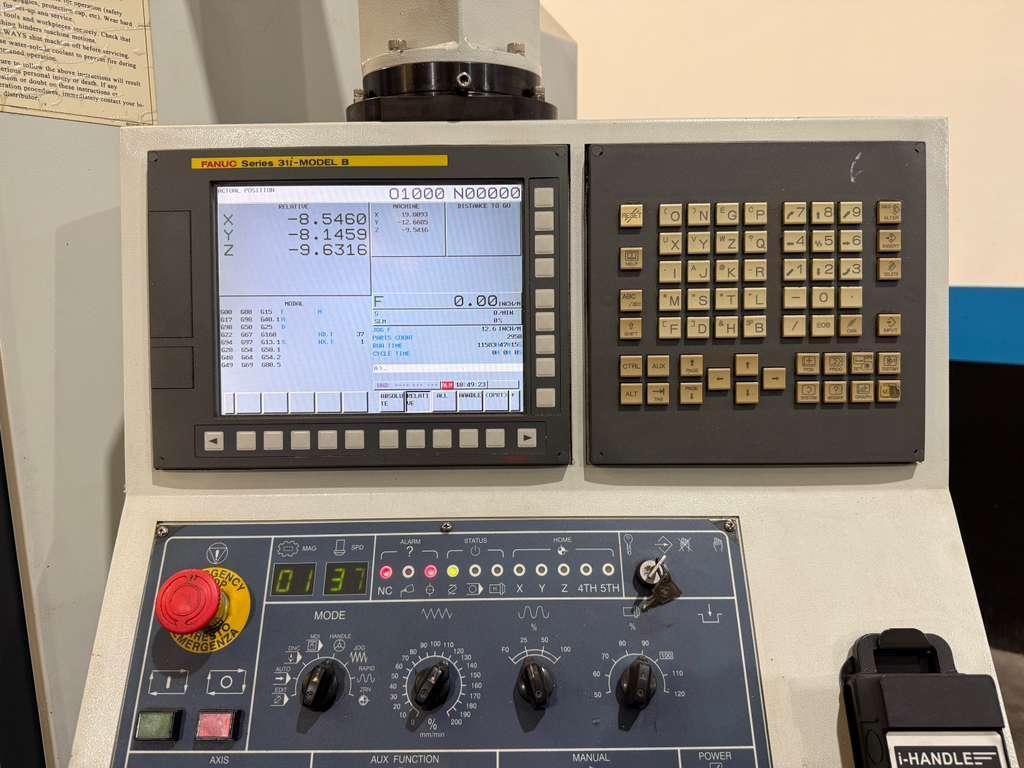

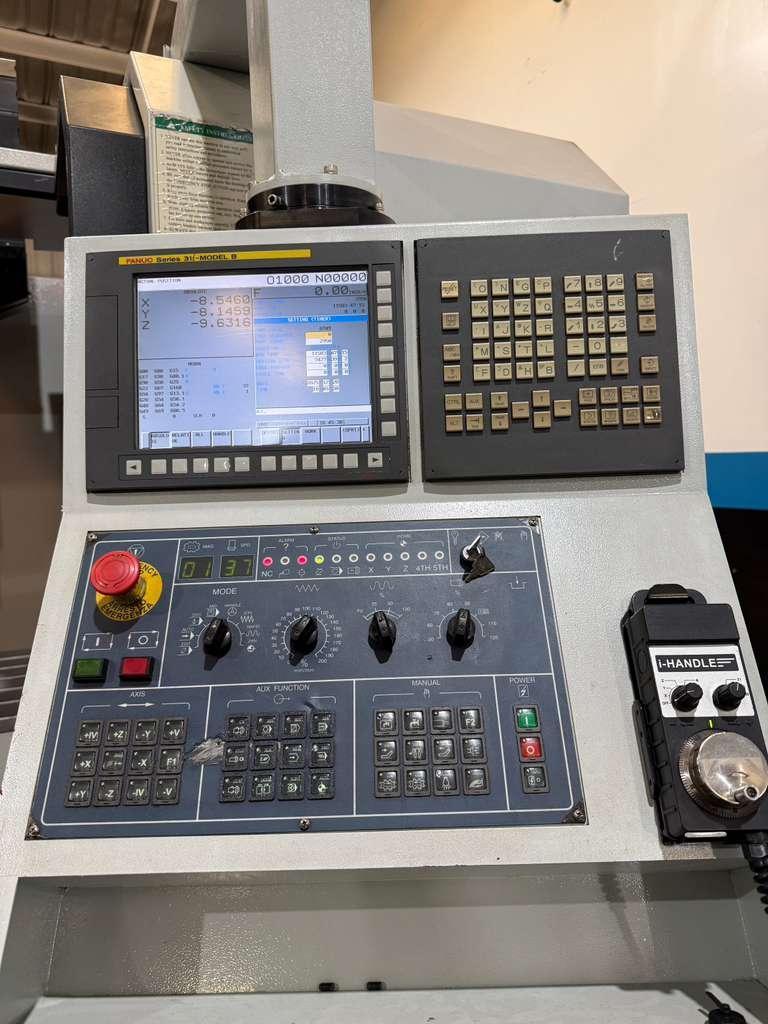

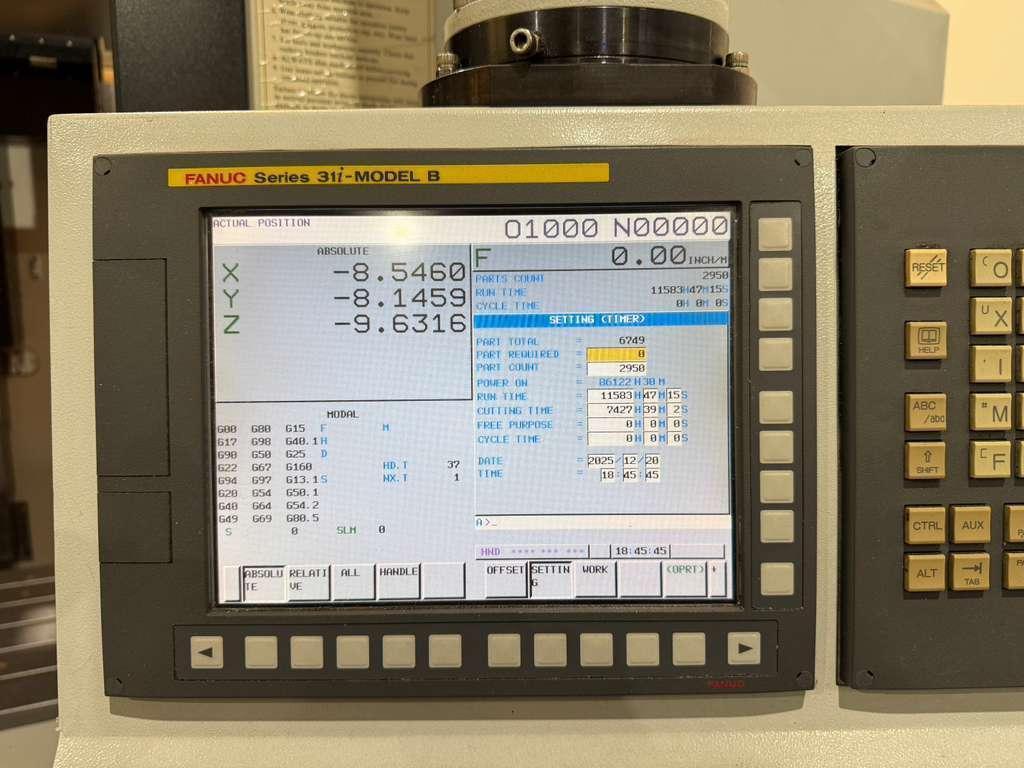

Fanuc 31i-MB CNC Control
Linear Ways Construction
4th axis ready (wired) need amplifier
12000 RPM High Speed Spindle

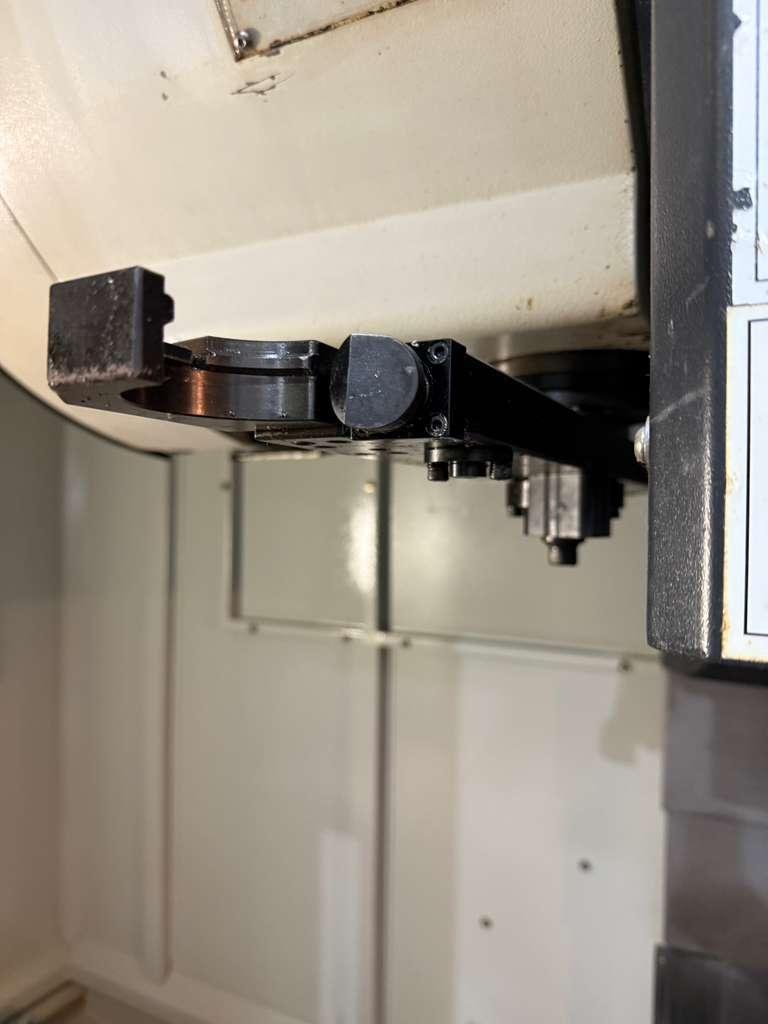

36 Station Automatic tool changer
Through Spindle Coolant
Spindle Chiller Unit
MPG Handwheel Control
USB Port & PCMCIA Card Slot
Telescopic way covers
Coolant System

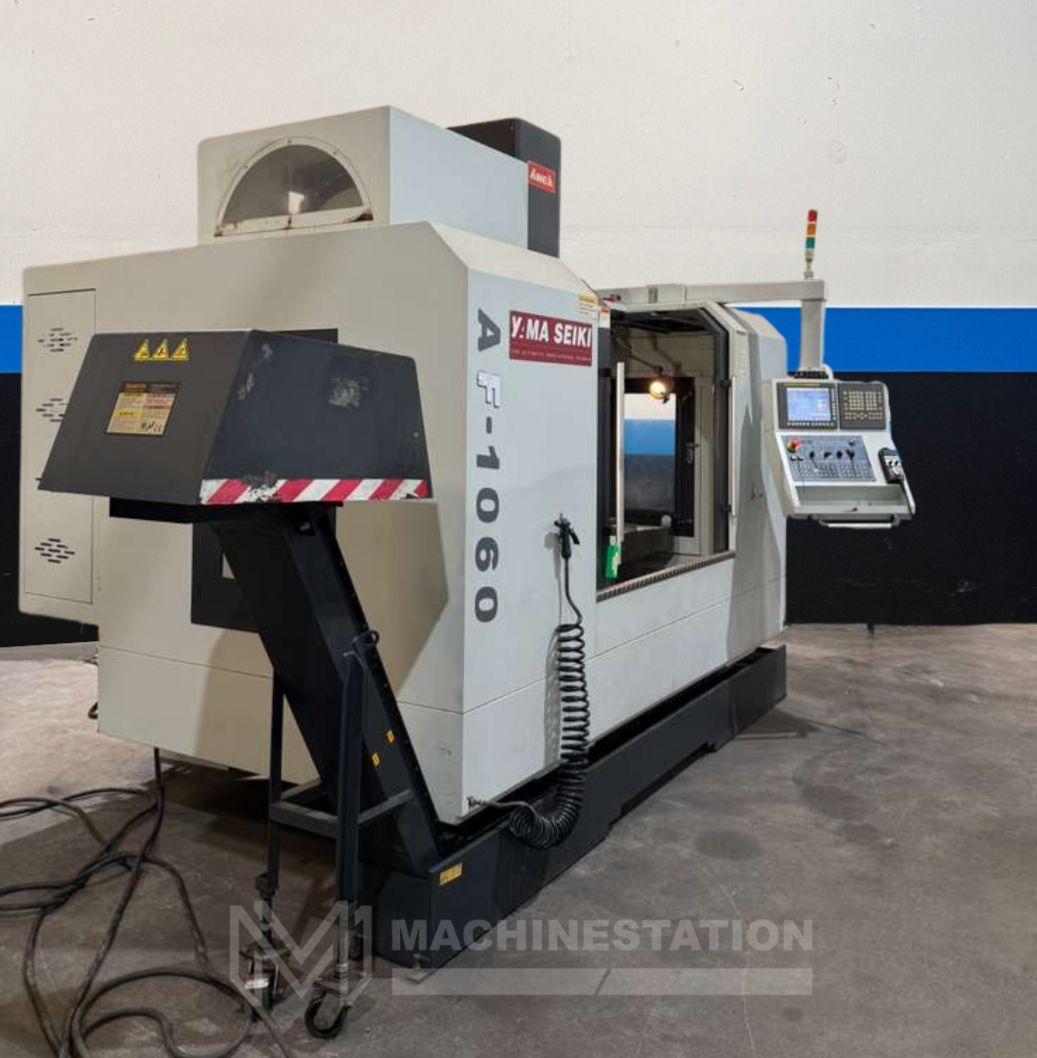

Chip Conveyor

Travels:
X-Axis: 41.7″
Y-Axis: 23.6″
Z-Axis: 23.6″
Rapid Traverse Rates X & Y Axis: 1418 Inch Per Minute
Rapid Traverse Rates Z Axis: 945 Inch Per Minute
Cutting Feed Rates: 394 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 3.93″ – 27.5″

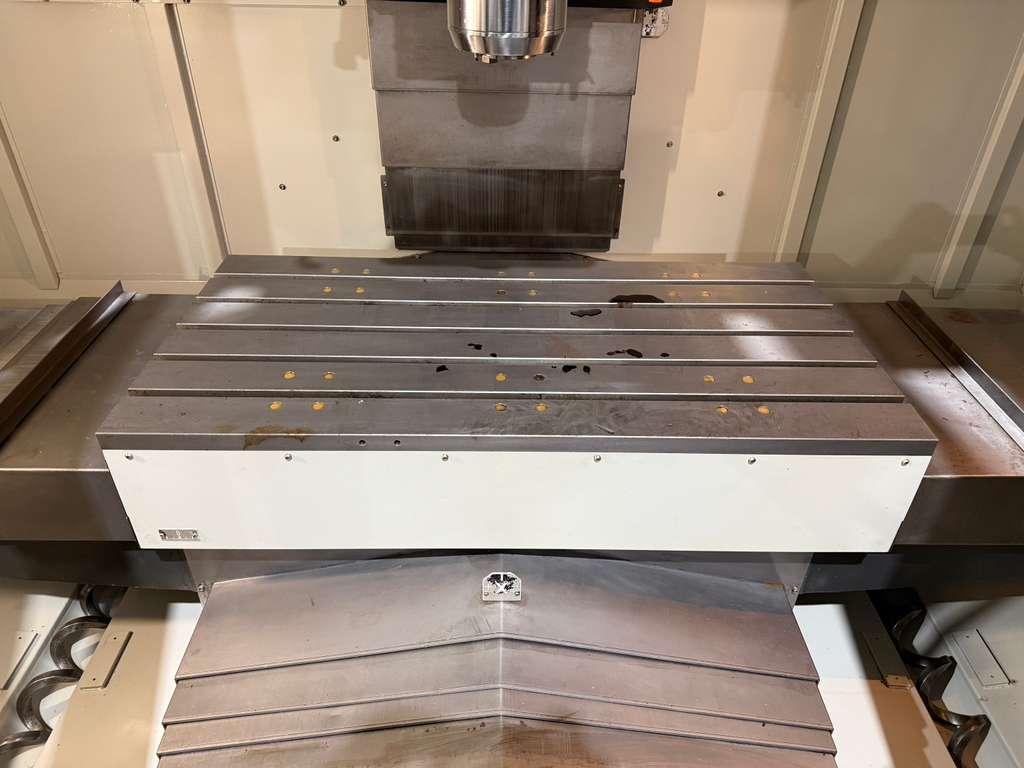

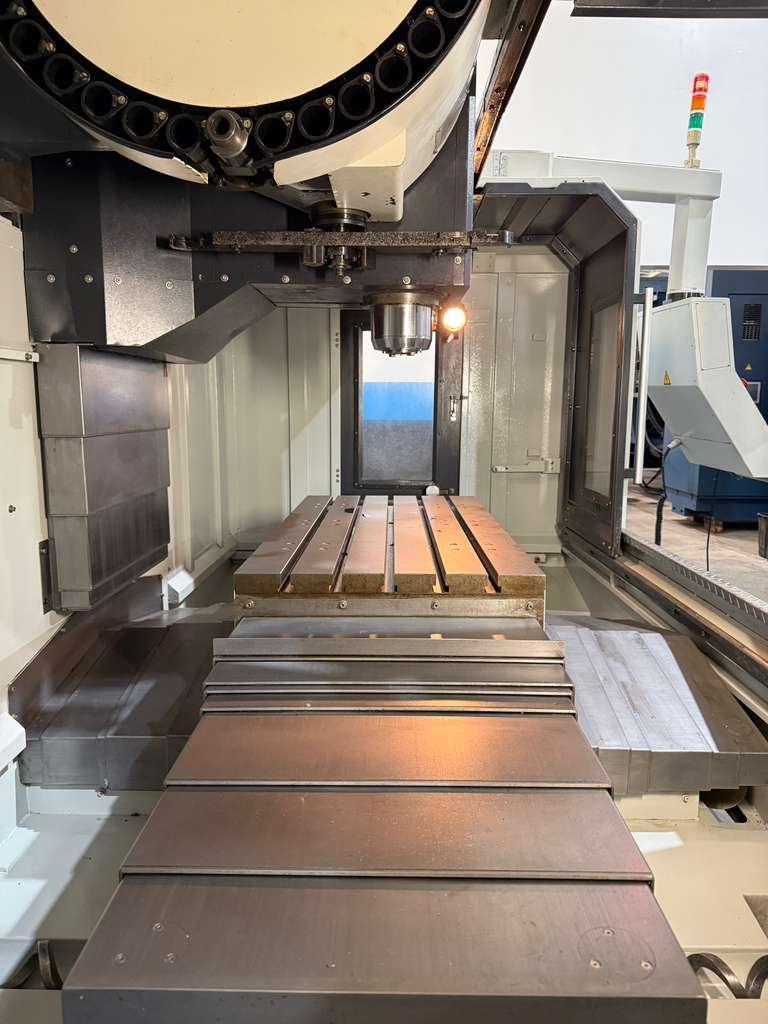

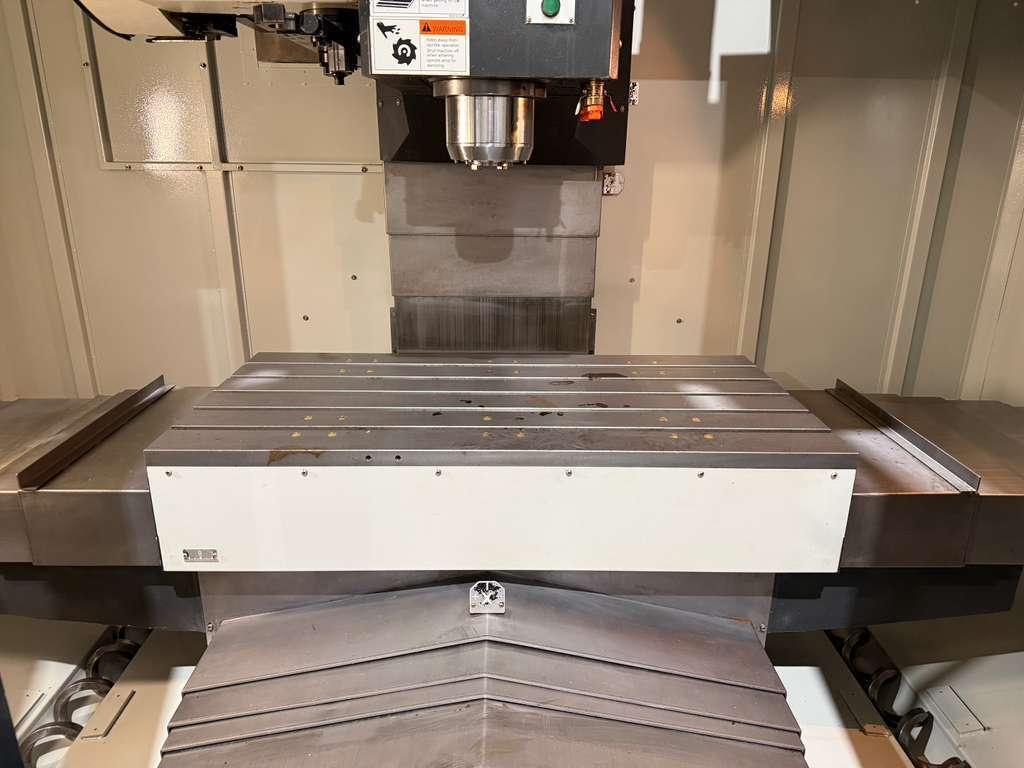

Table:
Length: 47.2″
Width: 23.6″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 1540 lbs

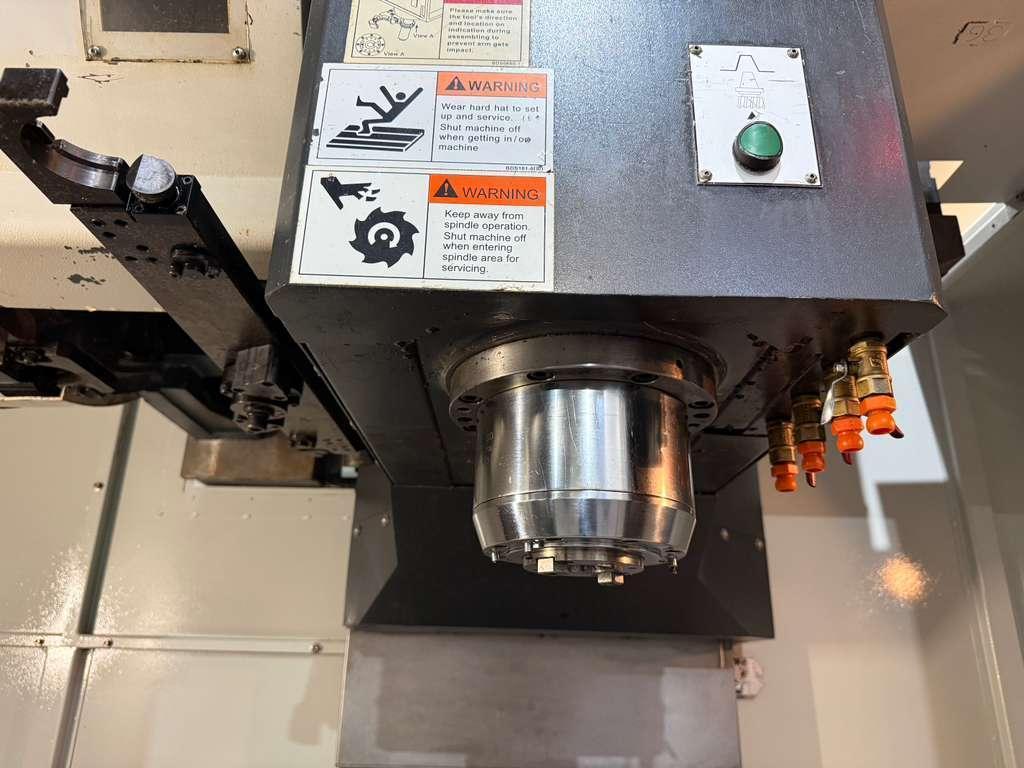

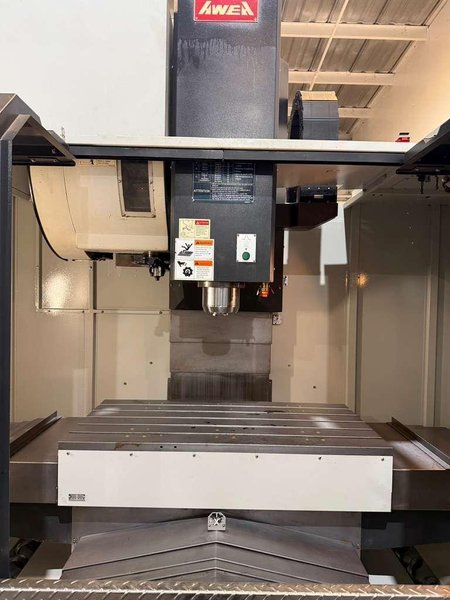

Spindle:
Taper Size: CAT-40
Speed Range: 12000 RPM
Spindle Power: 20 HP

Automatic Tool Changer:
Capacity: 36
Max Tool Weight: 15.4 lbs
Max Tool Dia: 3.14″
Max Tool Length: 9.84″

General:
Air Required: 85 psi 6 scfm
Power: 220v / 50/60 Hz / 3-Phase / 40 kva
Overall Dimensions: 122.1″ x 86.6″ x 112.9″ High Without Chip Conveyor
Weight: 15400 lbs
