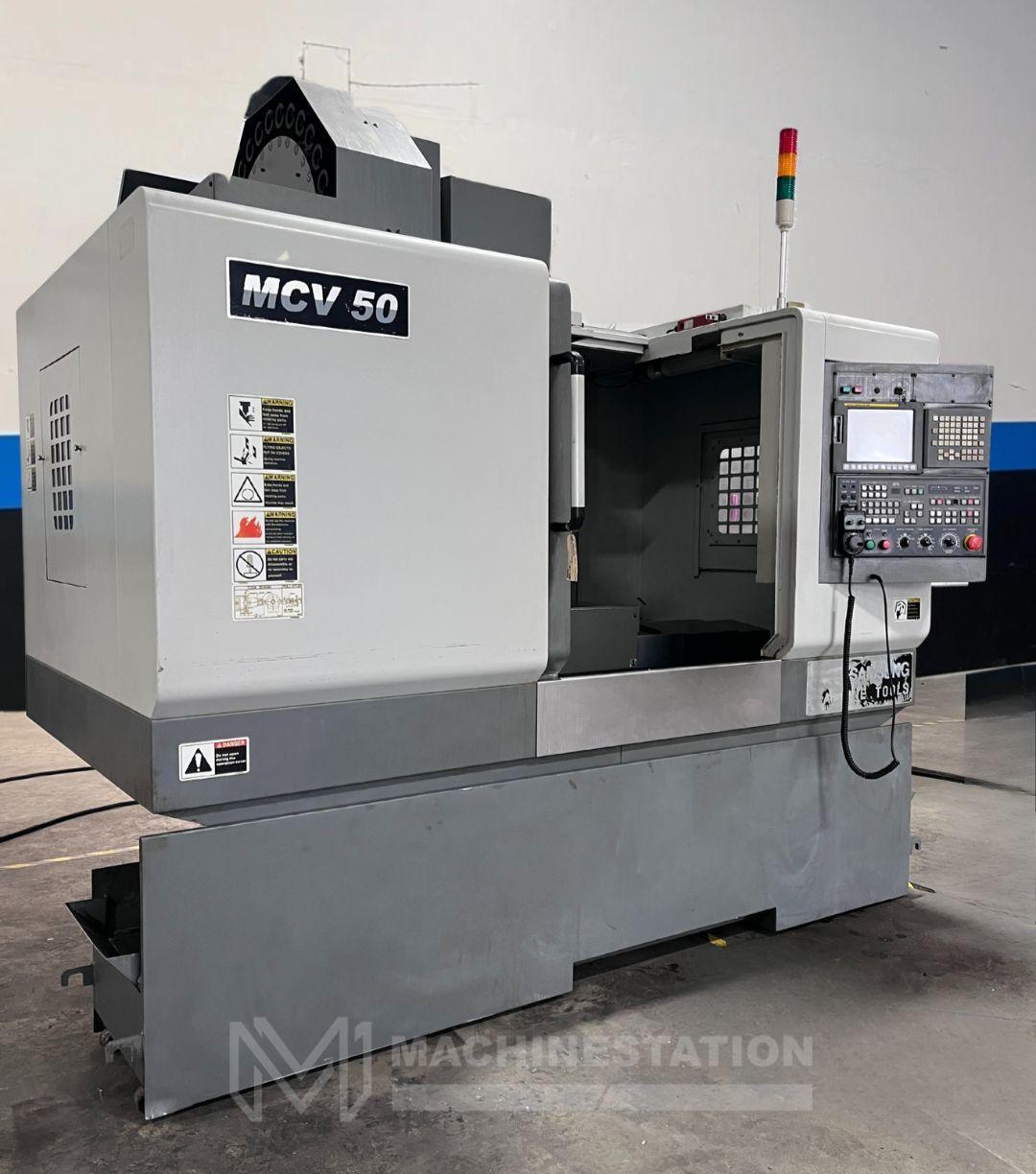

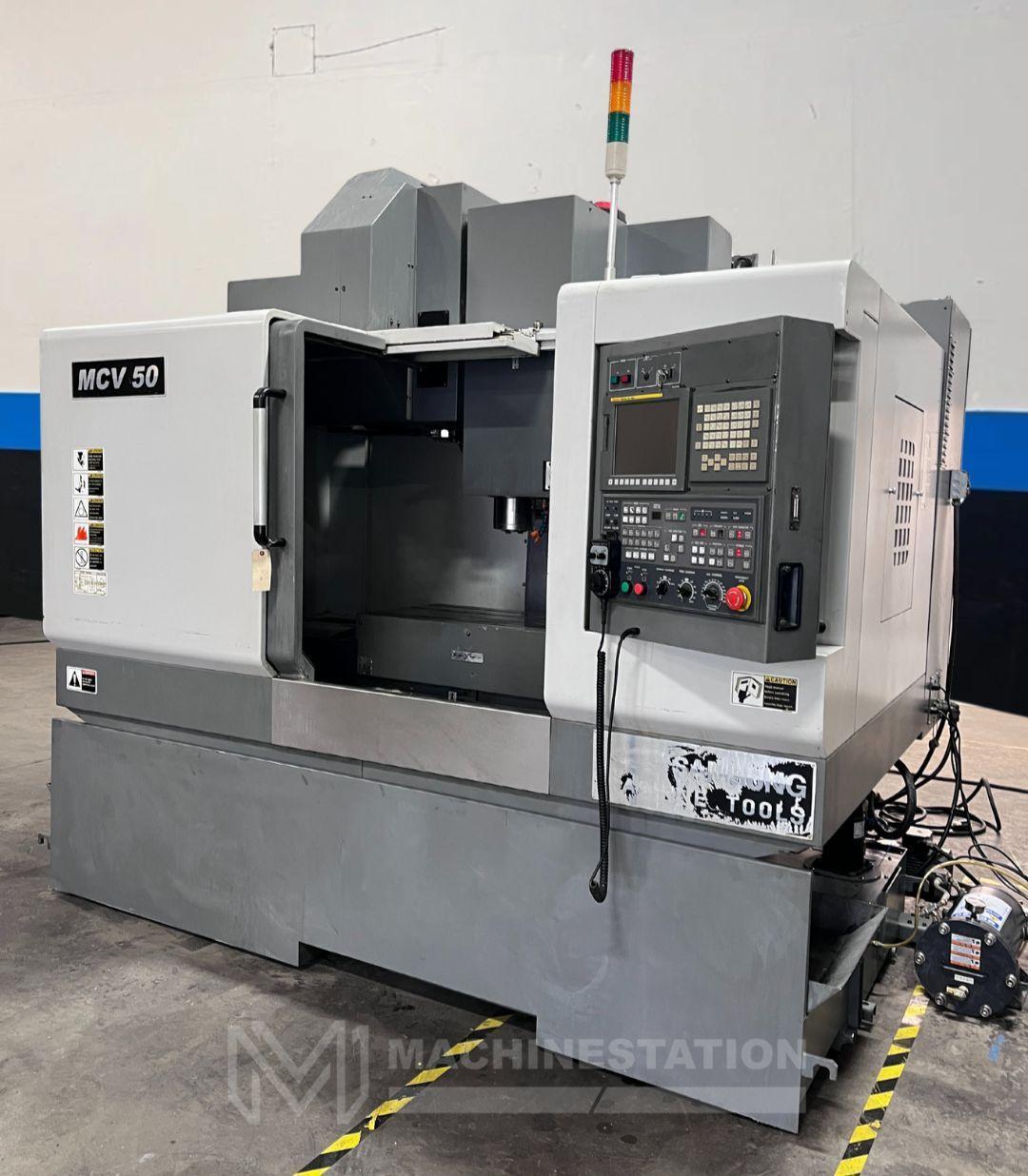

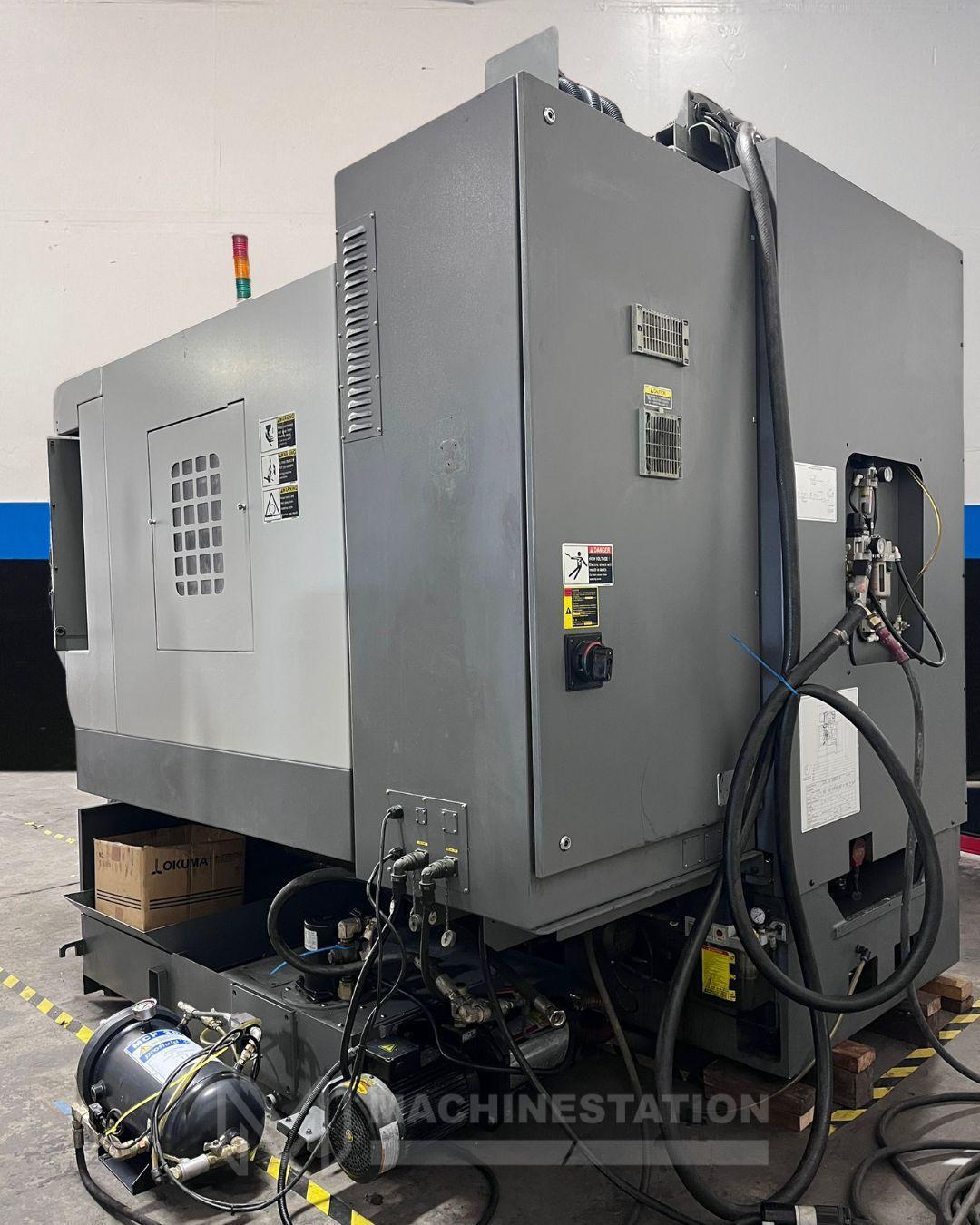

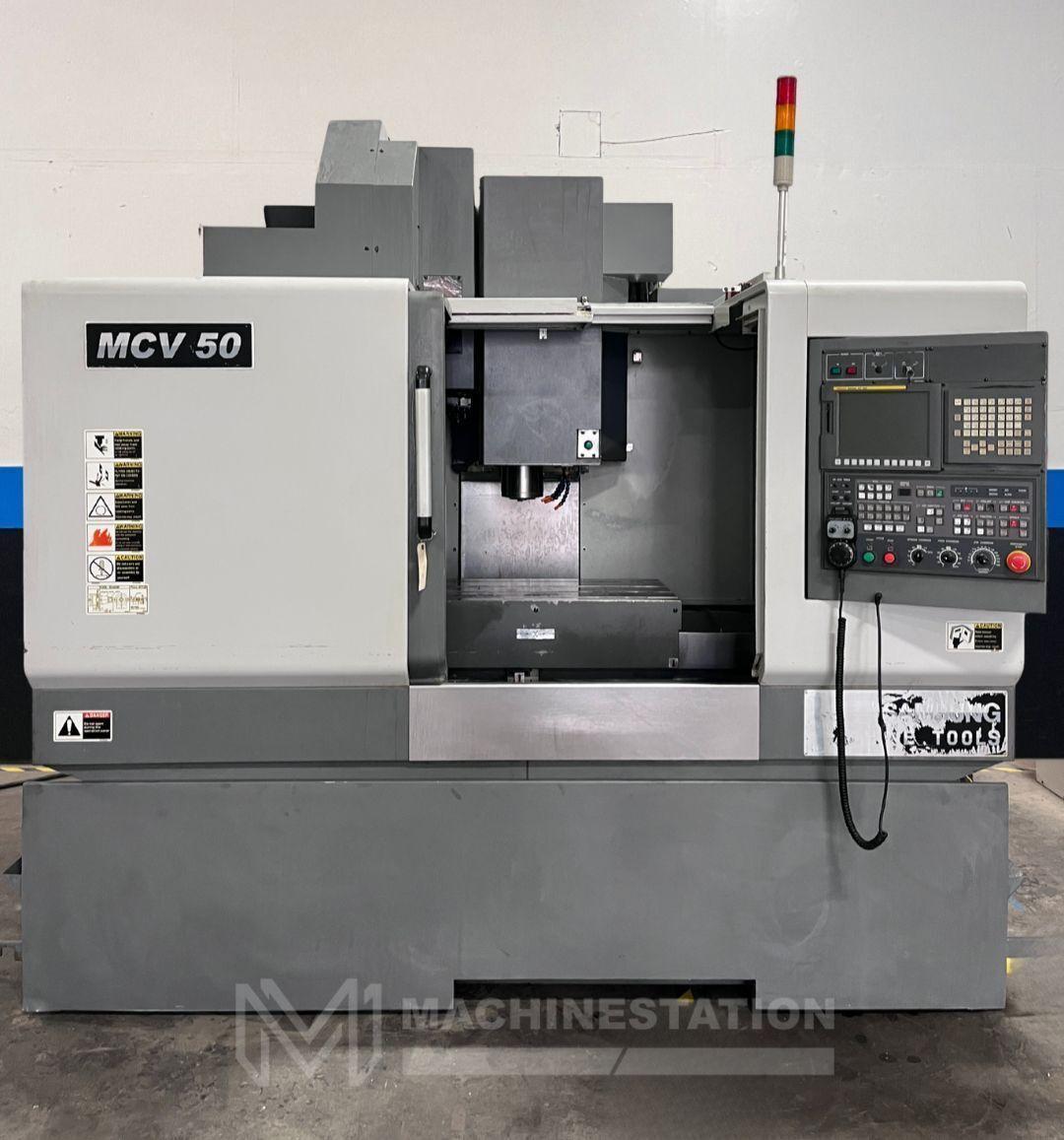

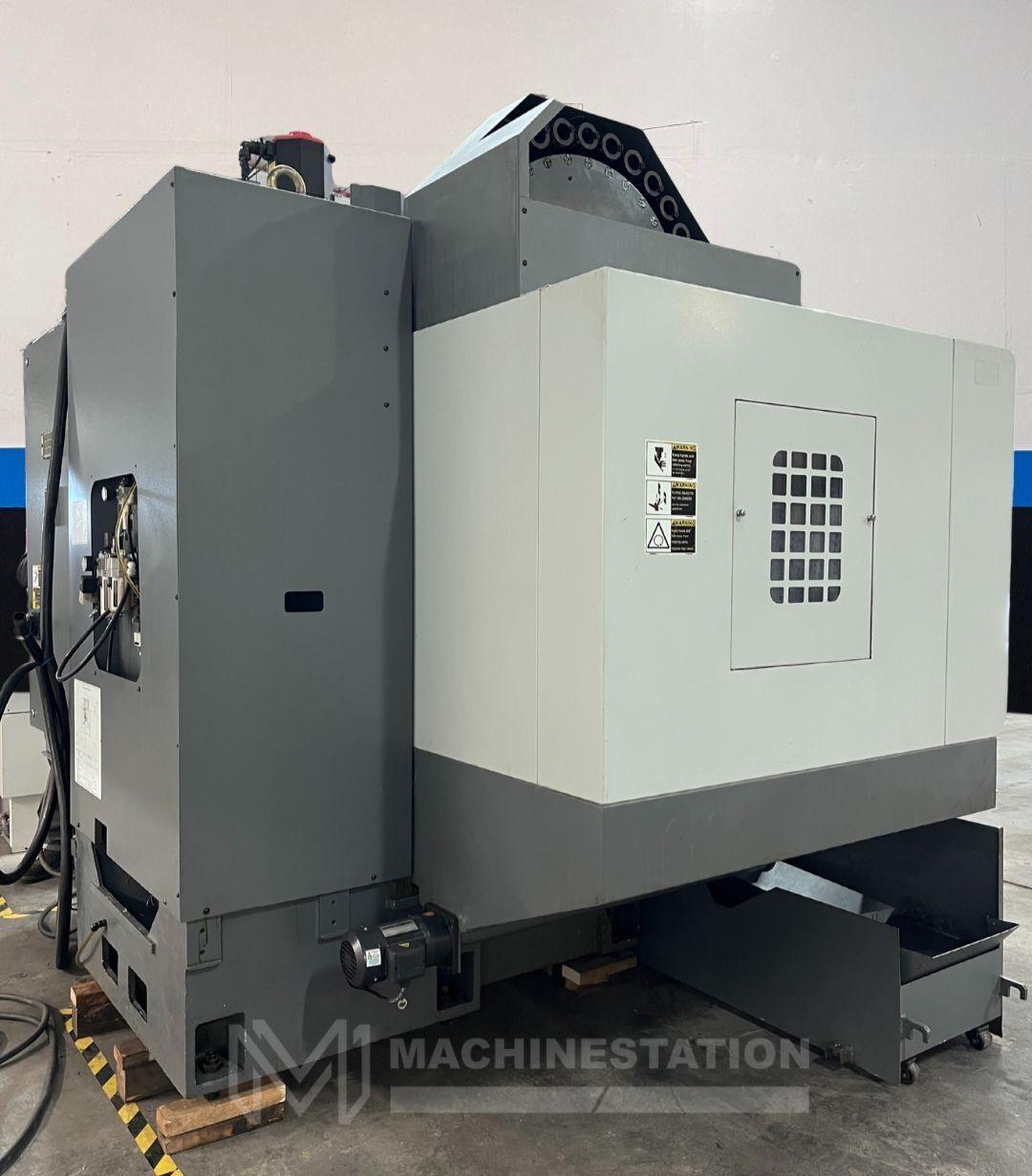

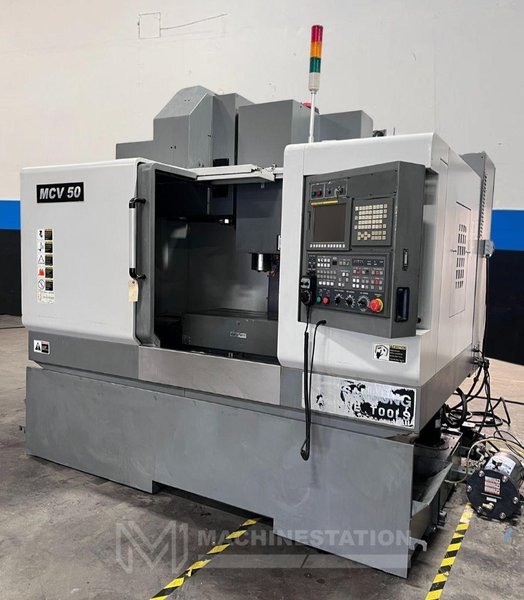

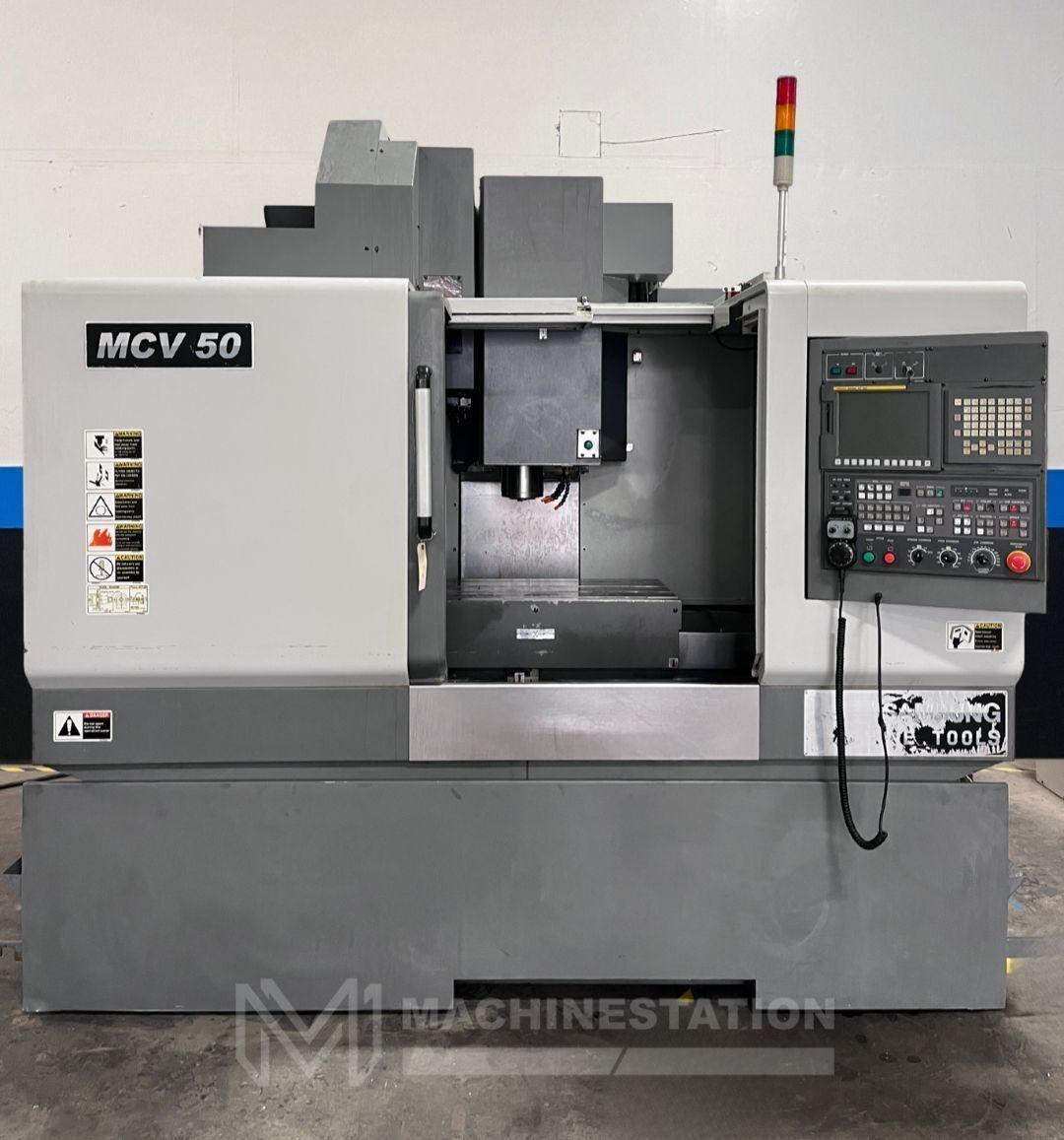

Samsung MCV 50 CNC Vertical Machining Center – TSC 12,000 RPM MILL

Brand
SAMSUNG
Category
Machining Centers
Type
Vertical Machining Centers
Model
Samsung MCV 50
Stock #
113005
Year
2010
Condition
Not specified

Location

Not specified
REQUEST FINANCING

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make: Samsung
Model: MCV 50
Year: 2010
Condition: Used – Good
Key Features of the Samsung MCV 50:

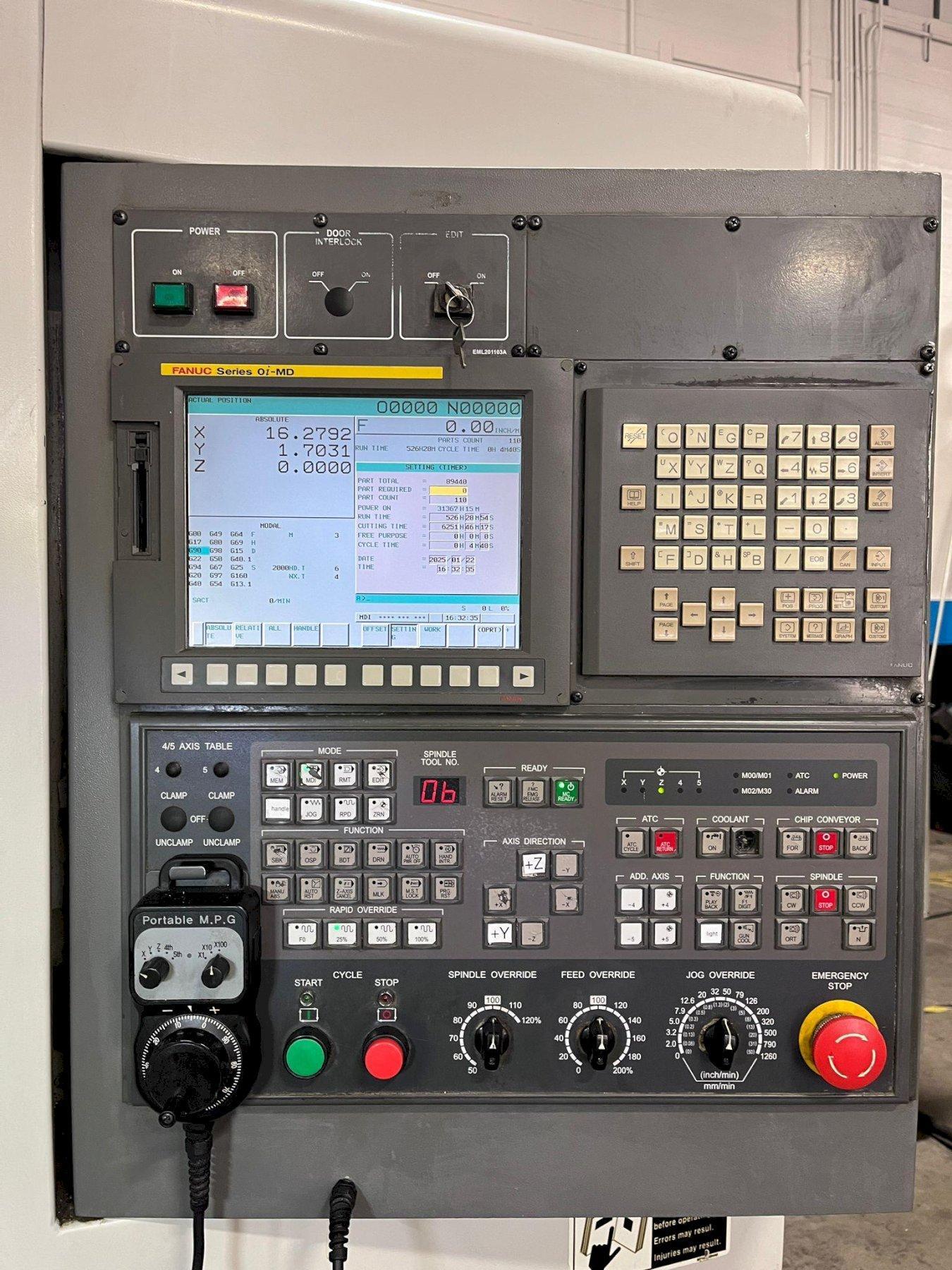

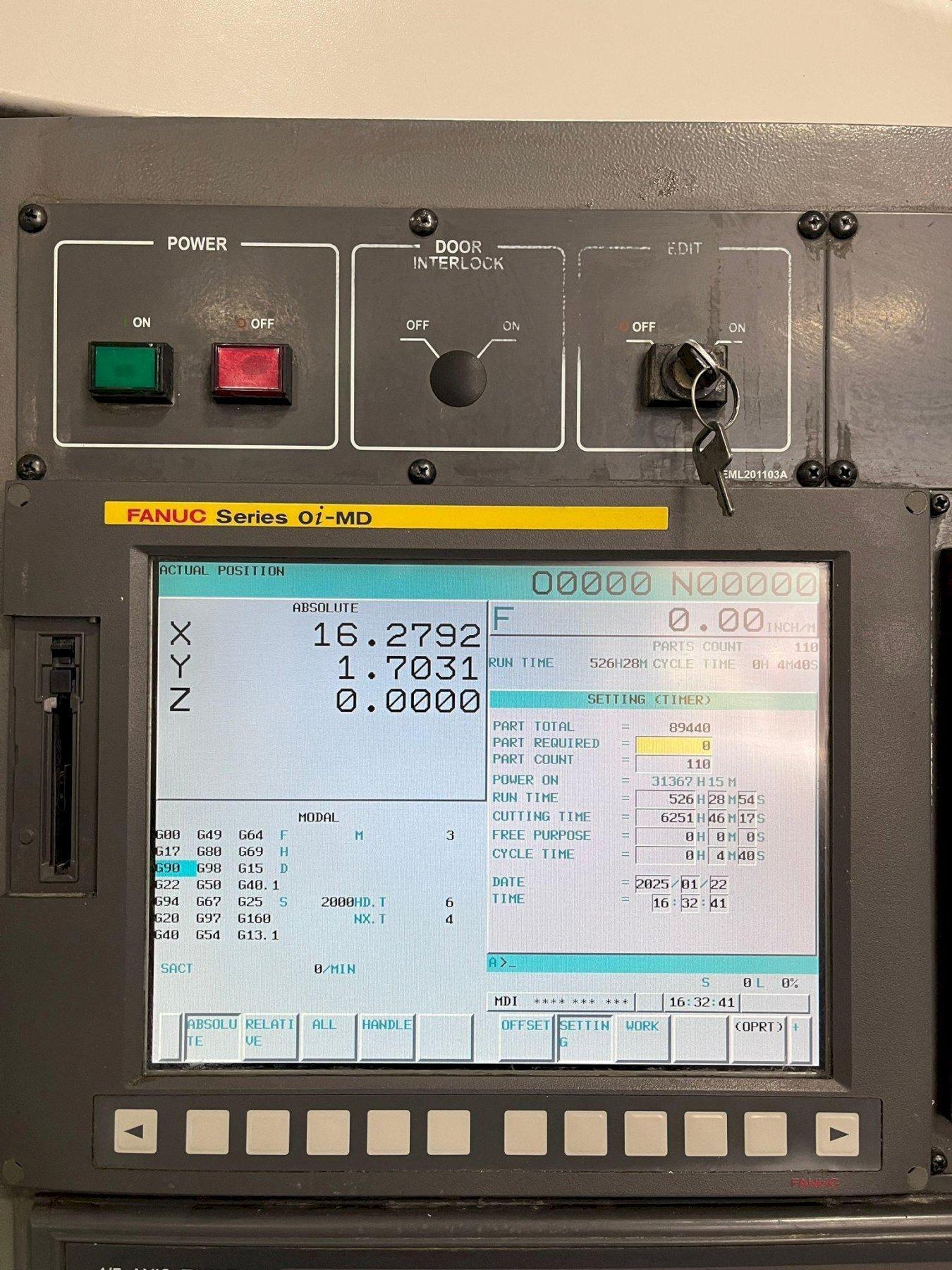

Fanuc Oi-MD CNC Control
12,000 RPM High-Speed Spindle

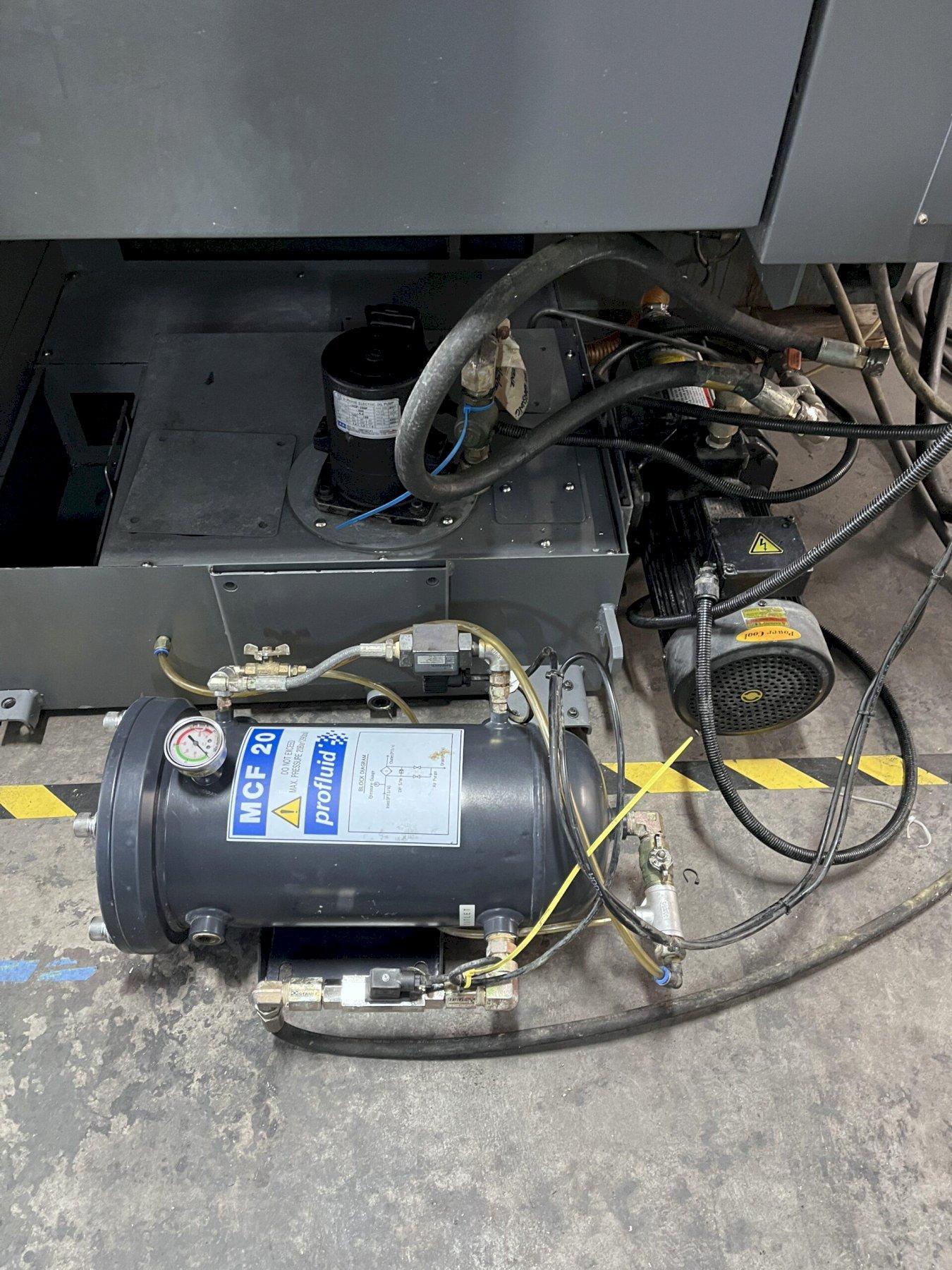

Through Spindle Coolant – 290 psi
30 Station High-Speed Tool Changer
20 HP High Torque Spindle
1417 IPM Fast Rapid Traverse
MPG Handwheel Control
Rigid Tapping
Spindle Orientation
Coolant System
Books & Manuals
Travel:
X-Axis: 35.43″
Y-Axis: 19.69″
Z-Axis: 20.08″
Rapid Traverse Rates X & Y Axis: 1417 Inch Per Minute
Rapid Traverse Rates Z Axis: 1181 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 5.11″ – 25.19″

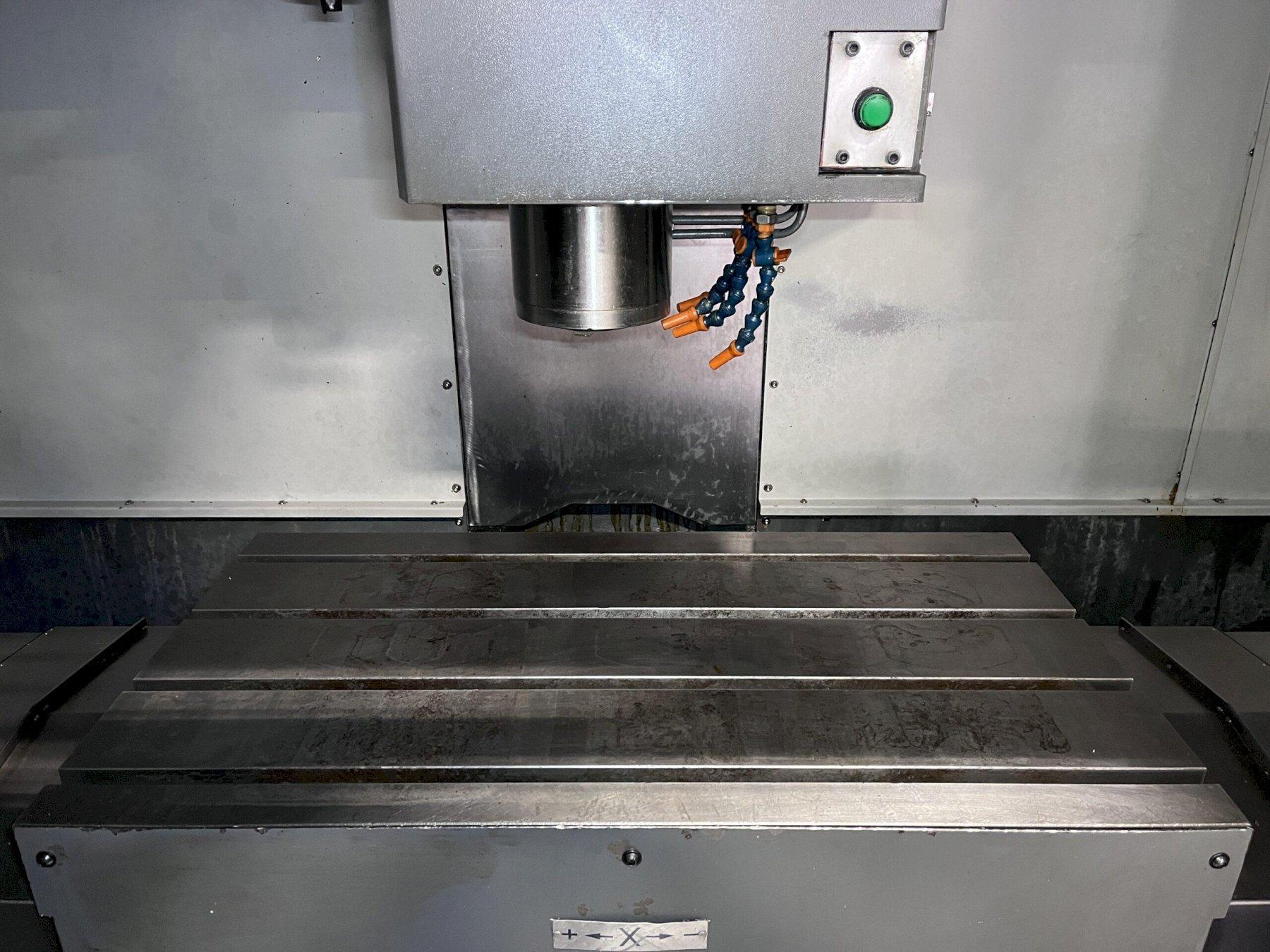

Table:
Length: 36.22″
Width: 19.69″
Number of Std T-Slots: 4
T-Slot Width: 5/8″
Max Weight on Table: 1322 lbs

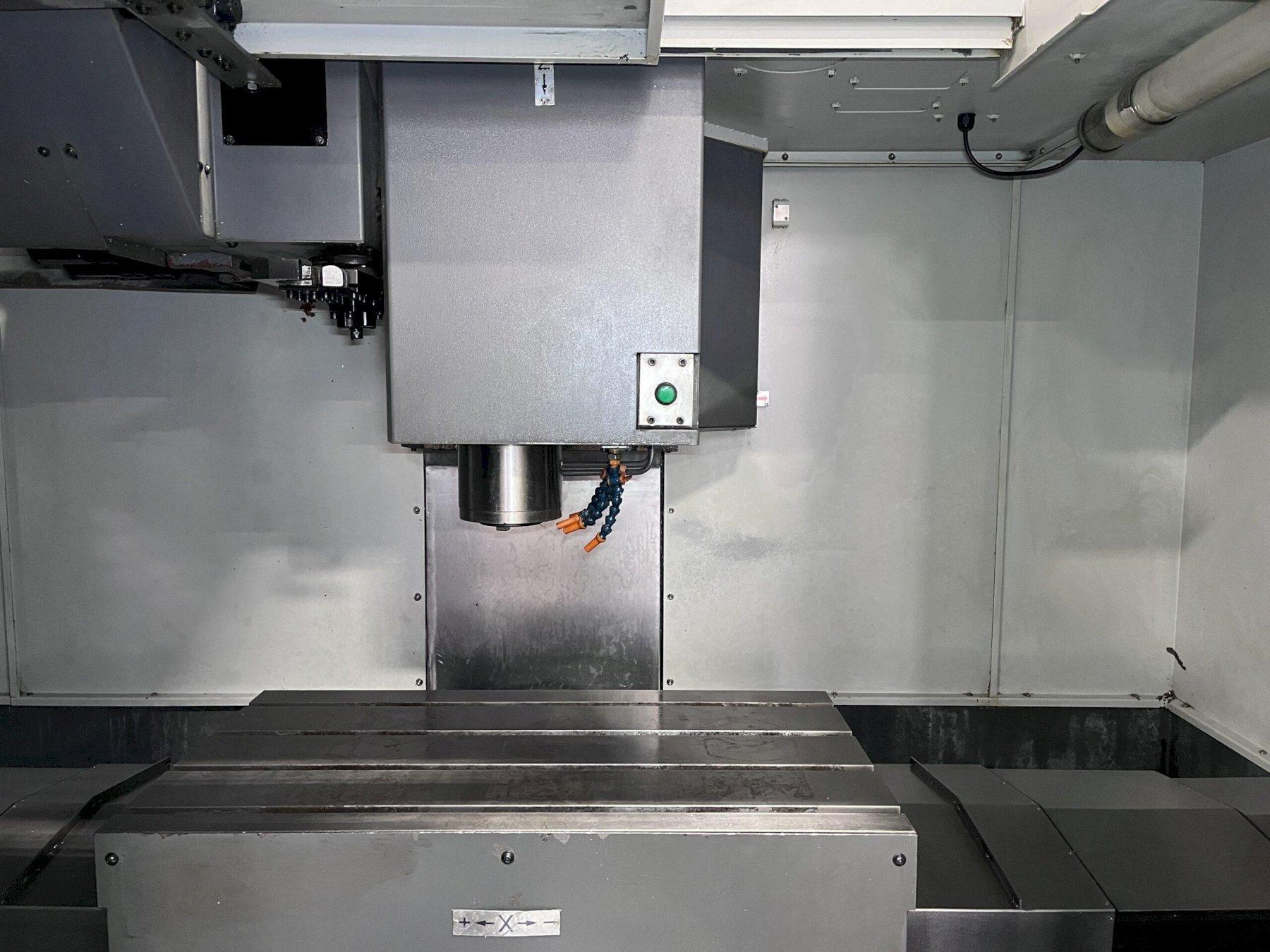

Spindle:
Taper Size: CAT-40
Speed Range: 12,000 RPM
Spindle Power: 20 HP

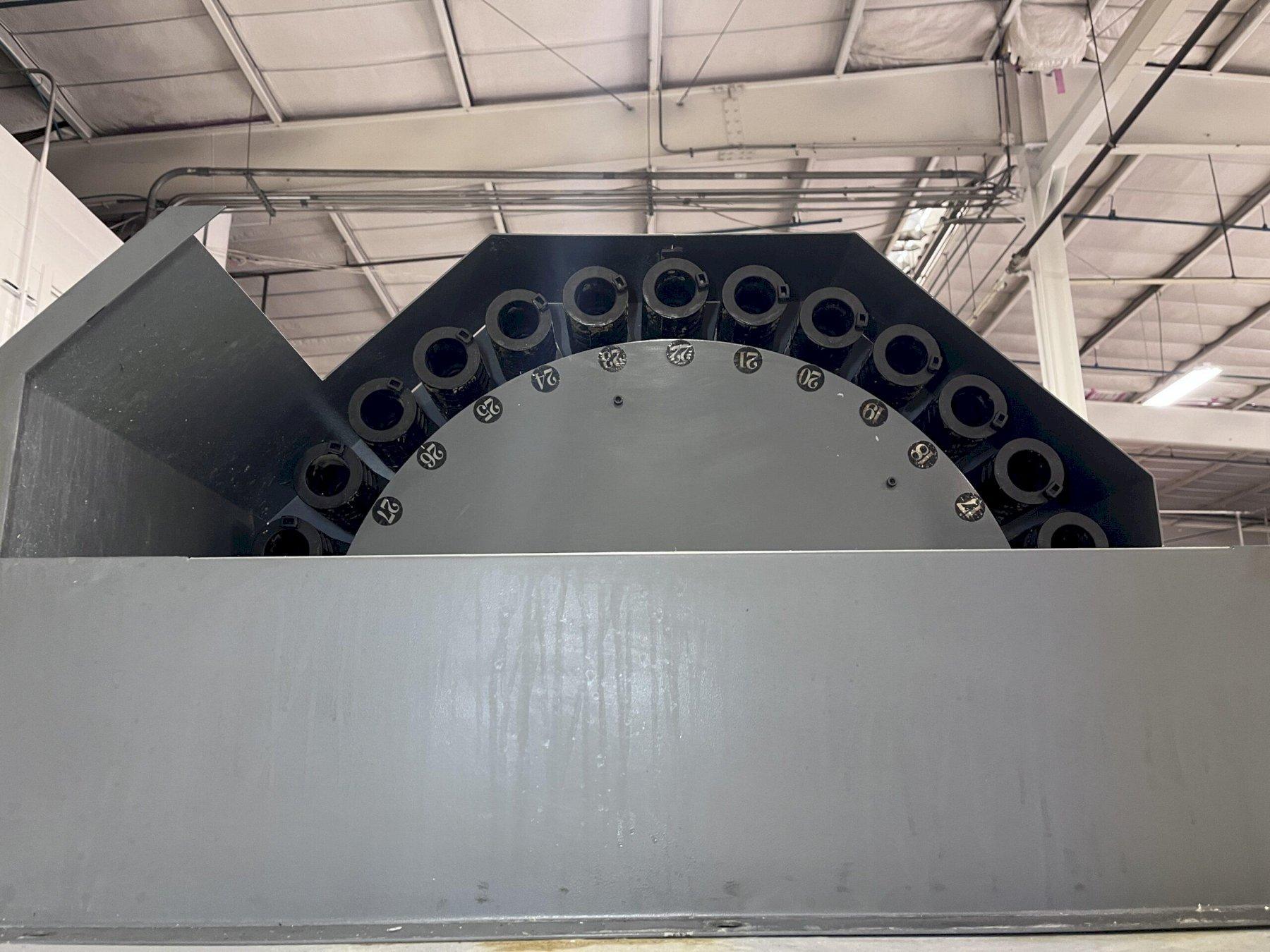

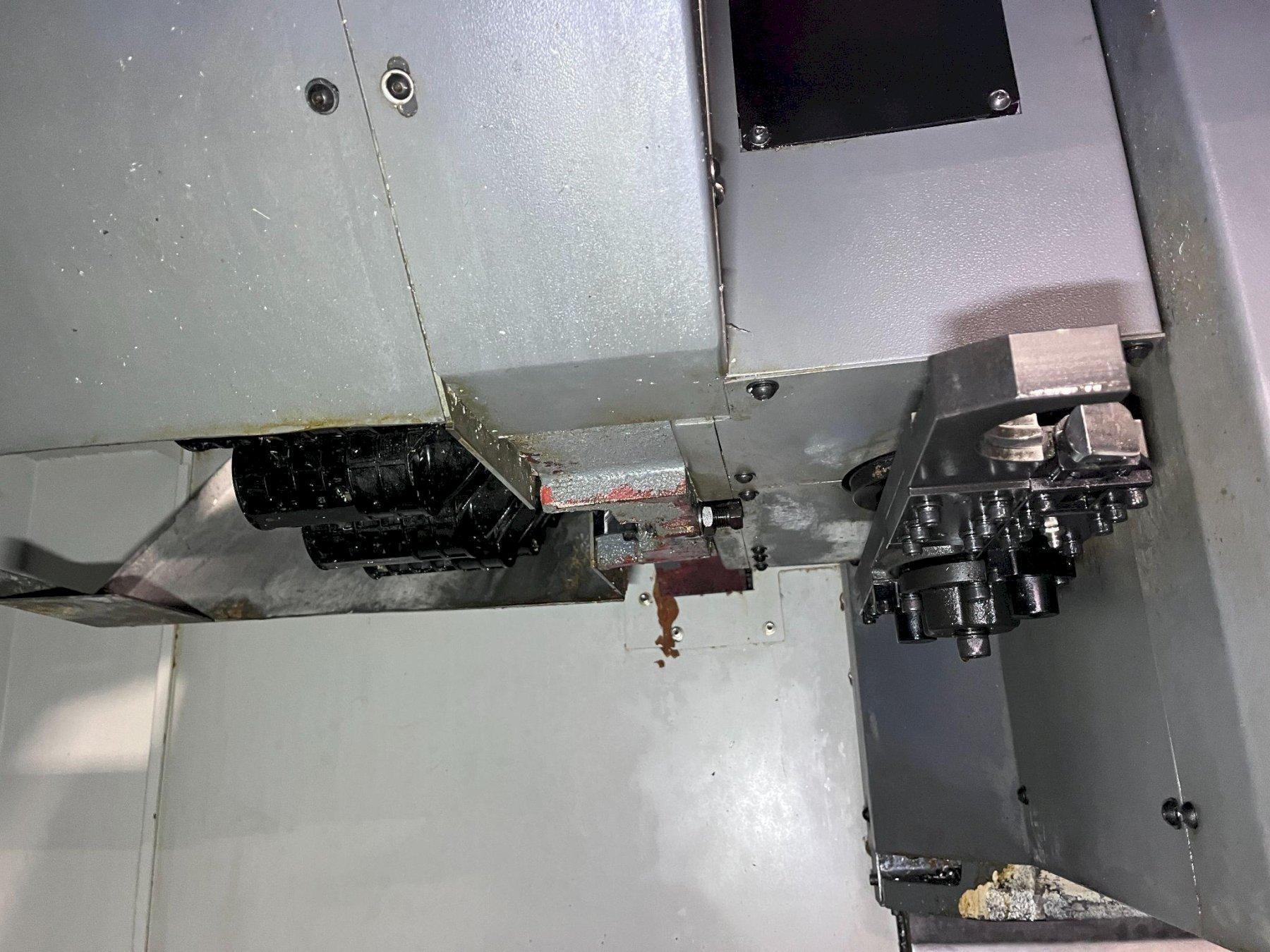

Automatic Tool Changer:
Capacity: 30 Tools
Max Tool Weight: 12 lbs
Max Tool Dia: 2.5″ – 5.0″
Max Tool Length: 11″
Tool Changing Time: Seconds
General:
Air Required: 80 psi 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 102″ x 87″ x 100″ High
Weight: 13,800 lbs Approx.
