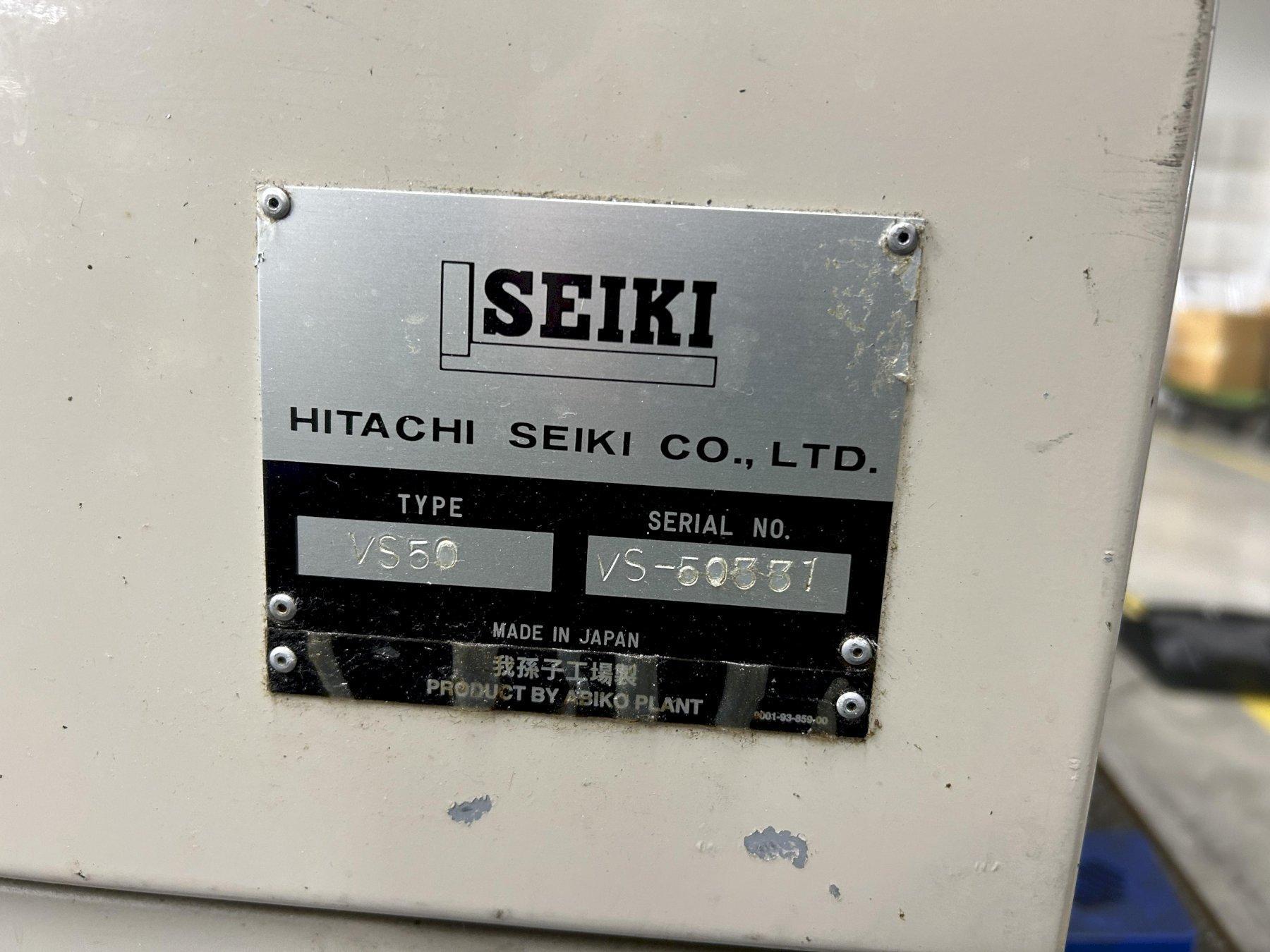

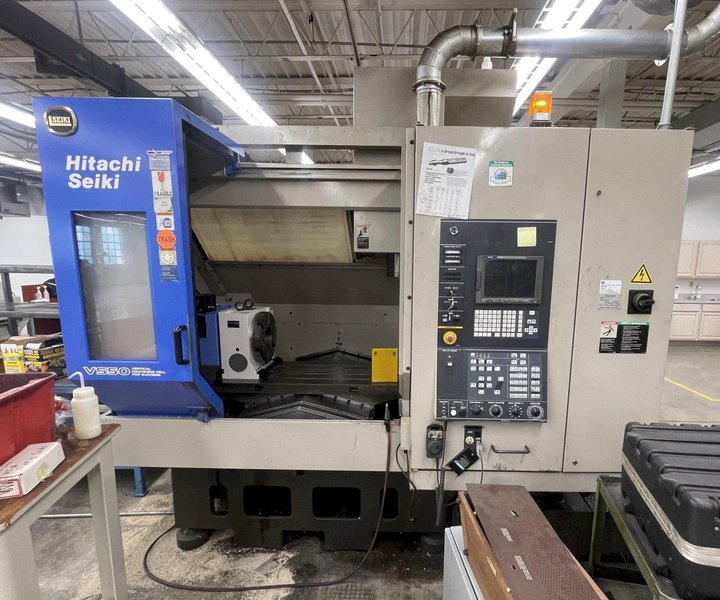

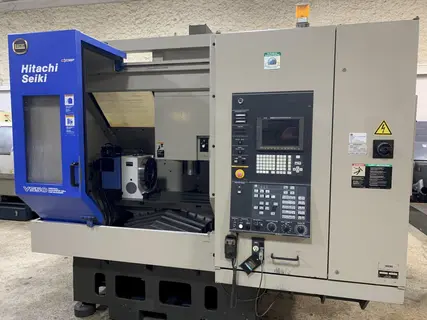

Hitachi Seiki VS50 4-Axis CNC Vertical Machining Center

Model
VS50
Stock #
34931C
Year
2000
Condition
Used

Location

Ohio
Specifications:
Travels (XYZ) - 40" x 20" x 17.5"

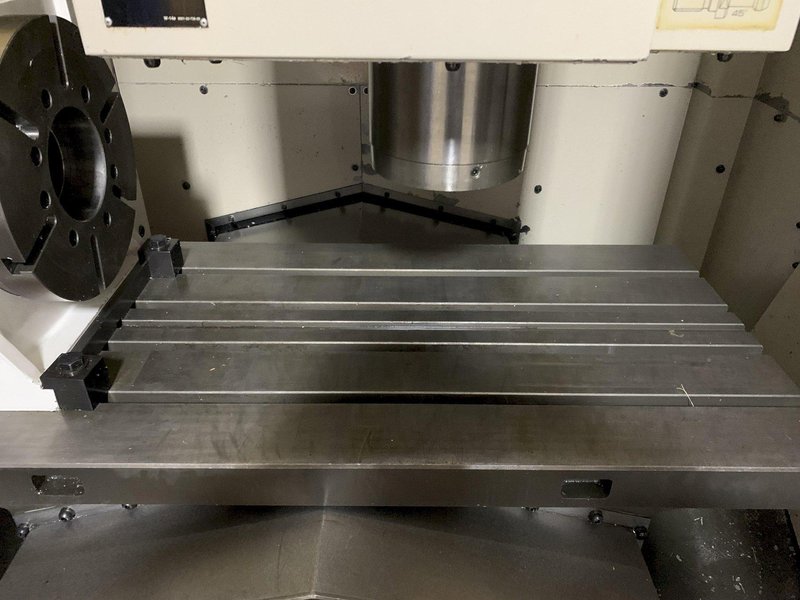

Table Size - 20" x 44"
Distance from table surface to spindle nose - 5.9" to 23.6"
Distance from column front to spindle centerline - 25.1"
Max Weight on Table - 1653 Lbs.
Spindle Taper - CT40
Speed Range - 120 to 12,000 rpm
Spindle Power kW / hp:
    10 min - 11 kW / 14.75 hp
    30 min - 7.5 kW / 10 hp
    Cont - 5.5 kW / 7.4 hp
Rapids (X&Y) - 1574 ipm
Rapid (Z) - 944 ipm
Cutting Feeds (XYZ) - 590 ipm
ATC Capacity - 20
Weight, Approx - 18,000 lbs.

Features:

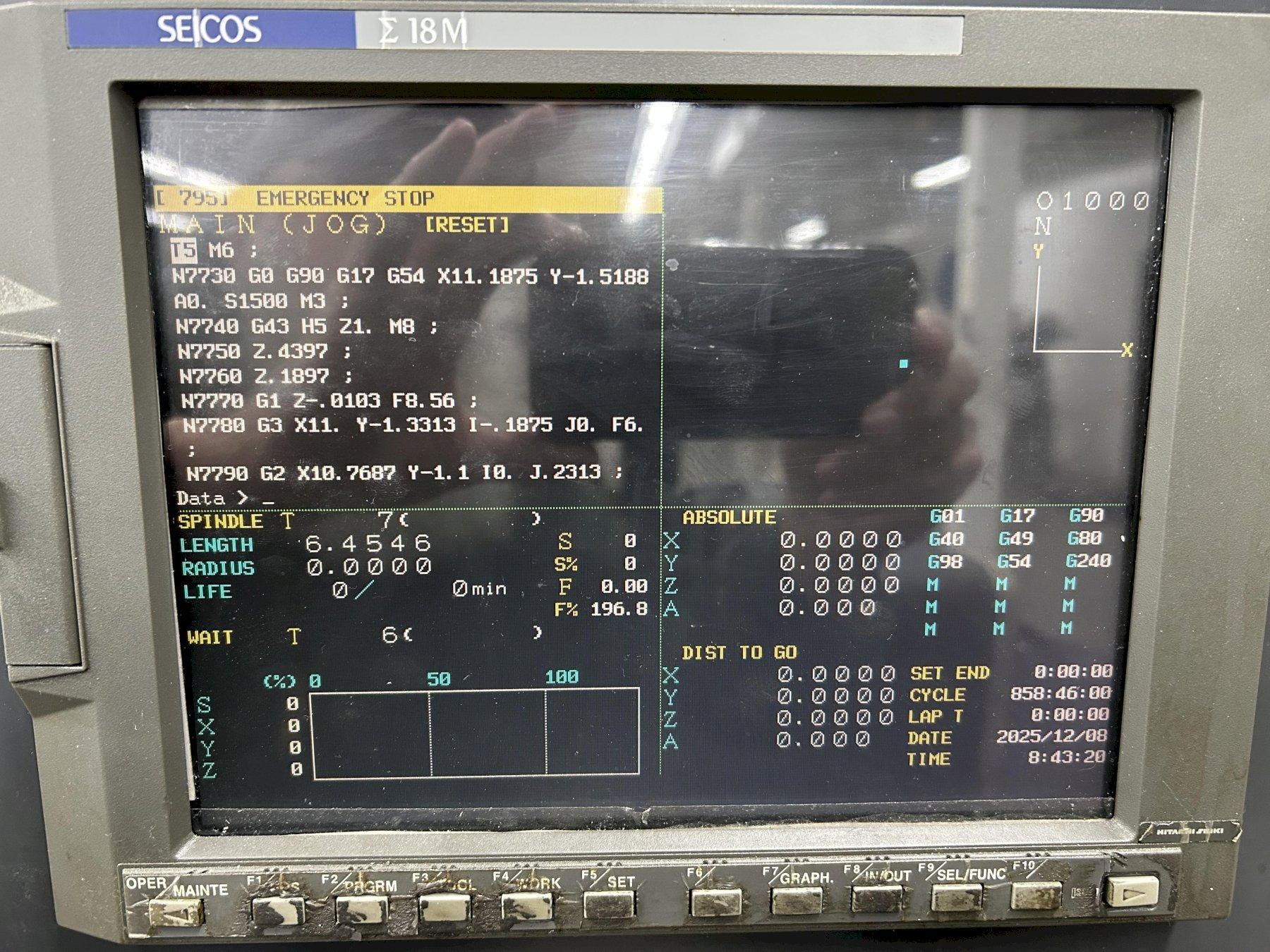

Seicos Sigma 18M CNC Control

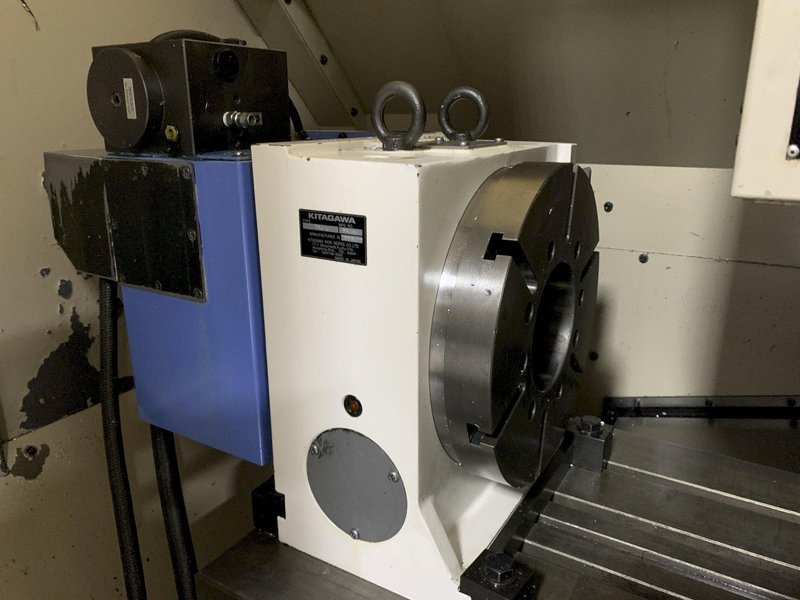

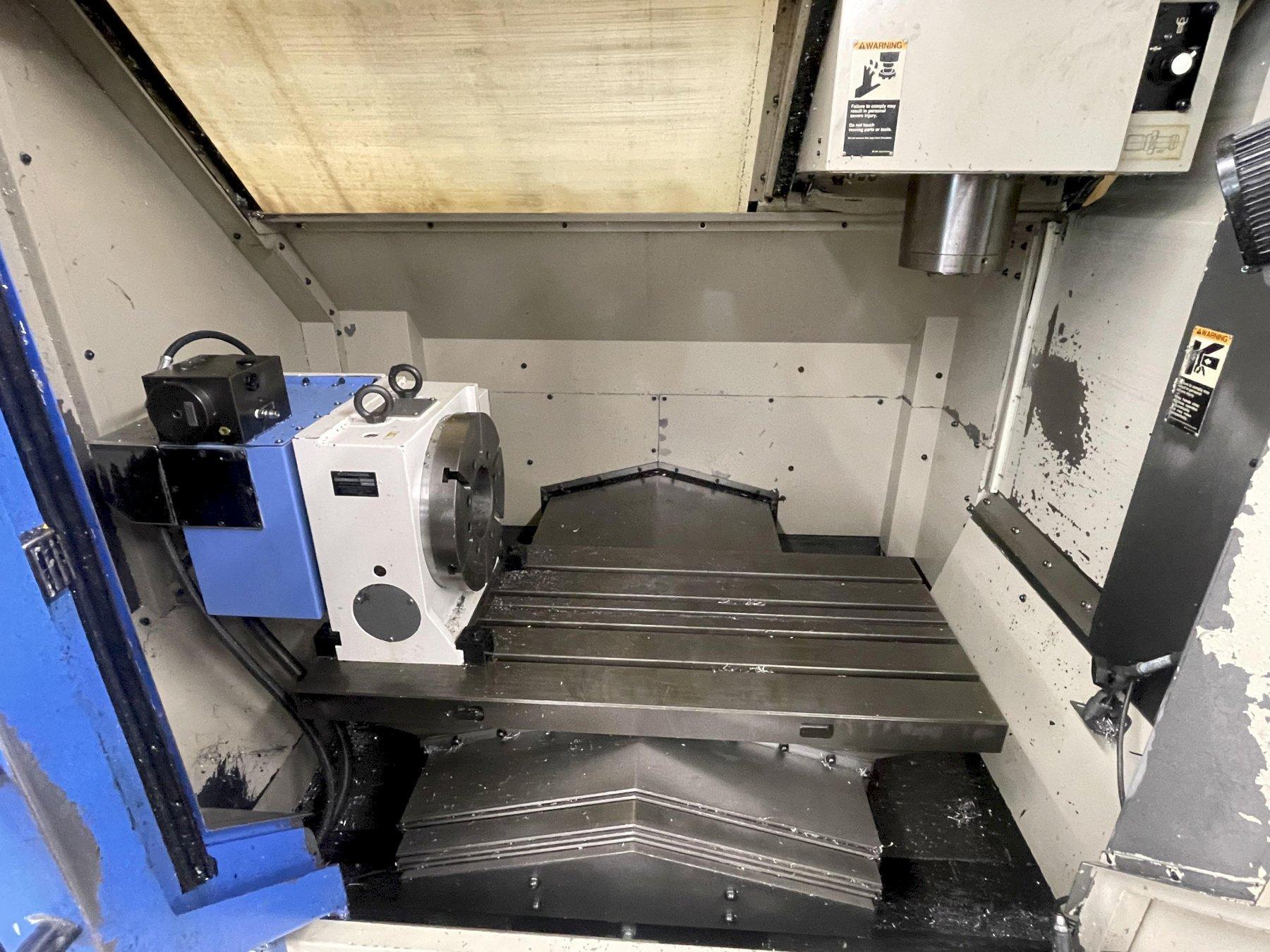

12" diameter Kitigawa 4th Axis Rotary Table

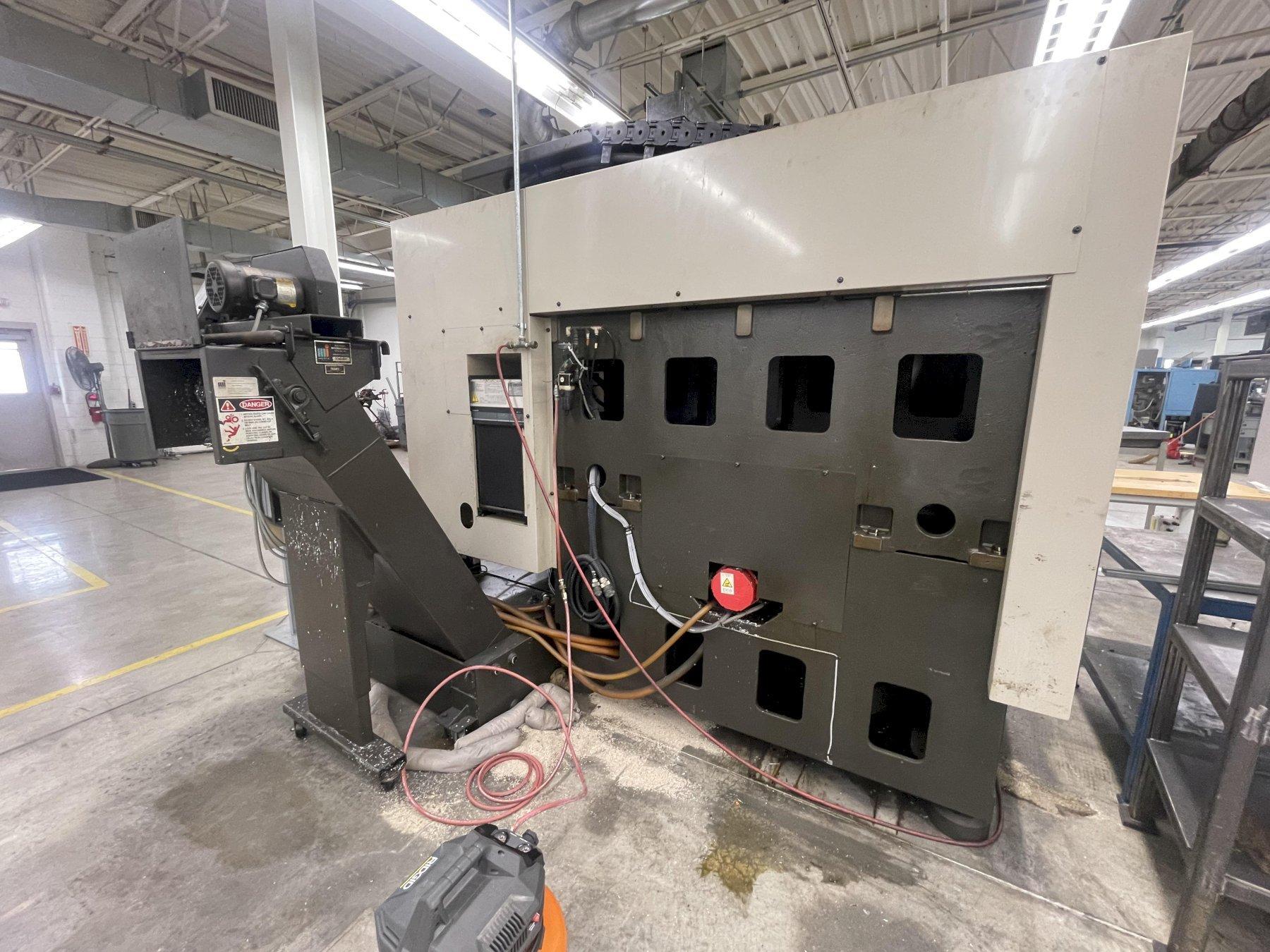

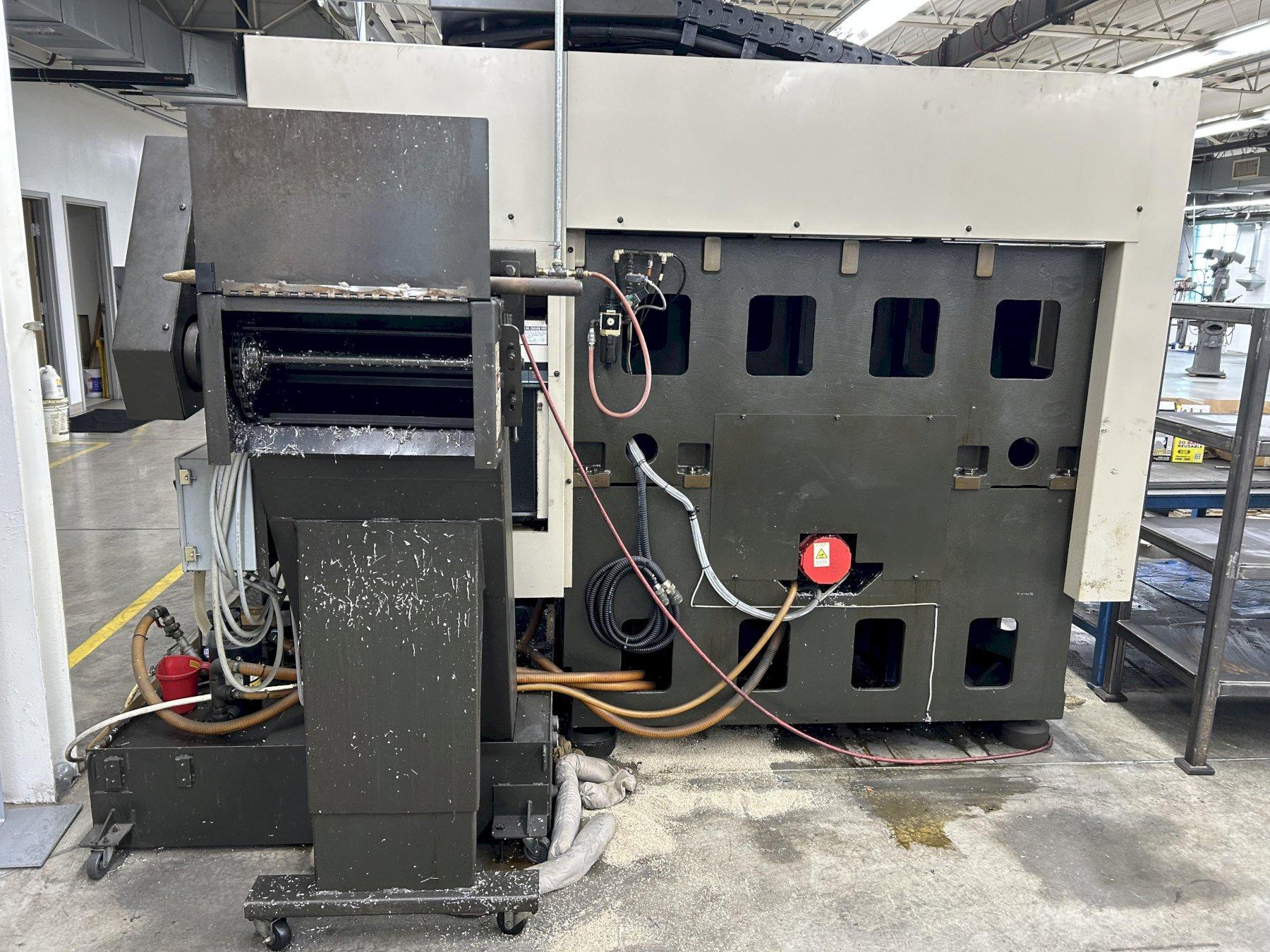

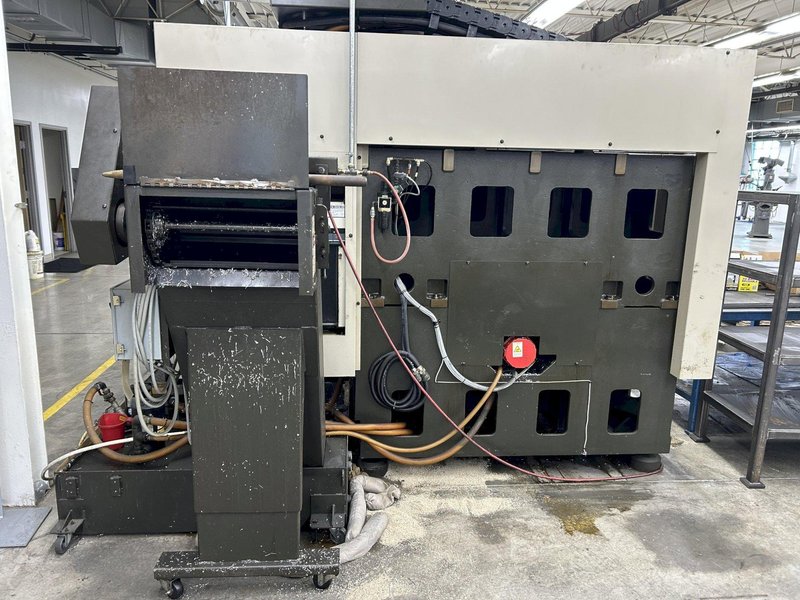

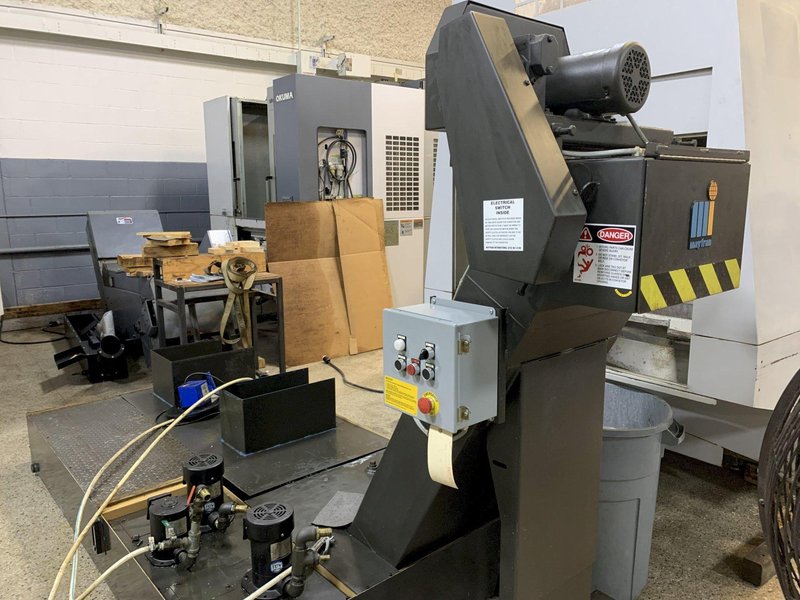

Mayfran Rear Exit Chip Conveyor
Direct Tapping
Bridge Type Construction
Full Enclosure

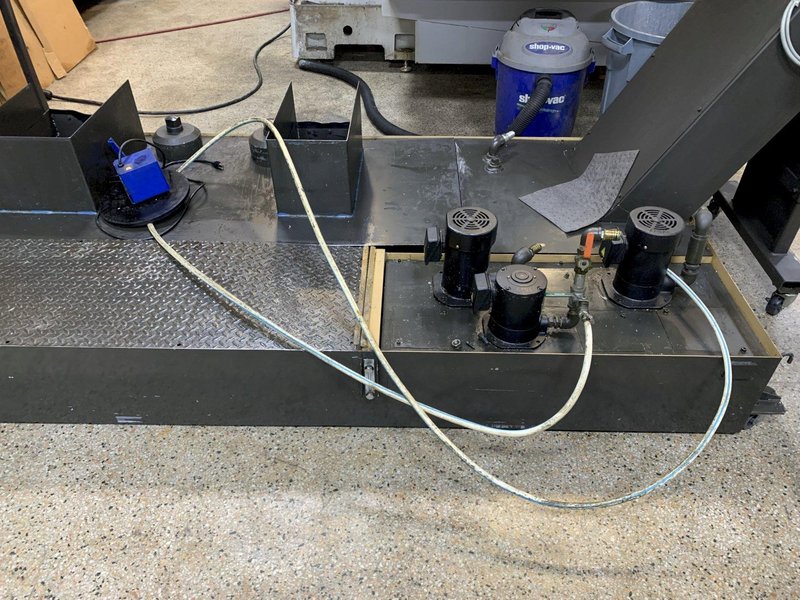

Coolant System
Spindle Chiller

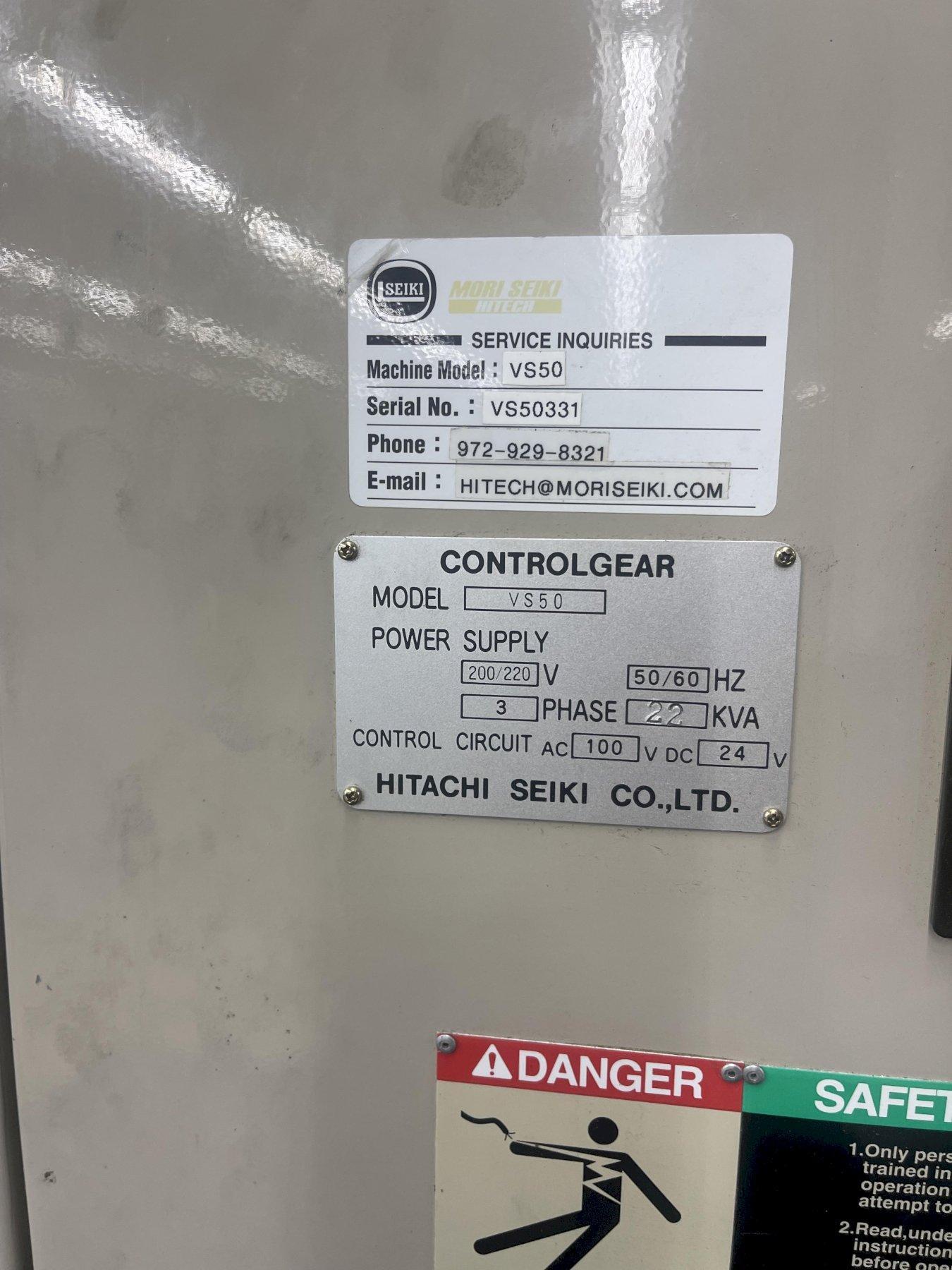

Transformer 230-208V

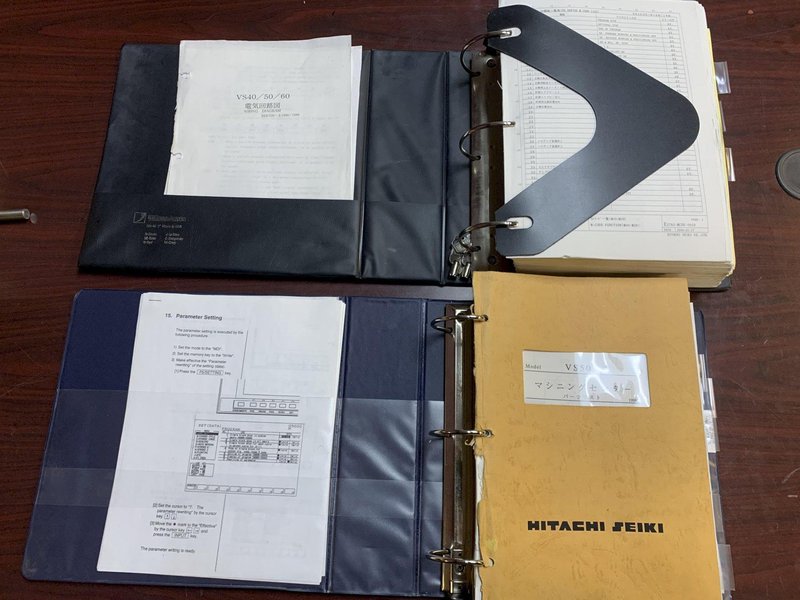

Manuals

Specifications taken from sources deemed reliable and subject to independent verification by the buyer.
Offered on consignment for local customer. No warranty or return privilege.
Offered as is, as removed from service.
Buyer responsible for rigging and shipping.
No files or videos to display

Want to request a quote from the owner of this listing?
