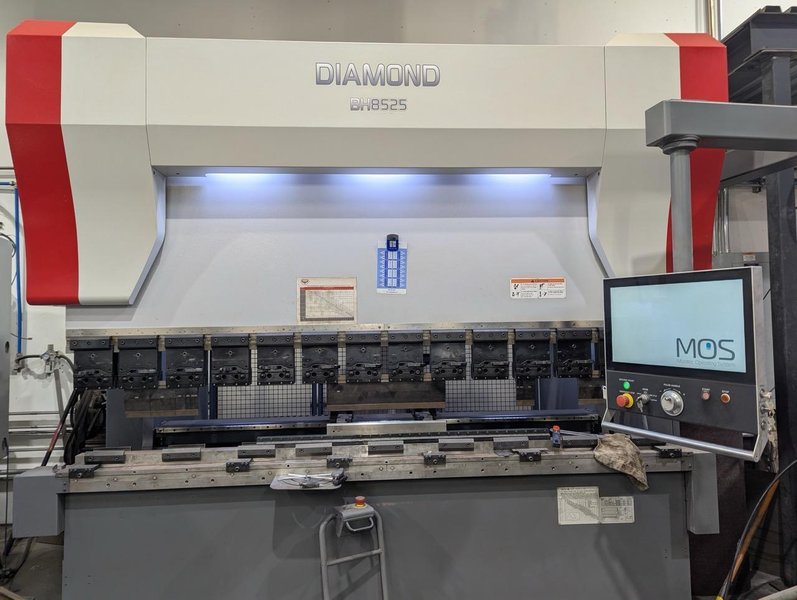

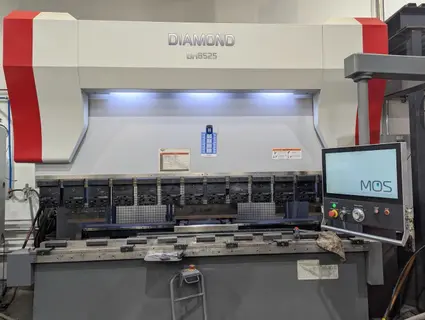

94 Ton x 8.5’ Mitsubishi Diamond BH8525 CNC Press Brake, 2018

Capacity: 94 U.S Tons Ram Repeatability: 0.00004” Approach Speed Max.: 472 IPM Ben Speed Max.: 24 IPM Return Speed Max.: 472 IPM Punch holder Height: 5.9” Back Gauge X Distance: 33.5” Back Gauge Repeat Accuracy: 0.0002” R Axis Travel: 7.8” Bending Length: 102” Distance Between Frames: 86.6” Ram Stroke: 9.84” Daylight w/o punch holders: 20.8” Daylight w/ standard holders: 14.9” Daylight w/ Hyd clamping: See Style Throat Depth: 15.7” Table Height: 35.4” Table Width: 6.7” Weight: 15,400 lbs. Oil Capacity: 12.6 Gallon KVA: 9 KVA Standard Voltage: 208 V

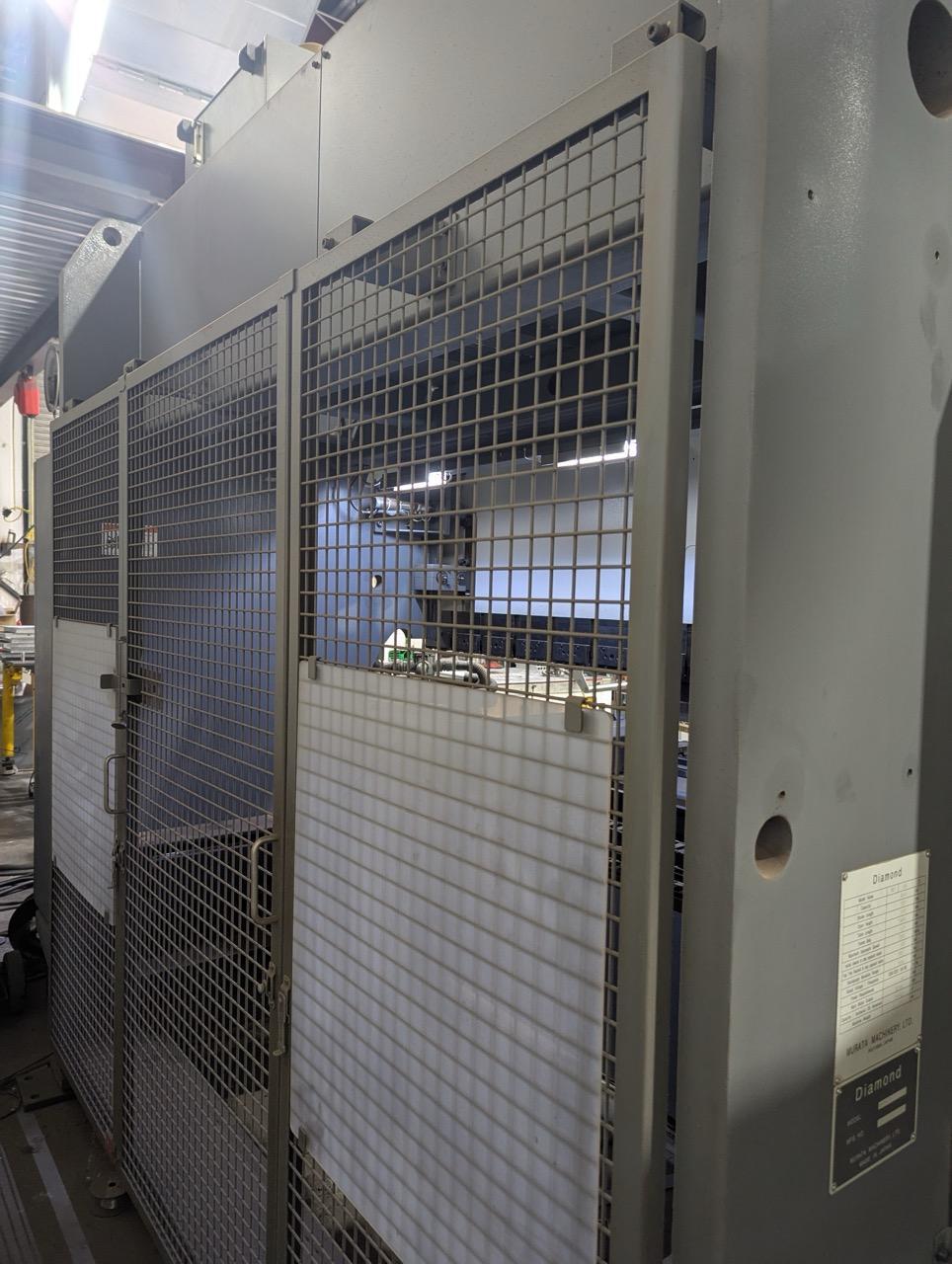

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Dual Drive Mechanism Automatic Thickness Detection Back Gauge System Punch Holders Safety Electronics Rear Safety Fence

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
