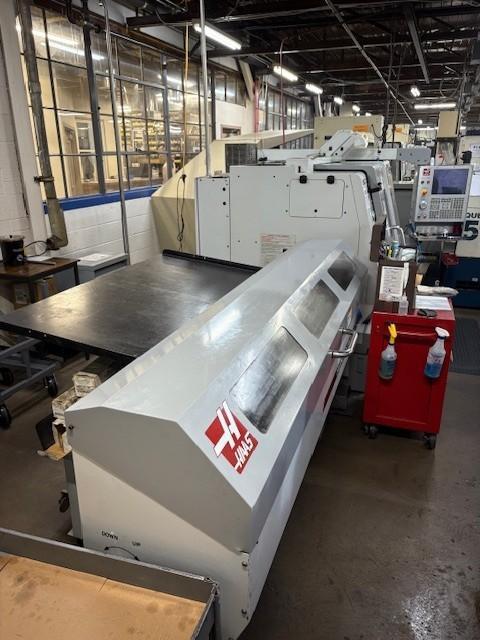

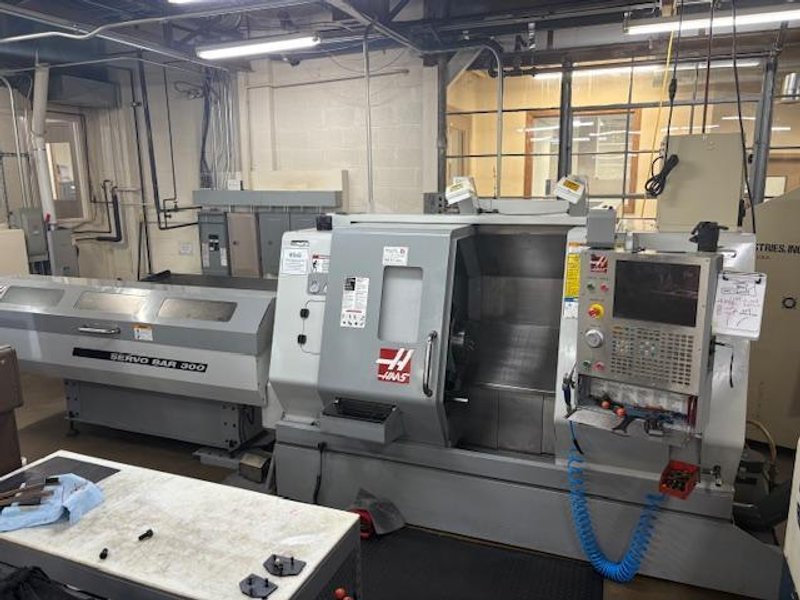

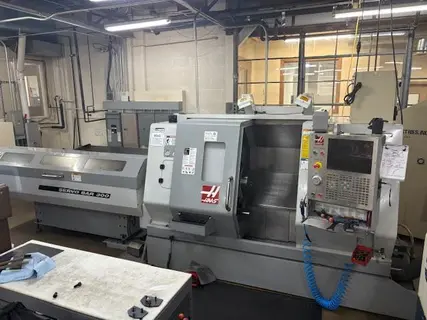

Haas SL20TB CNC Lathe, 2006 – Tailstock, Bar Feeder

Swing Over Front Apron: 31.75″ Swing Over Cross Slide: 20″ Max Turning Diameter: 10.30″ Max Turning Length: 20″ X-Axis Travels: 9″ Z-Axis Travels: 20″ Spindle Type: Big-Bore Spindle Nose: A2-6 Max Bar Capacity: 2.5″ Spindle Speed: 3,400 RPM Spindle Motor: 20 HP

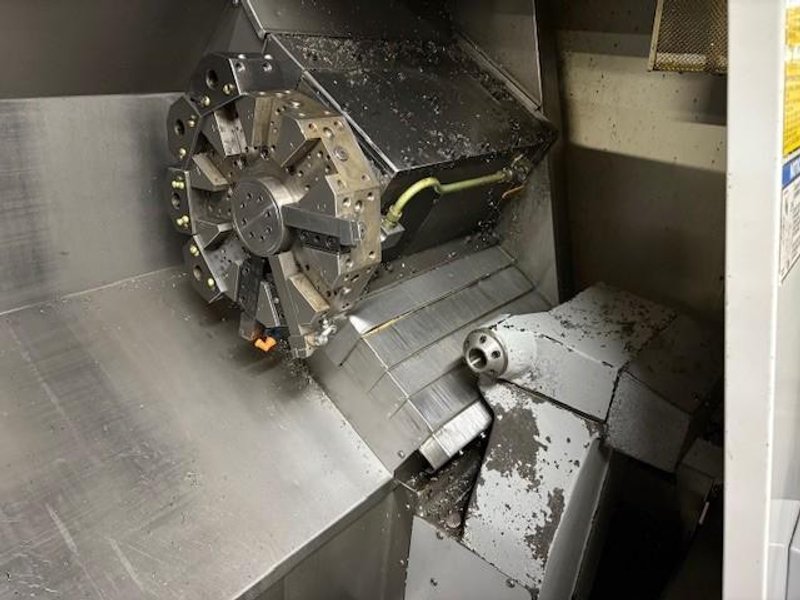

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Turret Type: Servo-Driven Stations: 12-Station Bolt-On Turret Tailstock Quill Diameter: 3.15″ Tailstock Quill Travel: 4″ Max Cutting Feed: 500 IPM

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electrical: 208/230V, 3-Phase Approximate Machine Weight: 7,500lbs Approximate Machine Dimensions: 112″ x 64″ x 73″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
