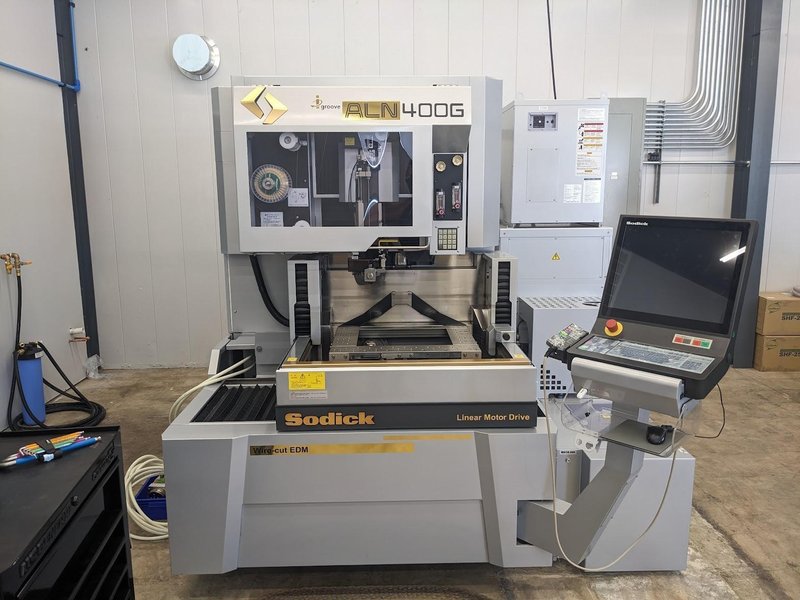

Sodick ALN 400G CNC Wire EDM, 2022 – Rotary Table

Max. Workpiece Size (Flushing): 23.6” x 18.5” x 9.4” Max. Workpiece Weight (Flushing): 1,102 lbs Max. Workpiece Size (Submerged): 23.6” x 18.5” x 9.0” Max. Workpiece Weight (Submerged): 771 lbs X-Axis Travel: 15.75” Y-Axis Travel: 11.81” Z-Axis Travel: 9.84” U-Axis Travel: 5.91” V-Axis Travel: 5.91” Max. Taper Angle: + 25°

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Wire Diameter Range (Min. ~ Max.): φ0.004” ~ 0.012” Work Tank Dimensions: (W x D) 33.45” x 24.01” Distance from Floor to Table Top: 39.17 ’’ Wire-Feed Speed (Max.): 16.5”/sec Wire Bobbin Weight: 22 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,External Dimensions: (W x D x H) 87” x 96” x 87” Machine Weight: 7,500 LBS

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

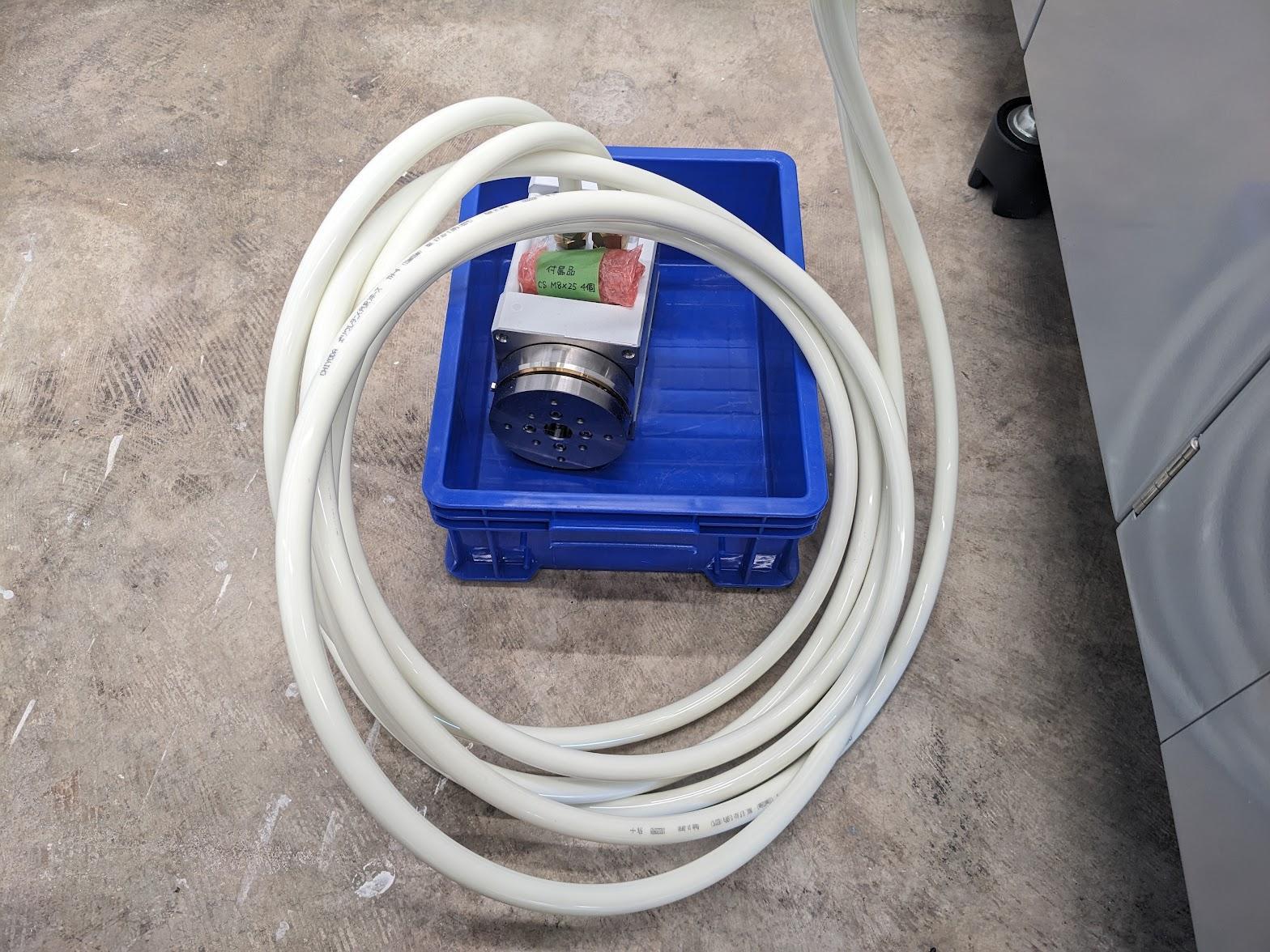

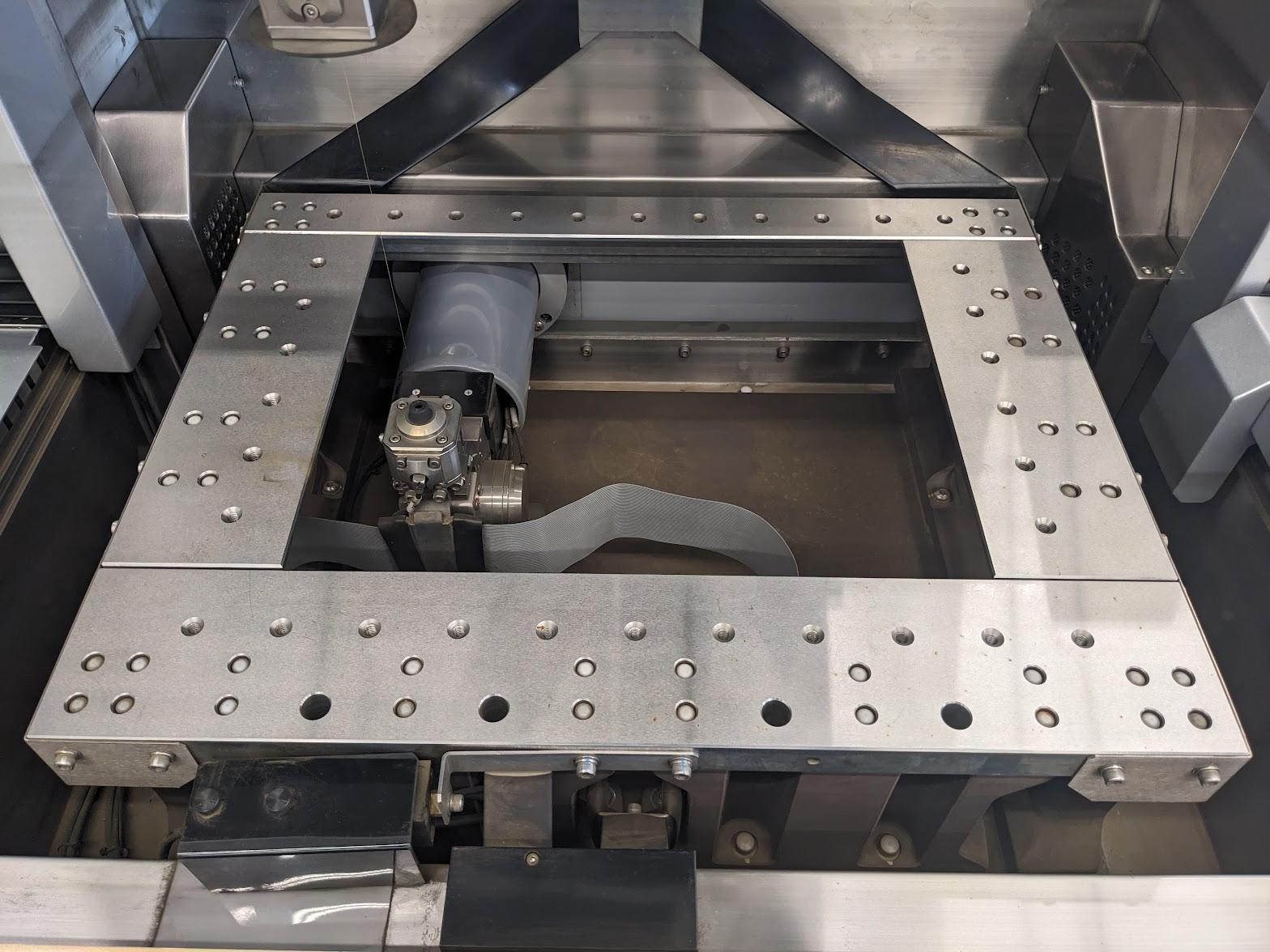

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Sodick SPWE Smart Control Sodick WS-4P Rotary Table Table Interface Taper Flex NEO Rigid Precision Linear Motors (X, Y, U, V-Axes) Absolute Glass Scales (X, Y, U, V-Axes) TH COM (Thermal Displacement Compensation System) iGroove – Wire Rotation Strategy Fixed-Jet AWT (Automatic Wire Threader) Remote Pendant Water Deionizer Automatic Voltage Regulator Sodick LED Work Light 3-Sided Rise/Fall Work Tank 4-Sided Clamping Table Z-Axis Automatic Fluid Level Control Dielectric Cooling Unit (Chiller)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
