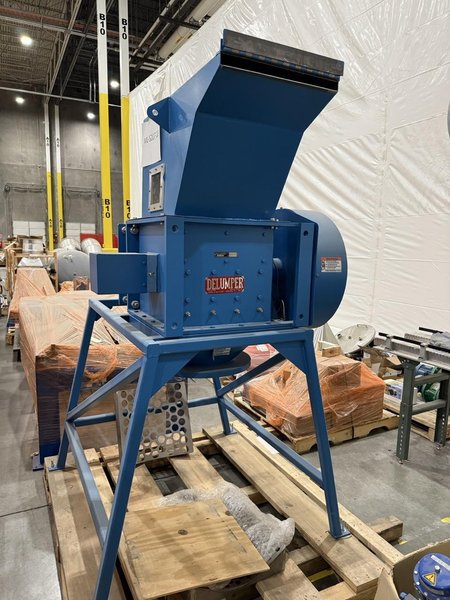

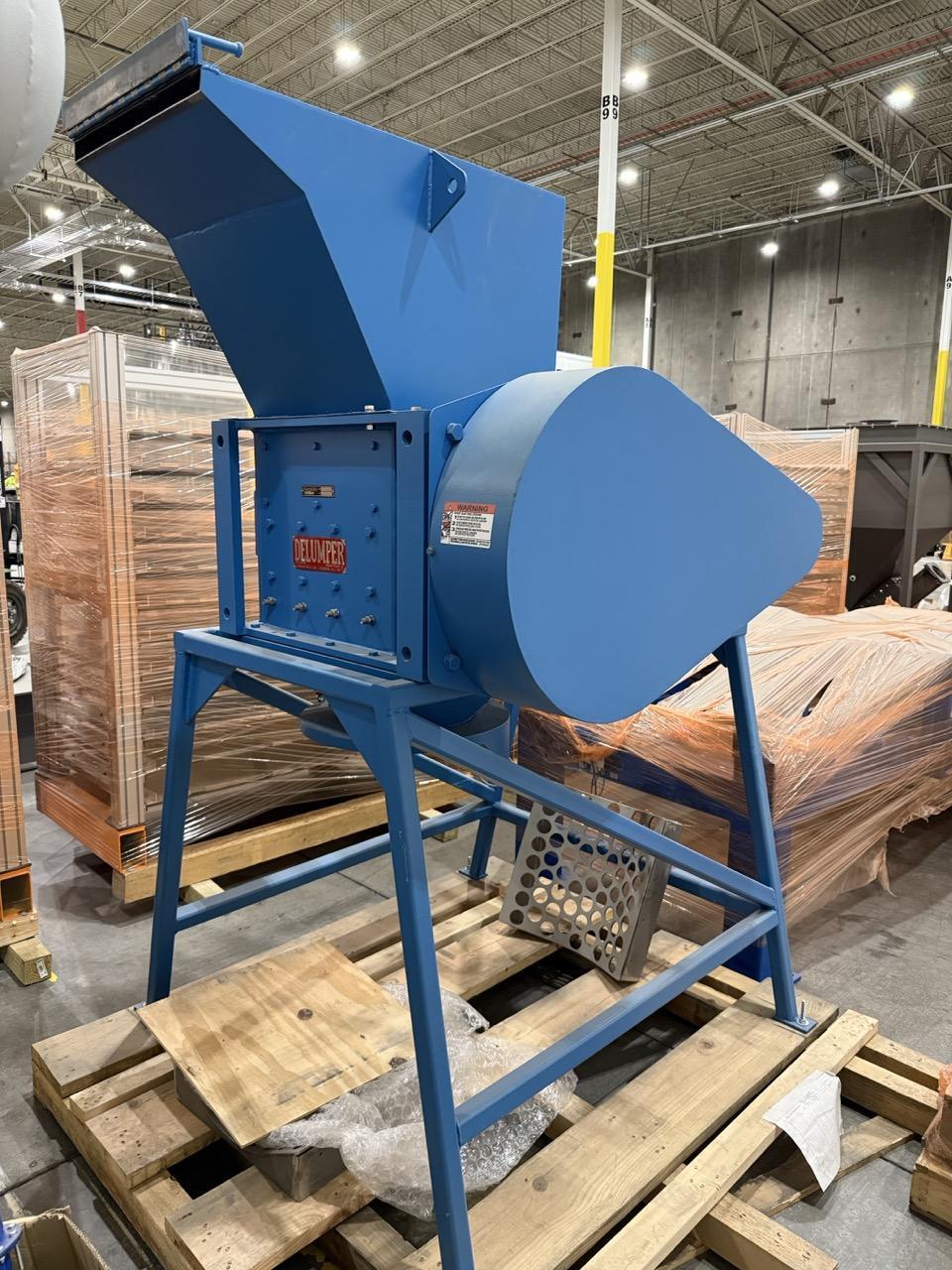

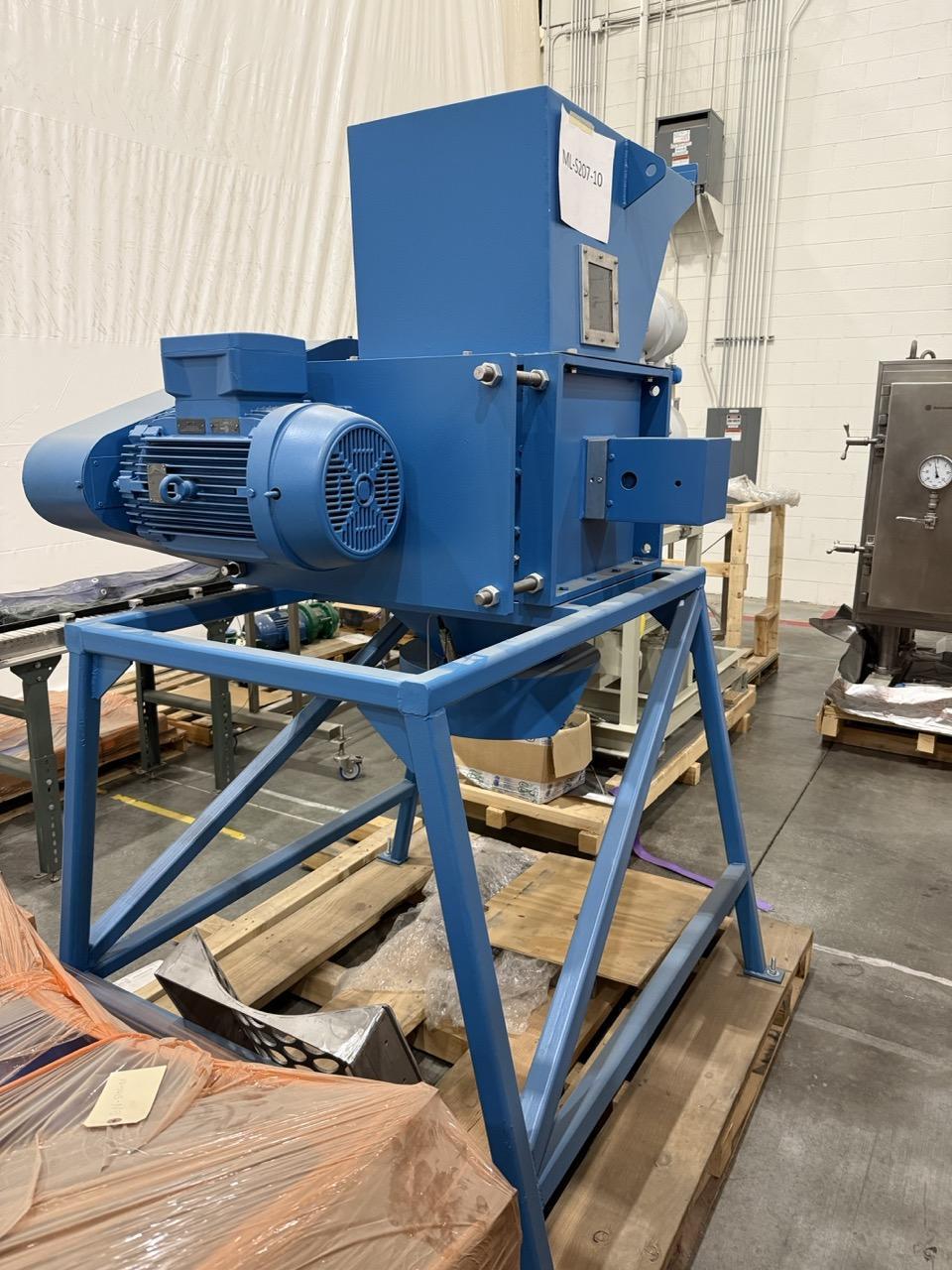

Franklin Miller DC2020LP Delumper Crusher, 2022 – 20 HP

Inlet/Outlet Opening: 20″ x 20″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Body: Heavy structural carbon steel, one-piece housing

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Cutting Teeth: High profile; chrome-boride hard-faced alloy steel

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Seals: Shaft seals

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Grid: Bar grid

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Bearings: Heavy-duty outboard bearings

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Style: HM style with HM screen (same as rental test unit)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,1. Motor & Drive

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Motor: 20 HP WEG Explosion-Proof

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Classification: Class I, Div. 1

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Voltage: 460V, 3-phase, 60 Hz

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Enclosure: TEFC

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Drive: Belt drive

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Motor Plate: Adjustable, carbon steel

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Safety Guard: Carbon steel

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,2. Infeed Hopper (Front-Loaded)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Carbon steel construction

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,All welds ground

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Forward-angled design

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Narrow 1″ opening for sheet feed

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Side sight glass

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Closed top

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Modified bottom to feed into process section

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,3. Rigid Stand

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Four-leg design

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Approx. 36″ height

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Structural carbon steel

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Painted FMI blue (2-coat system)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,4. Discharge Drum Adapter

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,For 30-gallon steel drum

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Drum flange with gasket (dust control)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Drum positioning plate

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Level switch included

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Compatible with pallet jack (by others)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Controls & Electrical Automatic Reversing Controller – Model S260

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,NEMA 12 cabinet

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Variable Frequency Drive (VFD) – provides variable speed + reverse/forward

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,PLC logic control (Modbus/TCP capable)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,IEC starters

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,LED indicators

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Current-sensing auto-reversing program

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Local Control Station – NEMA 7

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,C1D1/C1D2 Groups C & D

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,C2D1/C2D2 Groups E, F, G

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Mushroom emergency stop

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Local/Remote/Manual selector

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Forward/Reverse selector

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Level Sensor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Pepperl & Fuchs ultrasonic level sensor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Auto-stop when drum is full

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,90% warning light (blink), 100% solid indicator

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Factory-set but field-adjustable

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Motor Data (WEG 20 HP)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Model: 02018XT3E256T

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Horsepower: 20 HP

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Speed: 1770 RPM

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Voltage: 230/460V

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Current: 50A / 25A

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Service Factor: 1.15

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Frame: 256T

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Weight: ~393 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Torque: 59.3 ft-lb

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Enclosure: TEFC (IP55)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Duty: Continuous

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Paint Specs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Polyamide epoxy coating

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Color: Franklin Miller Blue

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,1 coat primer / 1 coat topcoat

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,SSPC-10 near-white blast prep

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,460 V / 3 Phase / 60 Hz
