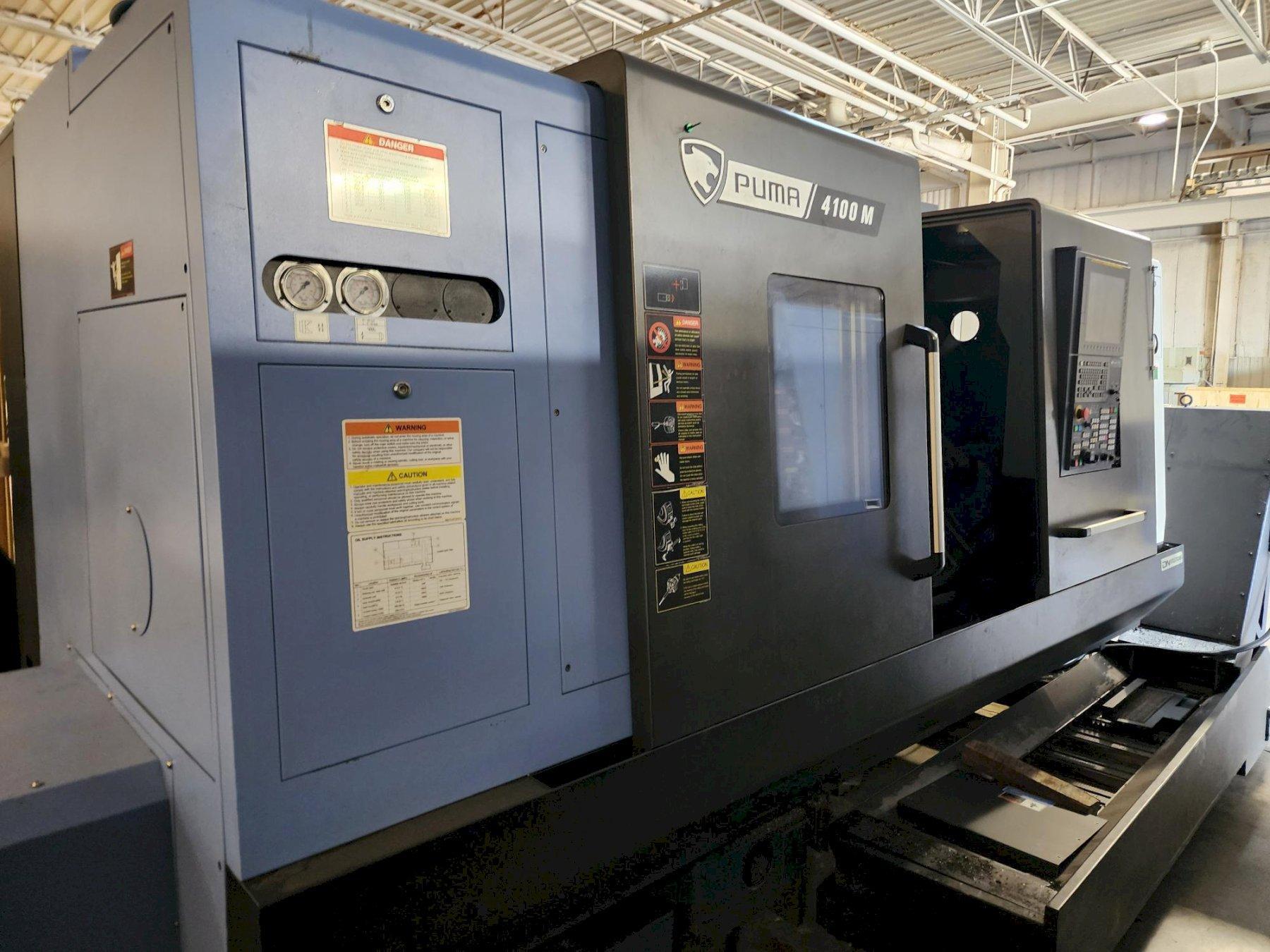

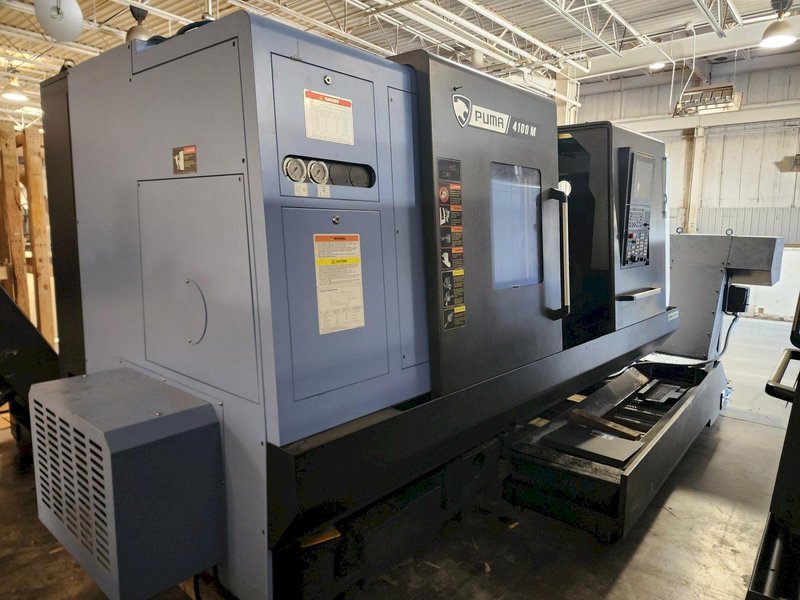

Doosan Puma 4100MB CNC Lathe, 2023 – Live Tooling, Tool Presetter, Tailstock (2)

Capacity & Size Max Swing Over Bed: ≈ 31.1″ (790 mm) Max Turning Diameter: ≈ 22″ (560 mm) Max Turning Length: ~38.5″ (978 mm) Bar Capacity (Spindle Bore): ~4.6″ (117.5 mm)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Travel & Motion X-Axis Travel: ~13.8″ (352 mm) Z-Axis Travel: ~43.5″ (1105 mm) Rapid Traverse: ~16 m/min X & ~20 m/min Z

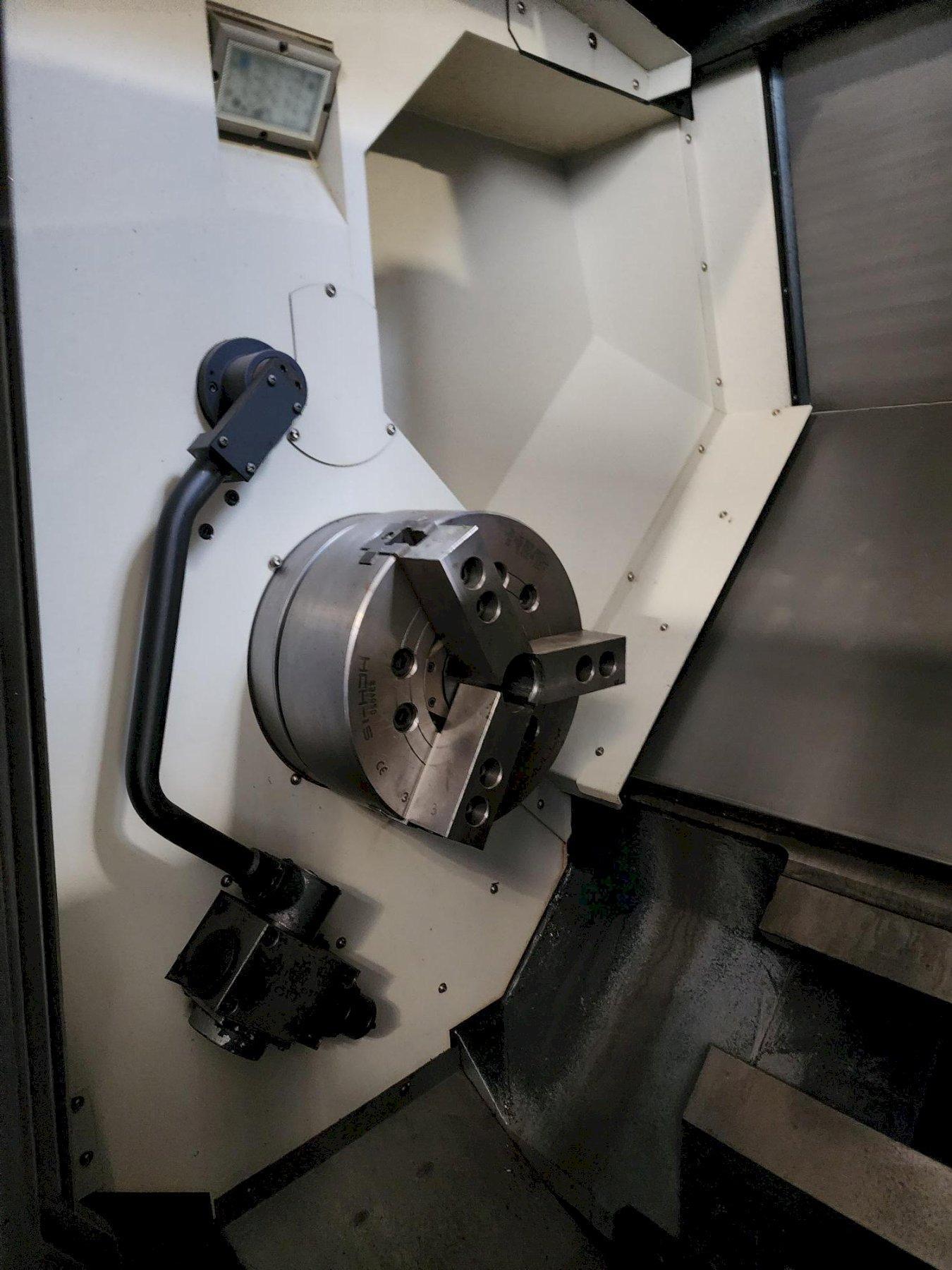

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spindle & Power Max Spindle Speed: ~2,000 RPM Spindle Power: ~50 HP (~37 kW) Spindle Torque: ~2431 Nm (~1793 ft-lbs) Chuck Size – 15 in 482 Cutting Hours

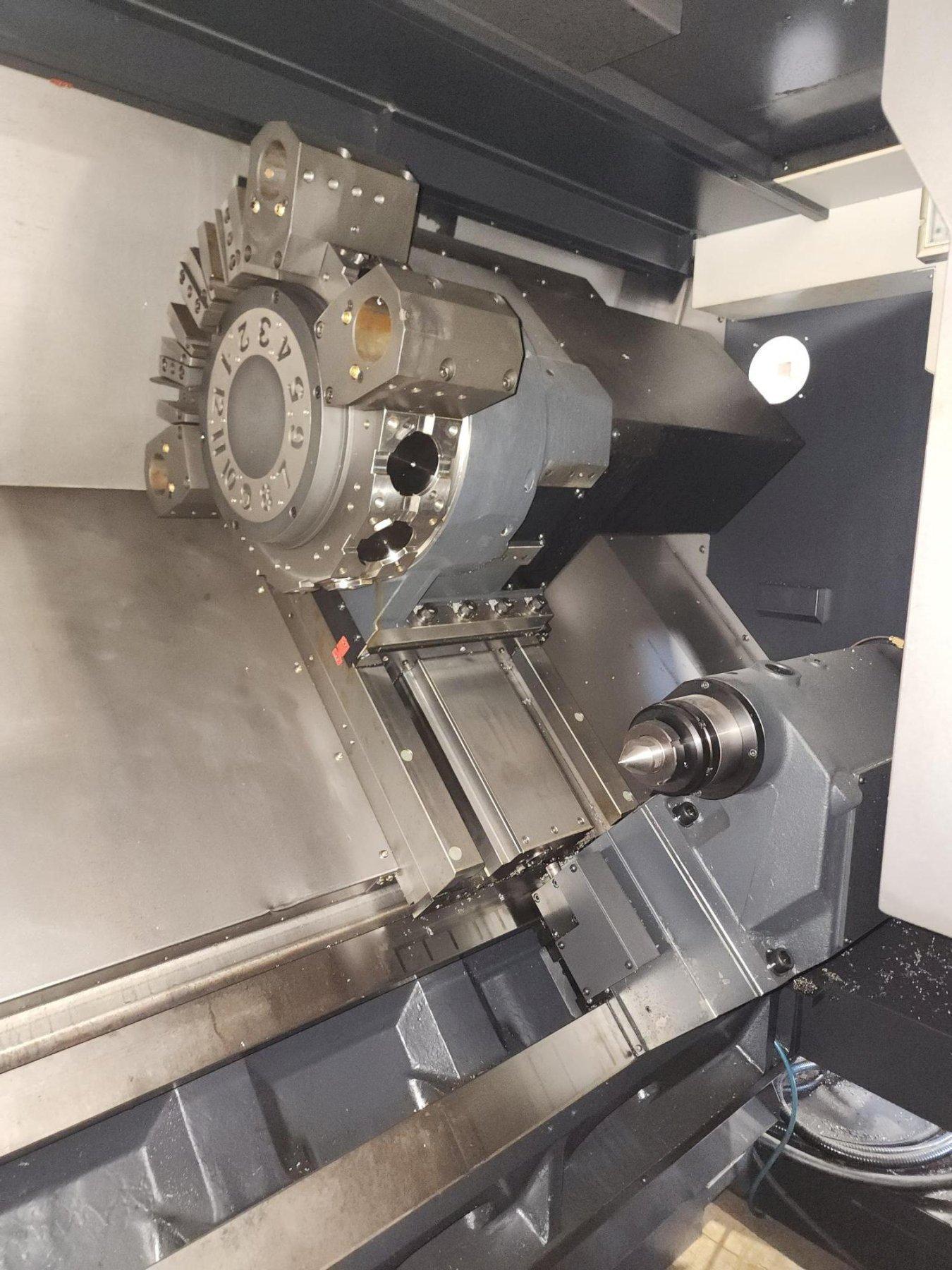

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tooling & Features Turret: 12-station BMT-75 Live Tooling / Mill-Drill: Yes (rotary tool capabilities) Control: Typically Fanuc Series i Chip Conveyor: Common options on this model

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine Size & Weight Overall Dimensions: ~183″ L × 86″ H × 81″ W Weight: ~22,000 lbs (~10,000 kg)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
