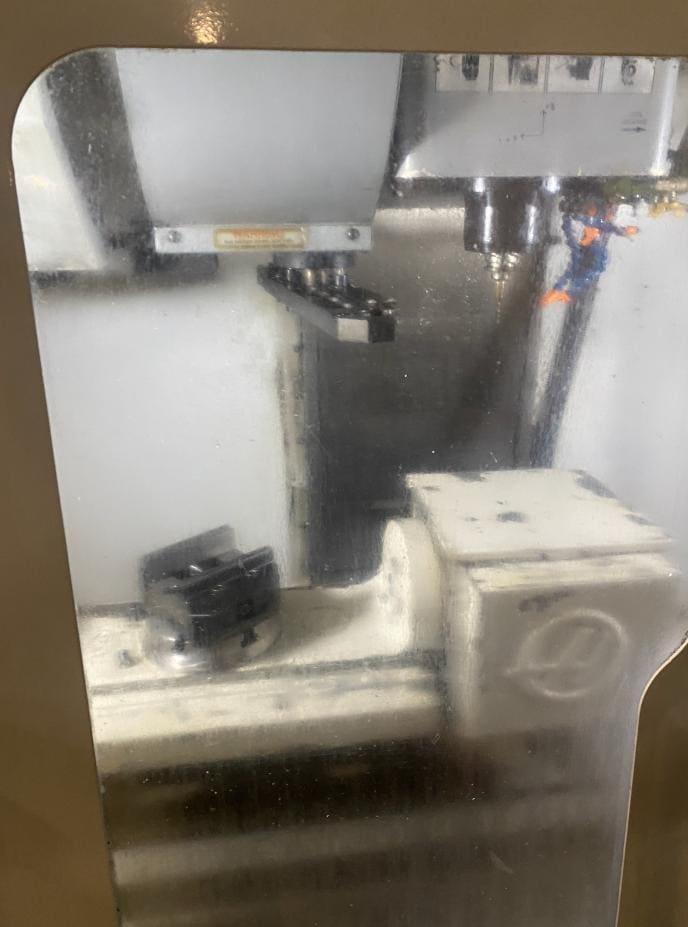

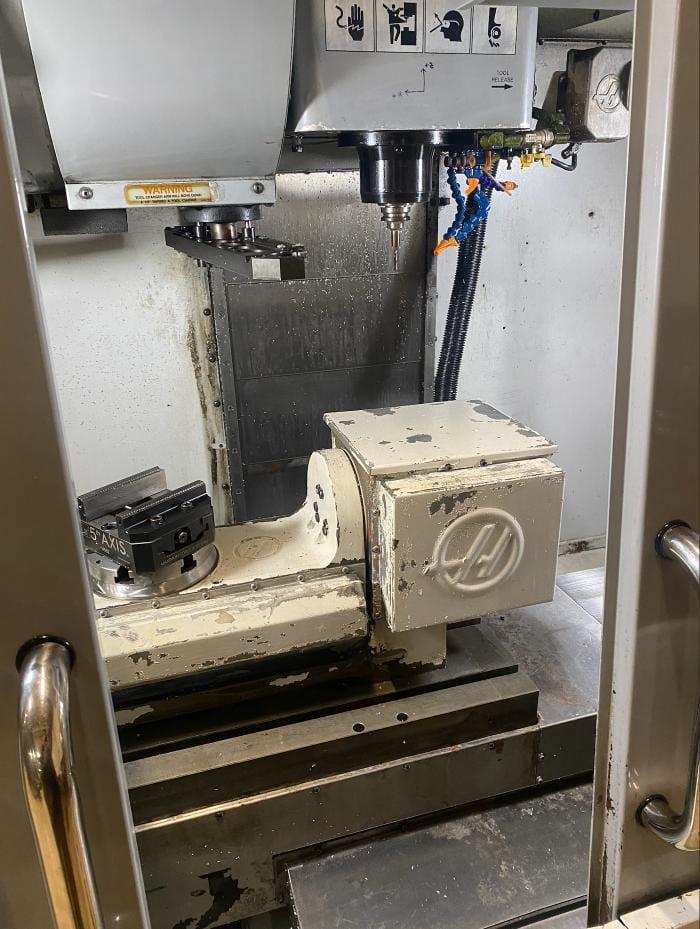

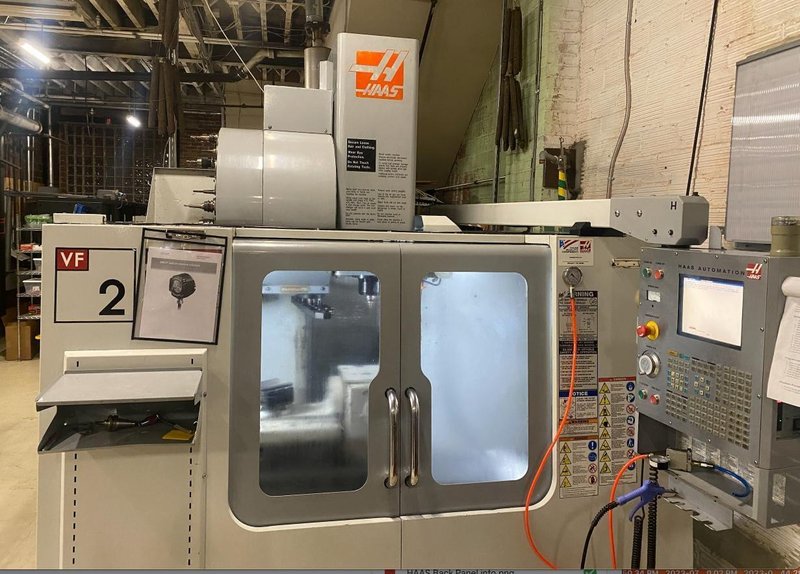

Haas VF-2 VMC, 2006 – 5-Axis Trunnion Table, 30K Spindle
Brand
Category
Model
VF-2
Stock #
Not specified
Year
2006
Condition
Not specified
Location
Not specified
|
X-Axis Travel: 30″
Y-Axis Travel: 16″
Z-Axis Travel: 20″
Table Size: 36″ x 14″
Maximum Weight on Table: 3500 lbs (1588 kg)
Spindle Nose to Table Surface: 4″ – 24″
X/Y-Axis Rapid Traverse Rates: 1,000 IPM (25.4 m/min)
Z-Axis Rapid Traverse Rates: 800 IPM (20.3 m/min)
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spindle Speed: 30,000 RPM Spindle Motor: 30 hp (22.4 kW) Spindle Taper: CAT 30 All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Haas CNC Control 30K RPM Vector Drive Spindle 5th Axis Trunnion Rotary Table Renishaw Probing Kit Chiller Unit 55 Gallon Coolant Tank & Pump Chip Auger & Chute Available Cat 30 Tool Holders All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
