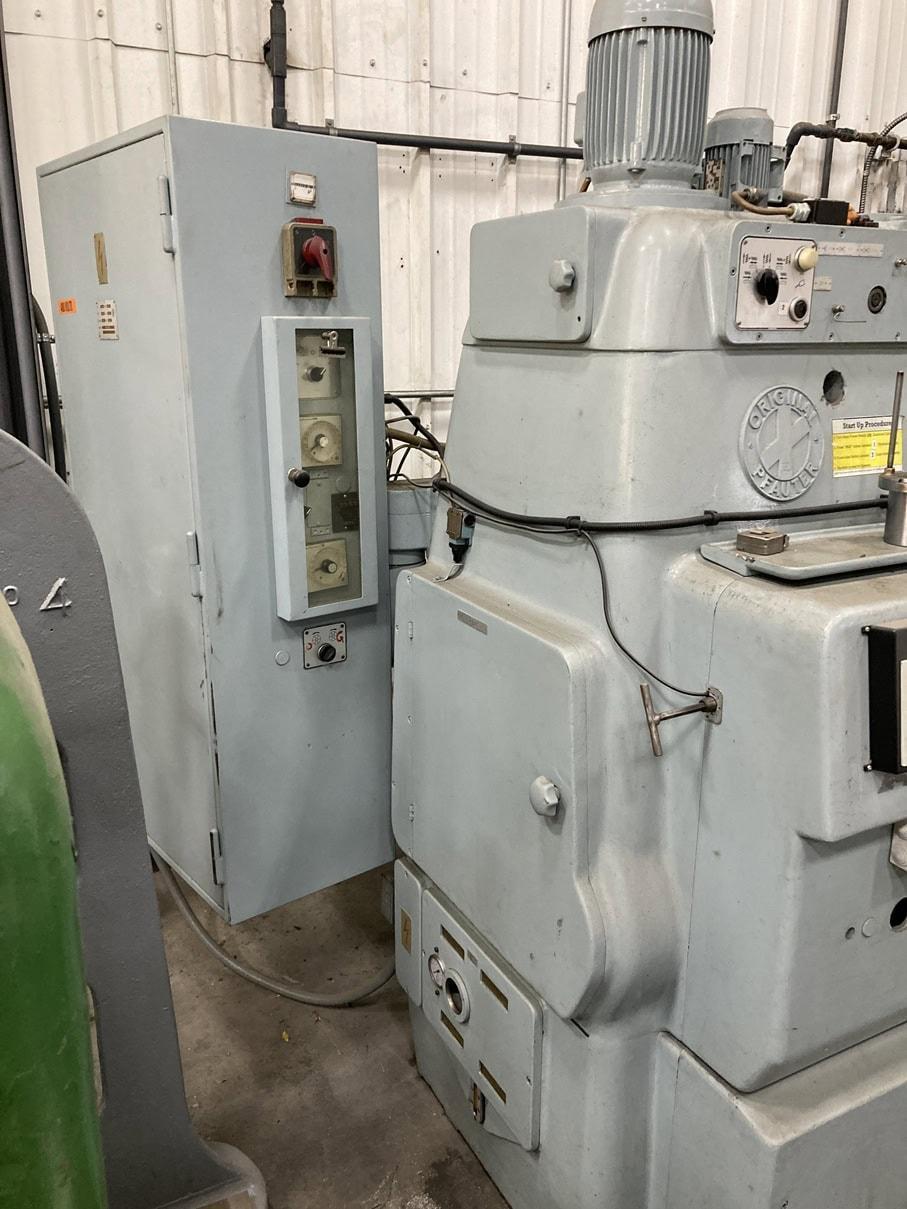

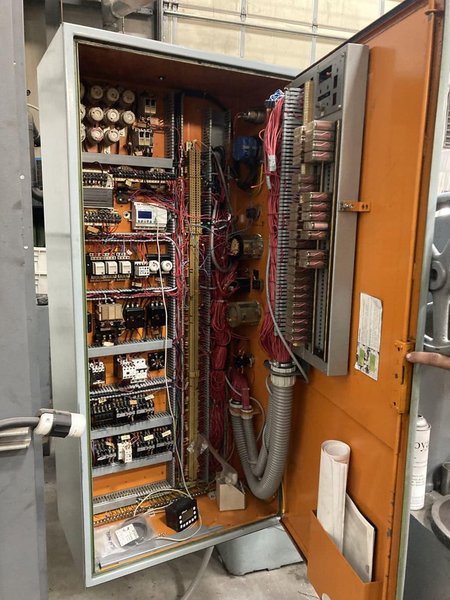

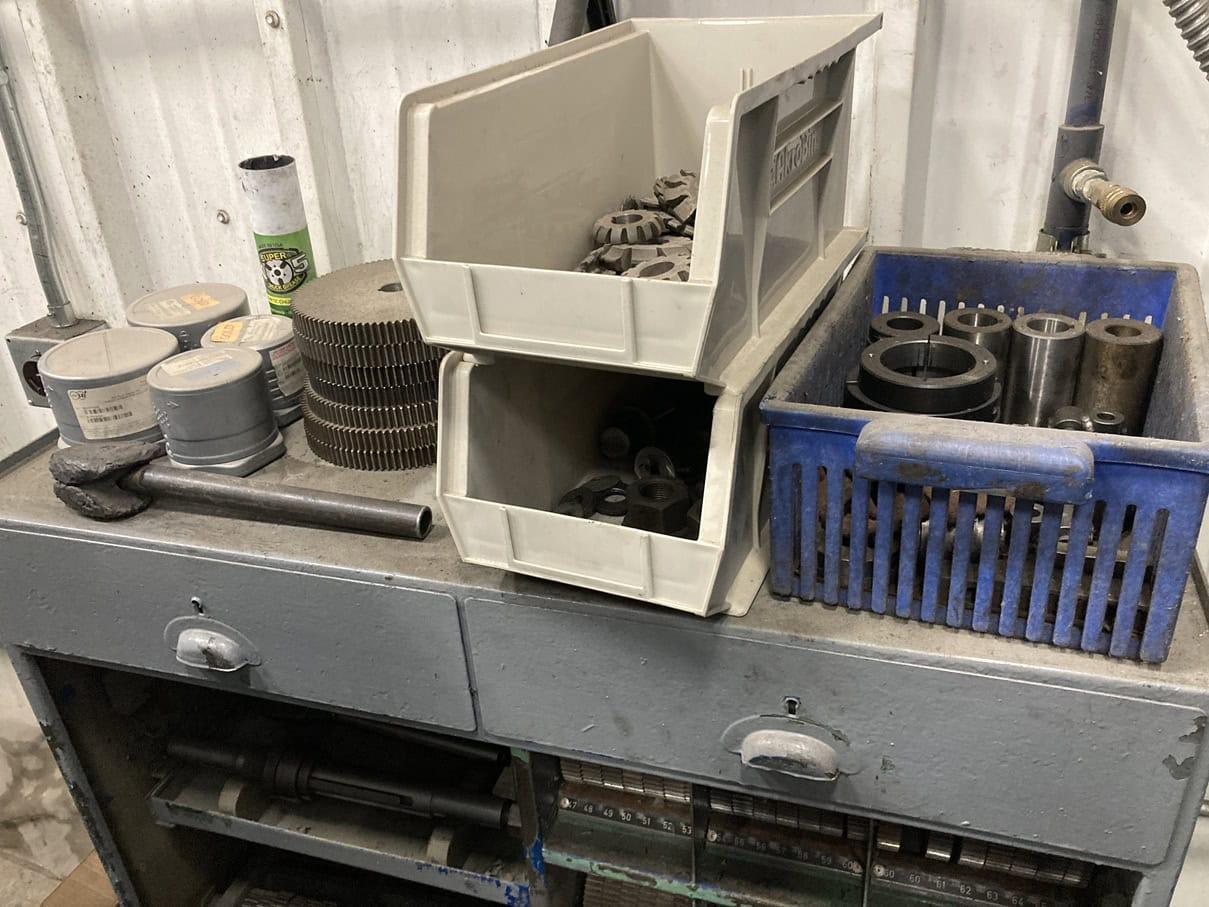

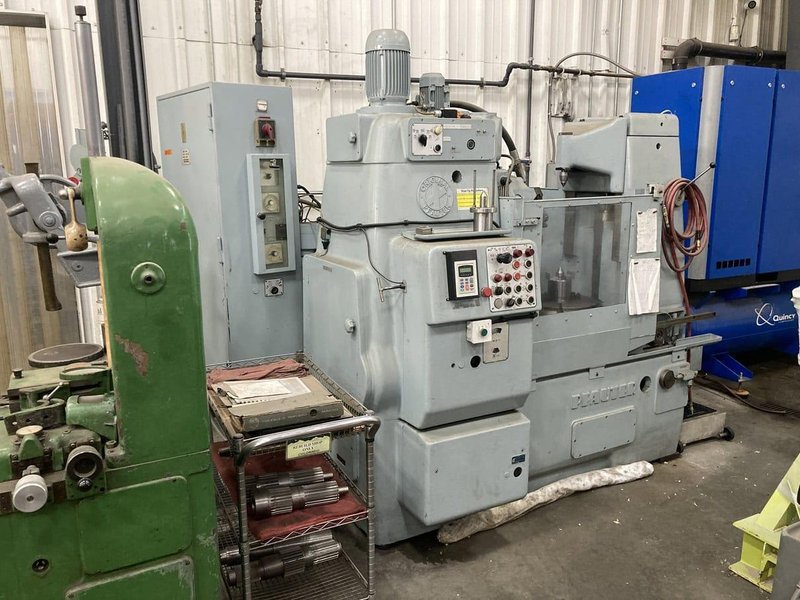

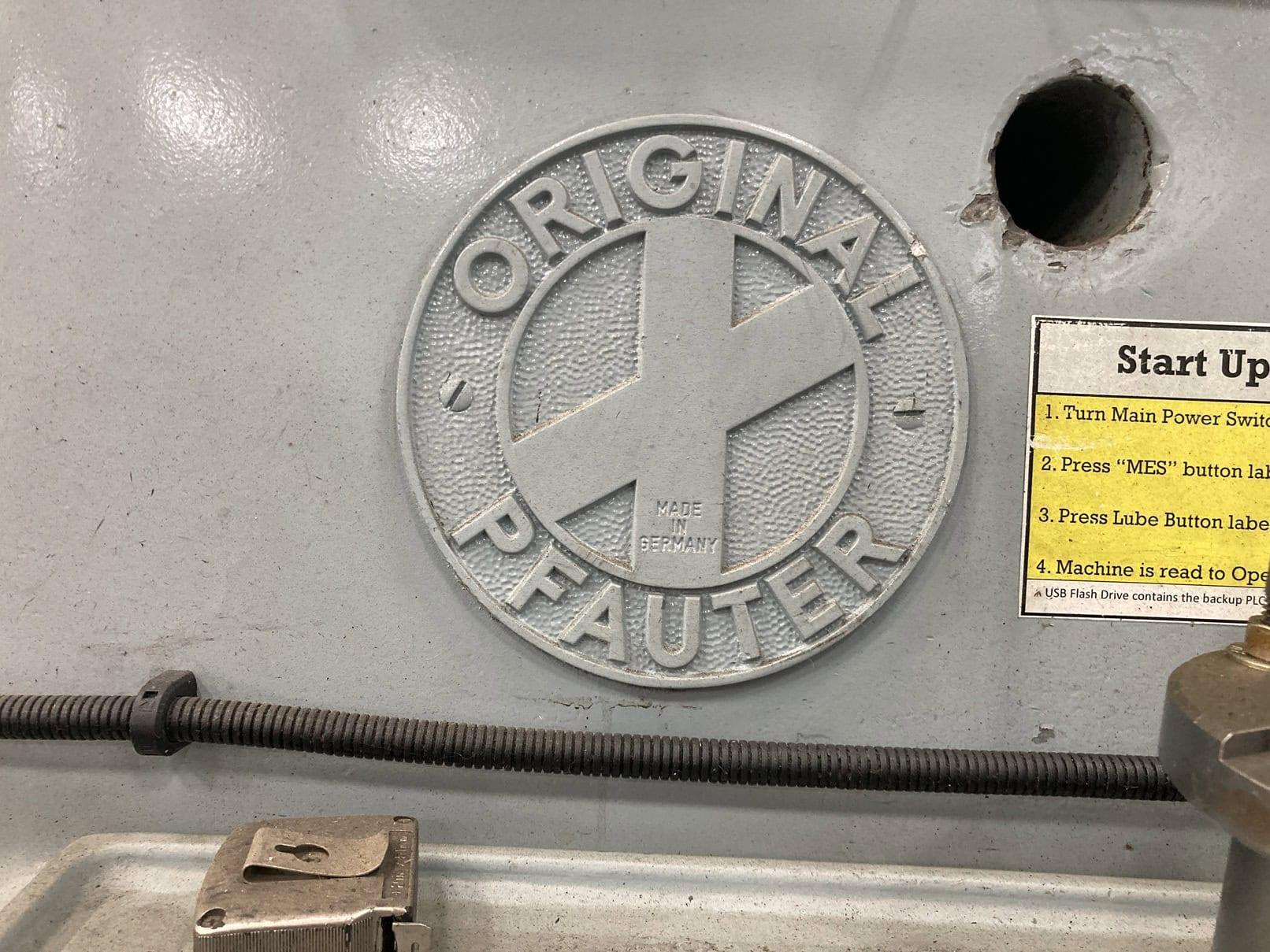

Pfauter P400 Gear Hobber, 1973 – Under Power, Tooling
Brand
Category
Model
P-400
Stock #
192830
Year
1973
Condition
Not specified
Location
Not specified
|
Max Gear Diameter 15.74”
Module 8
Rotary Table Size 16″
Bore Of Work Table 3.14”
Max Travel Of Mill Holder Slide 12.20”
Max Cutter Diameter & Length 6.29”
Center Distance Between Milling & Piece 0.78” – 11.41”
Max Moving Of Milling Cutter (Shifting) 4.72”
Max Moving Of Milling Cutter (Tangential) 4.96”
Max Hob Spindle Speed 500 RPM
Axial Feeds 0.4 – 7.5 MM/MIN
Radial Feeds 0.1 – 1.9 MM/MIN
Tangential Feeds 0.16 – 3 MM/MIN
Main Motor 17 KW
Voltage 440/460 V
Approximate Weight 12,500 LBS
Overall Dimension 102”L x 65”W x 95”H
All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
