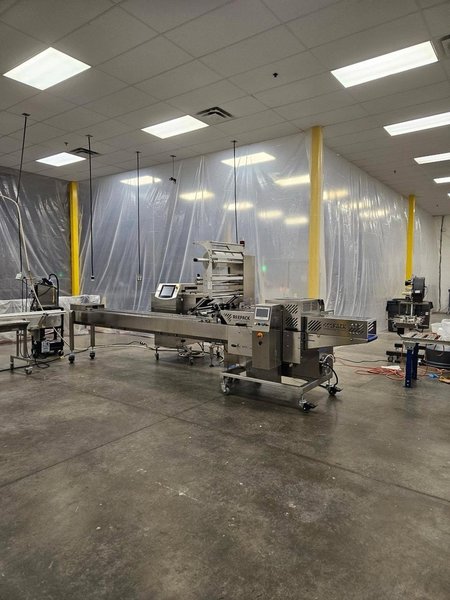

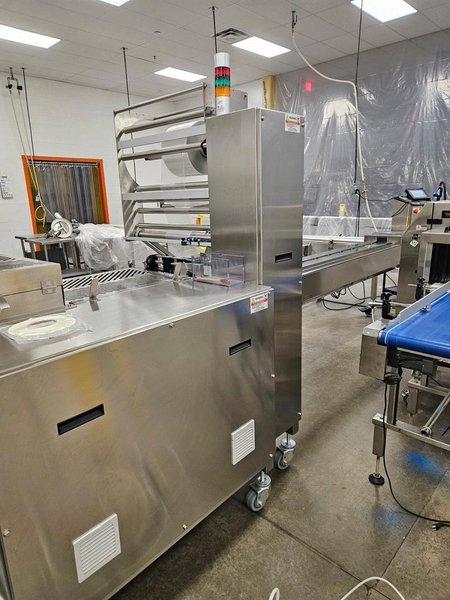

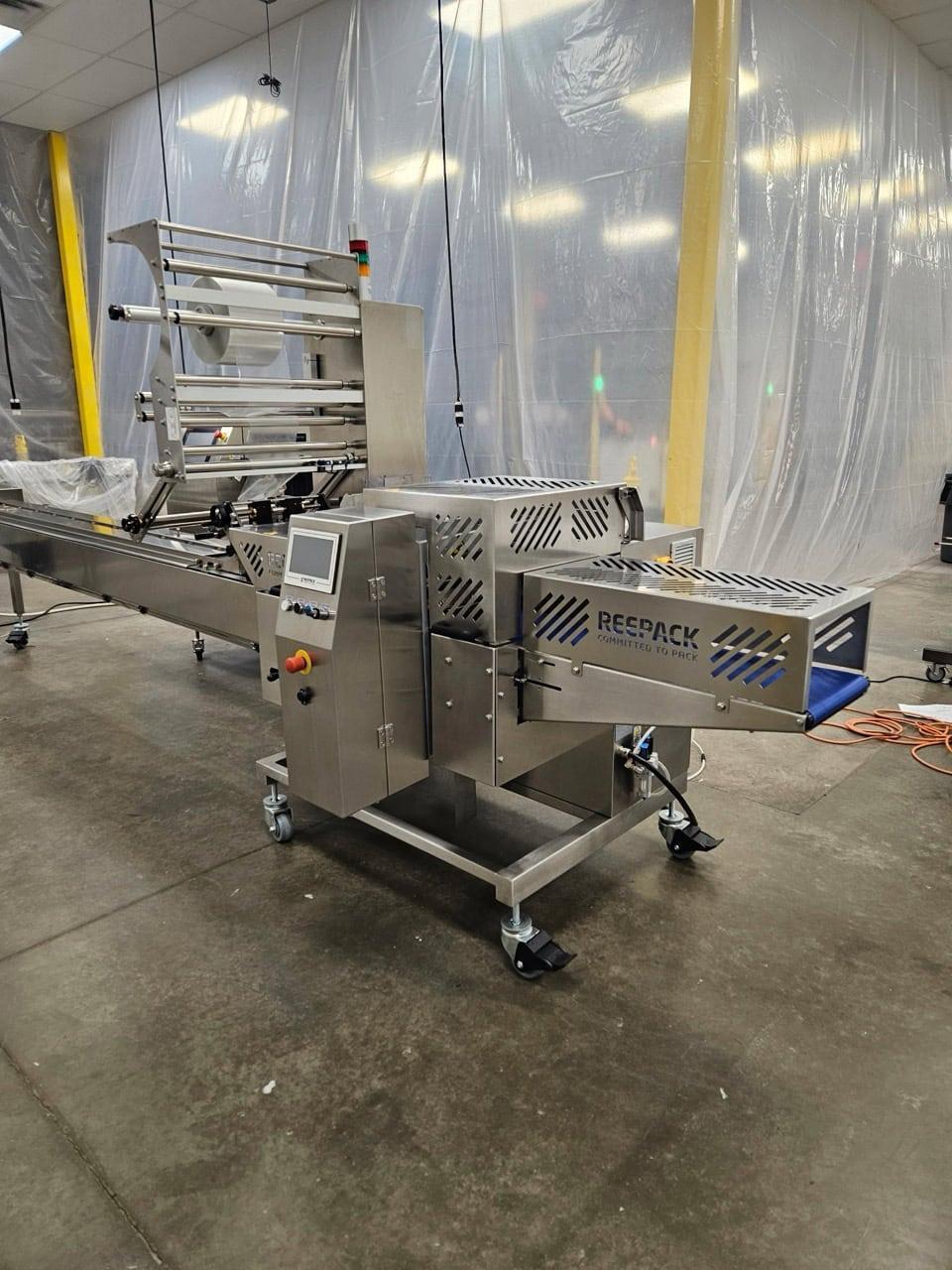

Reepack ReeFlow 50 Flow Stainless Steel Wrap Machine, 2021 – Right Hand Version, 2-Up

Used Reepack ReeFlow 50 Flow Stainless Steel Wrap Machine, 2021 – Right Hand Version, 2-Up

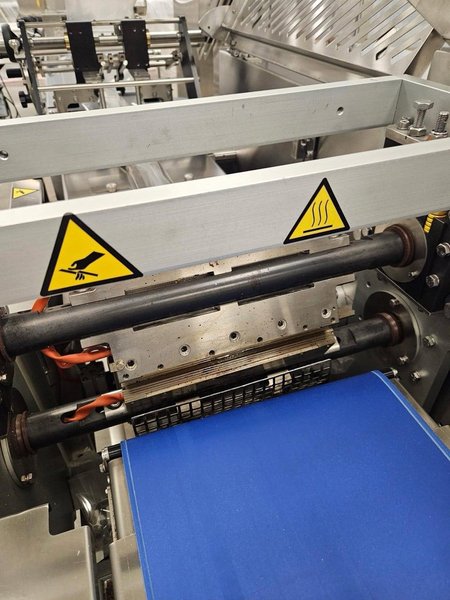

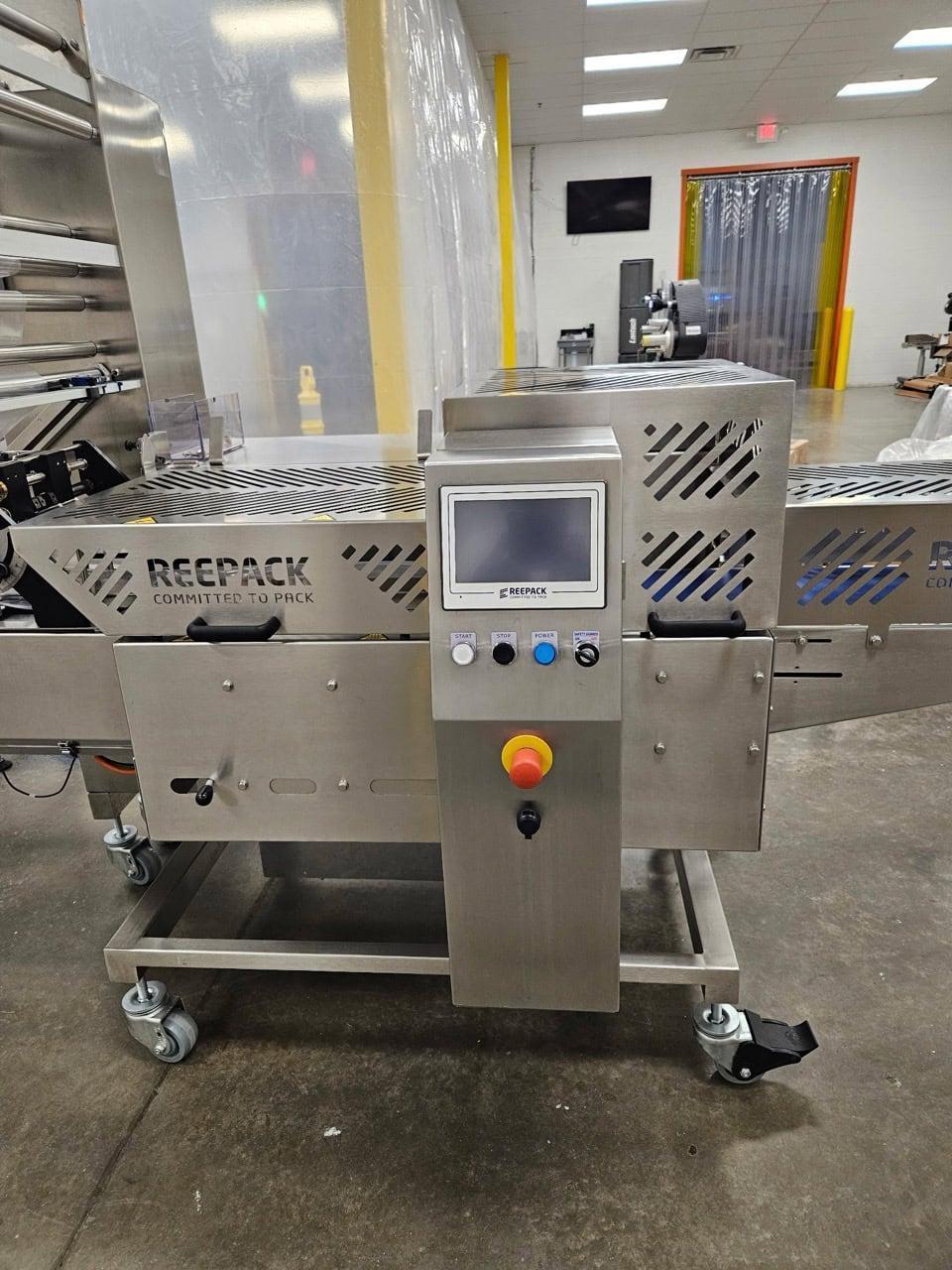

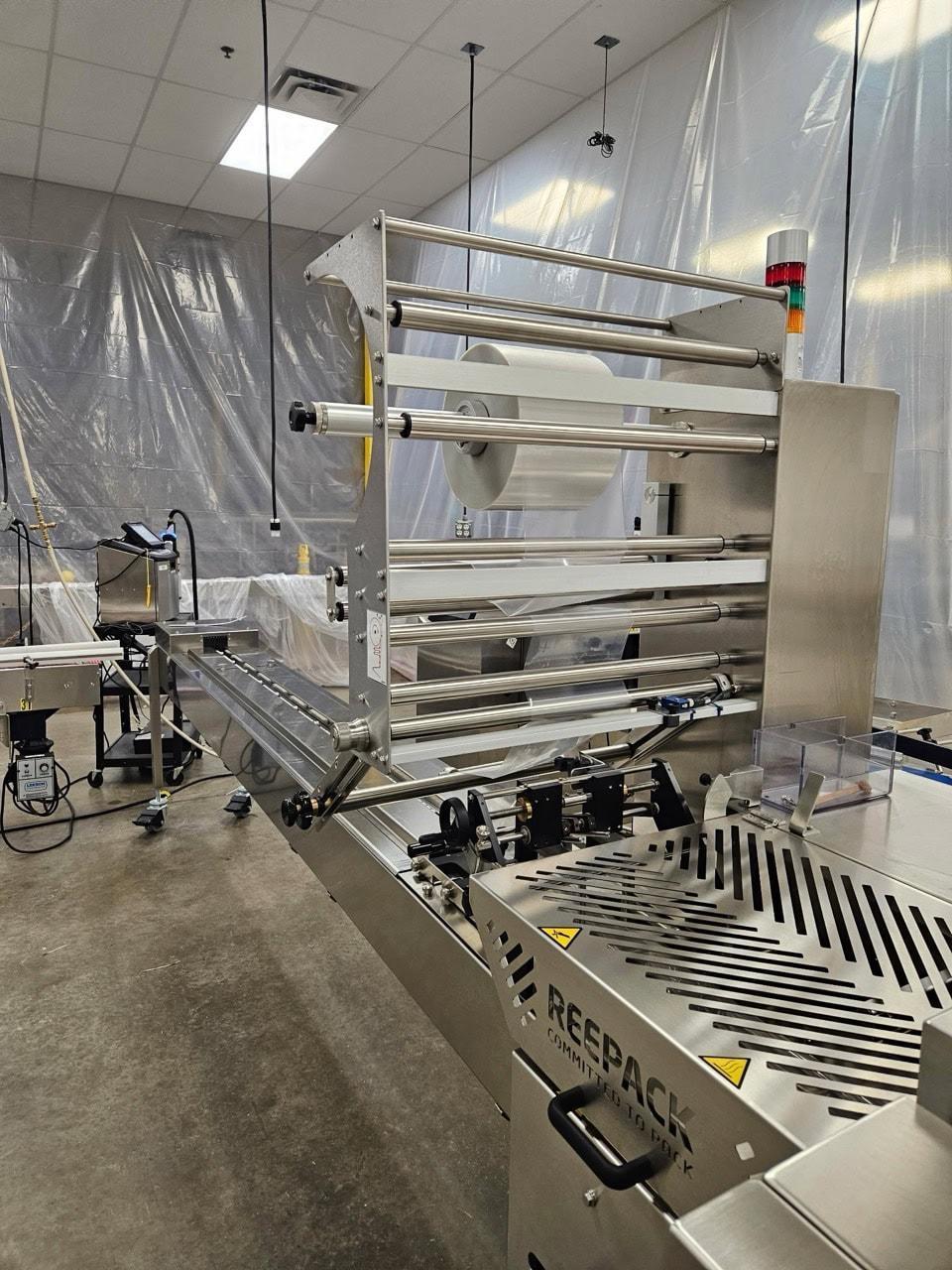

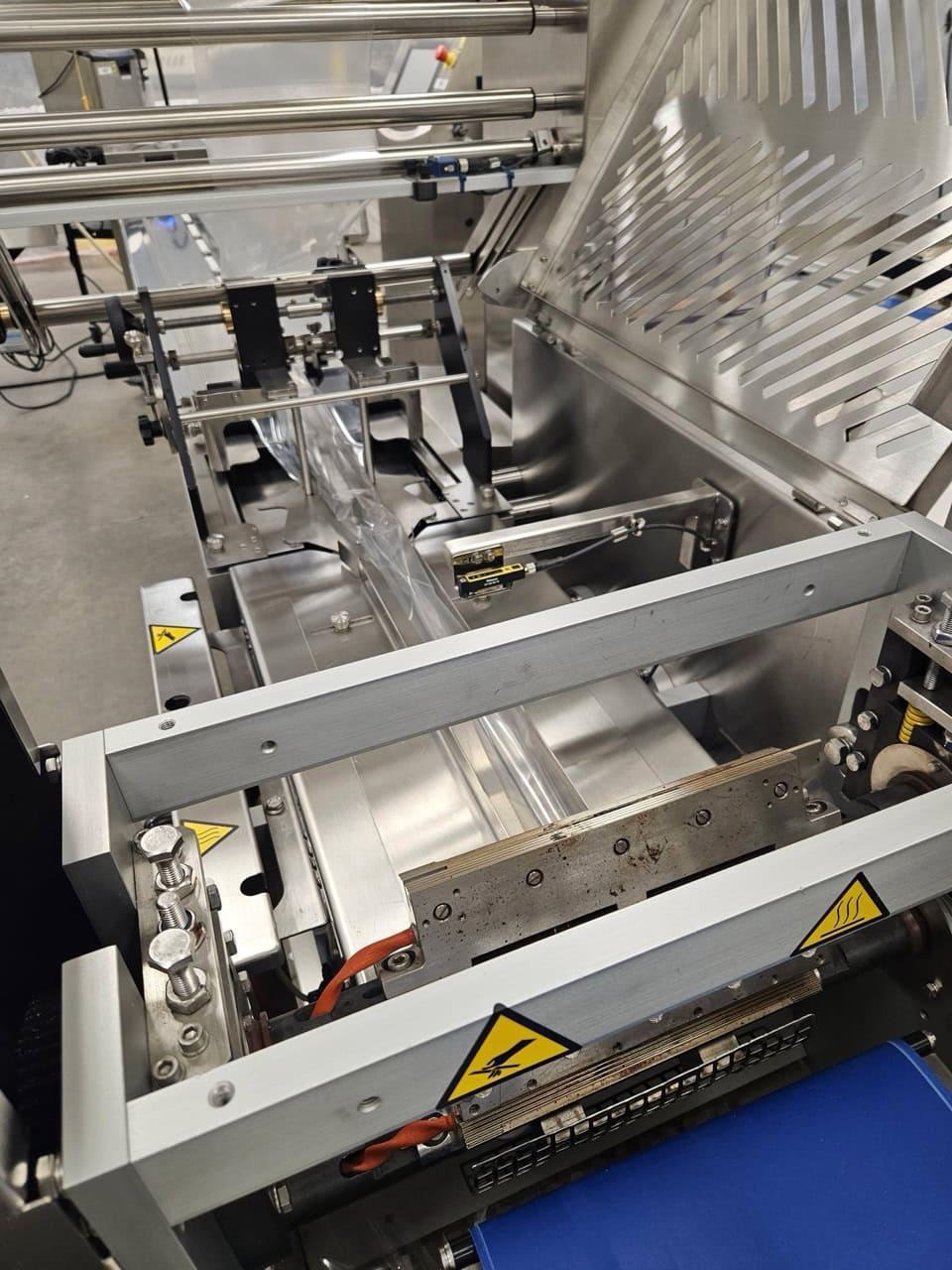

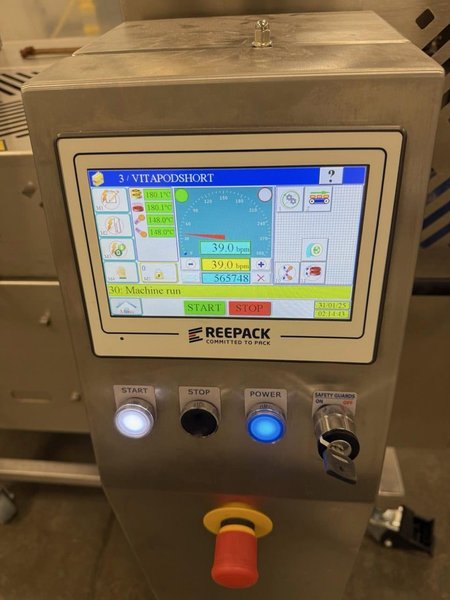

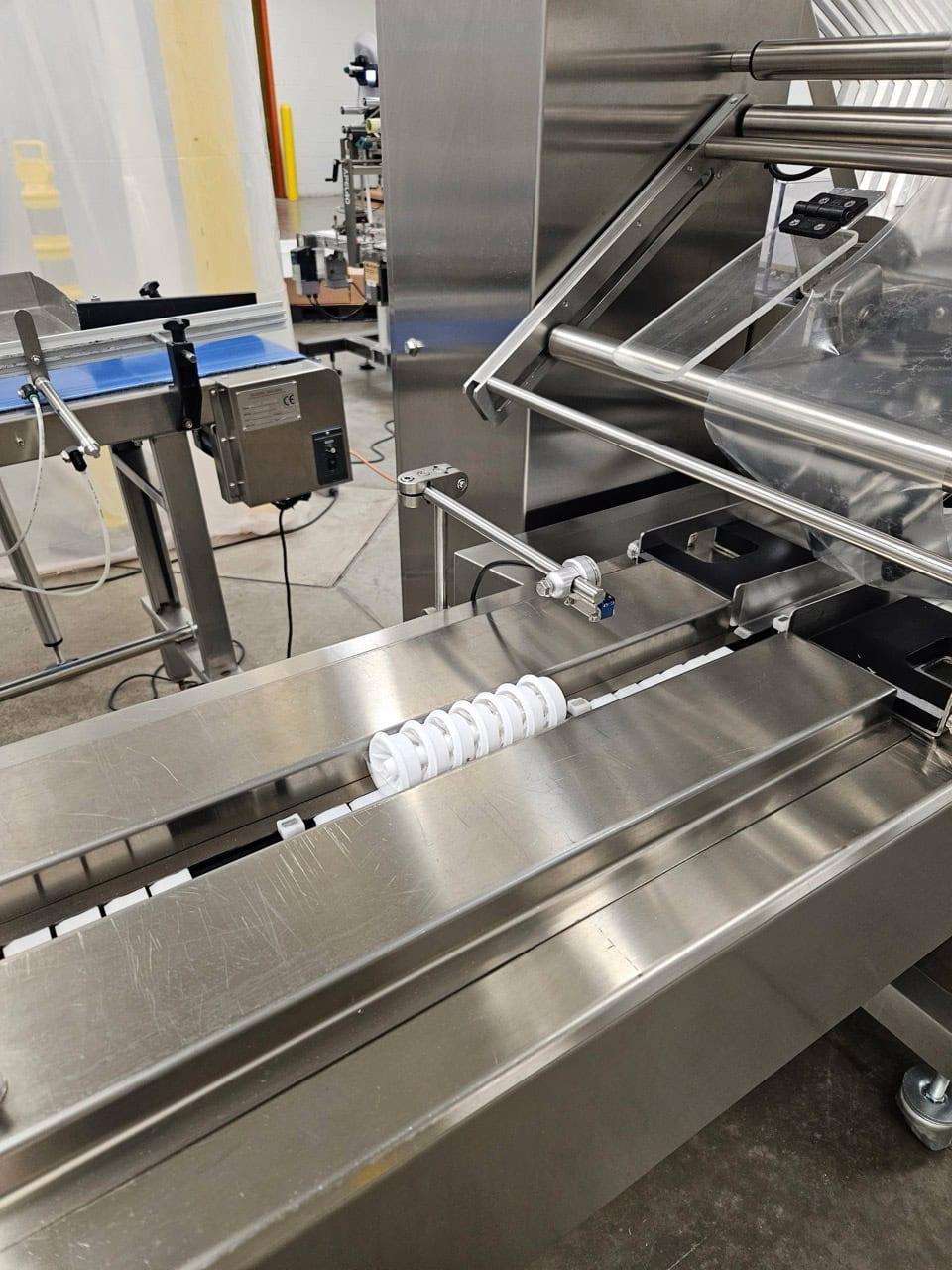

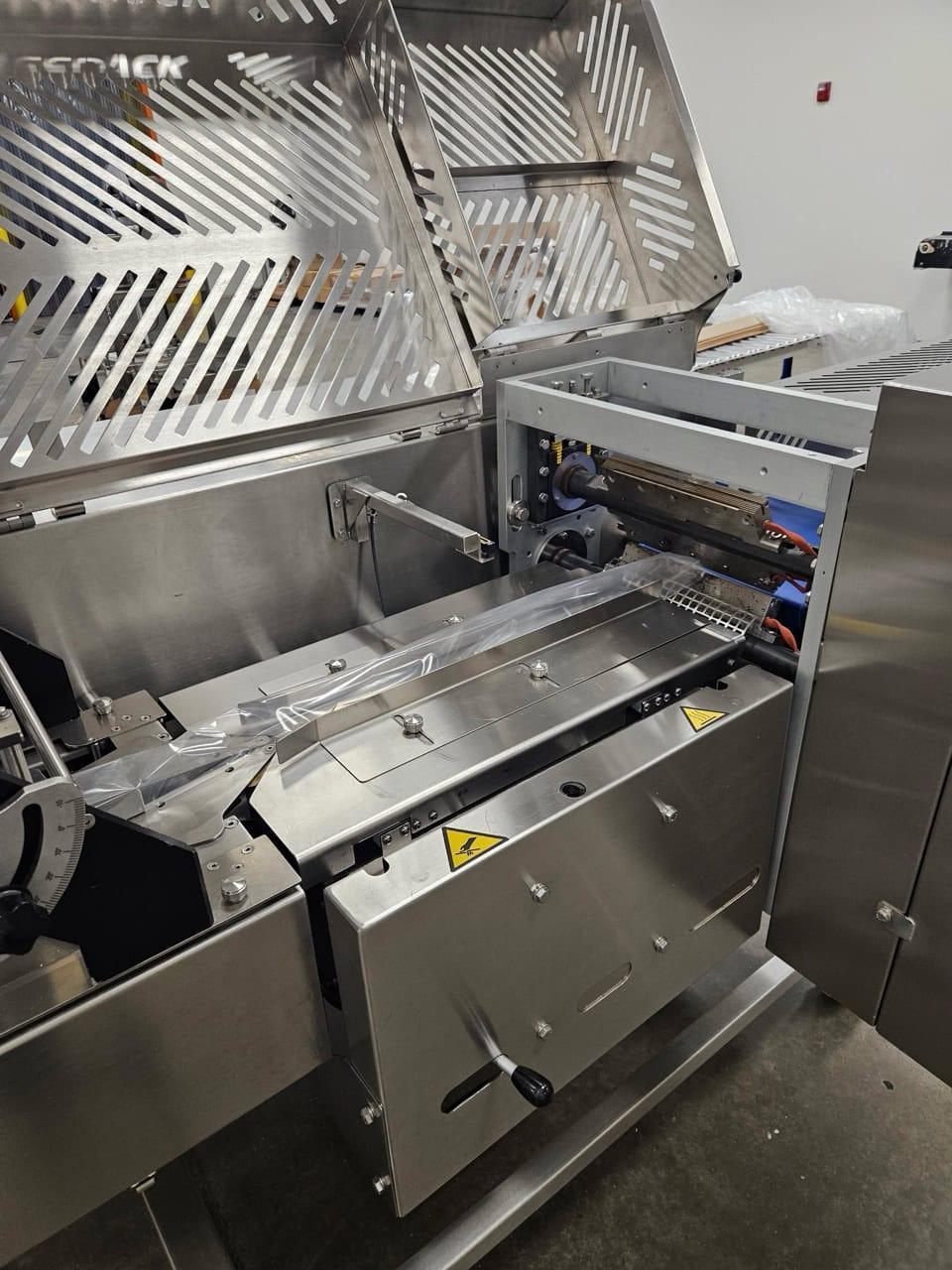

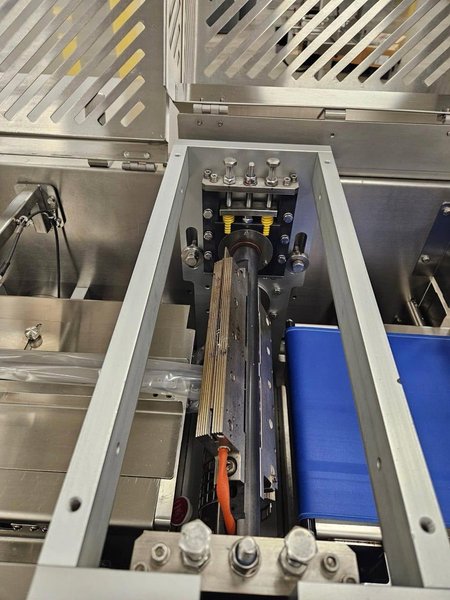

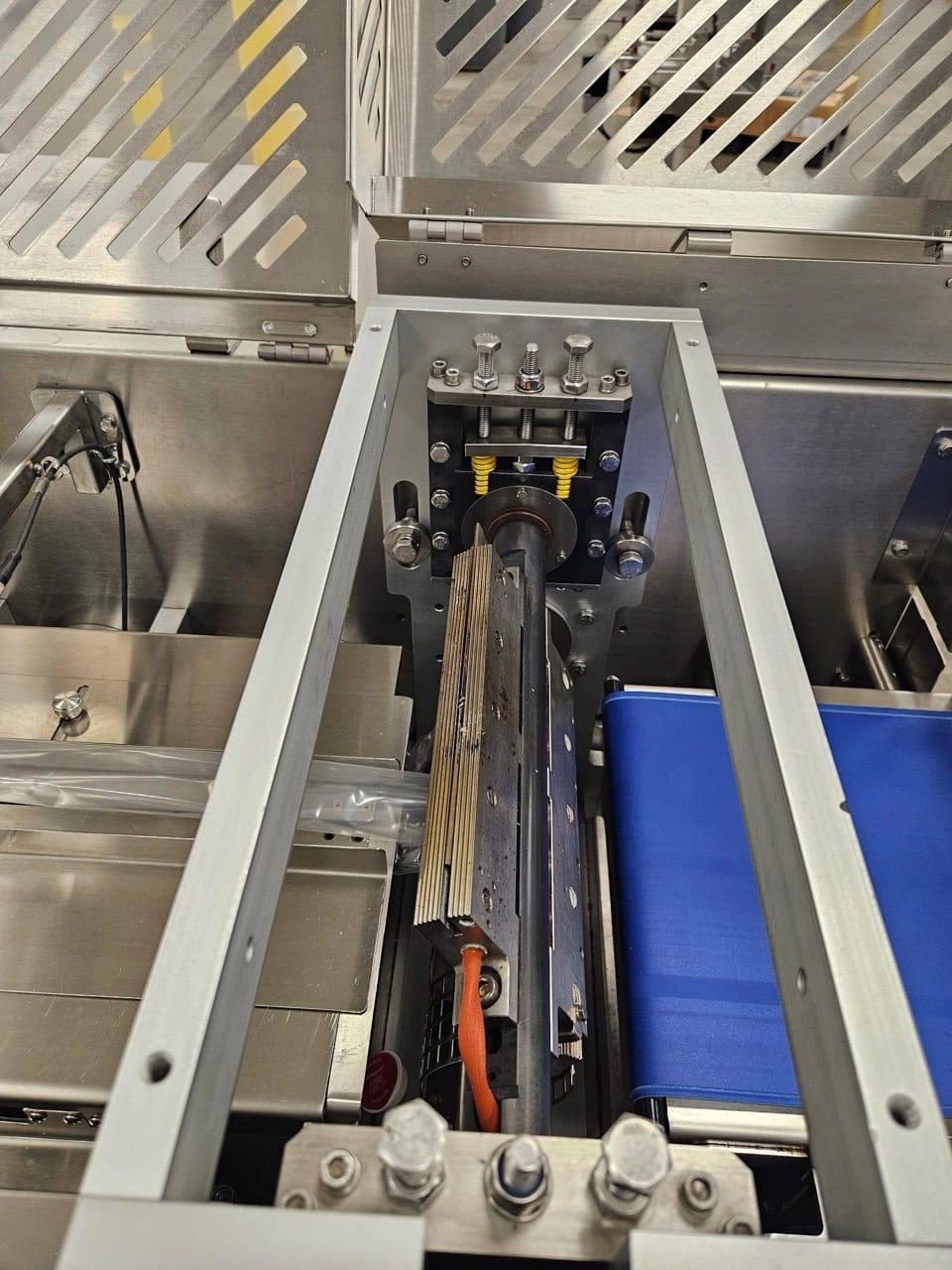

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Standard Infeed (loading area): lugged infeed conveyor in stainless steel – Eye mark reader for printed films – No product, no bag function – Longitudinal sealing station with 3 pairs (C-H-F) of rollers for dragging, sealing, and edge-folding – Rotary motion system with 1 pair of jaws (250mm L, Centrax 140mm) for transversal sealing and cutting – Motorized product discharge through 900 mm flat belt conveyor – PLC by CMZ with 7 colored touch-screen display – Motorization with 3-axis stepless Toshiba (infeed, sealing rollers, jaws) + 2 asynchronous motors (film unwinding, out-feed belt) – Adjustable film folding box, maximum product width: 185mm – Film reel holder: top position – Maximum film reel width: 600mm – Maximum film reel weight: 40 kg – Sealing rollers: bottom position – Sealing roller layout: 3 Pairs C-H-F – Sealing and cutting jaws: rotary system – Maximum jaws length: 350mm – Maximum product height: 85mm – Standard outfeed conveyor length: 900mm – Maximum film speed: 40 m/min – Maximum packaging output: 250 PPM – Standard motorization – 230V, 60Hz, 3/PE, Max 25A

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Approximately 10K in spare parts included: – Two sets of knives: a standard serrated style and a V notch – (3) REE-5003058 Heating Elements – (3) REE-X10010680 Heating Elements – (3) REE-5029008 Thermocouple – (2) REE-X20000270

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
