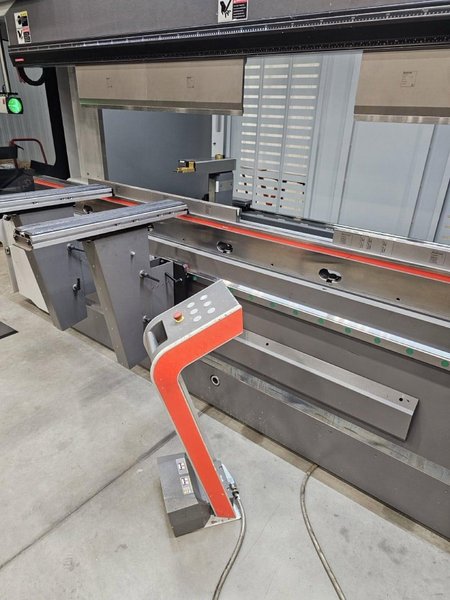

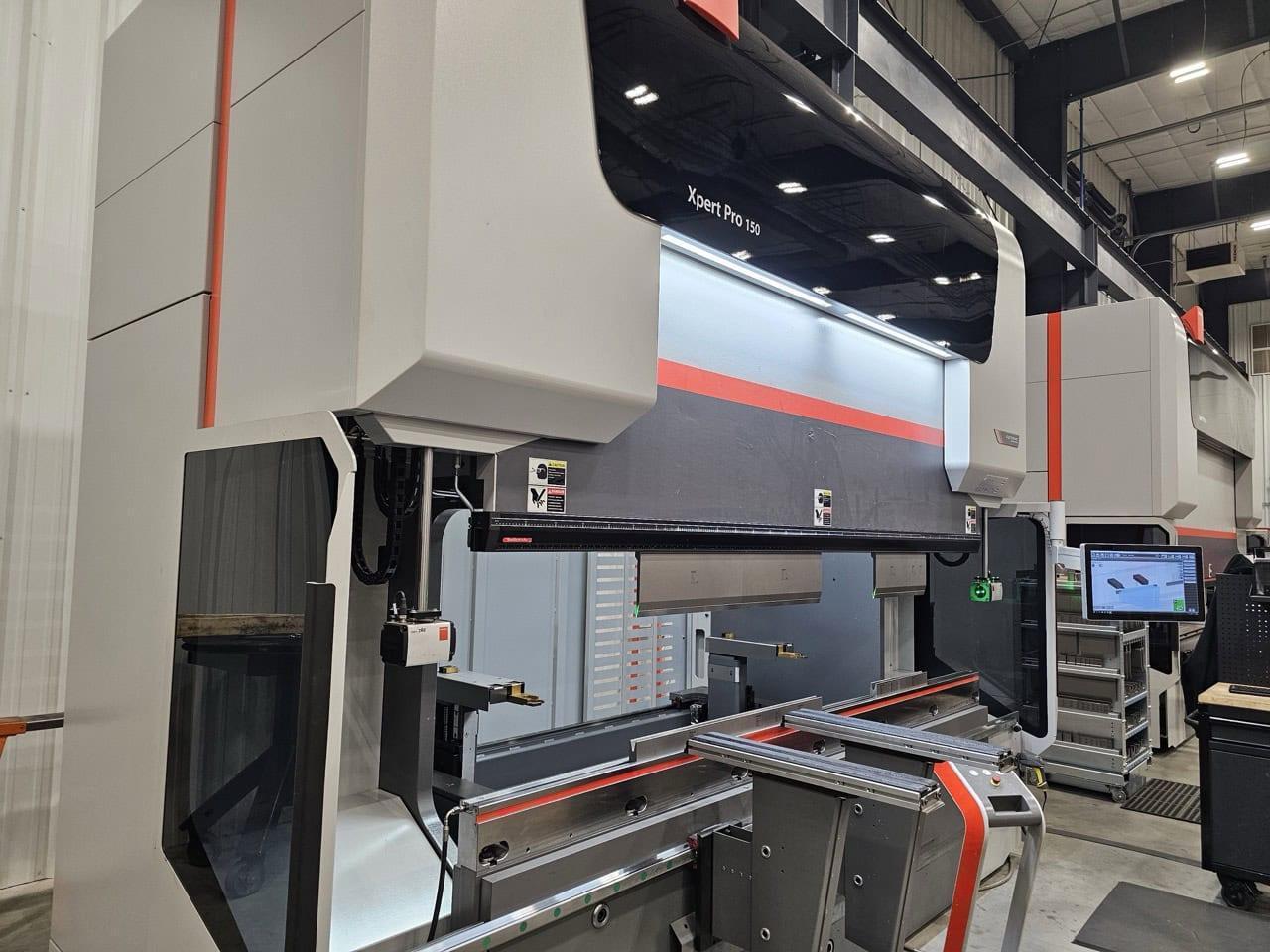

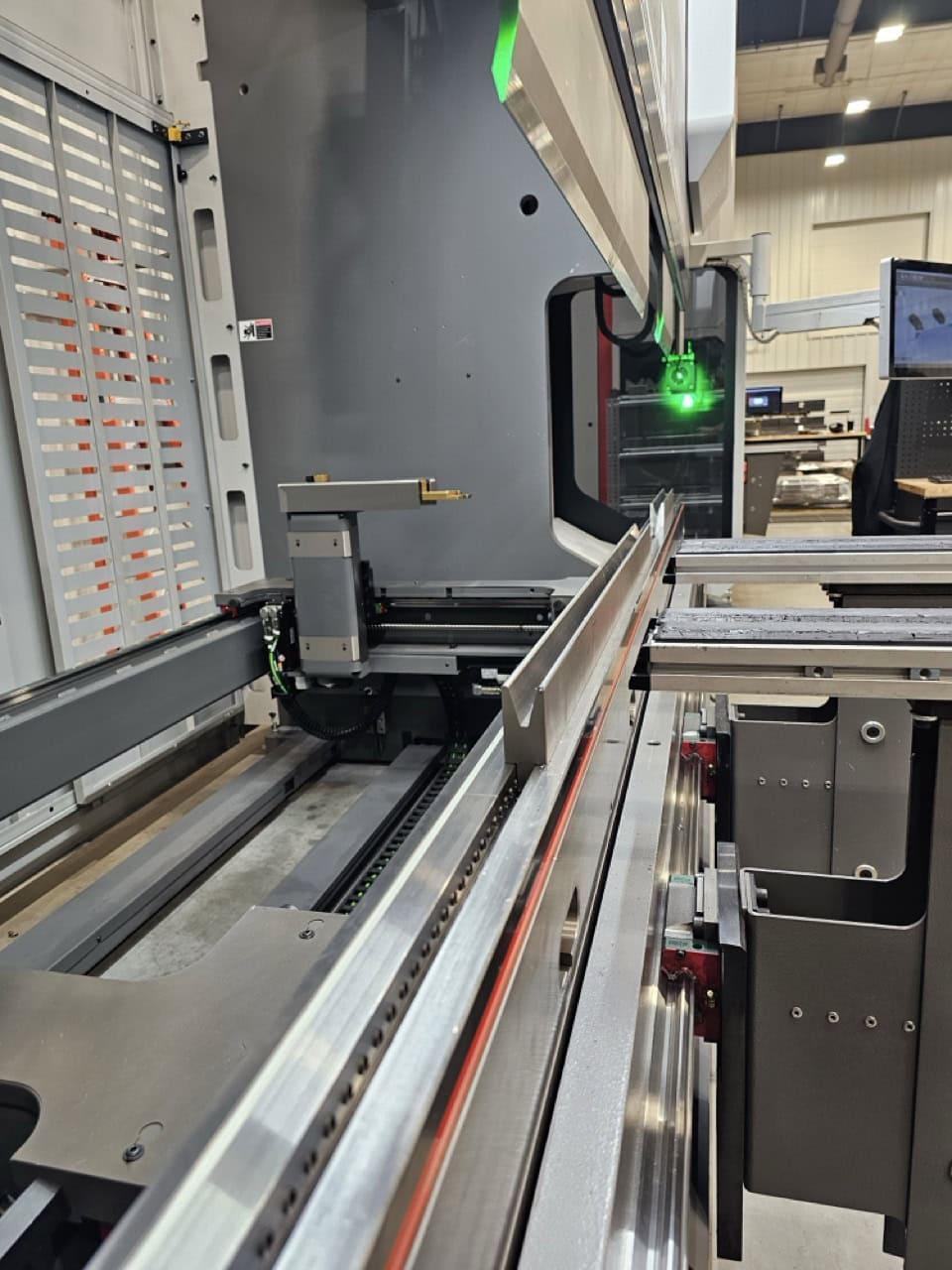

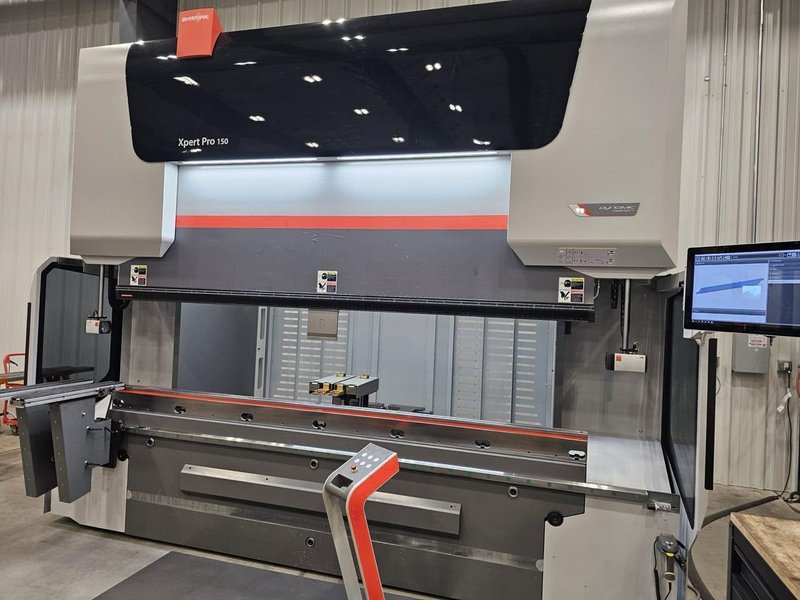

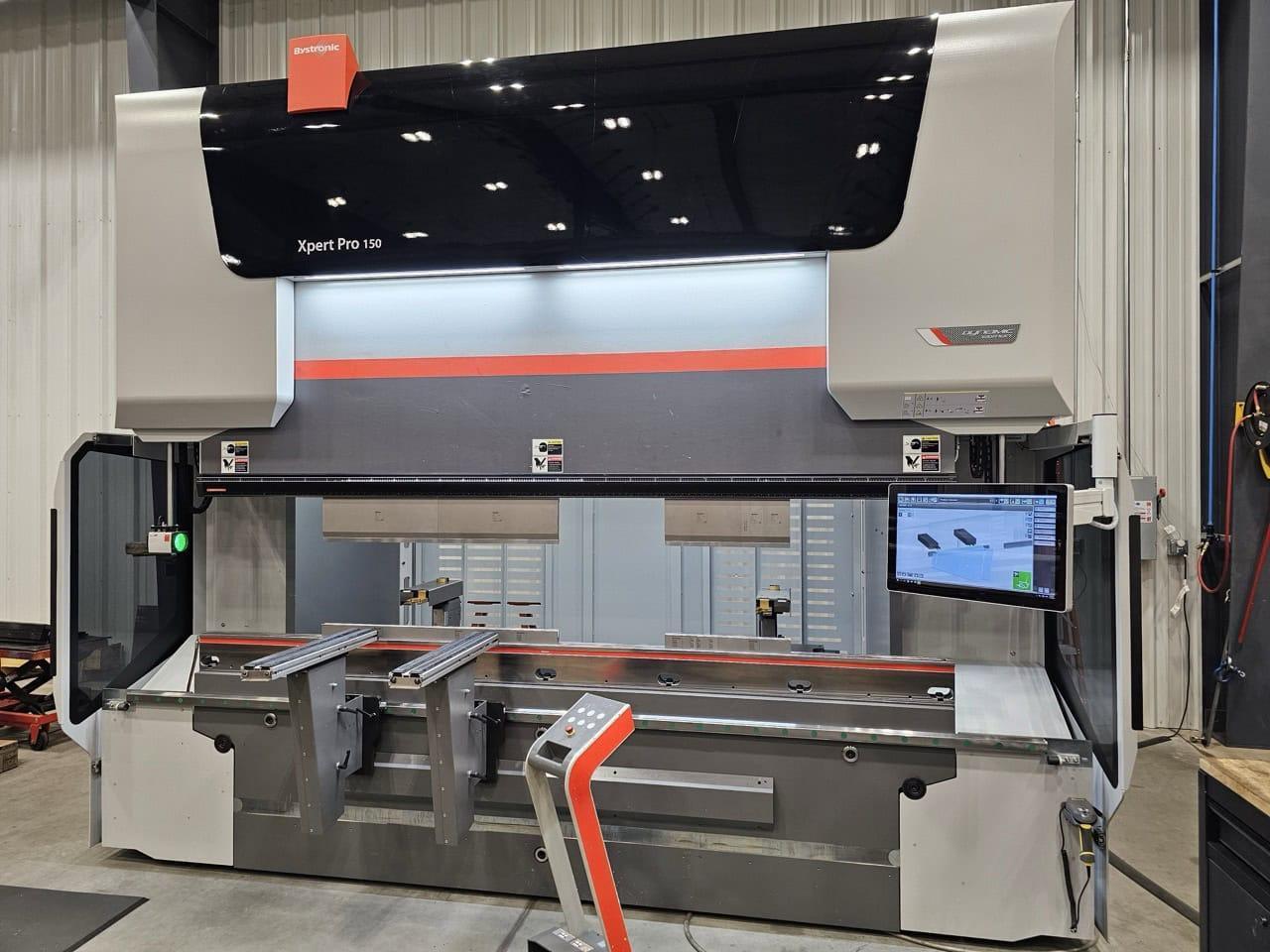

165 Ton x 10′ Bystronic Xpert Pro 150/3100 Extended Hydraulic Press Brake, 2022
Brand
Not specified
Category
Type
Model
Xpert Pro 150/3100
Stock #
913295
Year
2022
Condition
Not specified
Location
Michigan
|
Tonnage: 165 Tons
Bending length: 122.1 in
Standard stroke: 17.7 in
Open height: 33.0 in
Distance between side frames: 108.3 in
Throat: 15.8 in
Table Width: 2.4 in
Max. back gauge range X-axis: 41.4 in
X-axis travel: 23.7 in
X-axis speed: 1536 in/min
X-axis position accuracy: 0.0016 in
R-axis travel: 9.9 in
R-axis speed: 473 in/min
R-axis position accuracy: 0.004 in
Z-axis travel: 75 in
Z-axis speed: 3544 in/min
Z-axis speed for 6-axis: 2834.6 in/min
Z-axis position accuracy: 0.004 in
Y-position accuracy: 0.00016 in
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Weight 29101.0 lbs Length, approx. [L] 164.6 in Width, approx. [W] 78.7 in Height, approx. [H] 134.6 in Proposed foot print approx. [LF x WF x HF] 236x177x157.5 in All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
