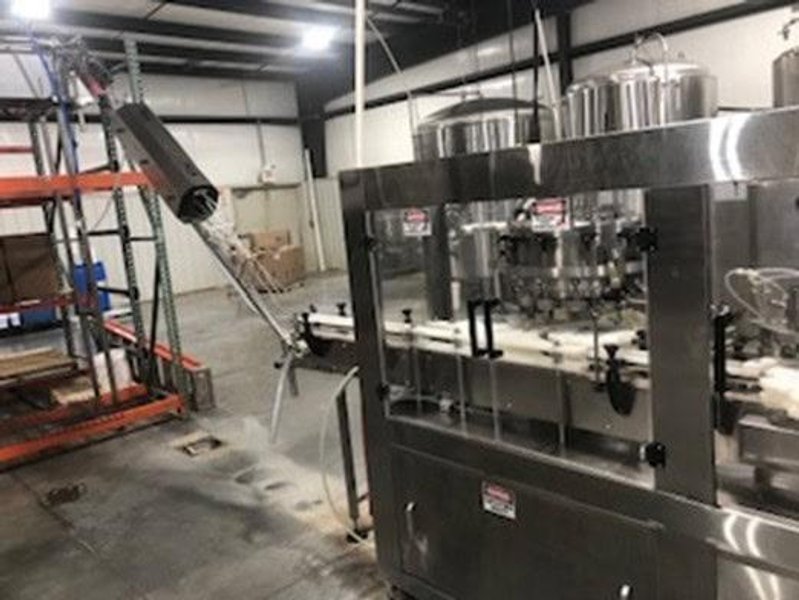

Complete Beverage Canning line with Ska Fab Depalletizer, Palmer Canner 12-1, 2015 – Equipped with Axon Sleever and Shrink Tunnel, Eastey Sleeve Wrapper and Shrink Tunnel, Dakota Water RO System, 3,000 Gallon Poly Tank, Pro-Refrigeration Glycol Chilling Unit, 30 BBL Tank, 40 BBL Tank, 60 BBL Tank

Used Complete Beverage Canning line with Ska Fab Depalletizer, Palmer Canner 12-1, 2015 – Equipped with Axon Sleever and Shrink Tunnel, Eastey Sleeve Wrapper and Shrink Tunnel, Dakota Water RO System, 3,000 Gallon Poly Tank, Pro-Refrigeration Glycol Chilling Unit, 30 BBL Tank, 40 BBL Tank, 60 BBL Tank:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Foot print of the line is currently 30’ x 60’ with 18’ ceilings (including 4-tanks).

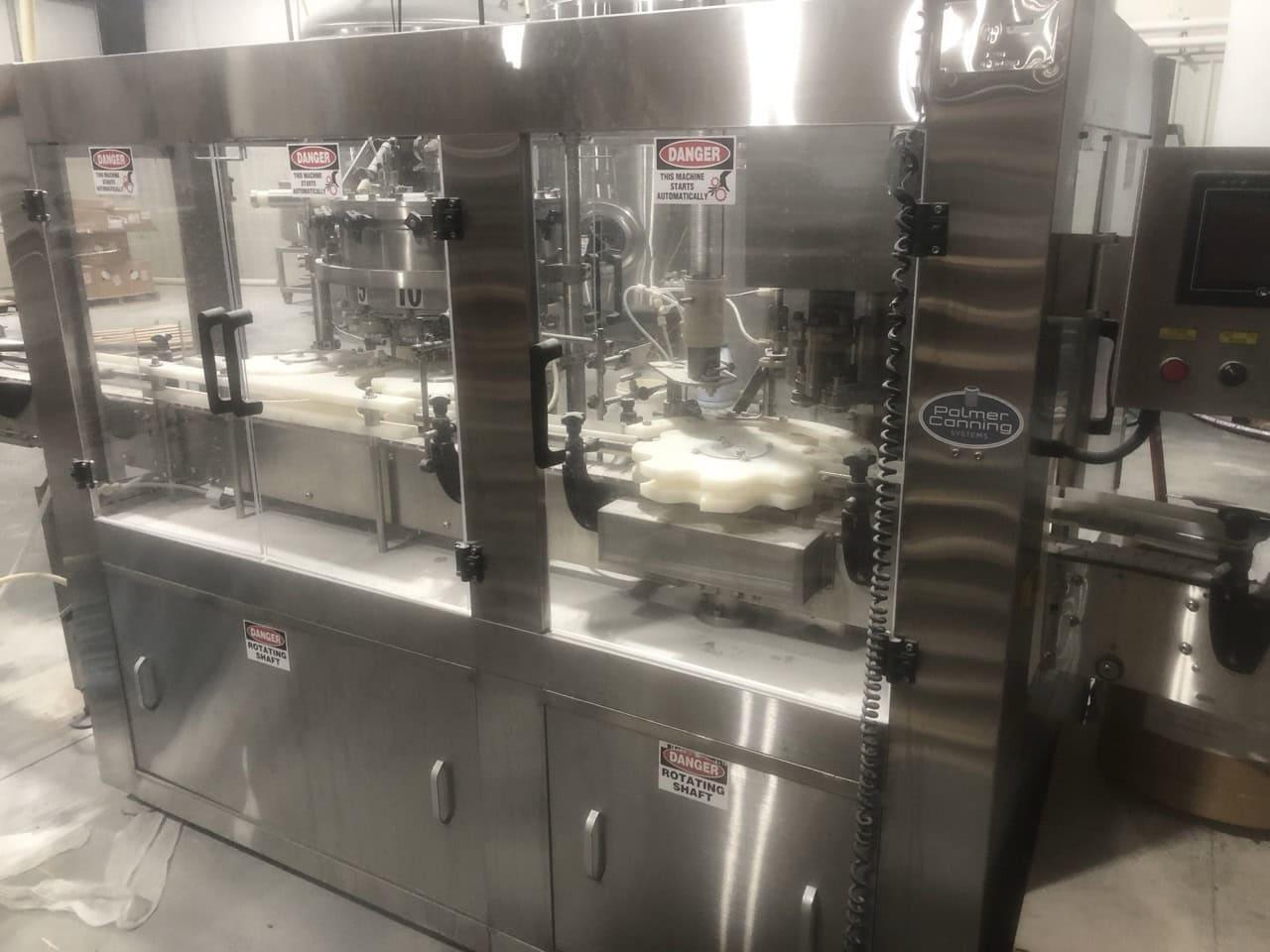

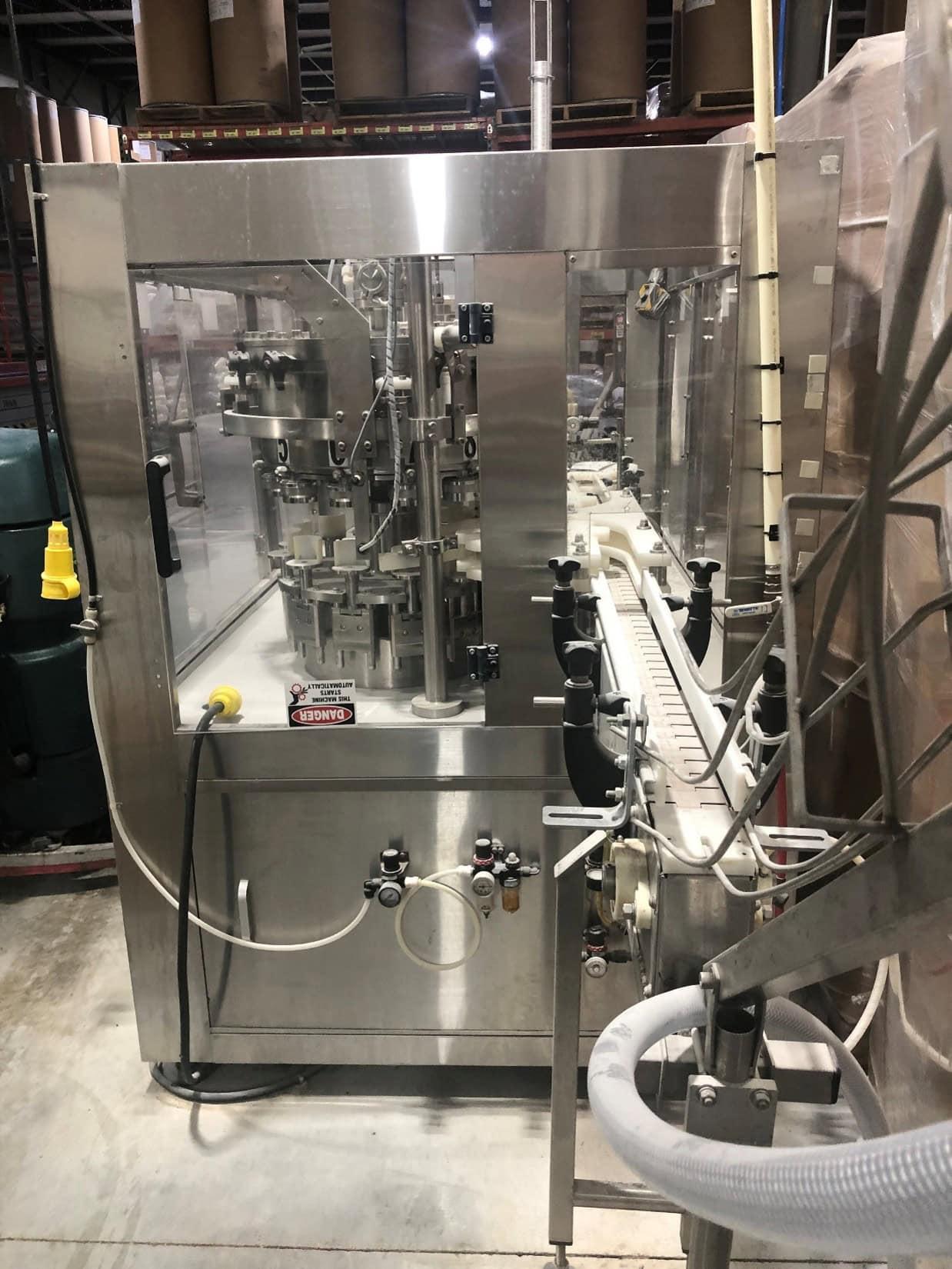

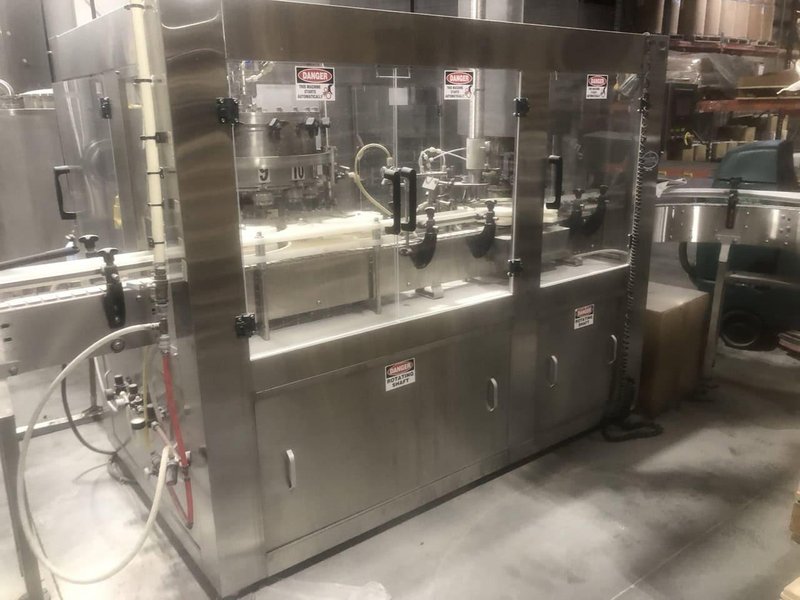

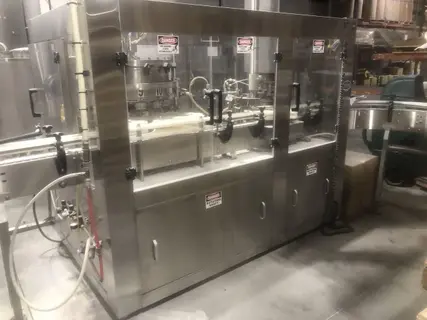

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Palmer Gen1 12-1 Canning Line, previously running a RTD carbonated nutritional supplement.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– System Type: Continuous Canning Fill & Seal Line – Output Capacity: 55 cans per minute – Optimized for 16 oz standard cans; 12 oz standard and 12 oz sleek compatibility (comes with change over parts)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Line Configuration: – Filler: Palmer Gen1 12-1 Canning Line – Seamer: Built in post-fill seamer – Lid Delivery: Gravity index feeder sensor driven – Rinse Station: Burst rinse with air dry (post-seamer) – Material Flow: Linear feed with sensor-triggered indexing

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Automation: -PLC-controlled via integrated HMI touchscreen -Manual override and e-stop integrated -Photo-eye and sensor logic used throughout line

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Construction: -304 Stainless Steel frame -Lexan safety guards and splash panels -Modular expansion-ready structure

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Utility Requirements: -Power: 208V 3-phase, 60Hz, 20A -Air: 6 SCFM @ 80 PSI -CO₂: 2.5 SCFM @ 20 PSI -Water: < 1 GPM

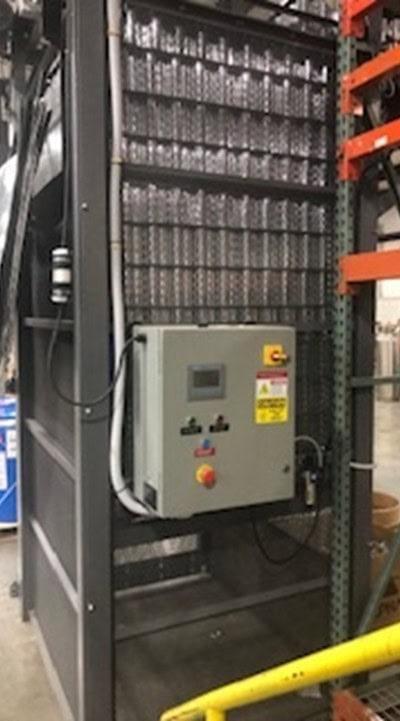

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Ska Fab Can-i-bus Depalletizer with gravity fed twist & rinse to Palmer canner

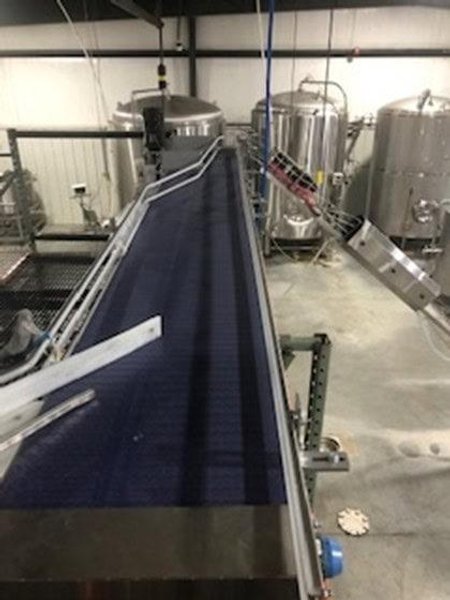

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Depalletizer Features: – Automatic lift & sweep system – Accepts 44×56″ pallets (full height) – Slip-sheet removal: Automatic by layer – Speed: Up to 80 CPM (line rate match) – Discharge Conveyor: 6″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rinser Elevator Features: – Internal twist rinse chute with spray manifold – S-curve drop design for clean entry to conveyor – Stainless steel housing, vertical structure – Purpose: Feeds cans from pallet to Axon Sleever automatically while rinsing interiors pre-fill

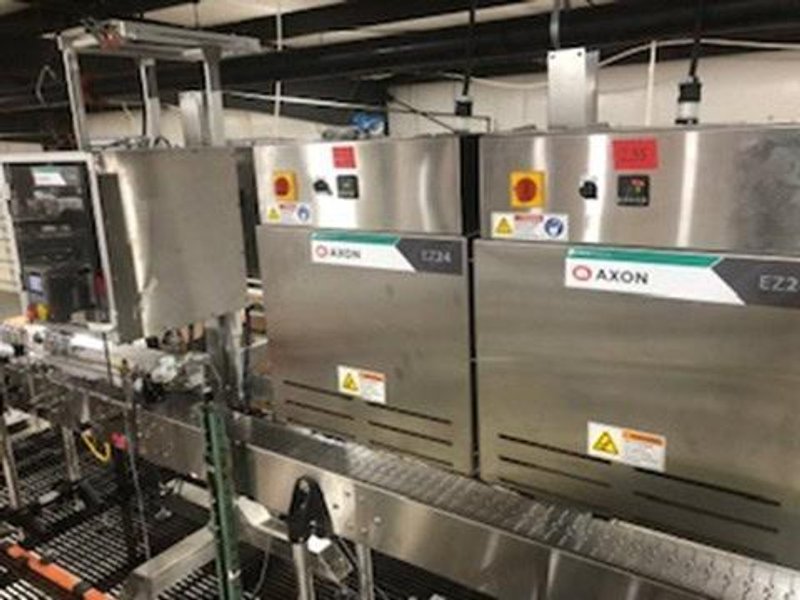

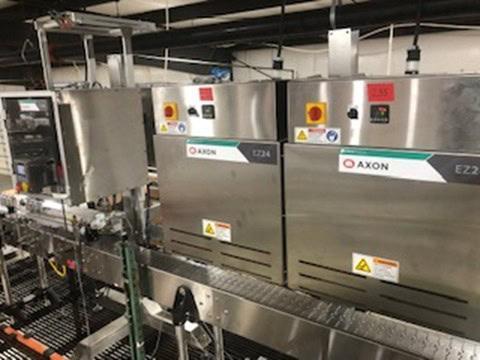

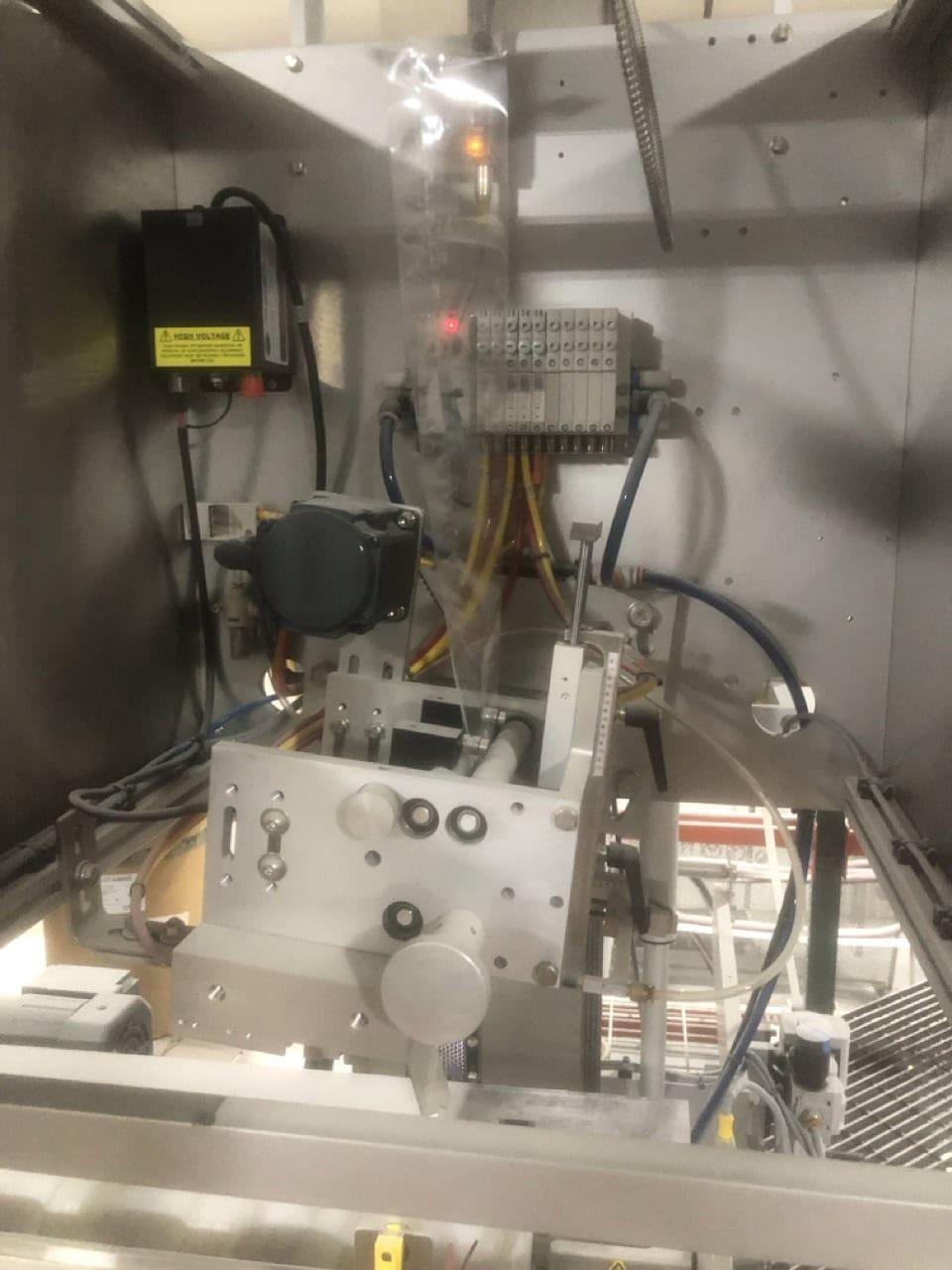

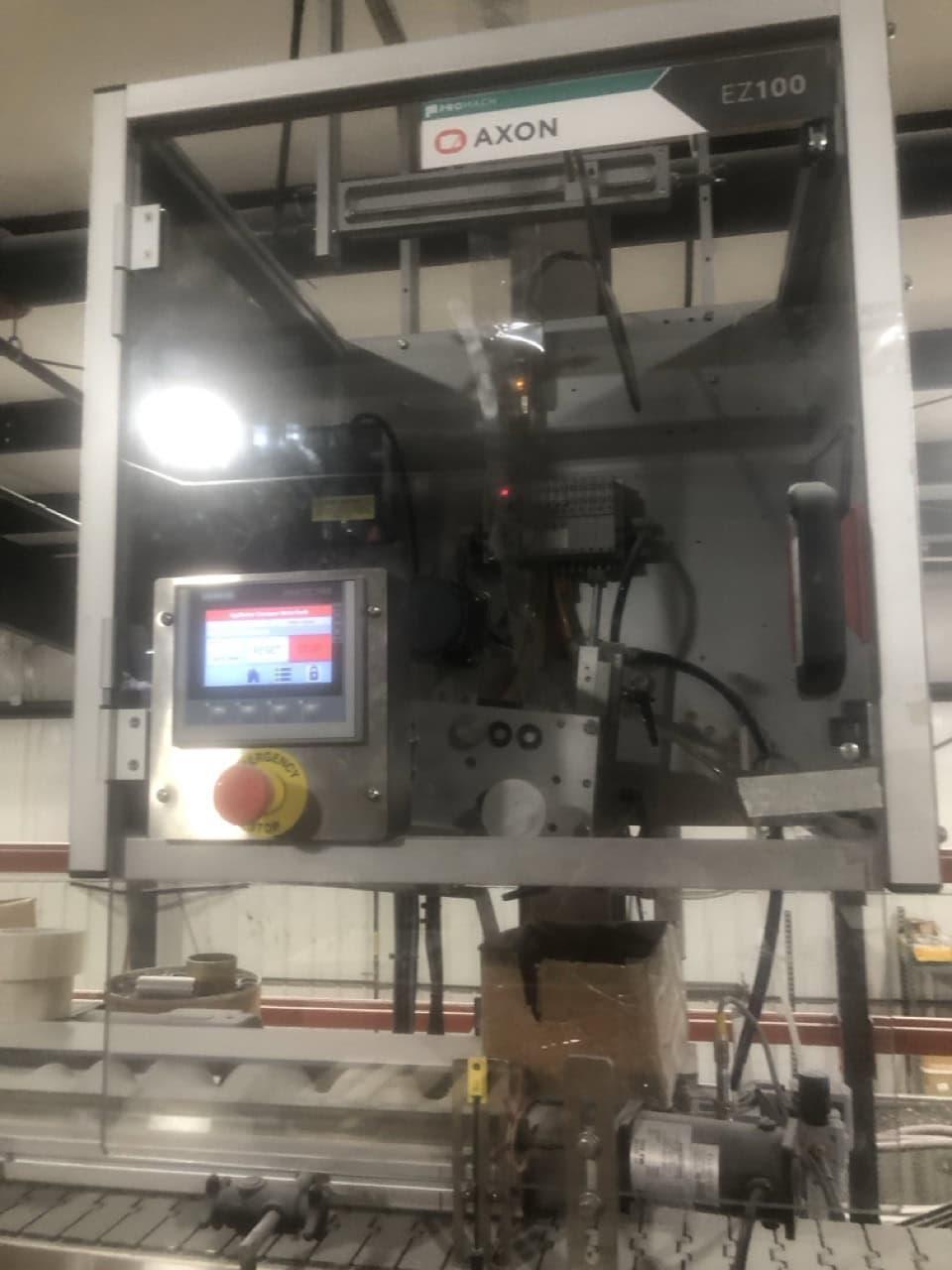

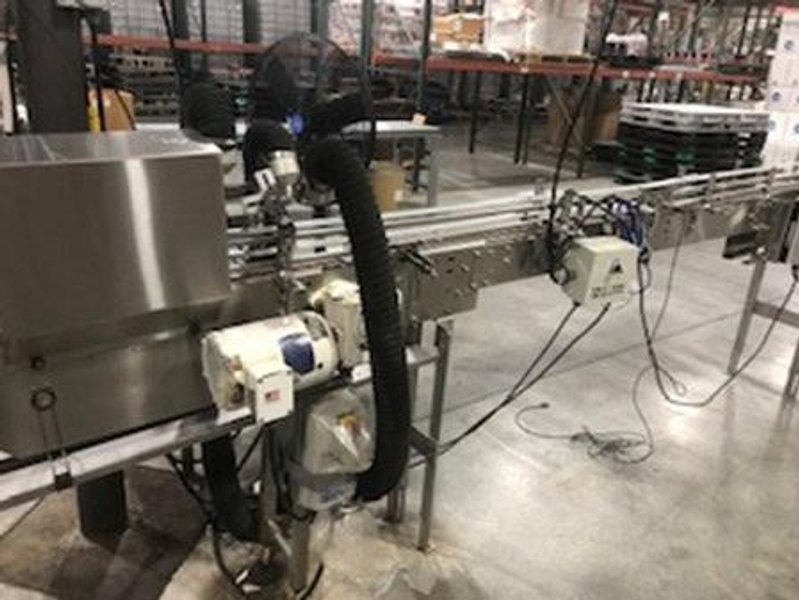

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Axon Sleever EZ-100 Siemens Sleeve Applicator with 2 EZ-48-SRB Shrink Tunnels

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Speed: – Dispensing: Up to 60 cans/min – Electrical: 220V – Heater 1 & Heater 2 both 480V 3-Ph

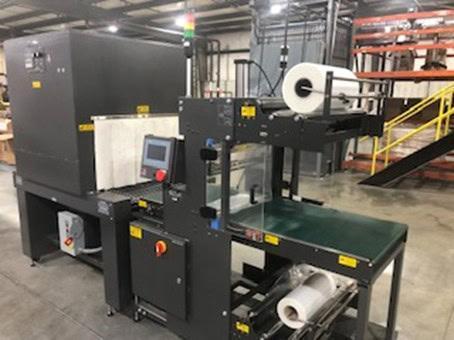

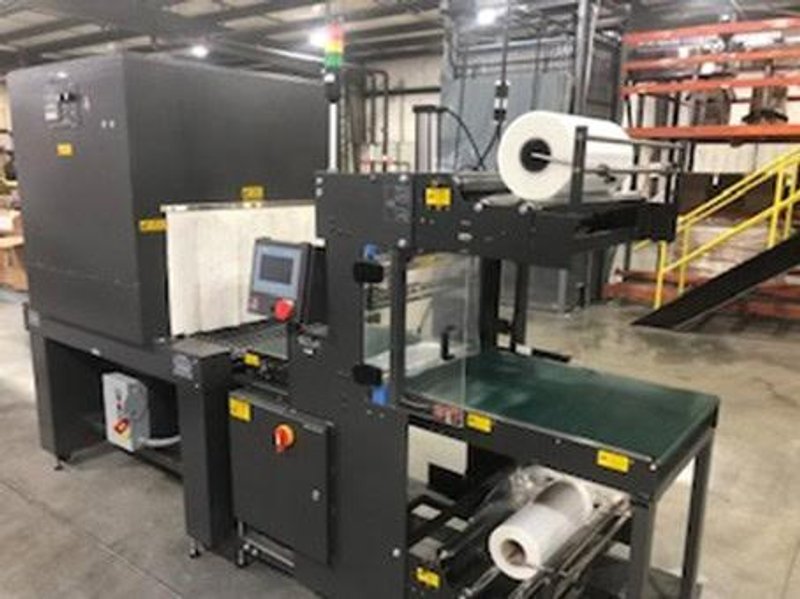

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Eastey Wrapper (EB25-AV1) – post canning to wrap cardboard trays (12-packs) – Electrical: 20A 250V – Heater 30A 480 3-Ph

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Pro-Refrigeration Glycol Chilling Unit – PM112F3R4100-A-VAC Electrical: 75A 120V

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dakota Water RO System

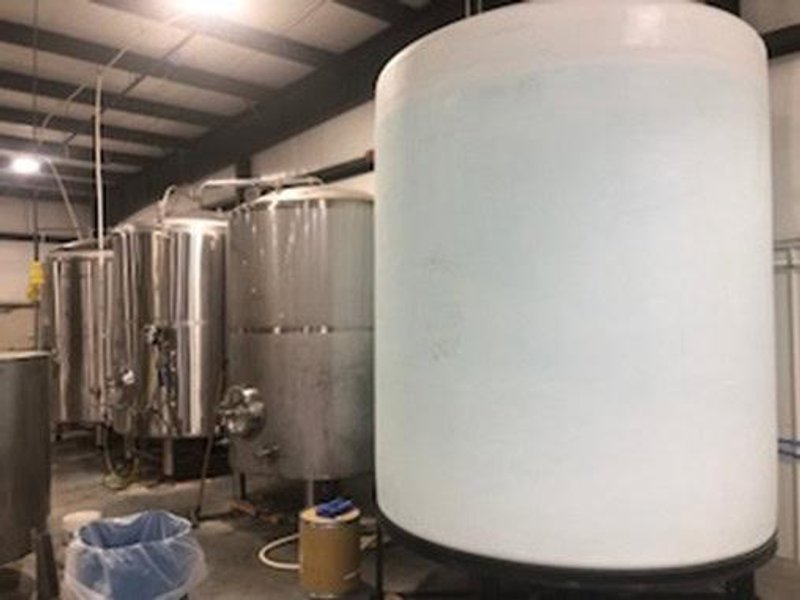

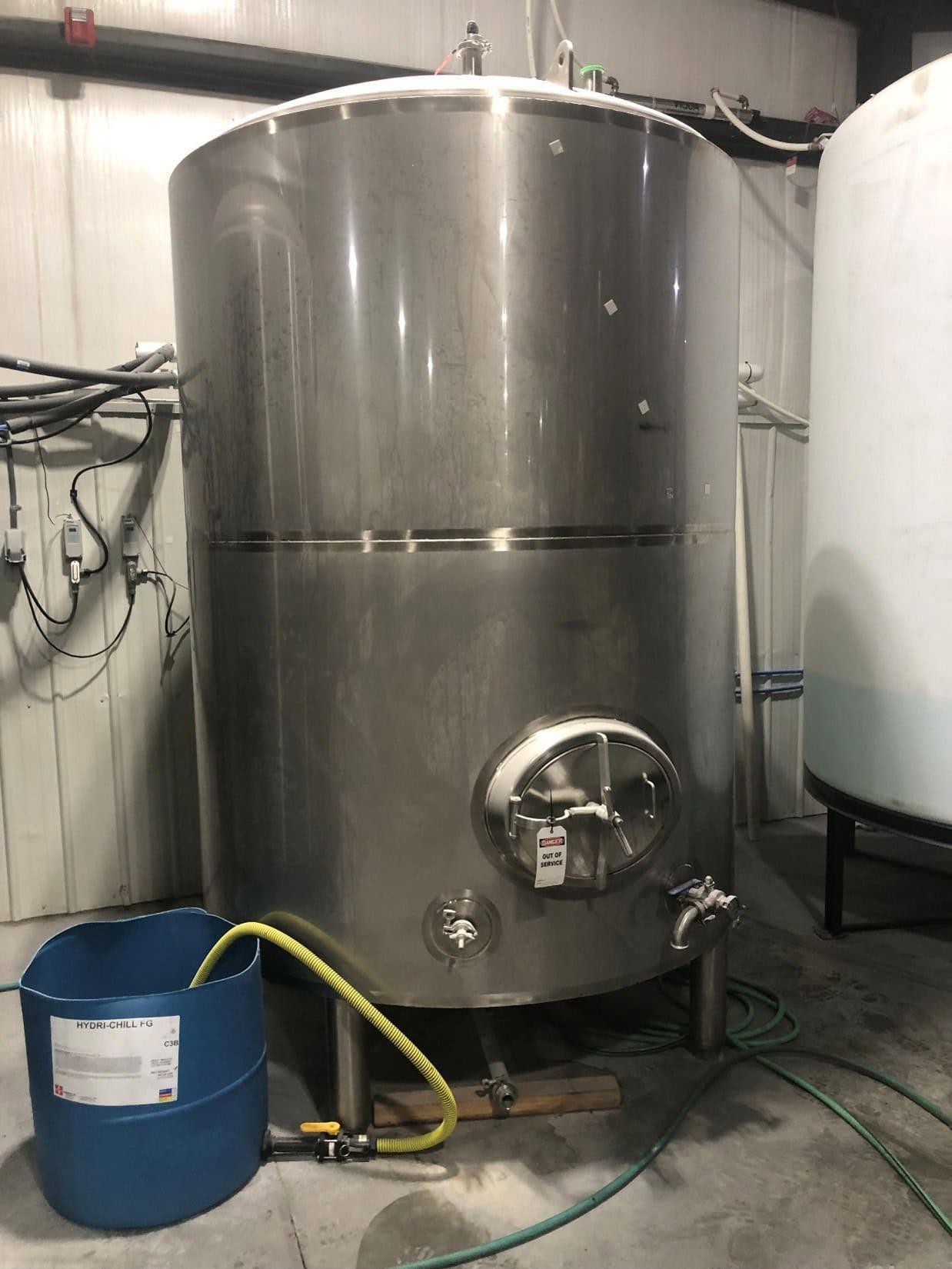

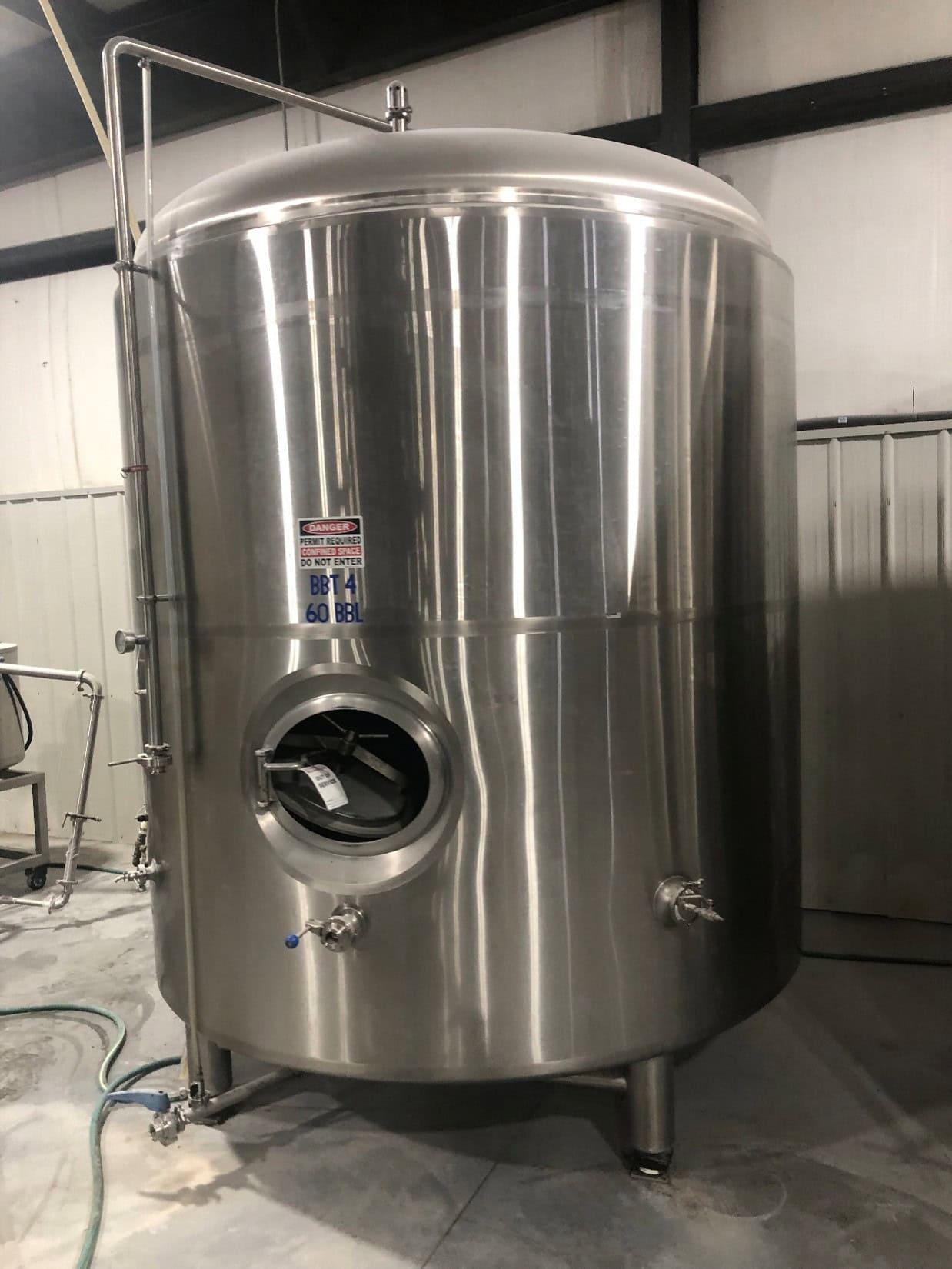

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Includes (4) tanks: 3,000 Gallon Poly Tank 30 BBL Tank 40 BBL Tank 60 BBL Tank
