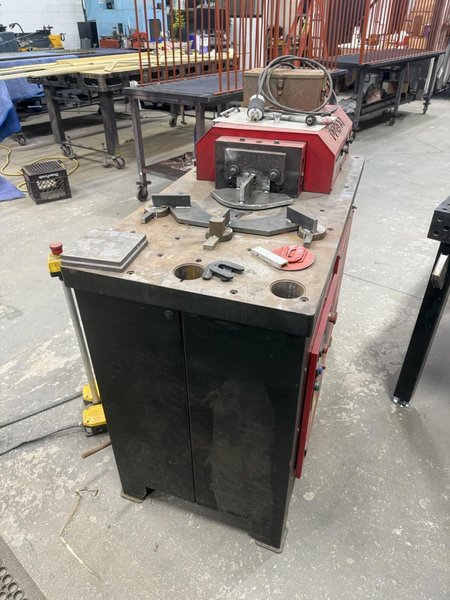

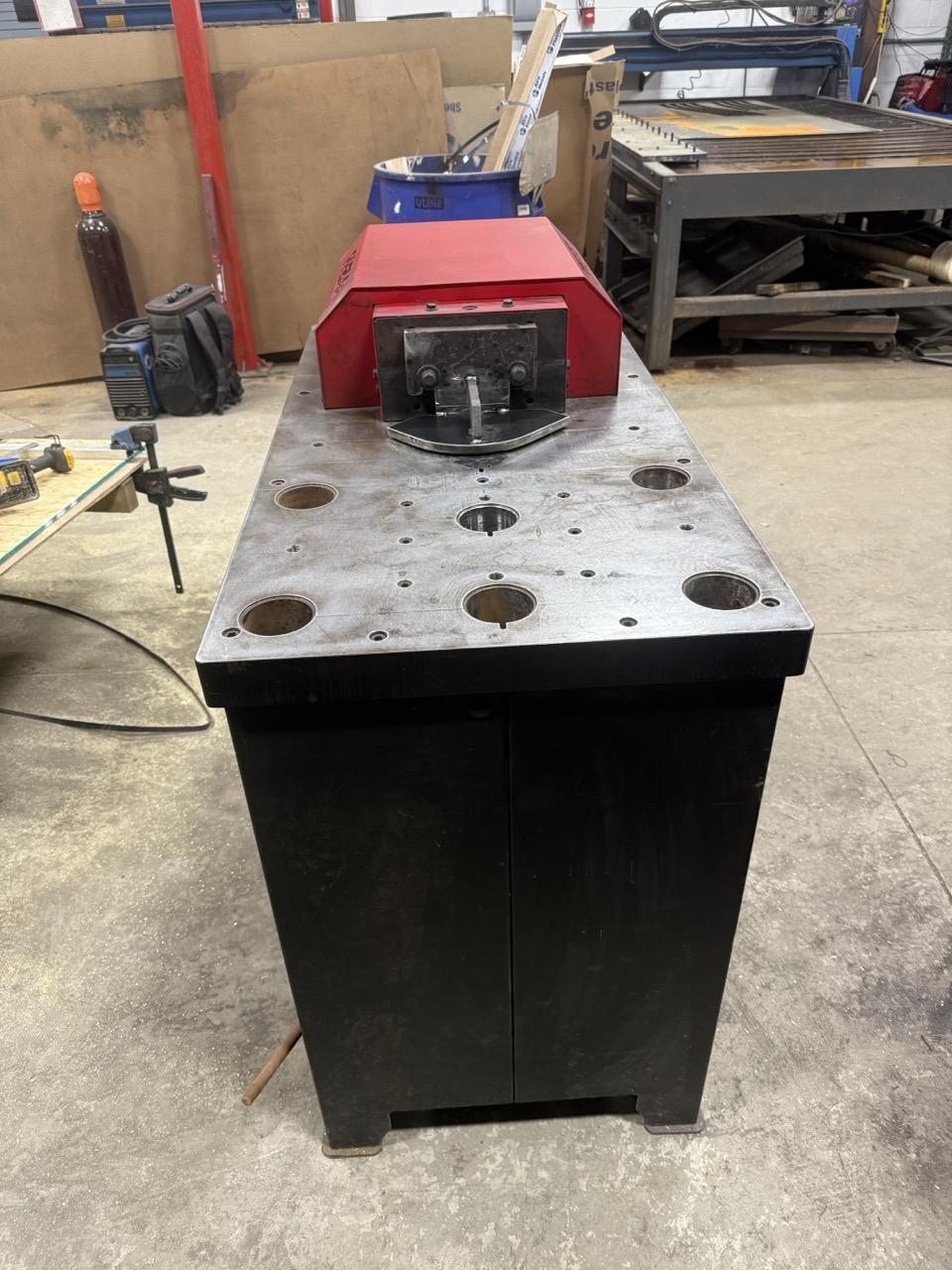

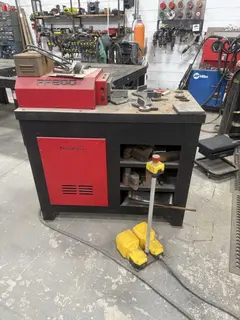

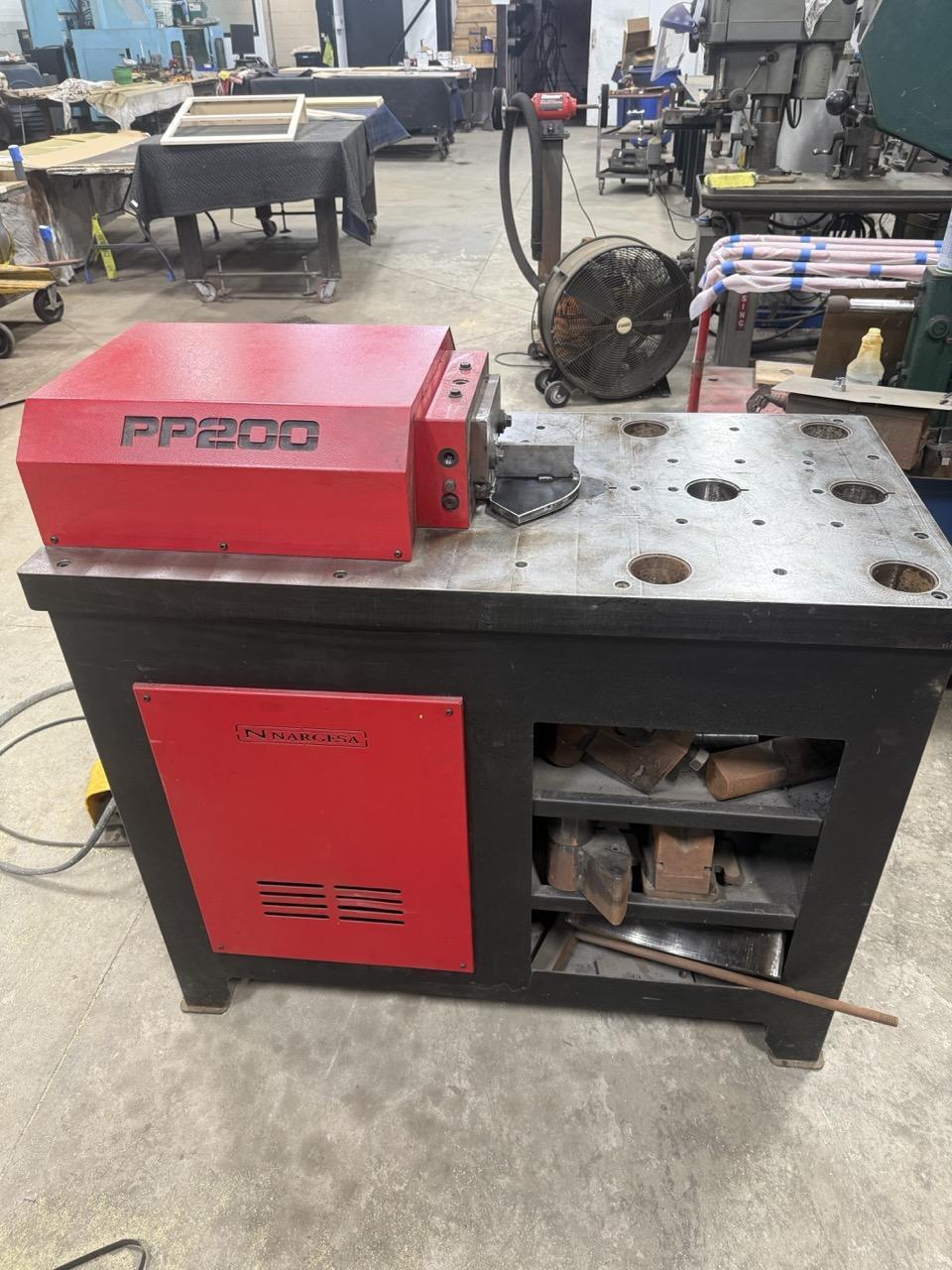

20 Ton Nargesa PP200 CNC Hydraulic Horizontal Press Brake, 2020
Brand
Category
Type
Model
PP200
Stock #
883193
Year
2020
Condition
Not specified
Location
Not specified
|
Working Force: 20 Tons
Engine Power: 3 HP
Engine Speed: 1400
Working Speed: 23.4 ipm
Return Speed: 82.2 ipm
Max Stroke Displacement: 9.8″
Repeatability: 0.002″
Hydraulic Pressure: 711 to 3054 Pounds per Square Inch
Tank Capacity: 7.1 US Gallons
Tooling Support Table: 23.6″ by 46″
Working Height Table Top: 37.3″
Machine Dimensions L x W x H: 47″ by 26″ by 44.5″
Machine Weight: 1467 pounds
Max Folding Length Standard Tooling: 3.93″
Max Folding Thickness Standard Tooling: 0.315″
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With ESA S625 CNC Control All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
