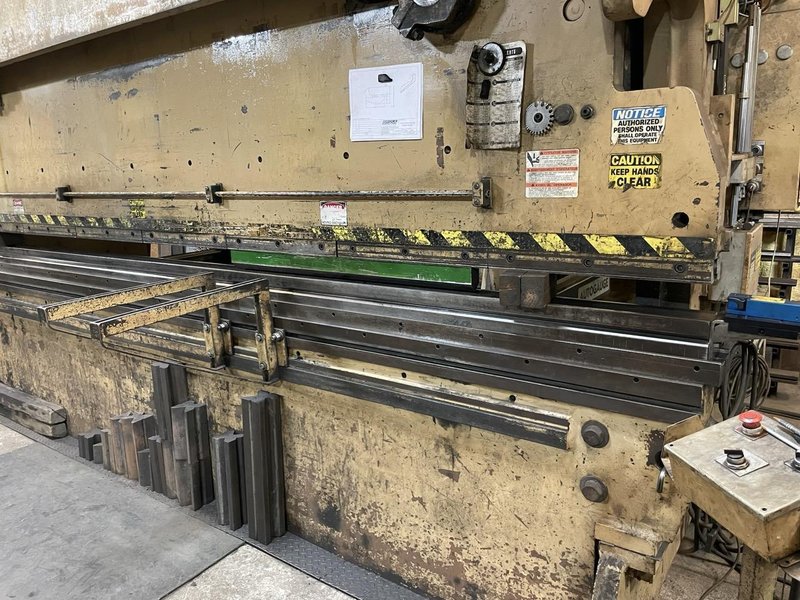

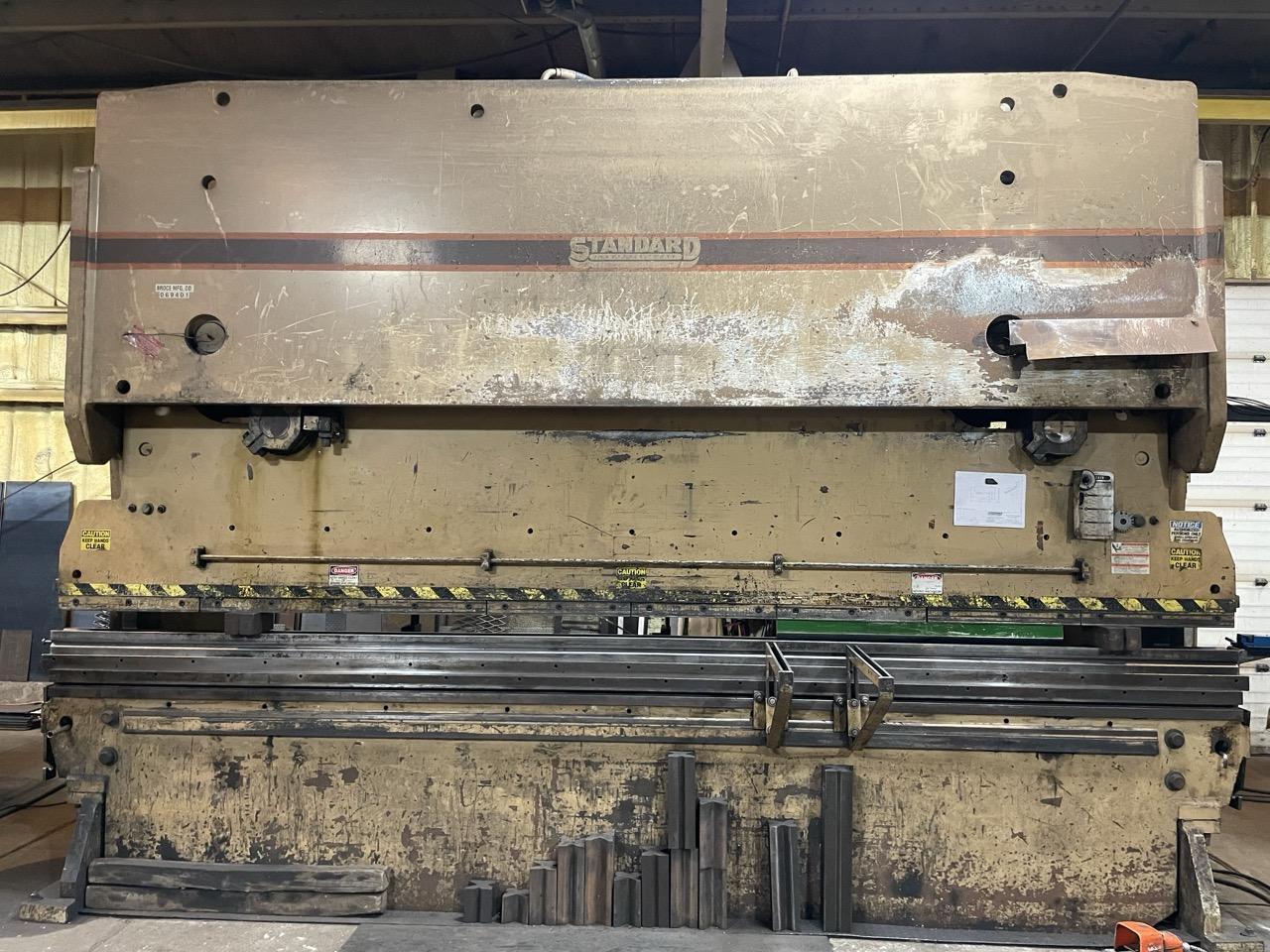

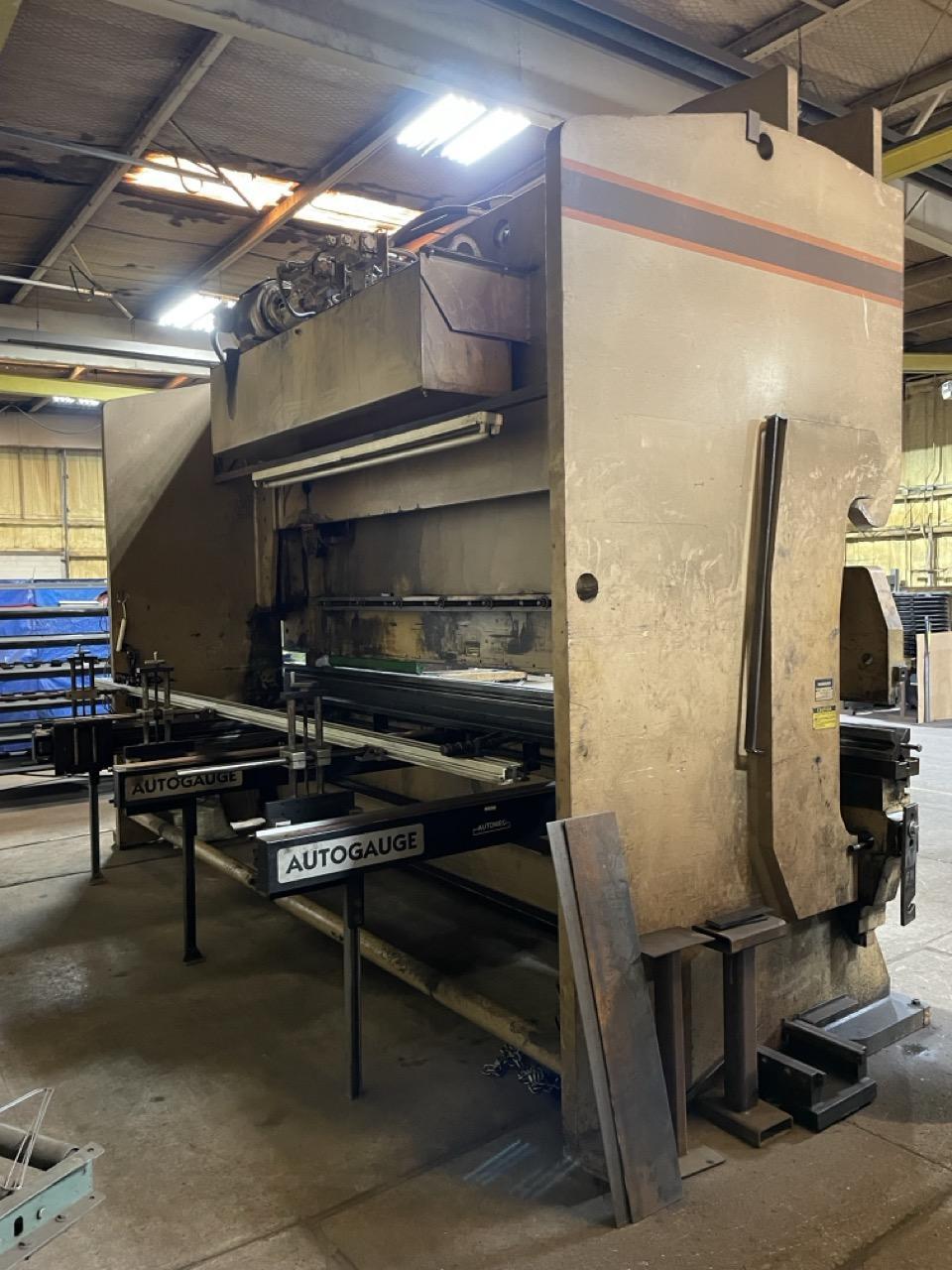

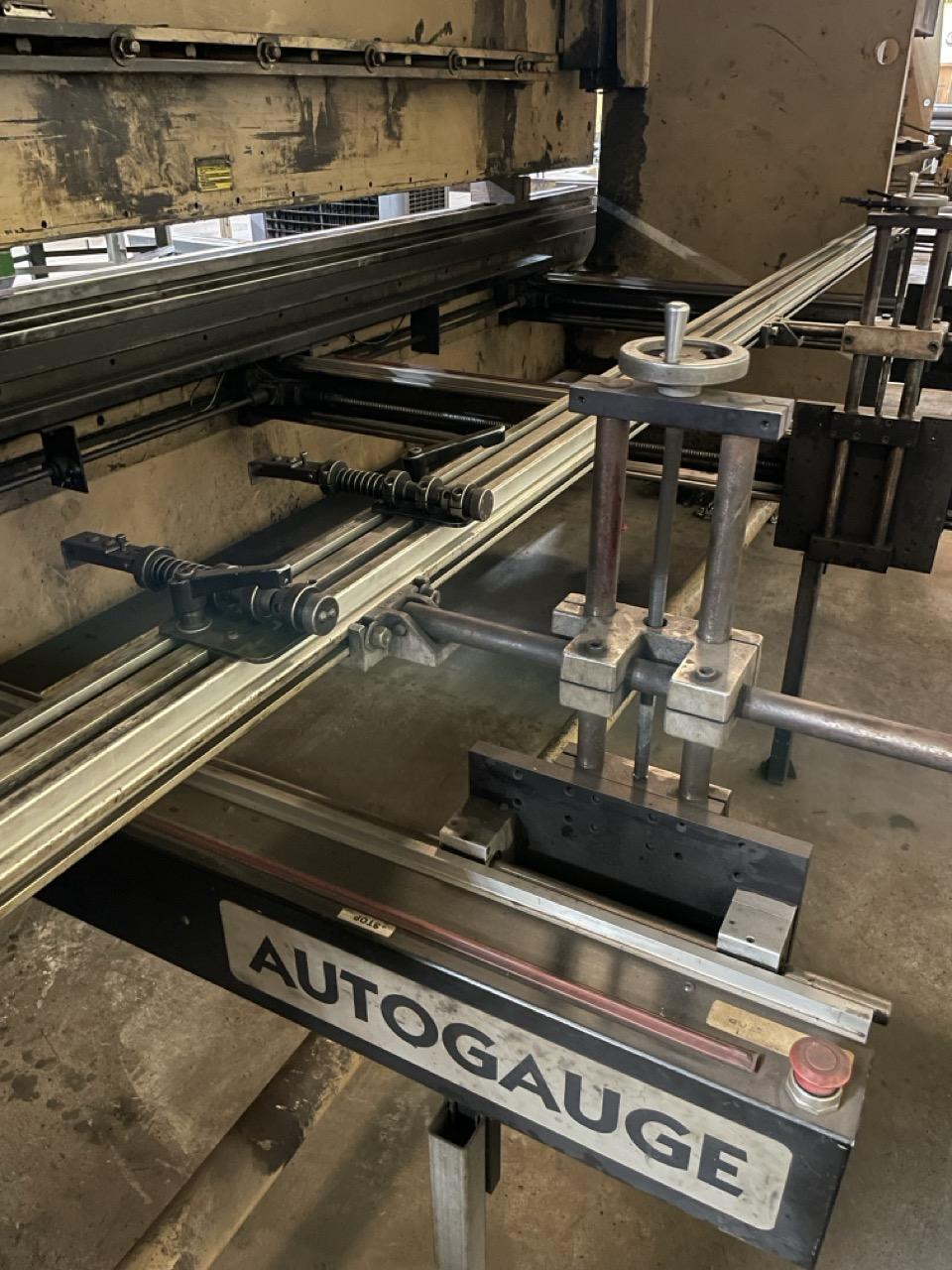

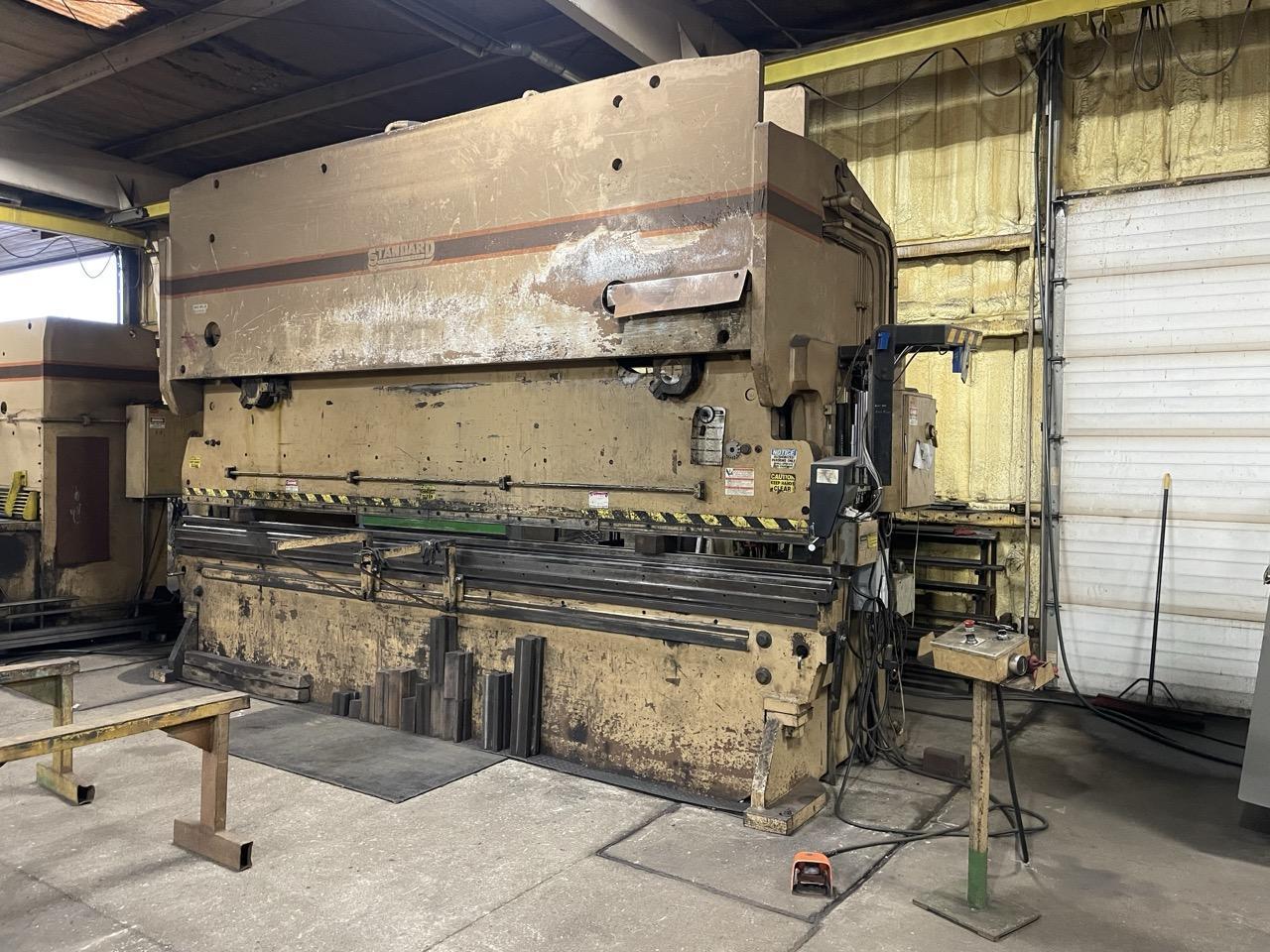

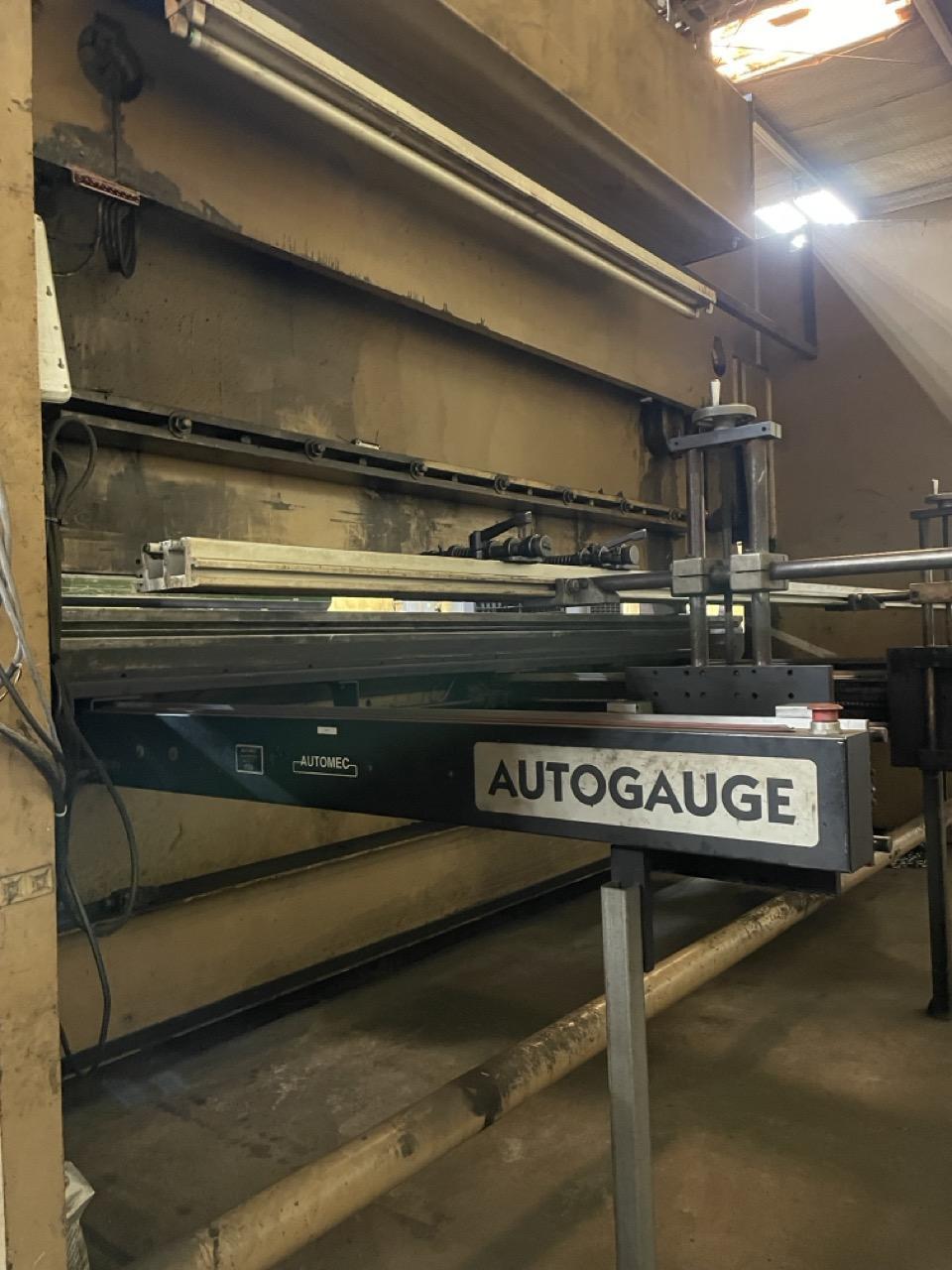

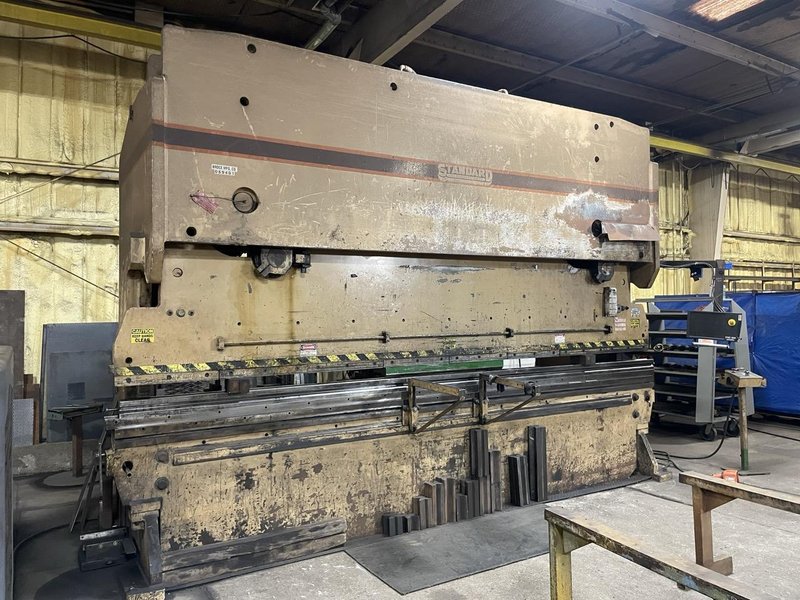

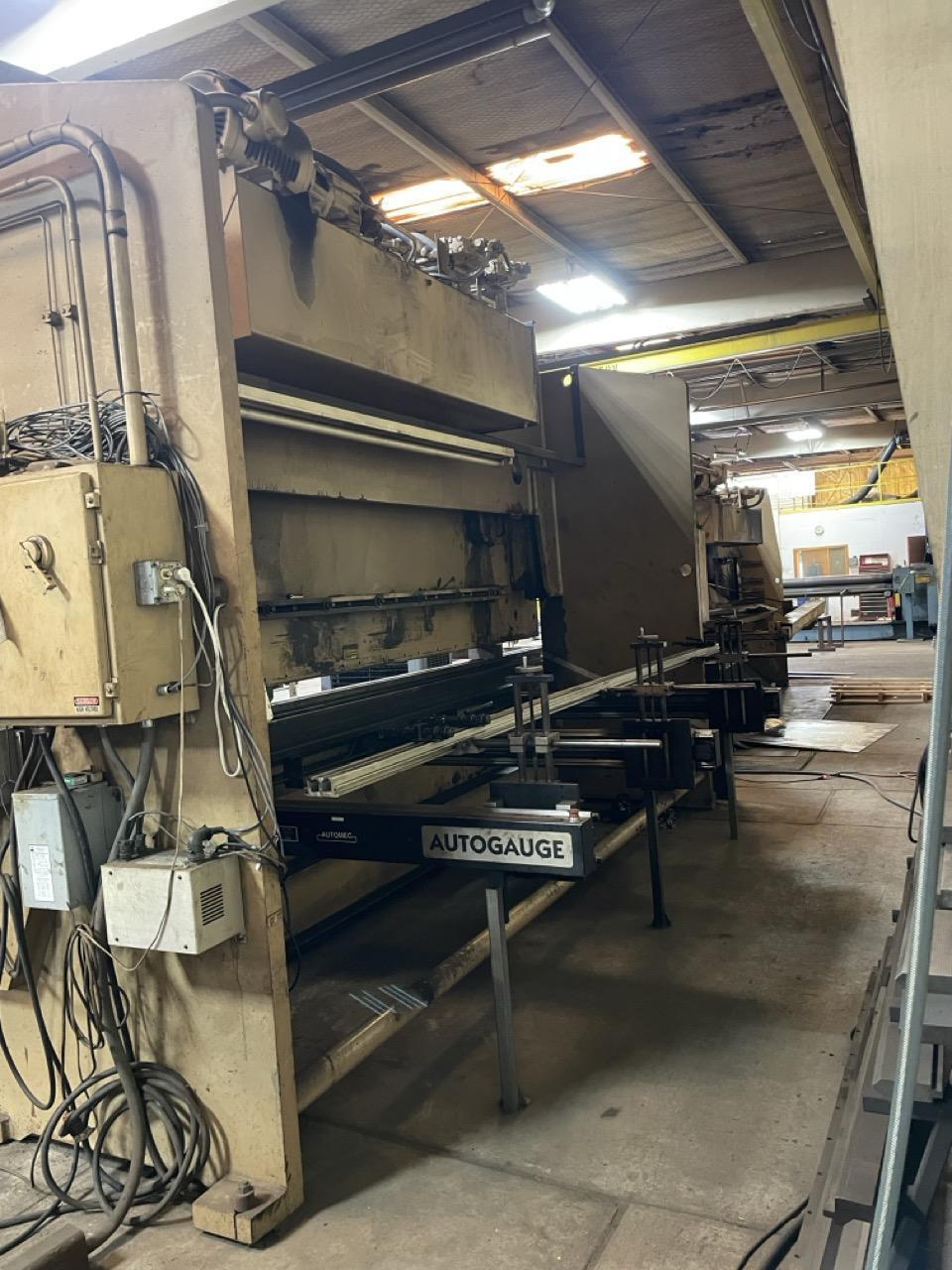

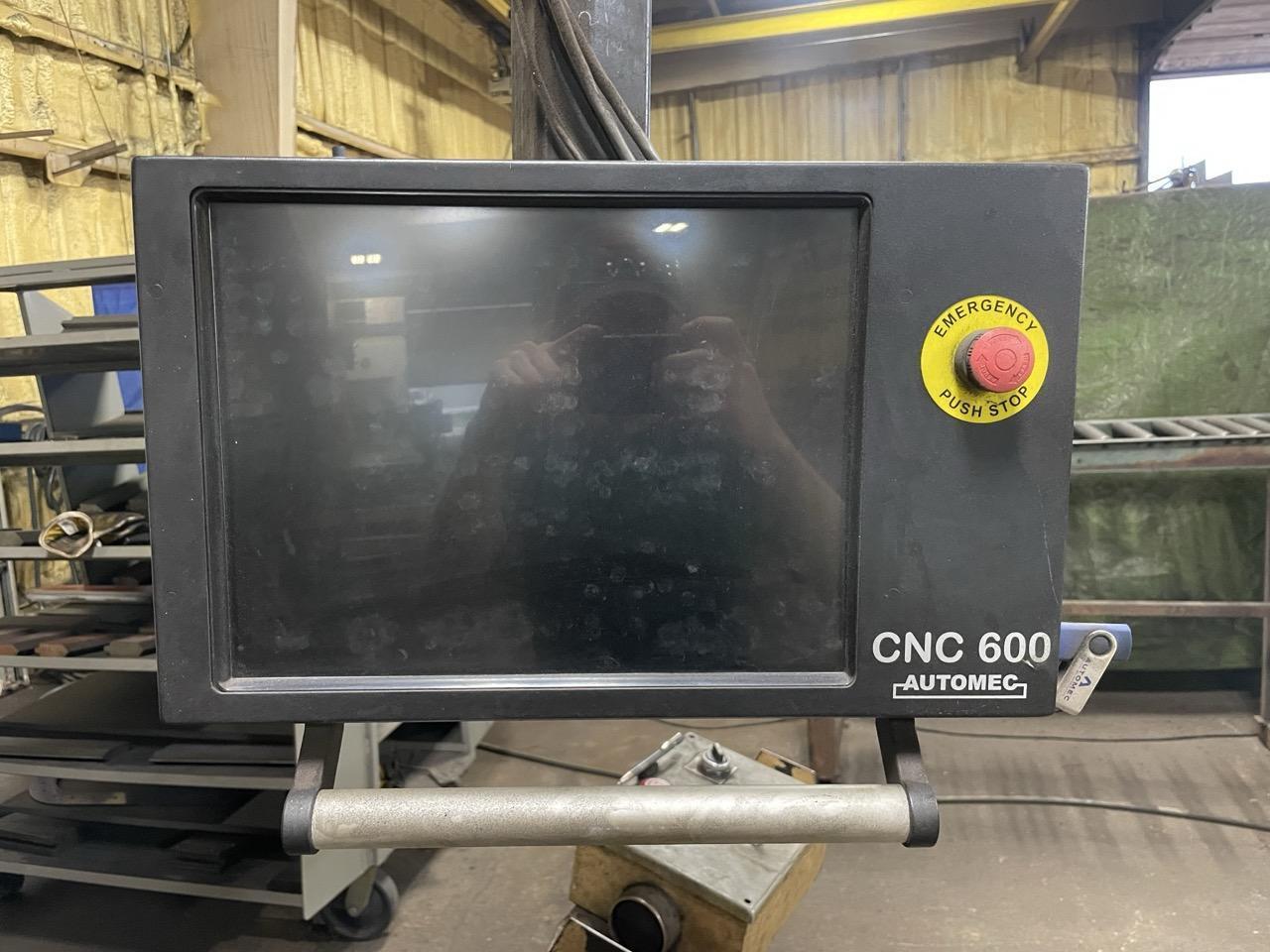

325 Ton x 16′ Standard AB-325-16 CNC Press Brake, 1994 – Automec CNC Control (2 years old) Back Gauge, Pit Required

Tonnage: 325 Ton Bending Length: 192″ Dist. Between Housings: 173″ Throat Depth: 10” Open Height: 16″ Stroke Length: 8” Closed Height: 8″ Fast Approach Speed: 112 IPM Fast Return Speed: 18 IPM Press Speed: 89 IPM Motor Size: 30 HP – 220/440V – 3 Phs Capacities (Mild Steel): 5/16″ Weight: 66,000 Lbs Pit Requirements: 172″ long x 12″ wide x 14″ deep

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,EQUIPPED WITH:

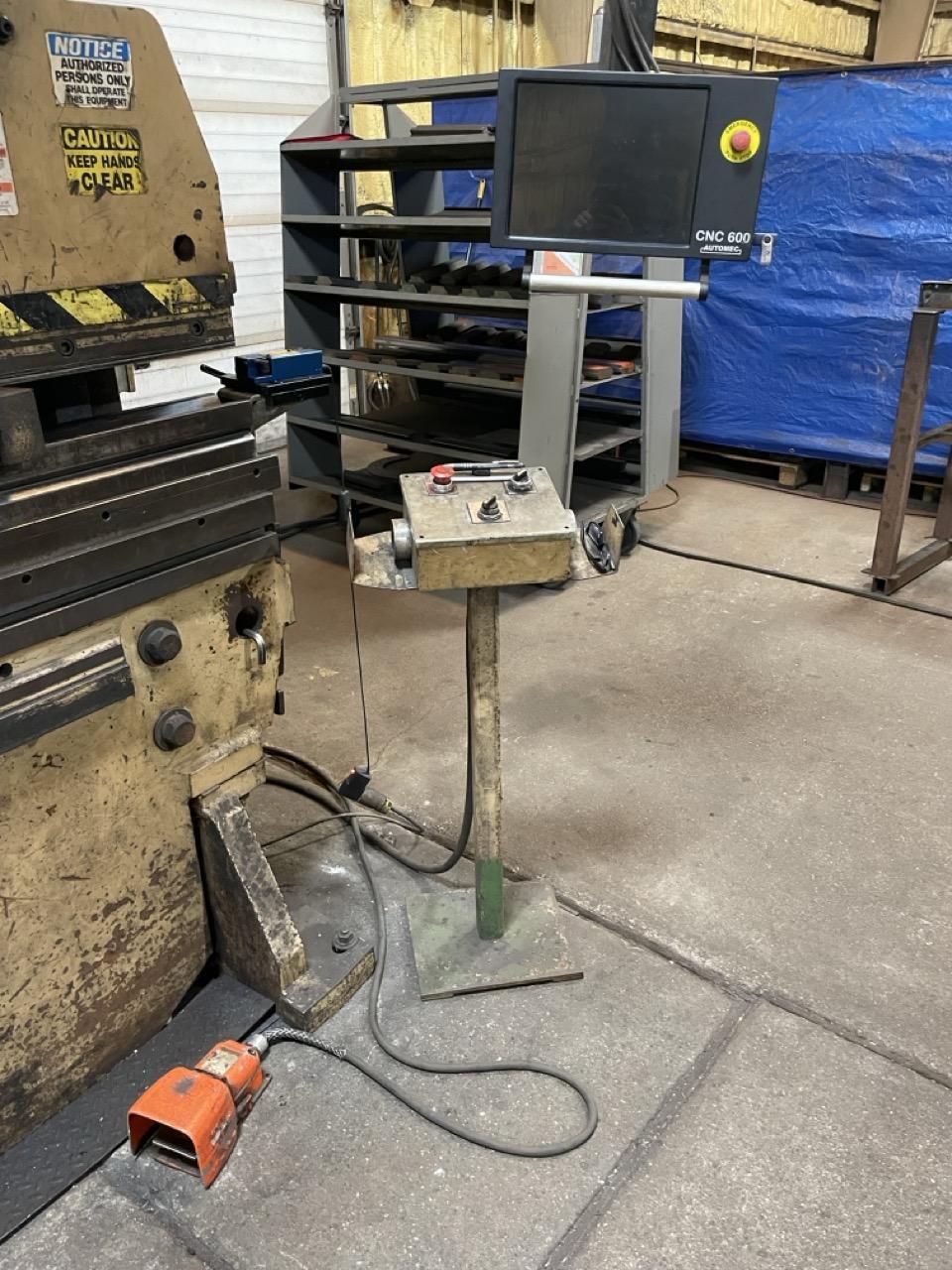

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,In-Line Depth Stop Hydraulic Pressure Tonnage Control w/Gauge Portable Control Station w/(2) Controls: – Inch Control – Emergency Stop Operation & Parts Manual

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,MACHINE FEATURES:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,“Large Bore” Single Hydraulic Cylinders Massive “Heavy Duty” Welded Frame Full Tonnage – Entire Length Of Bed & Ram Stroke Manifold Centralized Lube System Hand/Foot Safety Sequence w/Foot Switch +/- 0.001” Ram Repeatability Simple & Precise Ram Adjustment All Components “Off The Shelf” Off-Center Load Capability

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
