Haas EC-1600-4x CNC Horizontal Machining Center, 2006

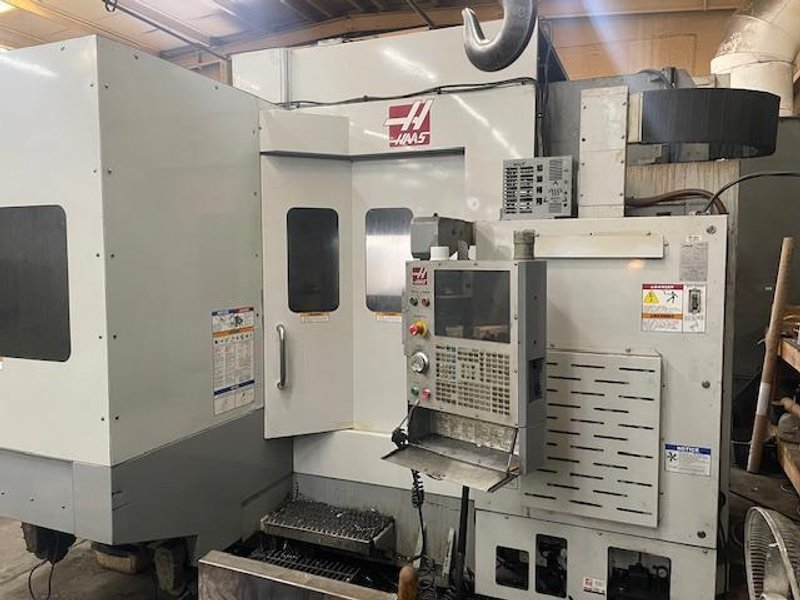

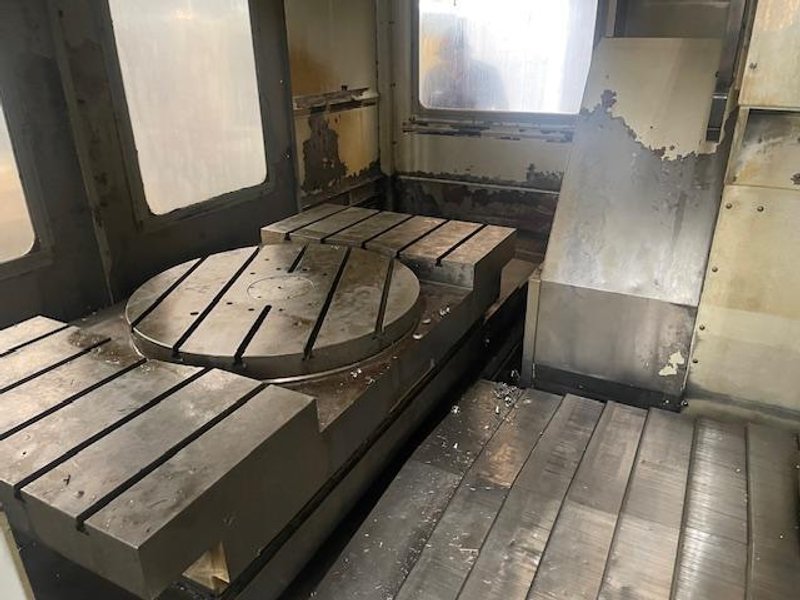

Control: Haas 32-bit CNC Control Table: 64″ x 36″ with an integrated 30″ diameter 4th-axis rotary table Axis Travels: X: 64″, Y: 50″, Z: 32″ Spindle Taper: CAT 50 Spindle Speed: 6,000 RPM max Spindle Drive: 30 HP (22.4 kW) two-speed geared drive Tool Changer: 30+1 side-mount automatic tool changer Rapid Traverse: 540 IPM on X, Y, and Z axes Max Workpiece Weight: 10,000 lb (4536 kg) on the table

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Table Size……………………………………………………. 64″ x 36″ Built-in Rotary in Center of Standard Table………. 30″ Longitudinal Table Travel (X-Axis)…………………… 64″ Vertical Travel (Y-Axis)………………………………….. 40″ Head Cross Travel (Z-Axis)……………………………. 32″ Maximum Table Load……………………………………. 10,000 LBS Number of Index Positions…………………………….. 360,000 Max. Feed Rate, All Axes………………………………. 500 IPM Rapid Traverse, All Axes……………………………….. 540 IPM Spindle Horsepower……………………………………… 30 HP Spindle Speed Range…………………………………… 50-6000 RPM Spindle Taper………………………………………………. #50 CAT Number of Tool Positions………………………………. 30 Approximate Machine Dimensions…………………. 192″ x 160″ Approximate Machine Height…………………………. 132″ Approximate Machine Weight………………………… 30,000 LBS

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
