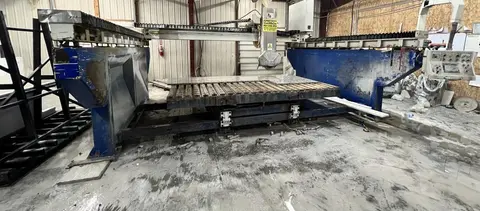

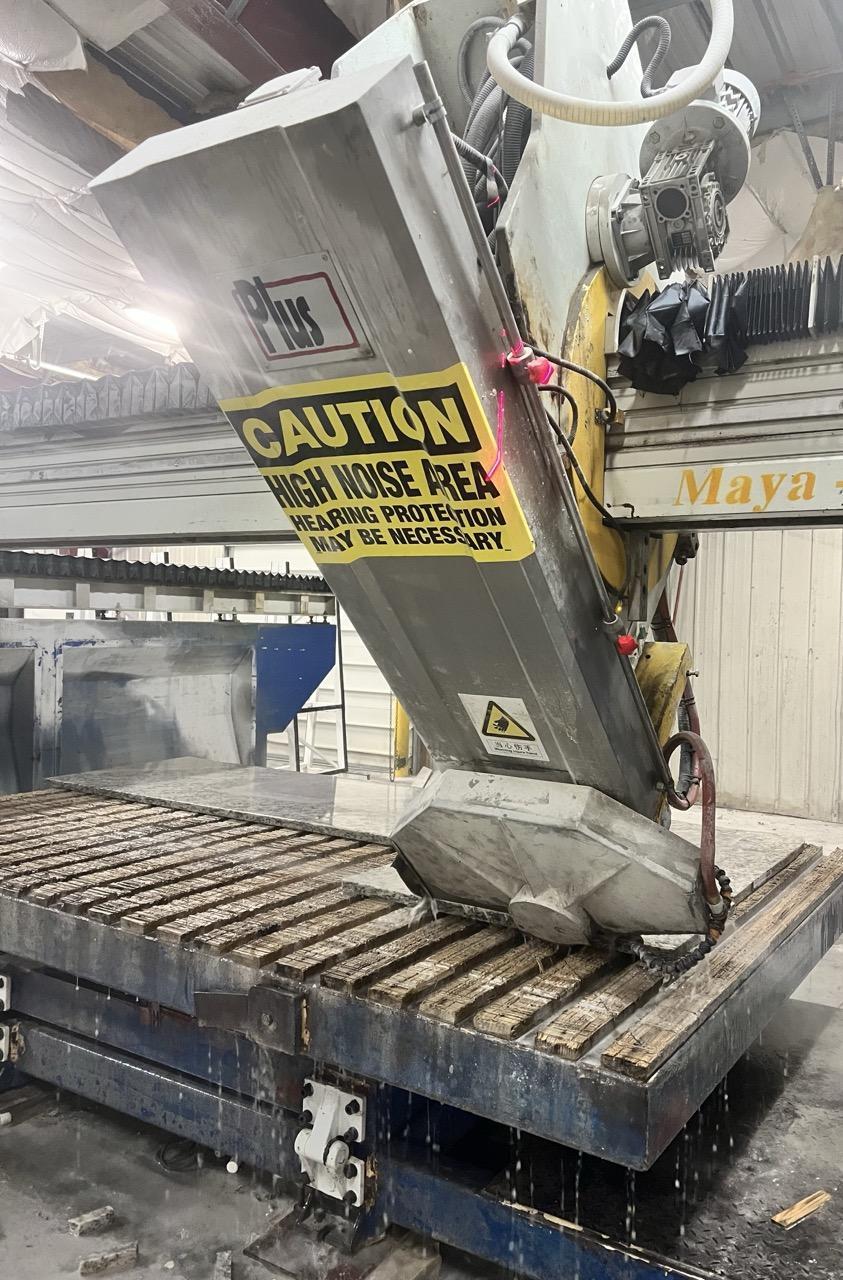

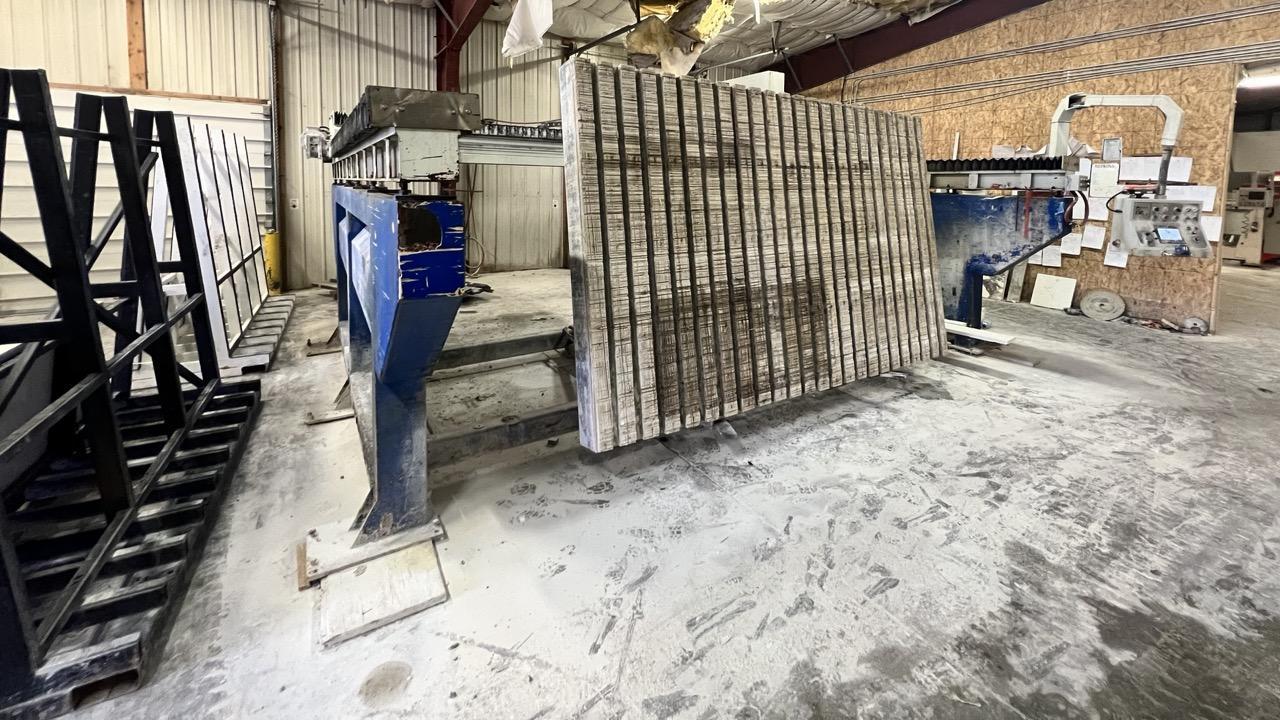

7.5′ x 12′ Maya 625A 4 Axis CNC Granite Bridge Saw, 2014

Table Size: 126″ × 78″ Max Cut Length: 140″ × 90″Cutting Thickness: 4″–7″ Automatic Step-Cut (Two-Way Cutting) Blade Size: 18″–24″ Blade / Head Tilt: 0–45°, Hydraulic, Plunge Cut Blade RPM: 350 Table Turn / Tilt: Powered Tilt to 85°, Powered Rotation 0°–360° Cut Rate: 10′ × 1.25 IPM Hydraulic Stops: Automatic Stops at 45° & 90° Table Load Capacity: 0.6 Ton Main Motor: Direct Drive, 20 HP (380V) with Transformer Power Requirement: 220V, 3-Phase, 60A, ±5% Regulated, 30 kW Engine Speed: 1450 RPM Cutting Speed Overall Dimensions (L × W × H): 19′ × 15.5′ × 9′ Water Requirement: 4 Gal/Min with Auto Stop Cooling: Water-Cooled Hydraulic System

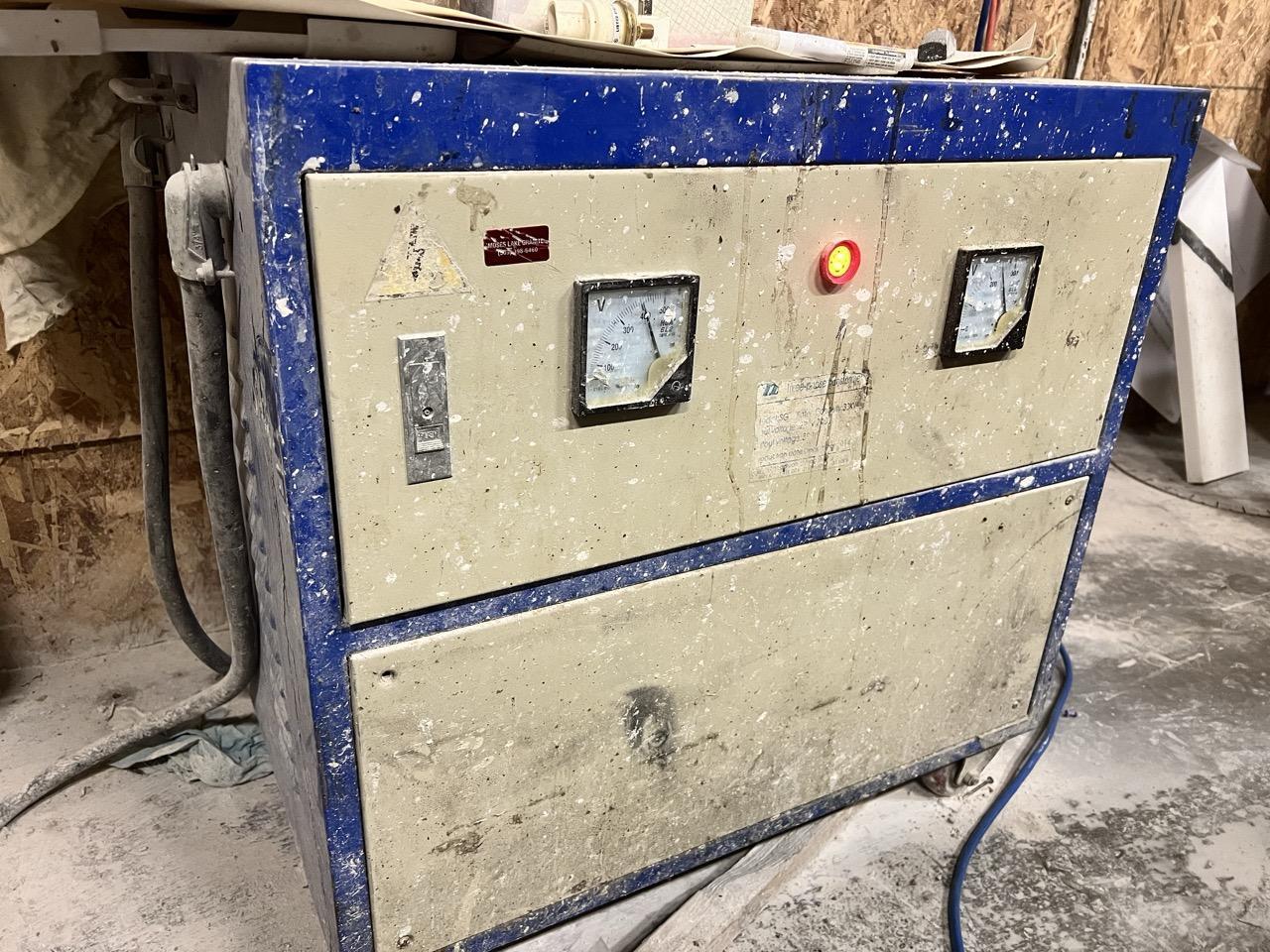

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With Programmable Microcomputer Control Transformer Laser Guide System Wireless Pendant Remote LCD Control Panel Cast-Iron Bridge All Available Manuals

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
