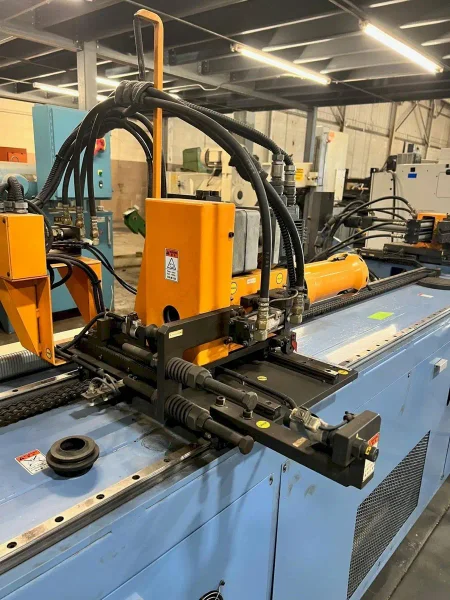

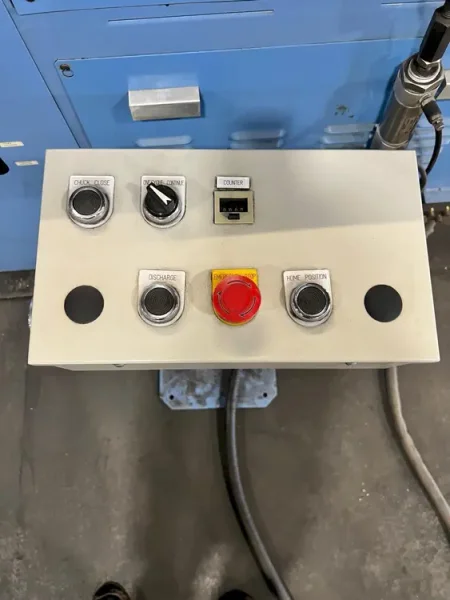

USED KEINS 1-3/4" 3-AXIS CNC DUAL STACK TUBE BENDER MODEL KB-45ND, Year: 2001

USED KEINS 1-3/4" 3-AXIS CNC DUAL STACK TUBE BENDER MODEL KB-45ND, Year: 2001

Name: USED KEINS 1-3/4" 3-AXIS CNC DUAL STACK TUBE BENDER MODEL KB-45ND, Year: 2001
Brand: KEINS
SKU: 11035
Availability: PreOrder

Brand

KEINS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

Benders, Pipe, Tube & Bar

Manufacturer:

KEINS

Model:

KB-45ND

Year:

2001

Stock #:

11035

Status:

For Sale

Description

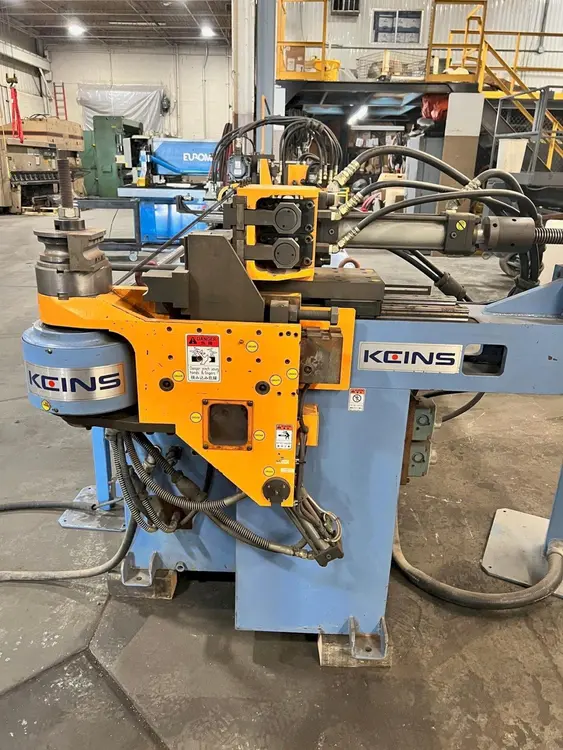

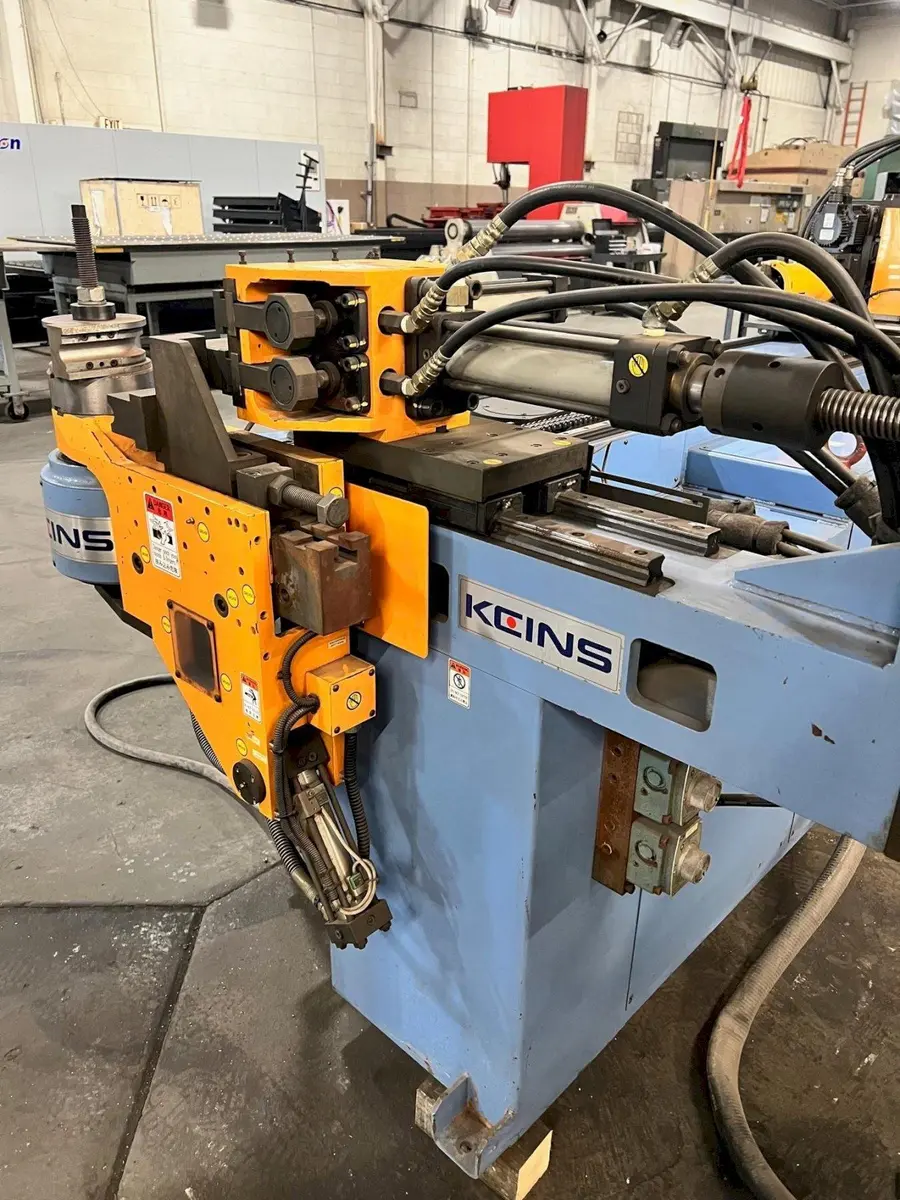

Efficiently bend metal with the KEINS KB-45ND from 2001. Great for thin/thick walls, aluminum, stainless, and steel bars. Handles pipes up to 98". 3-axis with variable speed settings, this robust dual stack machine weighs 5,500 lbs.

Brand: Keins
Model: KB-45ND

Specifications:
Thin wall metal capacity: 1.77" x .07" wall (45mm x 2mm)
Thick wall metal capacity: 1.68" x .1" wall (42.7mm x 2.6mm)
Aluminum capacity: 2" x .07" wall (50.8mm x 2mm)
Stainless capacity: 1.5" x .07" wall (38.1mm x 2mm)
Steel bar capacity: .70" (18mm)
Square pipe capacity: 1.18" x 1.18" x 06" wall (30mm x 30mm x 1.5mm)
Maximum bending radius: 7.87" (200mm)
Maximum bend radius differential: 2" (50mm)
Maximum tube length: 98" (2500mm)
Number of axis: 3
Feed speed: 4.72 - 47.2 IPS (120 - 1200 mm/sec)
Plane speed: 36 - 360 degrees per second
Bending speed: 25 - 125 degrees per second
Voltage:
Dimensions: 172" x 49" x 60"
Weight: 5,500 Lbs.

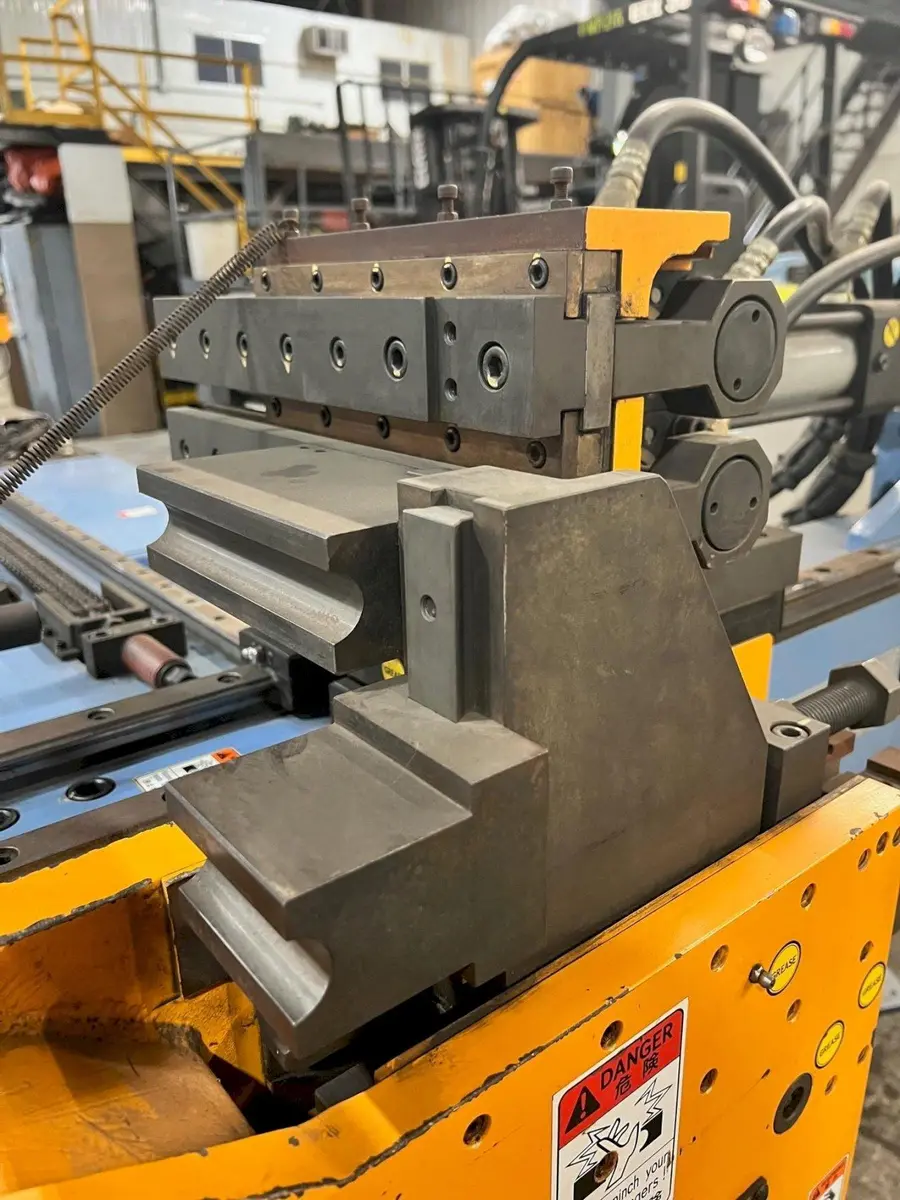

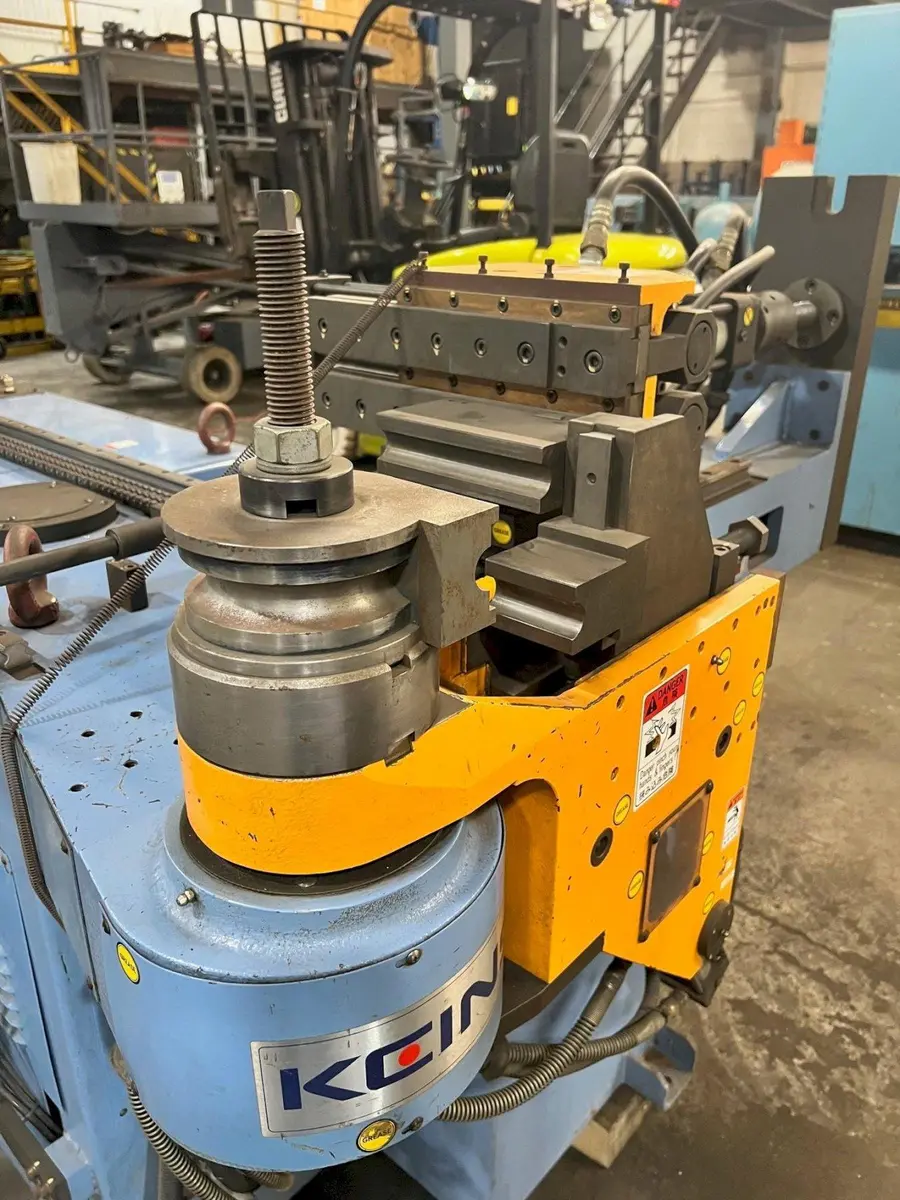

This is a dual stack machine
