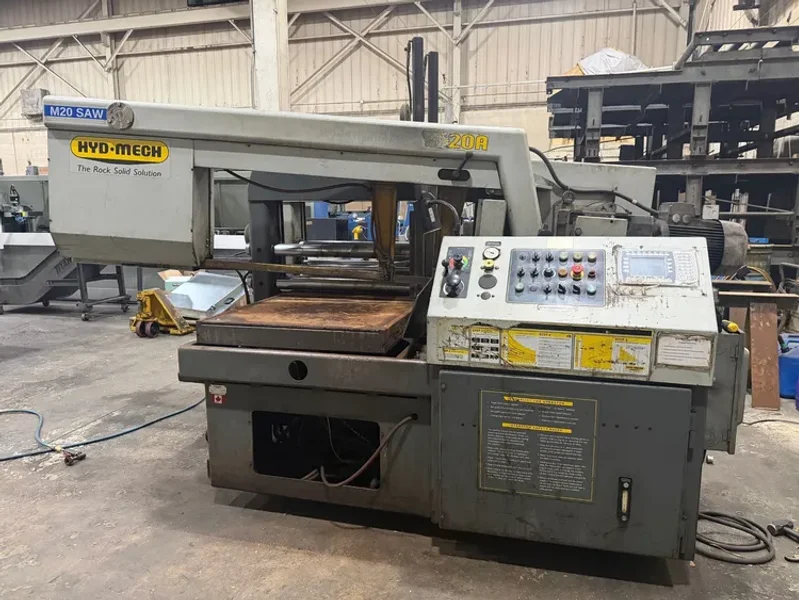

USED HYD-MECH MODEL M-20A 20" X 30" FULLY AUTOMATIC MITERING HORIZONTAL BANDSAW

PLC 500 - fully programmable controller that allows for automatic production of jobs consisting of double angle parts. Machine can automatically swing the head, alternating between two different programmed angles, producing parts with a different angle on each end.

Full Capacity Overhead Bundling - hydraulically powered overhead clamp that moves down on the material from above.  Its downward (clamping) and upward (unclamping) movement are controlled and timed with the opening and closing of the moveable vise.  Very effective and necessary for bundle cutting various material shapes, widths & sizes. Can also be effective in dampening of cutting vibration.

Variable Vise Pressure - allows for adjustment of the clamping pressure of both vises.  Recommended for thin wall tubing and other light material applications where standard vise pressure may deform the material.

Out of Stock Switch - mounted on the shuttle vise, when the vise closes and no material is between its jaws, the machine hydraulics will shut down. (The cut in progress at the time of the switch being tripped is allowed to be finished before shut down occurs) This option allows the machine to be left unattended with no danger of the machine continuing to cycle with no material left.

Vertical Rollers - two 3” diameter rollers mounted vertically at each side of the end of machine’s infeed conveyor.  Assists in material alignment.

Heavy duty full stroke vises.

Cast iron guide arms and wheels with a rigid pivot point.

Powered blade chip brush.

heavy duty motor and gear box with variable frequency drive system.

Work light.

Chip auger.

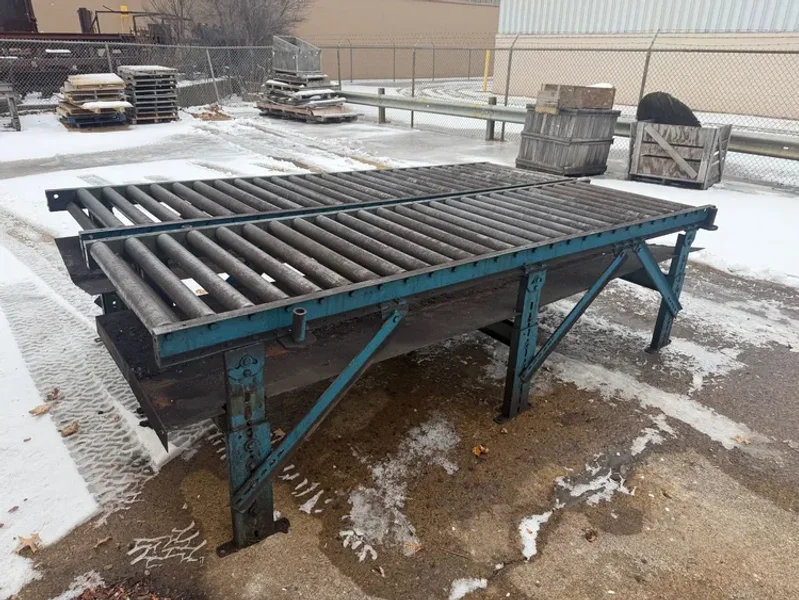

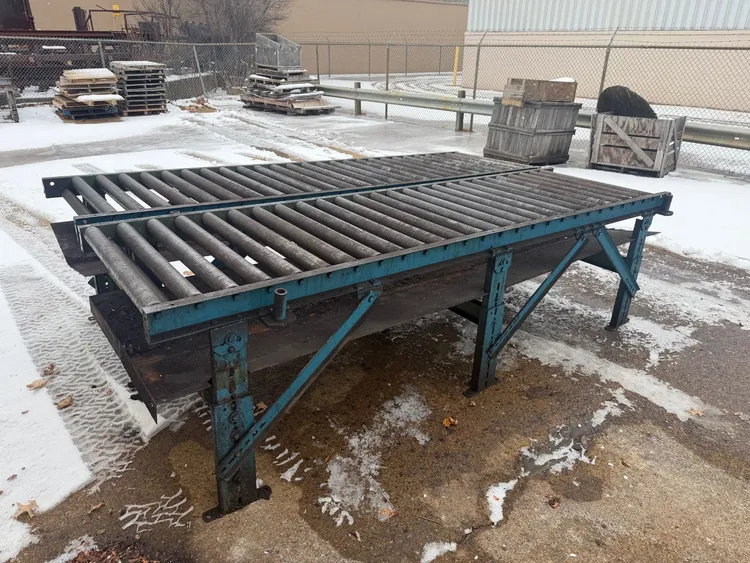

(2) 10' roller conveyors

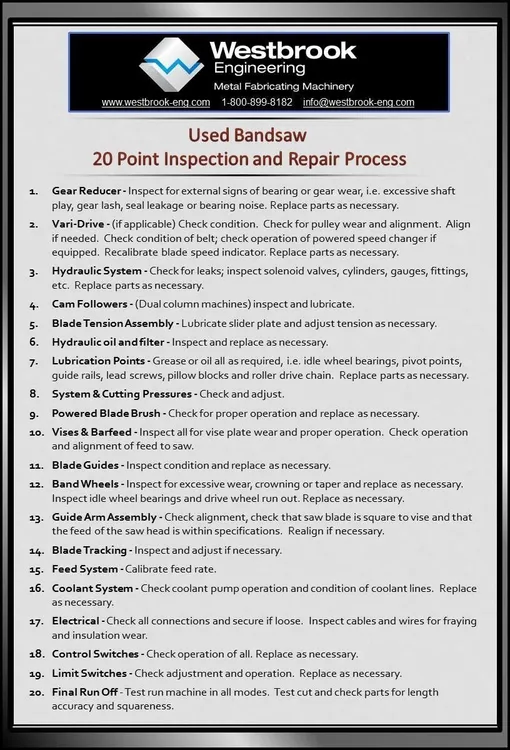

We put our Bandsaws through a 20 Point Inspection and Repair Process assuring immediate performance when they hit your floor.
