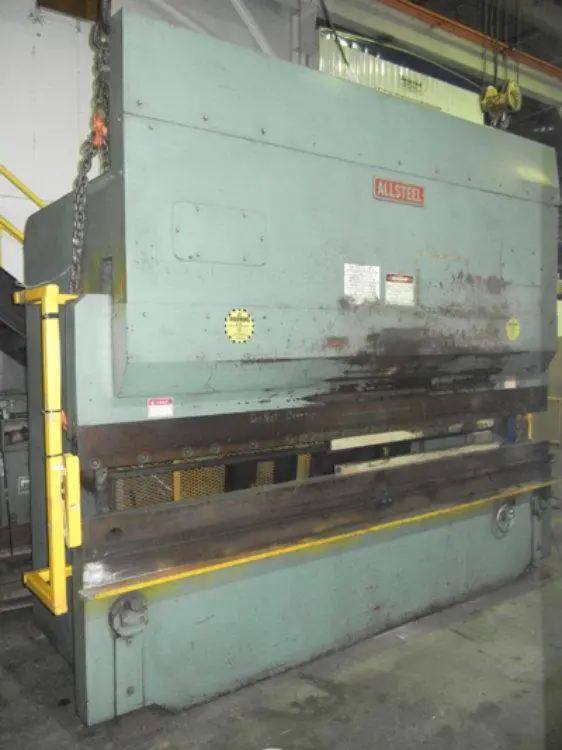

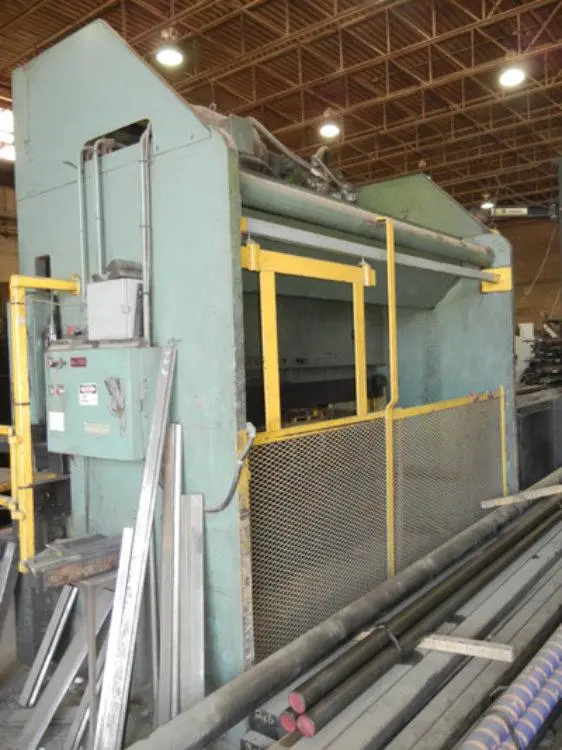

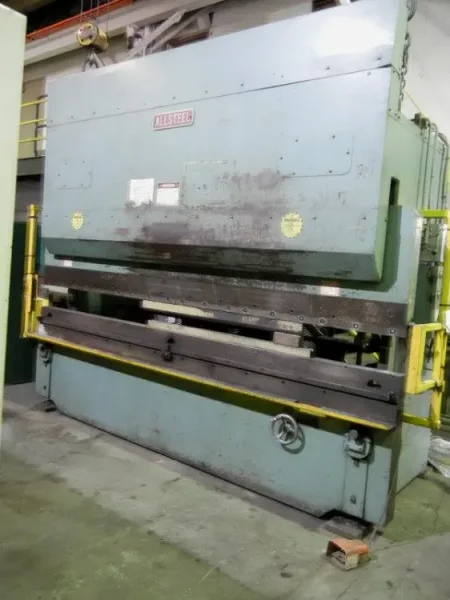

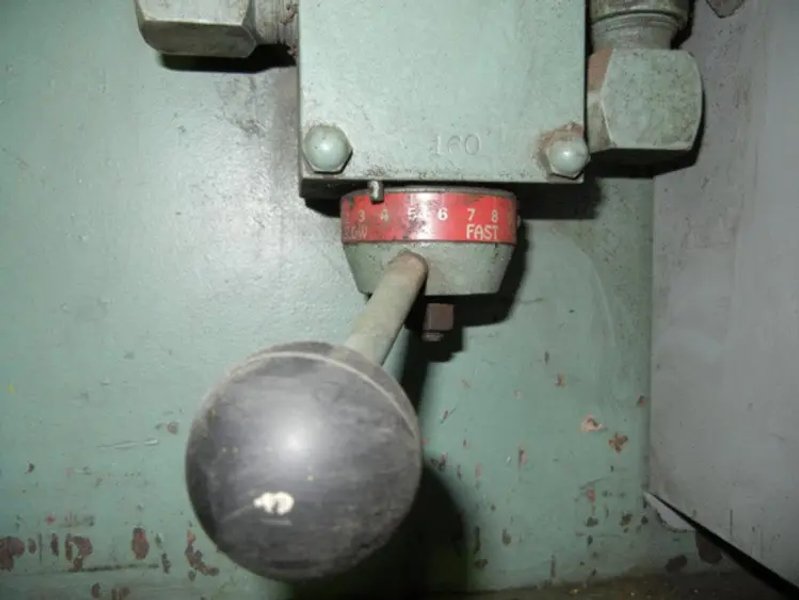

USED ALLSTEEL HYDRAULIC PRESS BRAKE, Model 160-12, 160 ton x 12’, Year: 1981

Brand: Allsteel
Model: 160-12

Specifications:
Tonnage: 160
Overall length bed/ram: 144”
Distance between housings: 126”

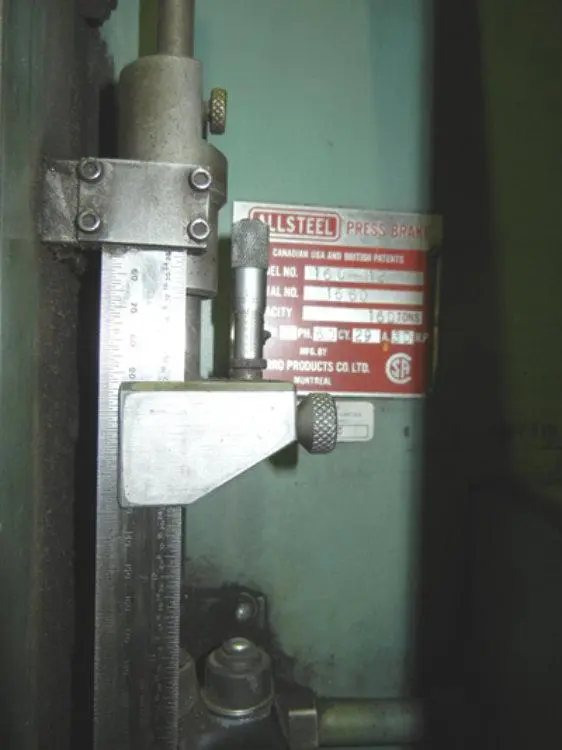

Ram depth stop style: Micrometer
Upacting or downacting: Down acting

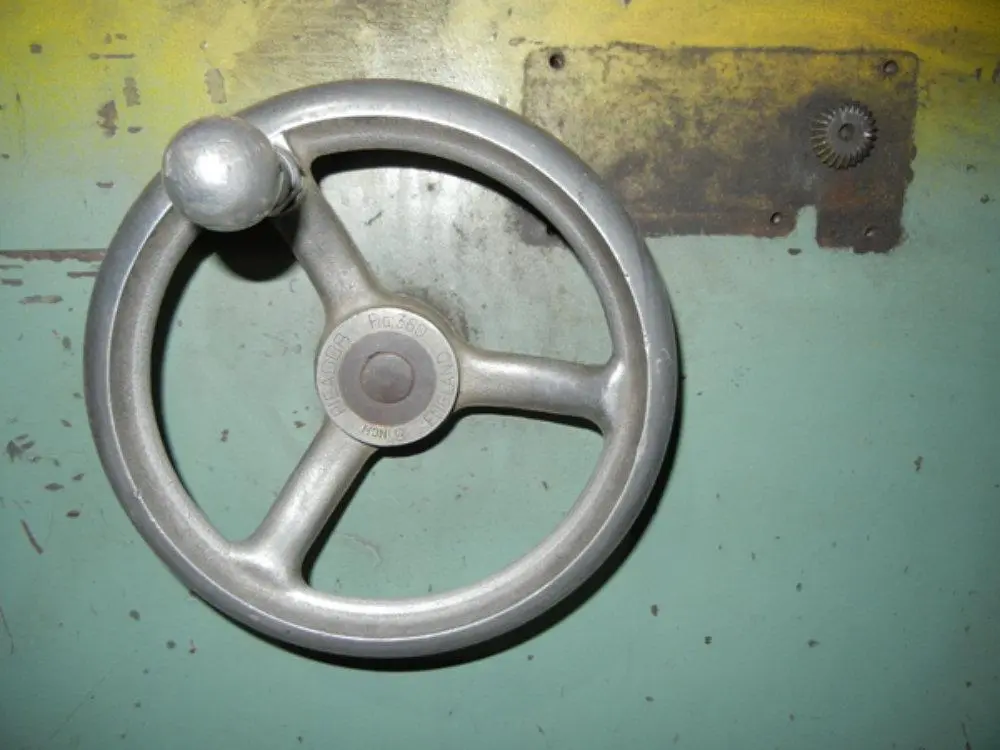

Ram tilt adjustment: Manual in bed
Backgauge range: 30”
Number of gauging axis: 1
Number of backgauge fingers: Solid bar
Stroke length: 10”
Throat depth: 8”
Clamp style (American or European): American
Ram clamps (sectionalized or solid bar) Sectionalized
Hydraulic or manual clamping: Manual
Die space (open height): 19”
Die space (closed height): 9”
Number of cylinders: 1
Advance speed: 105 IPM

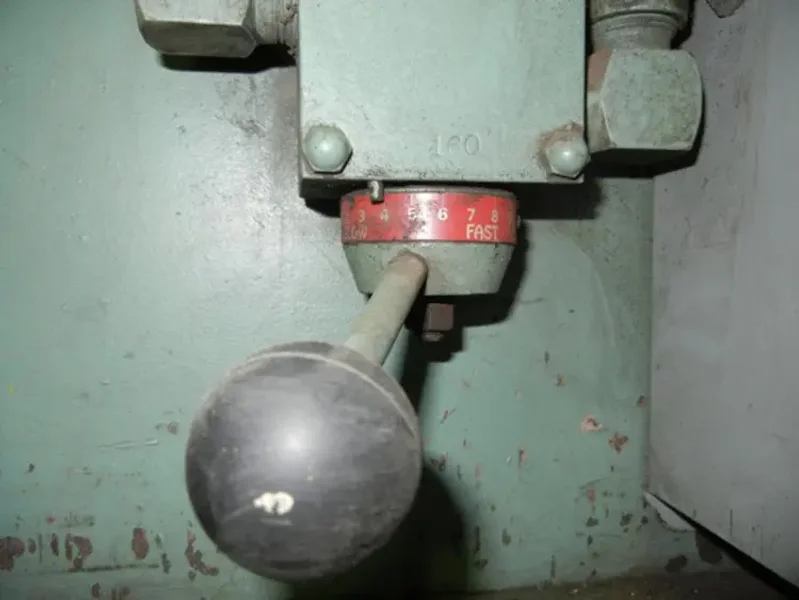

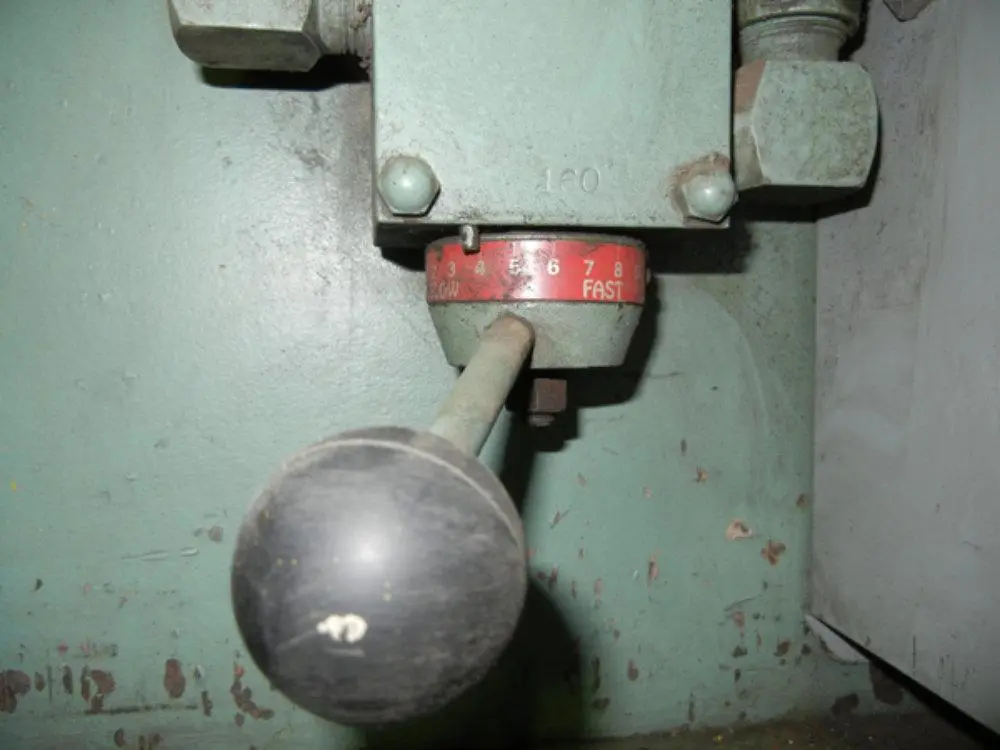

Pressing speed: 15-52 IPM
Return speed: 105 IPM
Die holder type: Standard single groove
Bed height: 34”
Bed cap width: 5-1/2”
Main motor: 30 HP
Voltage: 550 volt
Currently wired: 550 volt (440 volt transformer included)
Oil tank capacity: 170 gallons
Dimensions: 144” x 60” x 124”
Weight: 33,500 lbs

Highlights:
Hyd, 126" BH, 144" O/A, 10" stroke, 8" throat, 30" FOMBG, large assortment of tooling (440 volt transformer included)
