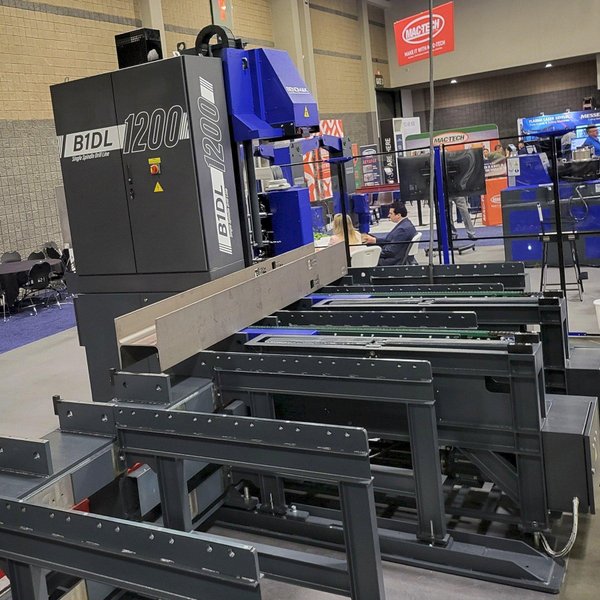

47.25” X 47.25” Beam Drill Line with Bendmak BDL Motion Control System, BDL 1200 CNC Drilling, Beam Flippers, Minimum Quantity Lubrication, 3 Axis Servo Motors, 20 HP Spindle Motor Power, Automatic Tool Changing, Automatic Tool and Material Measurement.

GENERAL SPECIFICATIONS
Working Length:            59’
Profile Height:            2” - 47.25”
Profile Width:                2” - 47.25”
Support Table Height:        39.4”
Length:                57.3’
Height:                10.8’
Width:                    12.2’
Weight:                26,500 LBS
Maximum Tool Length:        12”
Tapping:                M12 - M20
Drilling Capacity:            ⅜” — 1-¼”
RPM:                    10 RPM - 1,500 RPM
Spindle Motor Power:        14 HP
Total Power:                60 HP
Tools ATC:                6 Stations

INCLUDES: Bendmak BDL Motion Control System, BDL 1200 CNC Drilling, Beam Flippers, Minimum Quantity Lubrication, 3 Axis Servo Motors, 20 HP Spindle Motor Power, Automatic Tool Changing, Automatic Tool and Material Measurement.
