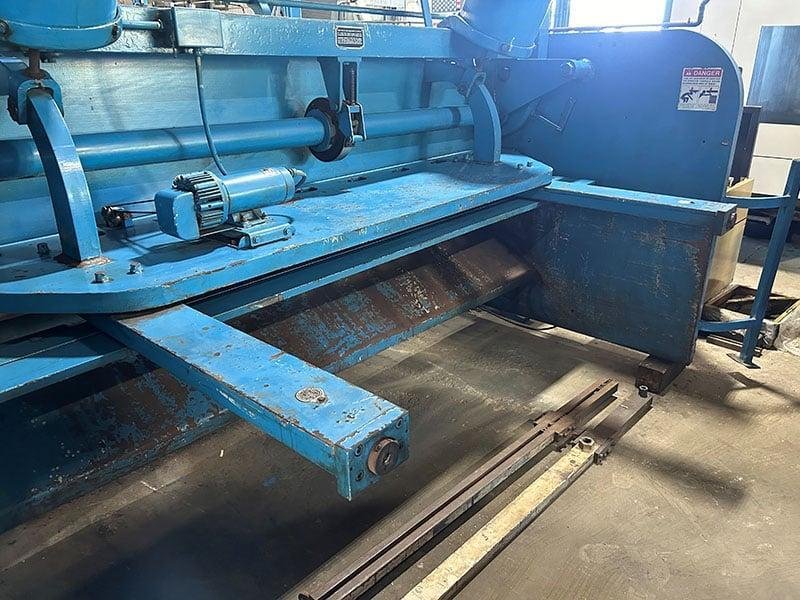

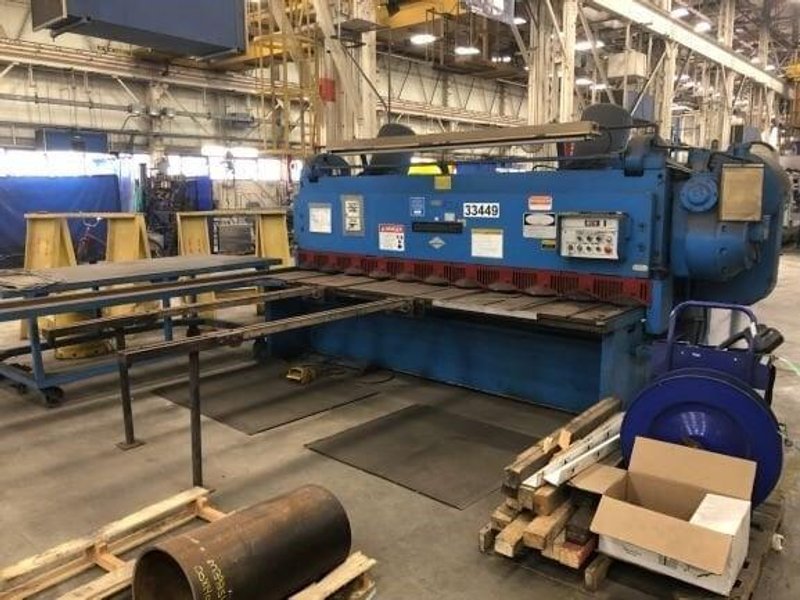

⅜” X 10 Mechanical Shear with 36” Front Operated Power Backgauge, Squaring Arm, Dovetail Slots in Shear Table, Electrical Foot Switch, Automatic Pressurized Lubrication, Interlocked All Steel Construction and Non-Float Inclined Ram

GENERAL SPECIFICATIONS
Max. Thickness Mild Steel:                        ⅜”
Max. Thickness Stainless:                        ¼”
Length:                                10’
Approx. Shipping Weight:                        26,400 Lbs
Motor:                                    10 HP
Stroke Speed:                            50 SPM
To Blade Edge:                            ⅞”
Rake Taper Foot:                            9/32”
Standard Gaps (Throat Clearance):                18”
Number of Holddowns:                        11

INCLUDES: 36” Front Operated Power Backgauge, Squaring Arm, Dovetail Slots in Shear Table, Electrical Foot Switch, Automatic Pressurized Lubrication, Interlocked All Steel Construction and Non-Float Inclined Ram

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
