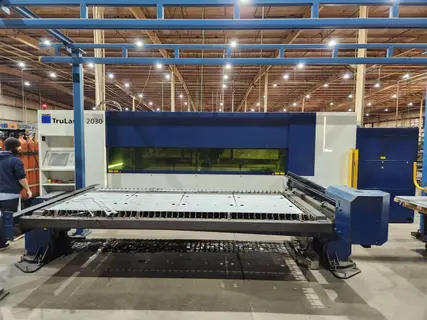

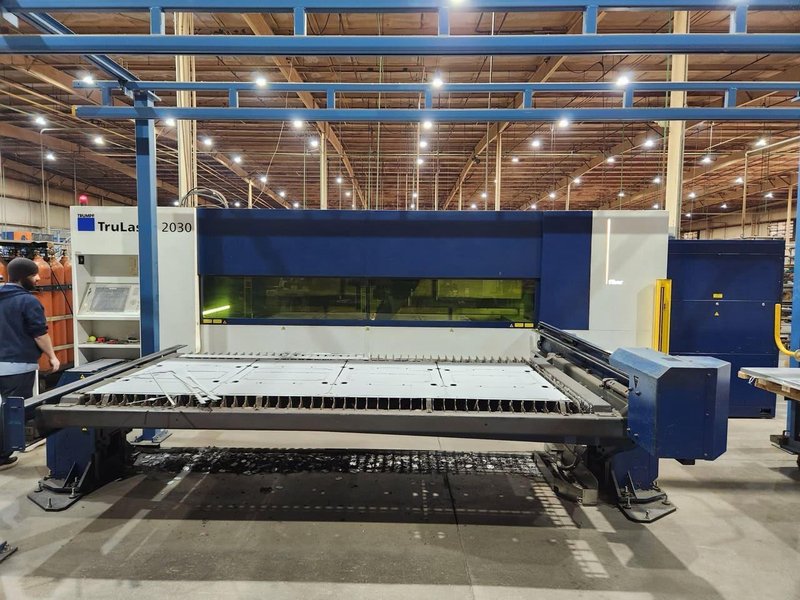

5’ X 10’ Fiber Laser Cutting System with 4,000 Watt Resonator and Trumpf CNC Control System.

GENERAL SPECIFICATIONS
Laser Power:                        4 kW
Cutting Table Size:                    3000 mm X 1500 mm
Max Workpiece Weight:                1,985 Lbs
Mild Steel Max:                    1”
Stainless Steel Max:                    0.8”
Aluminum Max:                    0.8”
Brass Max:                        0.31”
Copper Max:                        0.31”
Max Axis Speed (Simultaneous):            140 m/min
Machine Dimensions:                326” X 267” X 91”
Weight of Basic Machine:                17,085 Lbs
Average Power Consumption (Production):    13 kW

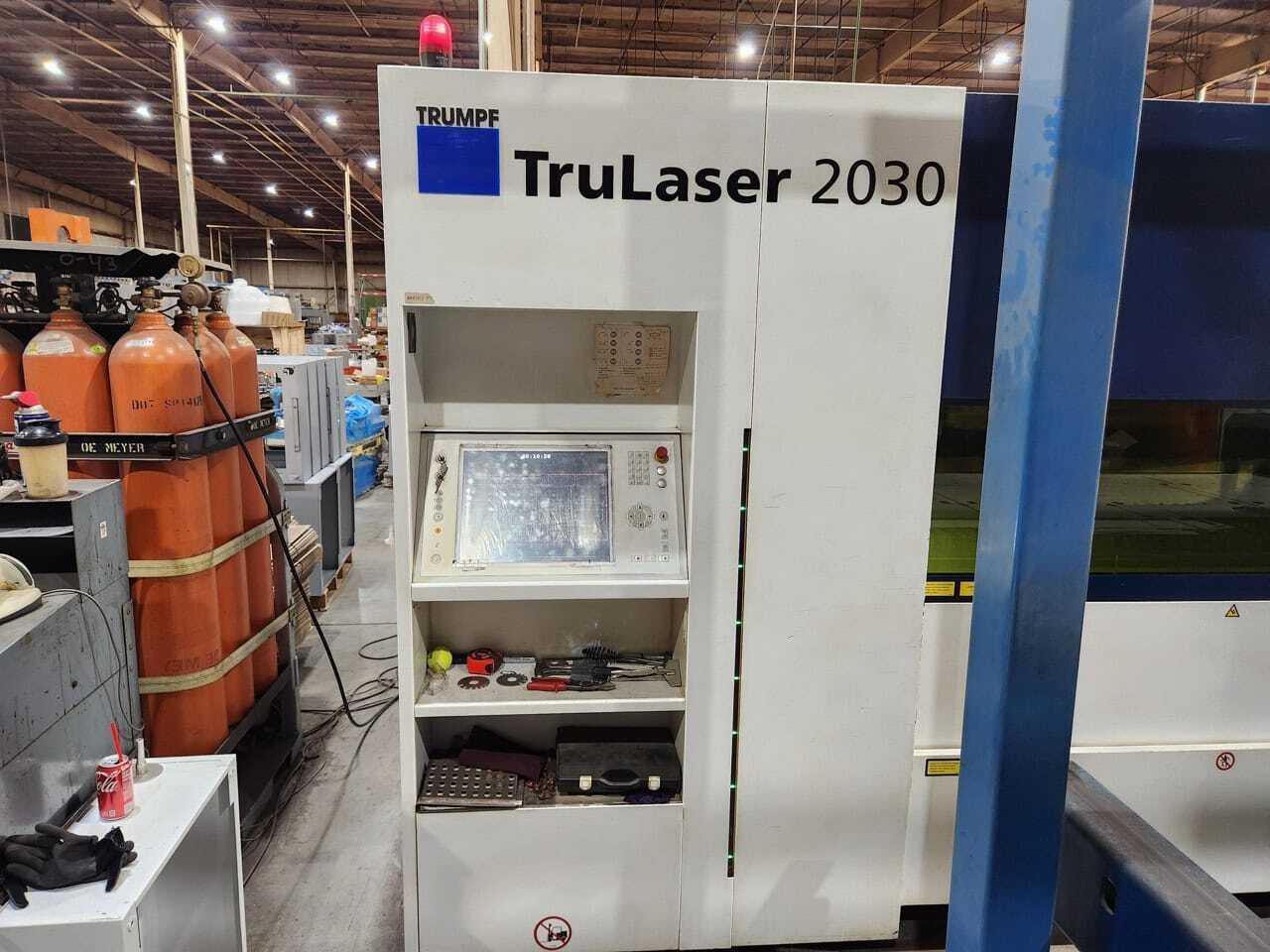

INCLUDES: 4,000 Watt Resonator and Trumpf CNC Control System.
