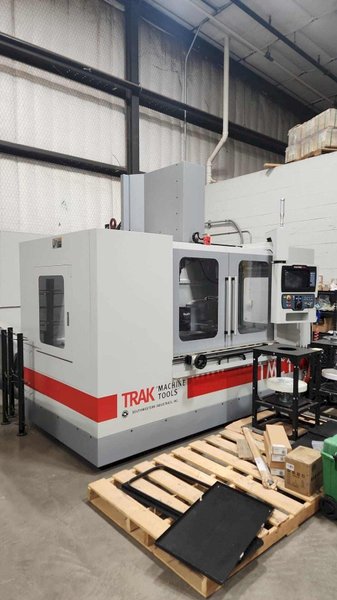

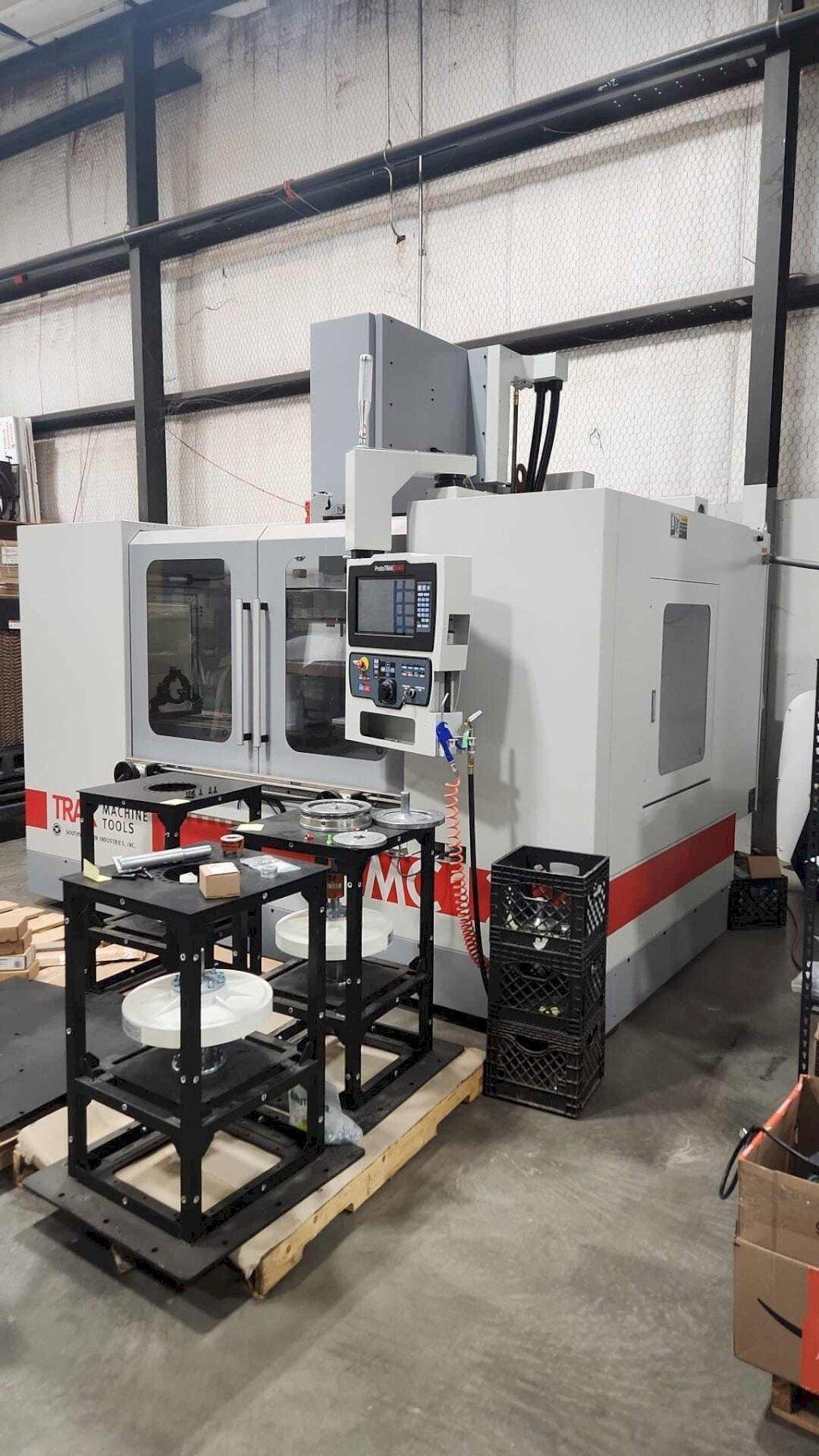

50” X 27” X 25” Vertical Machining Center with ProtoTrak RMX CNC Control, Chip Auger and 16 Tool Capacity ATC.

GENERAL SPECIFICATIONS

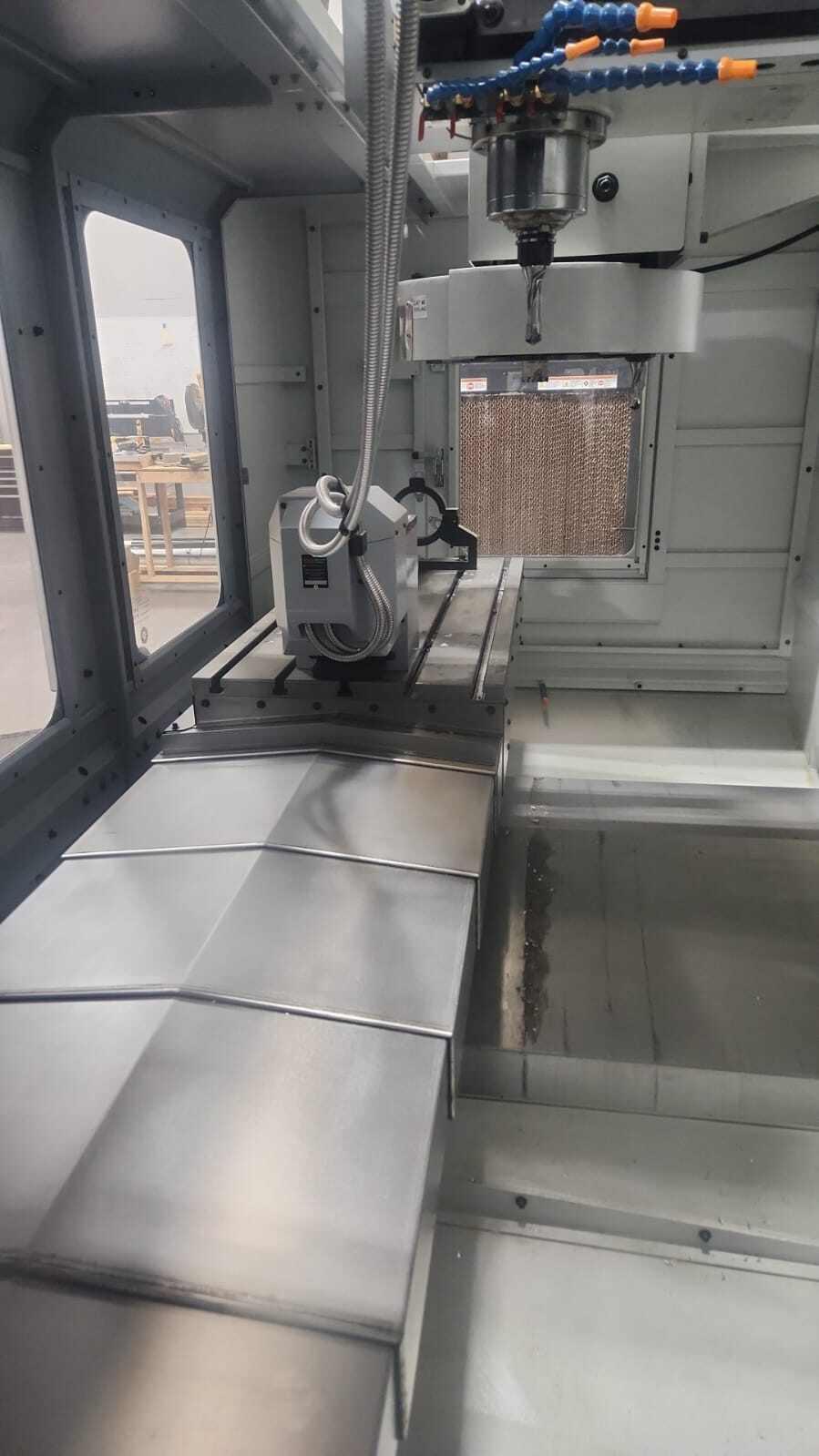

Table Size:                        23.62” X 51.18”
T - Slots:                        5 X 0.709” X 4,921”
X / Y / Z Travel:                    50” X 27” X 25”
Spindle Taper:                    40 Taper
Spindle Speed Range:                50 - 8,000 RPM
Spindle Nose Diameter:                3-¾”
Tool Clamping Force:                2,200 Lbs
Tool Holder Type:                    CAT40
ATC Tool Capacity:                    16
Max Tool Weight (Including Holder):        15 Lbs
Max Weight of Workpiece:                2,200 Lbs
Height of Table From Bottom of Bed:        38.37”
Min. Spindle Nose to Table Distance:        2.25”
Max Spindle Nose to Table Distance:        28.75”
Distance of Tool Carousel to Table:        21.54”
Spindle Center to Spindle Head Casting Face:    27.56”
Approx. Machine Dimensions:            134” X 145” X 11”

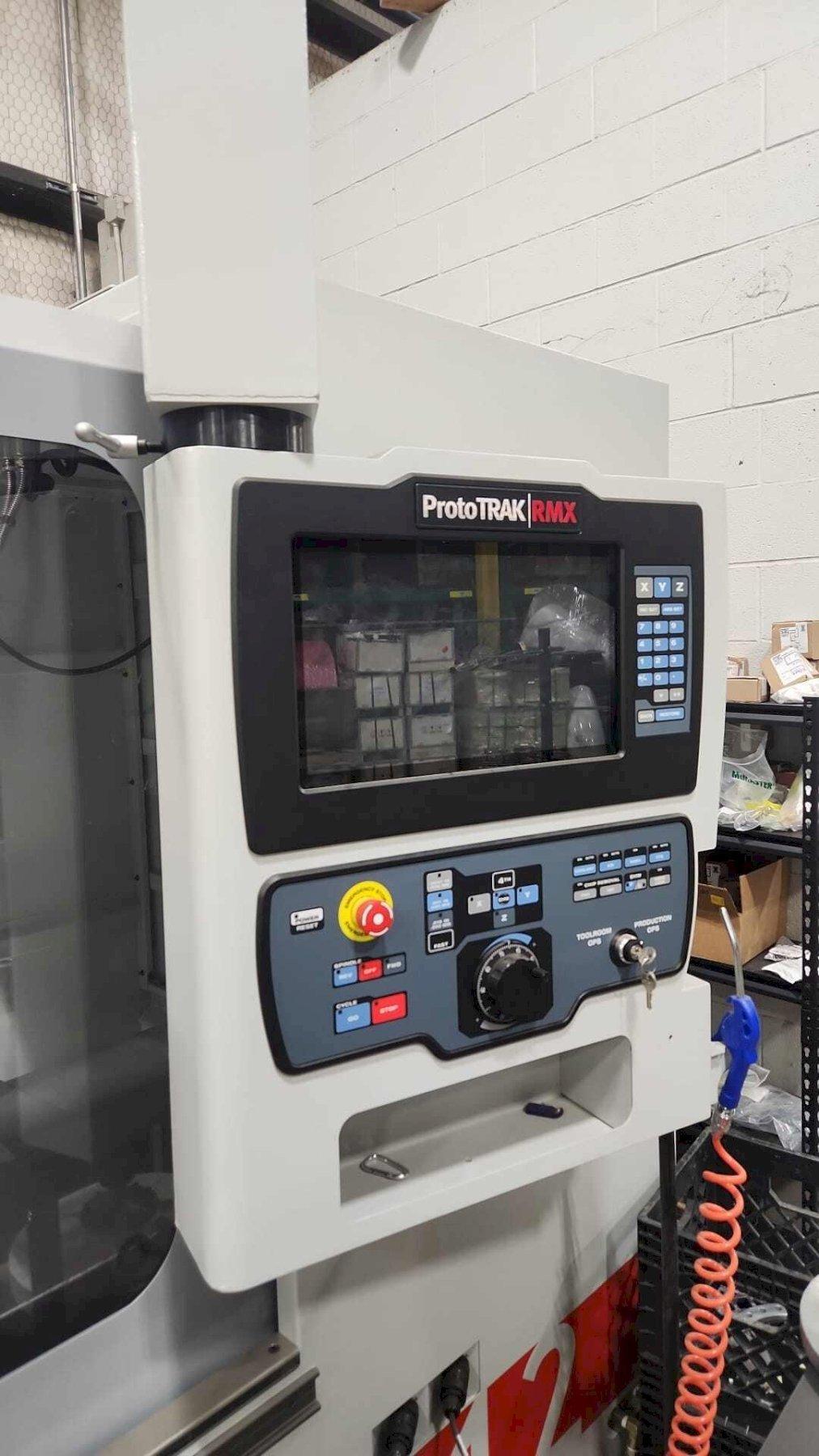

INCLUDES:  ProtoTrak RMX CNC Control, Chip Auger and 16 Tool Capacity ATC.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
