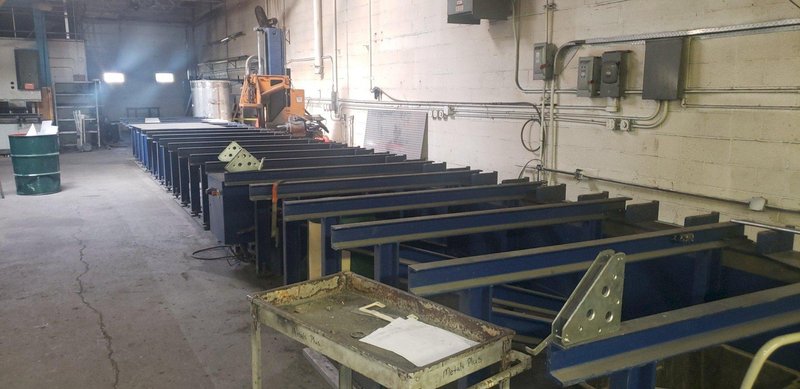

40’ X 40” CNC Single Spindle Drill Line with Siemens CNC Control Console, 40’ Bed, 1-9/16” Drill Capacity and Drill.

GENERAL SPECIFICATIONS
Max Profile Size:                        40’ X 40” Up To 730 Lbs/Ft
Min Drill Diameter:                        5/16”
Max Drill Diameter:                        1-9/16”
Max Material Thickness:                    Up To 10”
Max Speed X - Axis:                        100 FPM
Max Speed Y - Axis:                        120 FPM
Spindle Motor Power:                    13.5 HP
Drilling Feed Rate:                        2” - 10” / Min
Spindle Stroke:                        13”
Total Power:                             HP
Average Output:                        200 - 400 Holes / Hour
System Weight:                        25,000 Lbs
Electrics:                            460V / 3 PH

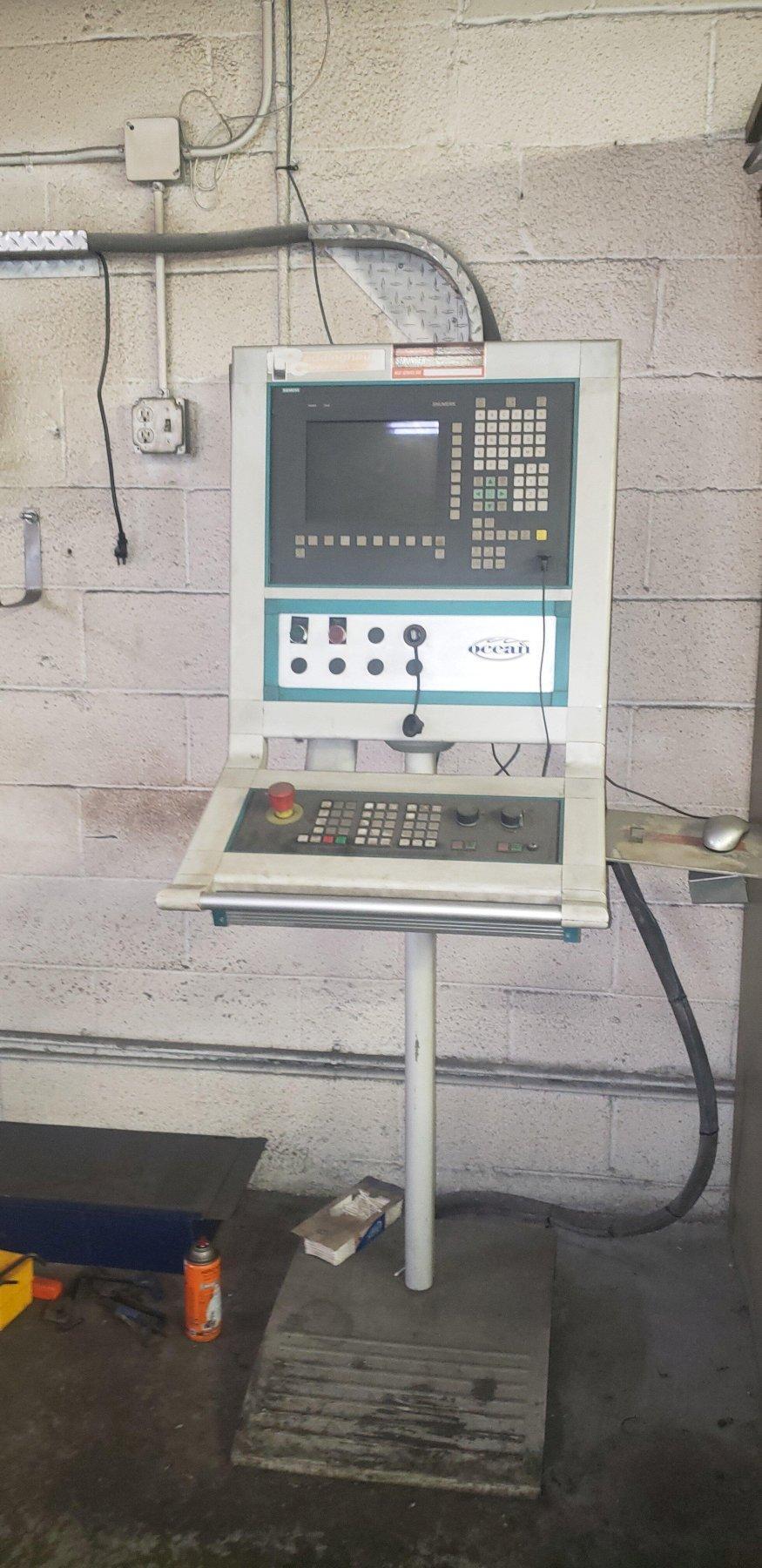

INCLUDES: Siemens CNC Control Console, 40’ Bed, 1-9/16” Drill Capacity and Drill.
