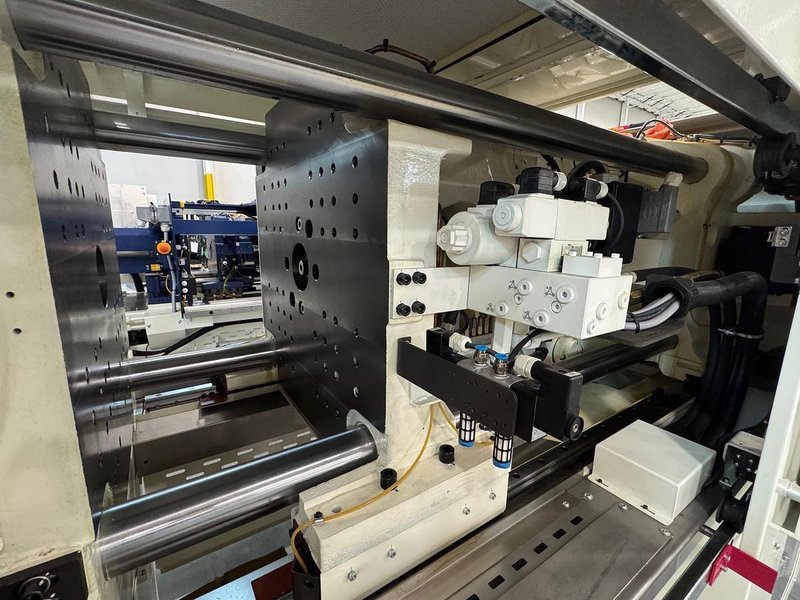

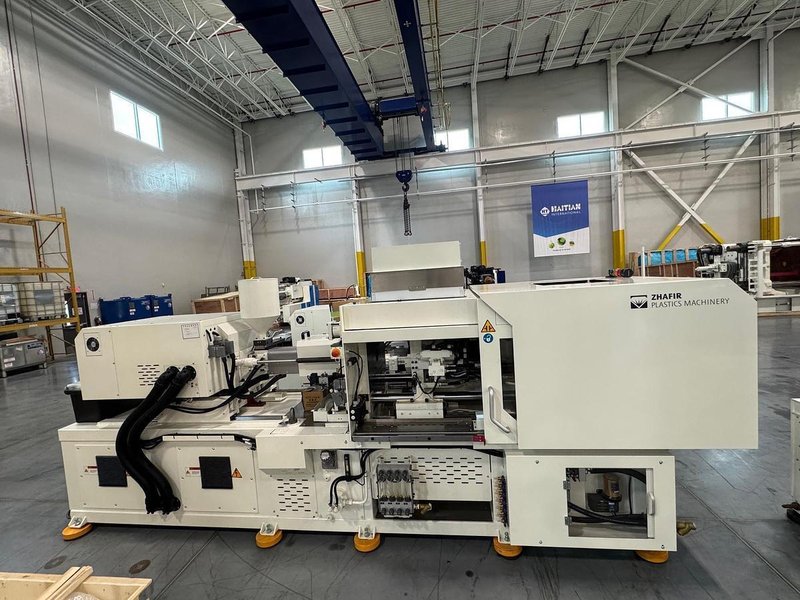

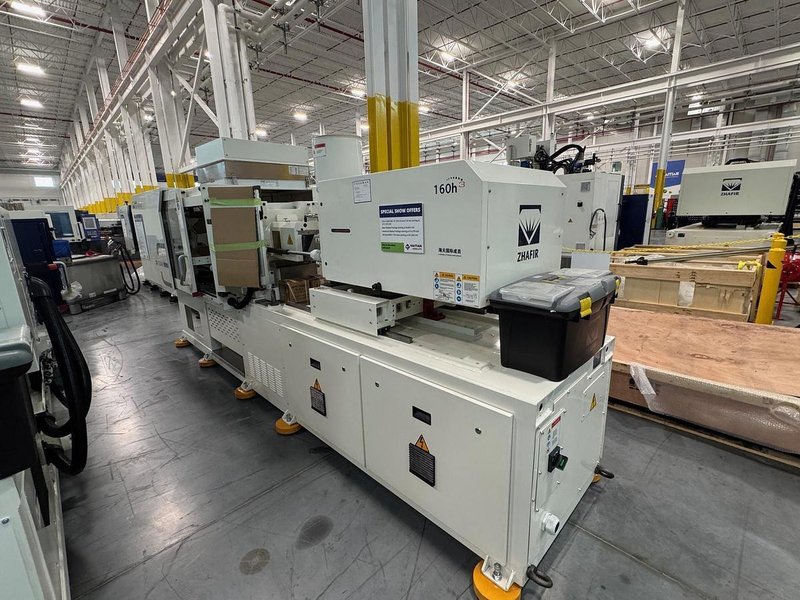

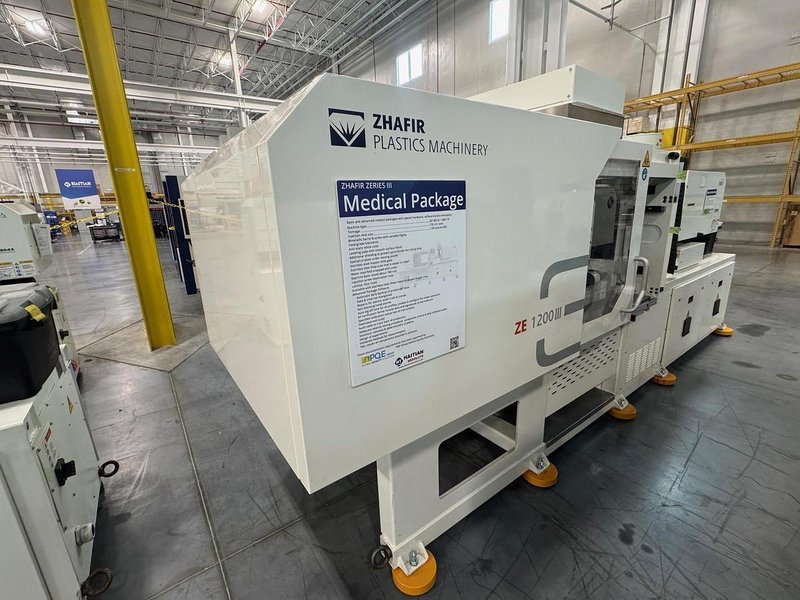

135 Tons X 1.83 oz Injection Molding Machine with Core Pull, Air Blast, Robot Interface, I/O Free Programming, OPC UA Connectivity, Increased Max Mold Weight, (1) PVG, TCU Interface and Additional Stainless Steel Protection in Clamp Area

GENERAL SPECIFICATIONS
US Tonnage:                            135 Tons
Shot Size (oz. of PS):                    1.83
Screw Diameter:                        26 mm
Platen Size:                            27.17” X 27.17”
Tiebar Spacing:                        18.5” X 18.5”
Max Mold Height:                        18.9”
Min Mold Height:                        5.91”
Opening Stroke:                        14.17”
Open Daylight:                        33.07”
Ejector Stroke:                        3.94”
Voltage:                            460 / 3 /60


INCLUDES: Core Pull, Air Blast, Robot Interface, I/O Free Programming, OPC UA Connectivity, Increased Max Mold Weight, (1) PVG, TCU Interface and Additional Stainless Steel Protection in Clamp Area

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
