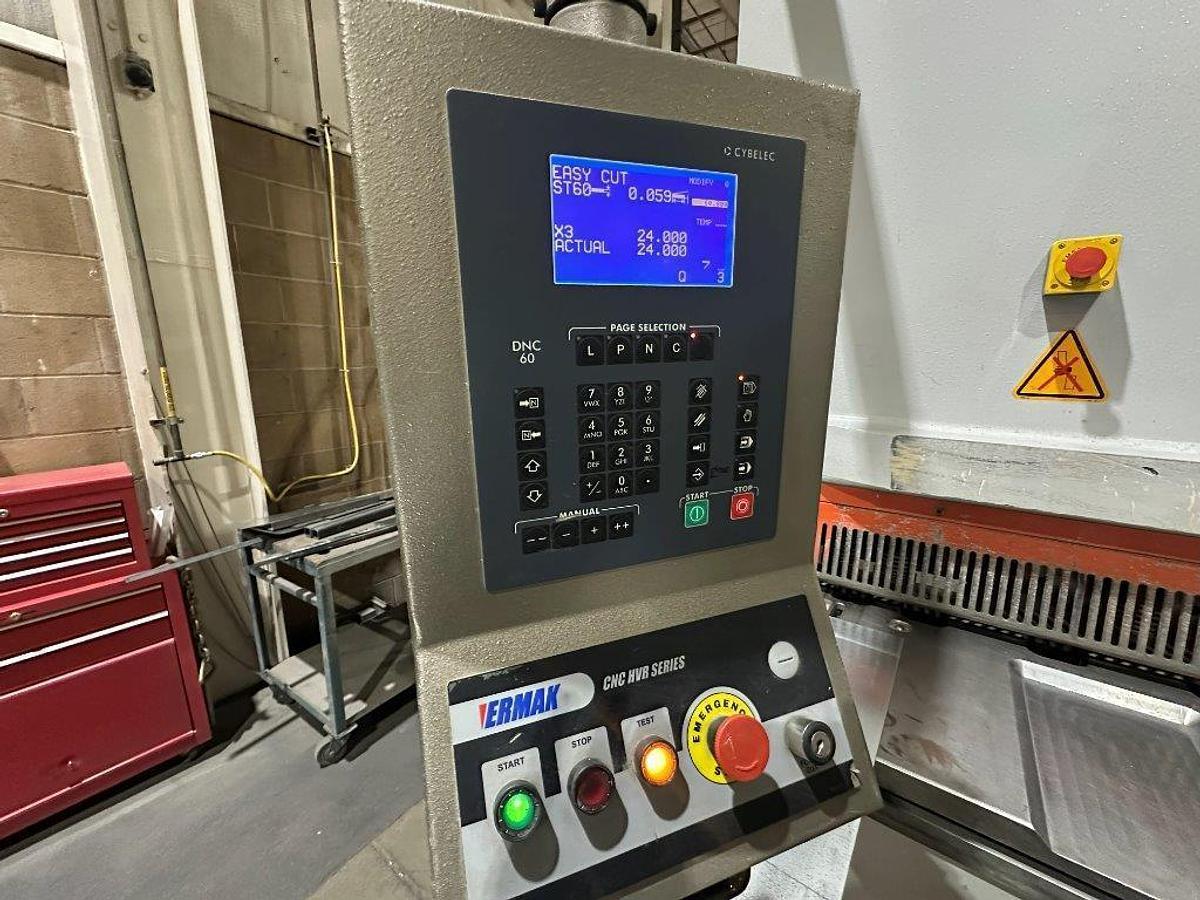

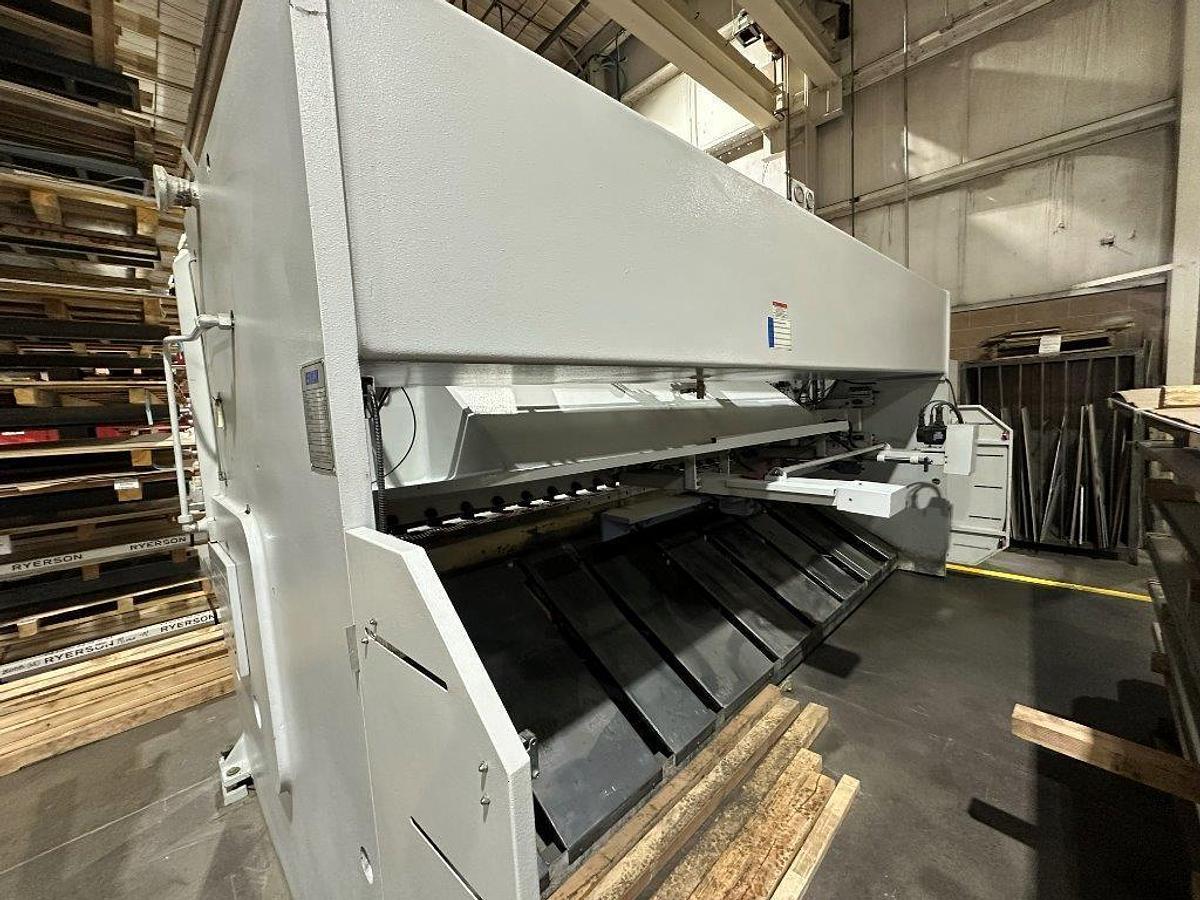

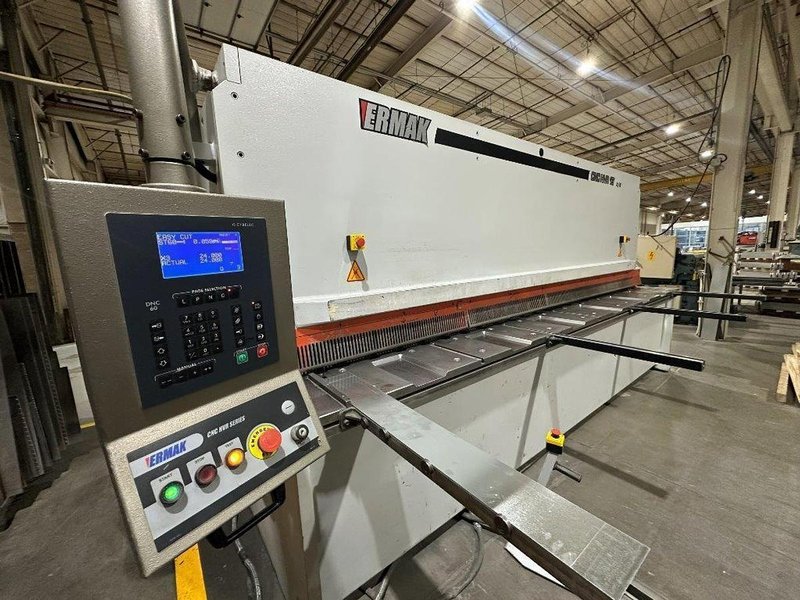

13’ X ⅜”  Hydraulic Shear with Cybelec CNC Control, Squaring Arm, (3) Support Arms and Foot Pedal.

GENERAL SPECIFICATIONS
Overall Cutting Length:                    161”
Mild Steel Cutting Capacity:                ⅜”
Stainless Steel Cutting Capacity:                ¼”
Table Height:                            39.4”
Speed:                            10 - 17 SPM
Number of Hold Downs:                    18
Back Gauge Stroke:                        39.4”
Back Gauge Speed:                        4.33 IPS
Main Motor:                            30 HP
BG Motor:                            1.5 HP
Dimensions:                            182” X 90” X 98” H
Weight:                            34,000 Lbs


INCLUDES: Cybelec CNC Control, Squaring Arm, (3) Support Arms and Foot Pedal.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
