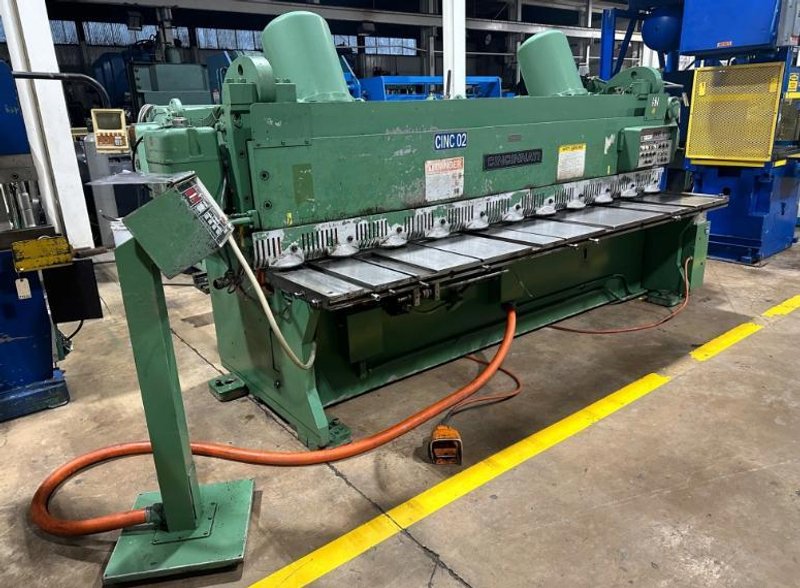

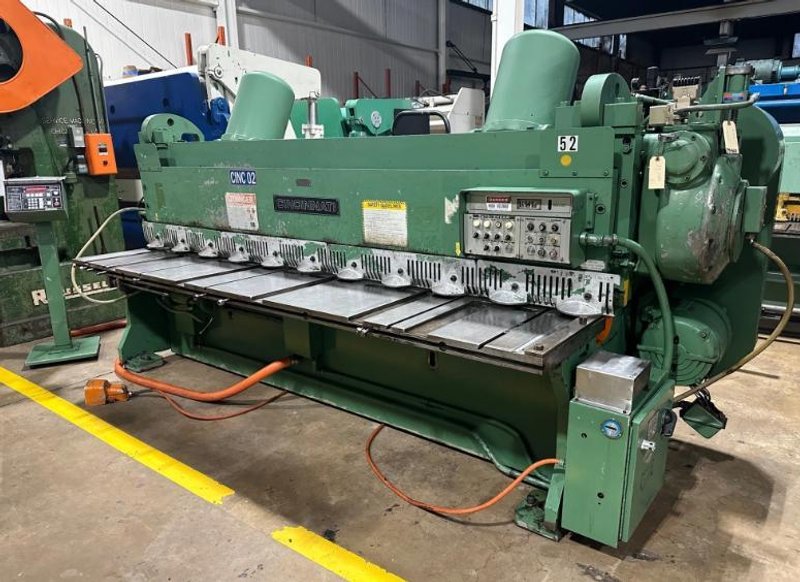

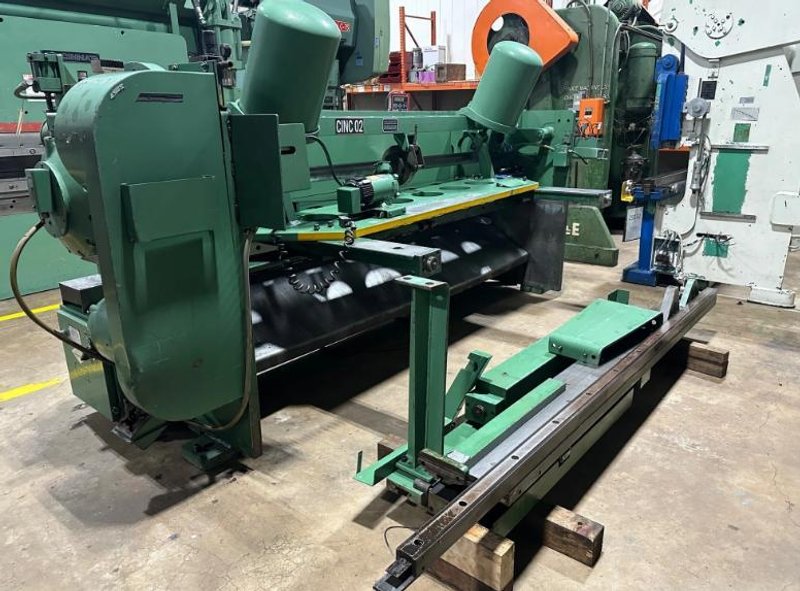

¼” X 10’ Mechanical Shear with 36” Front Operated Power Backgauge with Multi-Axis Gaging System, (1) Support Arm, Electrical Foot Switch, Push Buttons for Start - Stop - Jog, Automatic Oil Lubrication, Spring Counter Balance and (5) Dovetail in Front of Bed.

GENERAL SPECIFICATIONS
Max. Thickness:                        ¼”
Length:                            10’
Backgauge:                            36”
Length of Knives:                        10’ 3”
Gap:                                4”
Rake Angle:                            ¼”
Holddown to Knife Edge:                    ⅝”
SPM Approx:
Approx Overall Dimensions:                160” X 80” X 79” H
Approx Weight:                        19,500 Lbs


INCLUDES: 36” Front Operated Power Backgauge with Multi-Axis Gaging System, (1) Support Arm, Electrical Foot Switch, Push Buttons for Start - Stop - Jog, Automatic Oil Lubrication, Spring Counter Balance and (5) Dovetail in Front of Bed.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
